Description

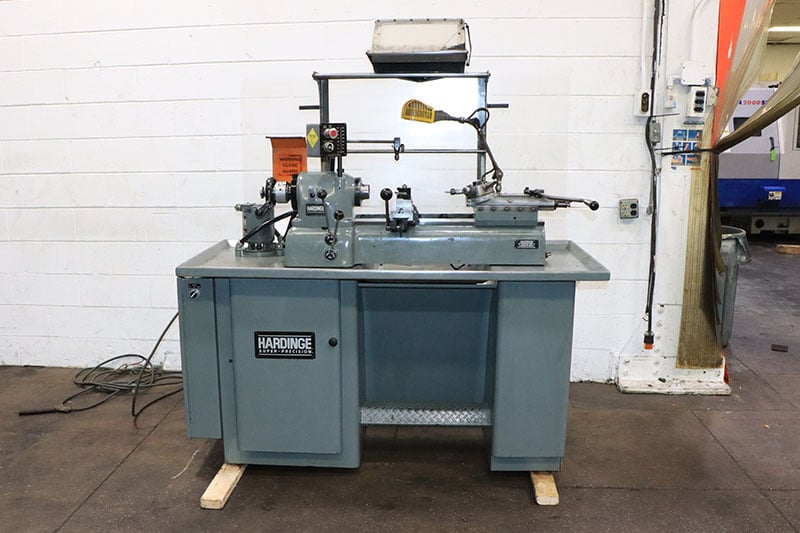

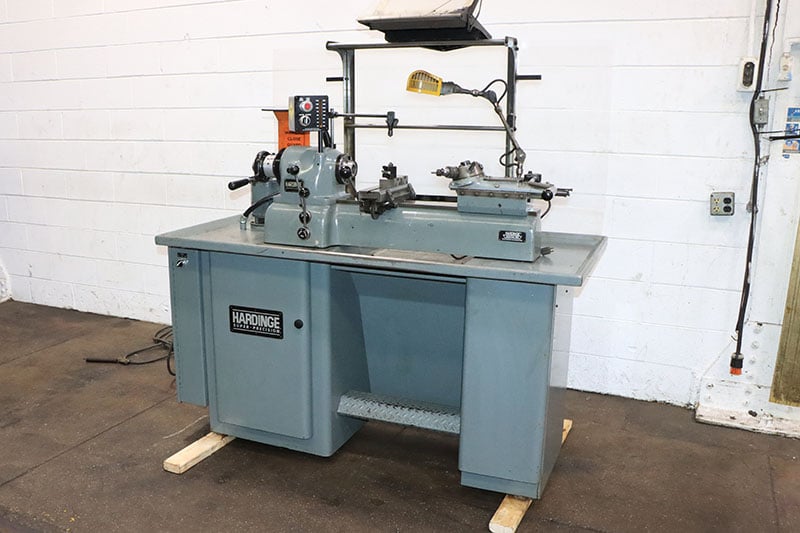

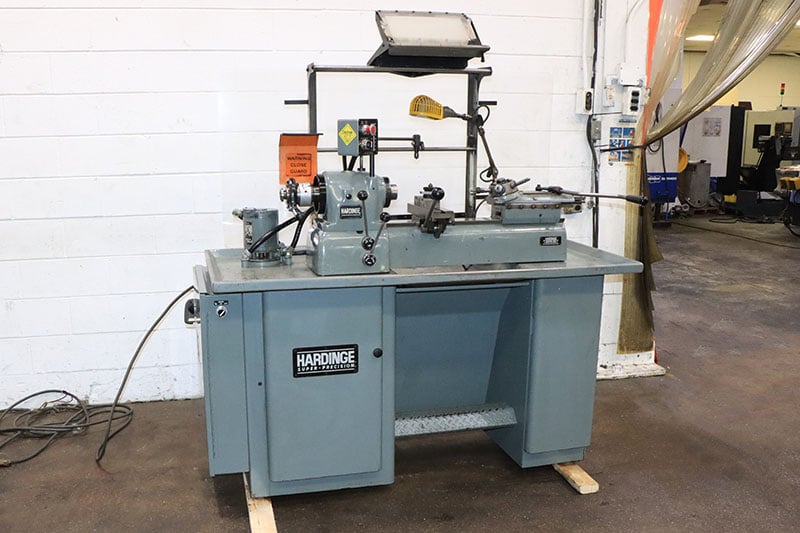

HARDINGE SECOND OPERATION LATHE,
MODEL: DSM 59, S/N DV-59-18747, NEW: 1987
SPECIFICATIONS:
SPINDLE CAPACITY WITH:
-ROUND 5C COLLETS ..................... 1-1/16"
-HEXAGON 5C COLLETS ................... 7/8"
-SQUARE 5C COLLETS ....................″/4"
-STEP CHUCKS .......................... 1-1/16" TO 6"
-JAW CHUCKS ........................... 5"
JAW CHUCKS THROUGH SPINDLE ............ 1-5/32"

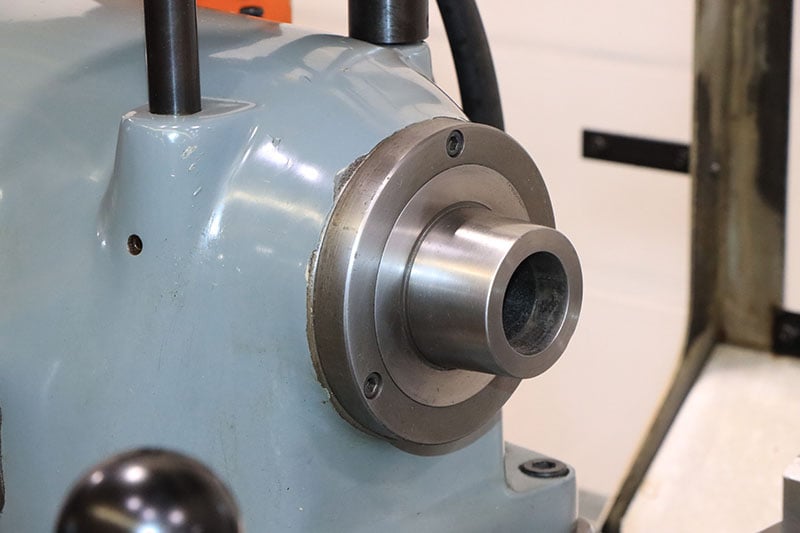

SPINDLE NOSE .......................... HARDINGE TAPER
LENGTH OF BED .........................″6"
SWING OVER BED ........................ 9"
TRAVEL OF DOUBLE TOOL CROSS SLIDE .....″-3/4"
TRAVEL OF TURRET SLIDE ................ 4"
DIAMETER OF TURRET HOLES ..............″/4"
VARIABLE SPINDLE SPEED RANGE .......... 230 TO″,500 R.P.M.
EQUIPPED WITH:
HARDINGE PRE-LOADED BALL BEARING SPINDLE CONSTRUCTION
HARDINGE BALL BEARING LEVER COLLET CLOSER FOR TYPE 5C COLLETS
HEXAGON TURRET

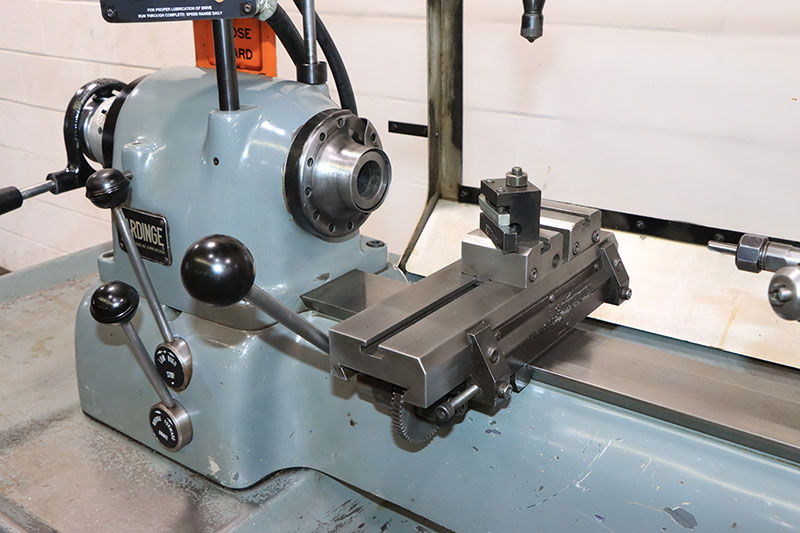

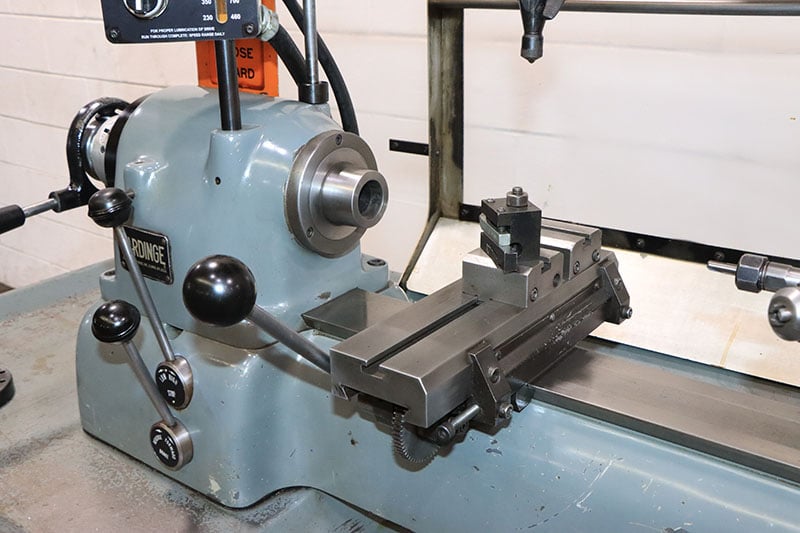

DOUBLE TOOL CROSS SLIDE
HARDINGE TOOL BLOCK
PUSH BUTTON CONTROL FOR VARIABLE SPEED
SELF-CONTAINED COOLANT SYSTEM
3/4 -″/8 HORSE POWER TWO-SPEED MAIN DRIVE MOTOR
220 VOLT OPERATION…
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
