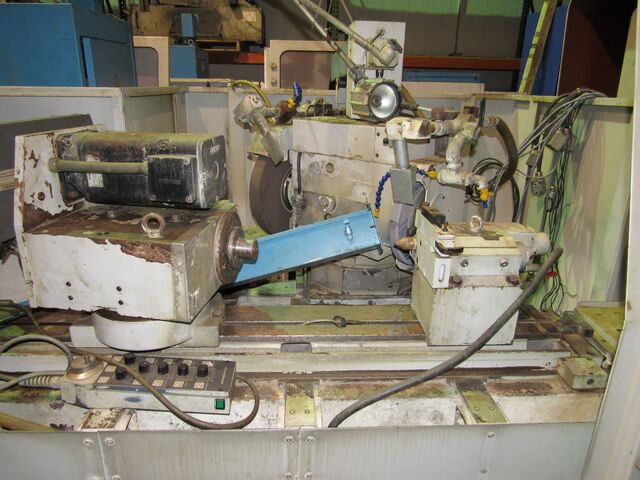

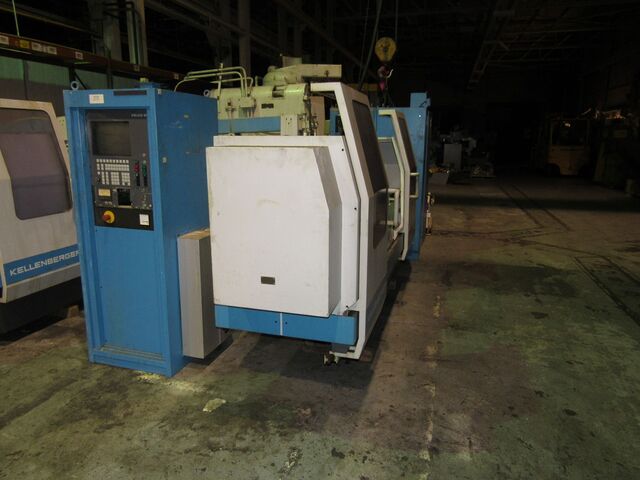

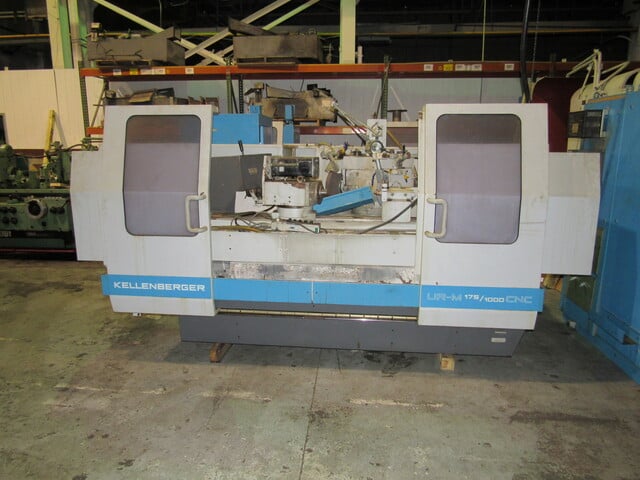

9.8" x 39.3" Kellenberger #UR-175X1000, CNC universal cylindrical grinder, 16" x 2.5" x 5" grinding wheel, 6.89" H of centers, 4.4 kW

Estimated monthly payment valid upon approved credit.

Request Formal Quote

Kellenberger UR 175/1000 Universal CNC Grinder, 14" Swing, 40" Between Centers, Tailstock Dresser
KELLENBERGER MODEL UR 175 x 1000
UNIVERSAL CNC CYLINDRICALGRINDER
S/N 620508
STANDARD SPECIFICATIONS
CAPACITY
Distance between centers......................... 39.37”
Height of centers................................ 6.89”
Max swing overtable............................. 9.80”
TABLE (Z-Axis)
Max travel....................................... 43.90”
Feed rates..................................... . 000010 - .009990
Table feed........................................1 – 394
Jogging feeds.................................... .000100
Rapid traverse................................... 394”min
Dwell of reversal................................ 0-99
Max swivel....................................... 9 degrees
WHEEL SLIDE (X-Axis)
Max travel....................................... 10.62”
Cont. infeed rates.............................. .000010 - .009990
Incremental infeed per table reversal........... .000010 - .009990
Discontinuous infeed per step................... .000100
Rapid traverse.................................. 394” min
WHEELHEAD
GW for cylindrical grinding..................... 16” x 2.5” x 5”
GW for right hand spindle end................... 9” x 0.75” x 3”
Power of motor.................................. 4,4 kw
Spindle speed................................... 1750 rpm
Grinding wheel head swivels...................... 270 degrees
With indexed stop every...................... 90 degrees
Internal grinding spindle carrier dia........... 70 (80)mm
WORKHEAD
Swivel.........................................360 degrees
Spindle speeds (programmable).................. 5 – 500 rpm
Internal taper of spindle...................... #5 morse
Adapter........................................#4/5 morse
Power of motor................................. 2,4 kw
TAILSTOCK
Internal taper of quill........................ #4 morse
Quill retraction...............................1.18”
ELECTRONIC CONTROL UNIT
-Axis continuous path control
Program storage capacity....................... 8 kilobytes
Resolution, X-Axis............................. 0,5
Resolution, Z-Axis............................. 0,5
Input sensitivity, X-Axis...................... .000010”
Input sensitivity, Z-Axis...................... .000010”
Overrides for X, Z, workhead spindle......... 0-200%
EQUIPPED WITH
Kelco 90 CNC control
Headstock Siemens servo driven
Tailstock – lever action
Tailstock dresser
Internal grinding spindle
Table Siemens servo driven
Infeed Siemens servo driven
Specifications are deemed accurate, however, subject to verification or prior sale.
