For Sale by Southern Fabricating Mchy Sales
Description

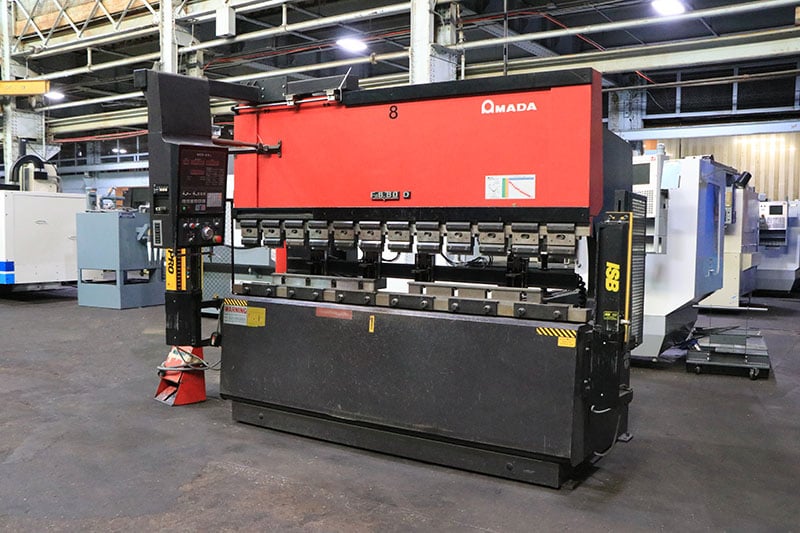

88 Ton X 8’ Hydraulic Press Brake with Amada NC9EX II Control, Sectionalized Ram Clamps, (4) Gauging Fingers and Pneumatic R - Axis
GENERAL SPECIFICATIONS
Max Tonnage: 88 Tons
Max Bending Length: 98.6”
Max Stroke Length: 3.94”
Open Height: 14.57”
Throat Depth: 15.7”
Distance Between Side Frames: 86.6”
Ram Approach Speed: 3.62” /Sec
Bending Speed: .33” /Sec
Return Speed: 3.58” /Sec
Machine Weight: 10,360 Lbs
No. of Cylinders: 3
Motor: 7.5 HP
Dimensions: 115.4” X 57.3” X 89.4”H
Weight: 12,236 Lbs

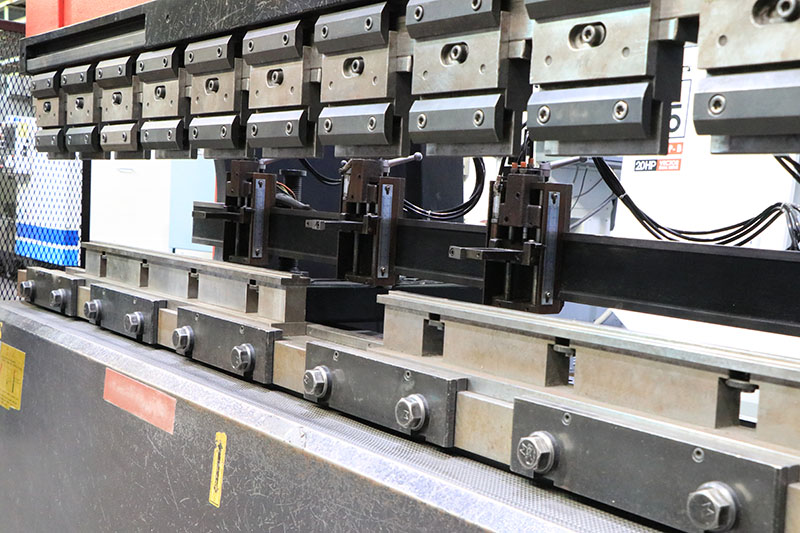

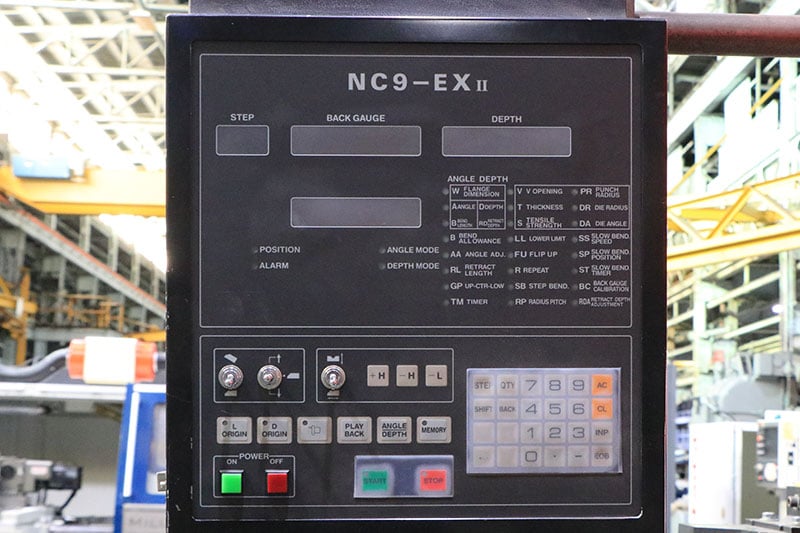

INCLUDES: Amada NC9EX II Control, Sectionalized Ram Clamps, (4) Gauging Fingers and Pneumatic R - Axis
***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
