For Sale by Harris Machine Tools, Inc.
Surplus Record Dealer Since 1986
Location: Houston, TX
Contact Sales Dept.
Phone Number: 713...> Show Phone Number 713-462-5800
Let the seller know you found their listing on Surplus Record!
Description

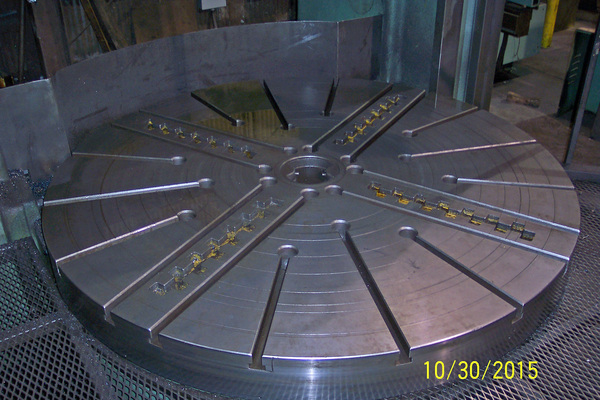

TABLE DIAMETER: 88" (4-JAW CHUCK)
SWING: 98"
HEIGHT UNDER RAIL: 86"
TABLE SPEEDS: 1.6 - 80 RPM
MAXIMUM WORK PIECE WEIGHT: 28,600 LBS.
TURRET VERTICAL TRAVEL: 62"
RAM SWIVEL: 30 DEGREES

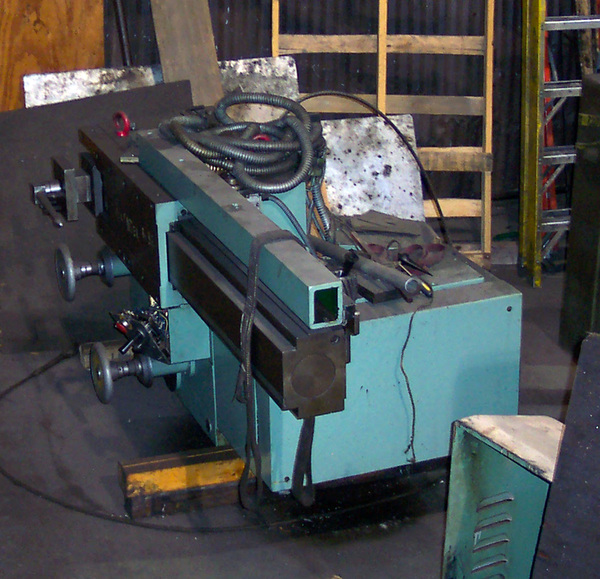

SIDE HEAD TRAVEL: 38"
MOTOR: 55 HP
OAD (WXDXH): 154" X 159" X 180"
WEIGHT (APPROX.): 78,000 LBS.
SWING: 98"
HEIGHT UNDER RAIL: 86"
TABLE SPEEDS: 1.6 - 80 RPM
MAXIMUM WORK PIECE WEIGHT: 28,600 LBS.
TURRET VERTICAL TRAVEL: 62"
RAM SWIVEL: 30 DEGREES
SIDE HEAD TRAVEL: 38"
MOTOR: 55 HP
OAD (WXDXH): 154" X 159" X 180"
WEIGHT (APPROX.): 78,000 LBS.
Get Your Price from Harris Machine Tools, Inc.!
