Brunner Engineering And Manufacturing 87 gal. Brunner Engineering & Mfg., condensate / feedwater receiver tank, 150 psi @ 650°F, 1995

Key Specifications

• Manufacturer: Brunner Engineering and Manufacturing, Inc. (Bedford, IN)
• Equipment Type: Condensate / Feedwater Receiver Tank
• Year Built: 1995
• National Board No.: 26143J
• Capacity: 87 Gallons (87.6 gal Water Capacity)
• MAWP (Max Allowable Working Pressure): 150 PSI @ 650°F
• MDMT (Min Design Metal Temp): -20°F @ 150 PSI
• Shell Thickness: 0.236"
• Head Thickness: 0.117"

Dimensions

• Diameter: 24"
• Shell Length: 27"
• Overall Dimension: 40"

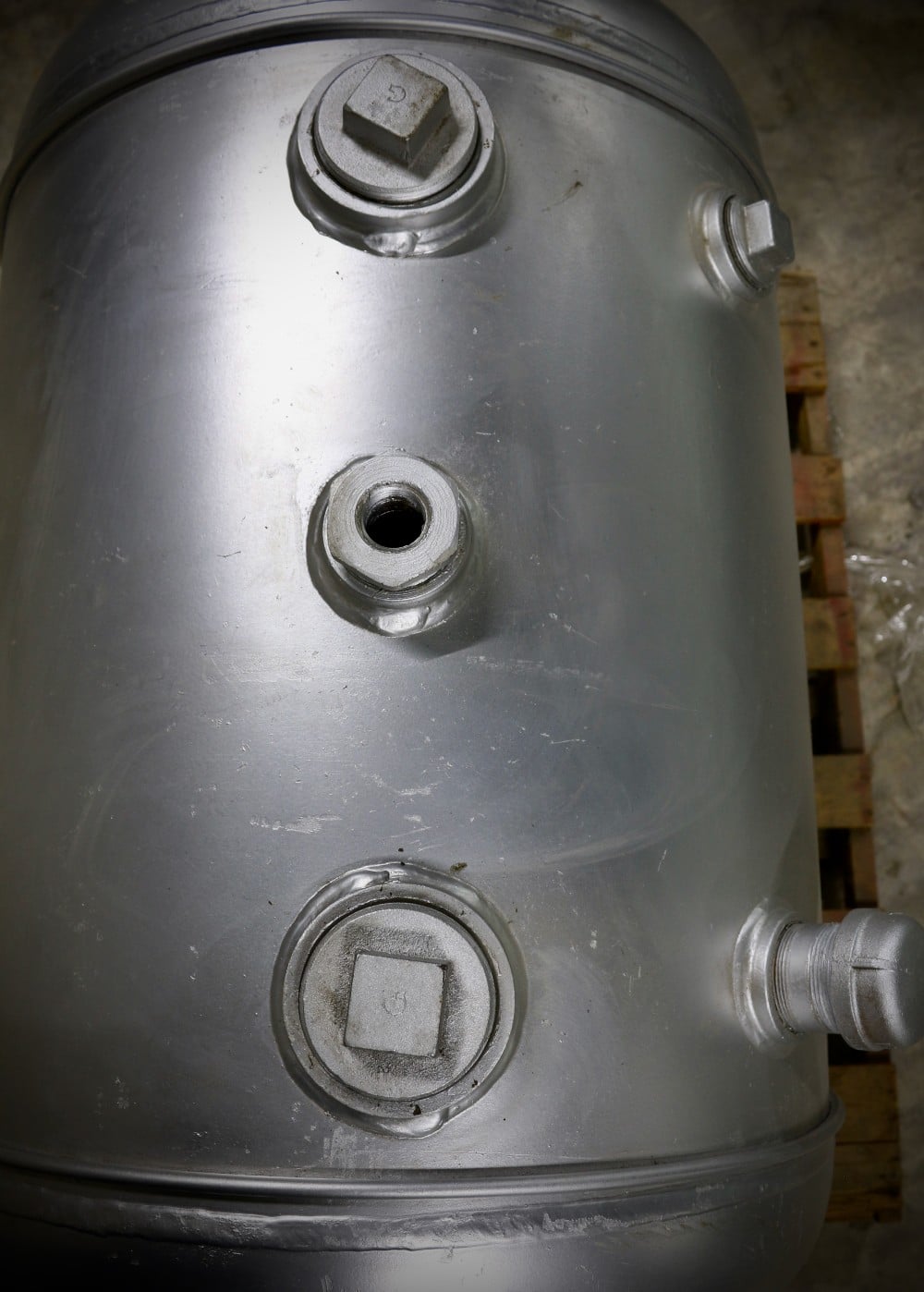

Tappings & Ports

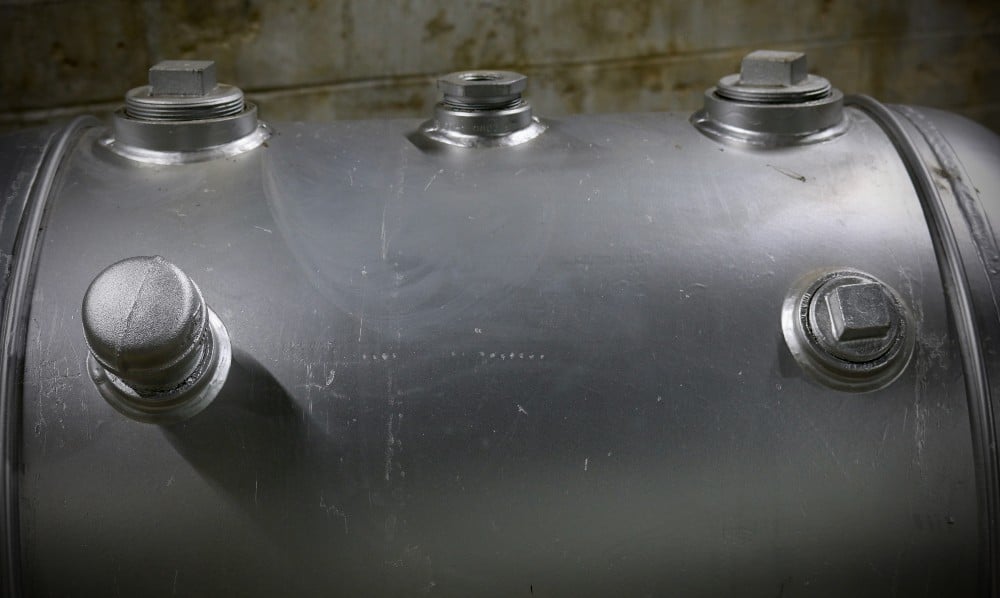

• Top Tappings:
• (2x) 3" Top tappings
• (1x) 2" Top tapping
• (2x) 2" Top back tappings

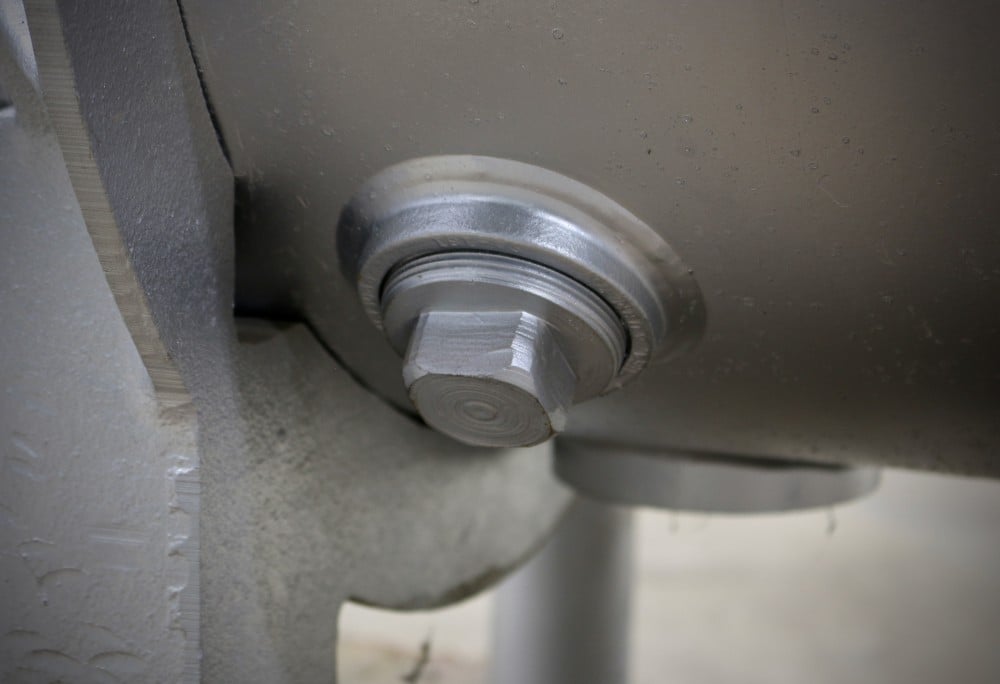

• Bottom Tappings:
• (1x) 3" Bottom tapping
• (1x) 3/4" Bottom tapping
• Auxiliary Connections:
• (1x) 3/4" Temperature probe connection
• (2x) 1/2" Gauge glass connections

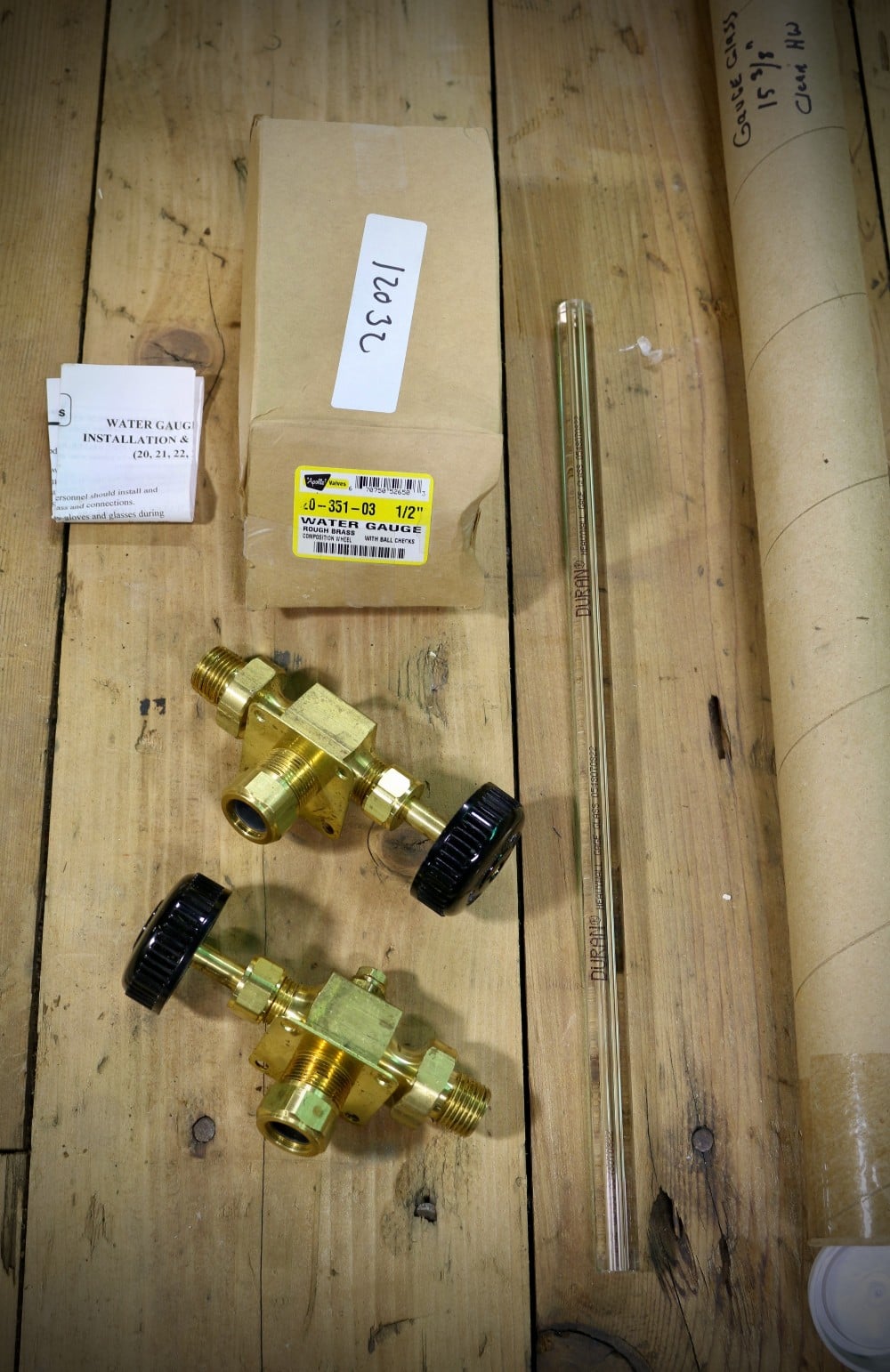

Included Accessories & Components

• Gauge Valves: New Apollo Valves Model 20-351-03 (1/2" Rough Brass Water Gauge Set with ball checks & composition handwheels)
• Gauge Glass: New Duran Heavywall Sight Glass Tube (15 3/8" Clean HW)
• Documentation: Apollo Water Gauge Installation & Operating Instruction sheet
• Mounting: Heavy-duty structural leg supports / saddles, palletized for secure transport

Item Description

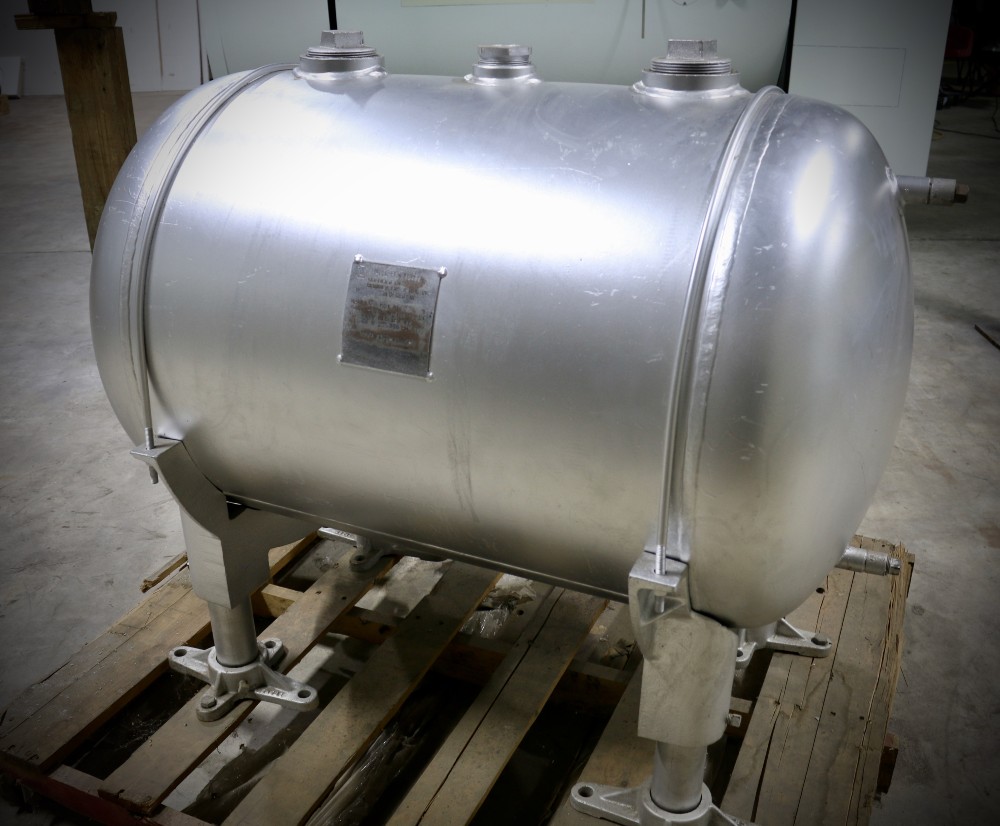

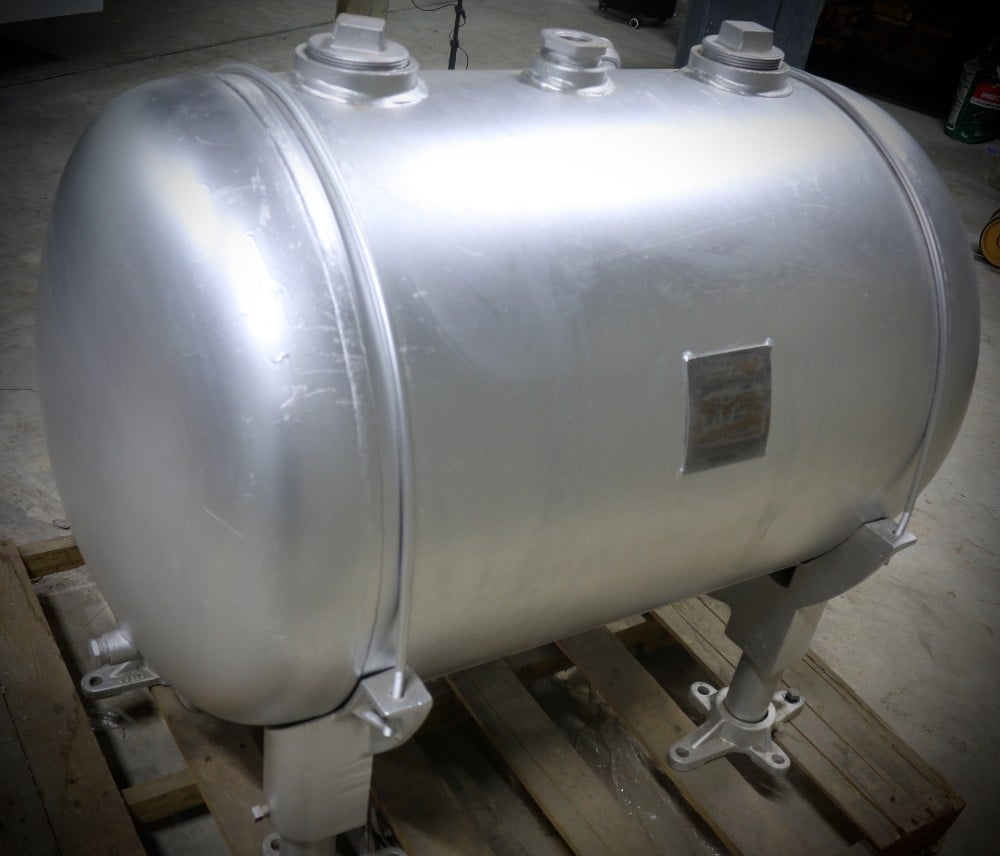

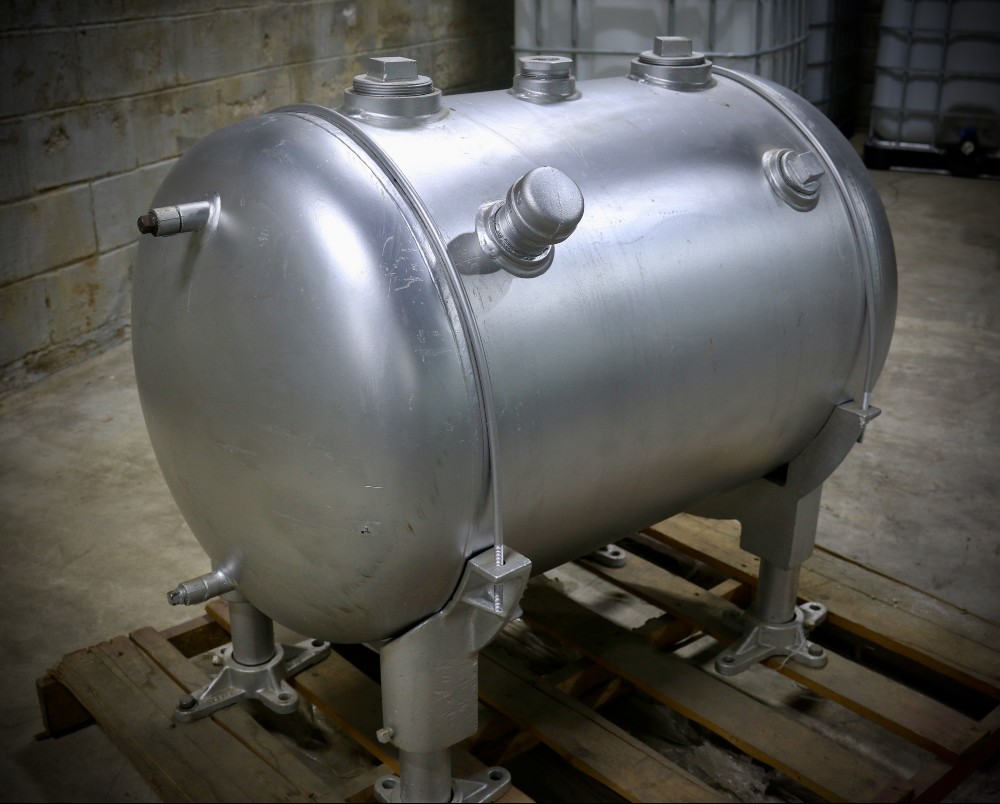

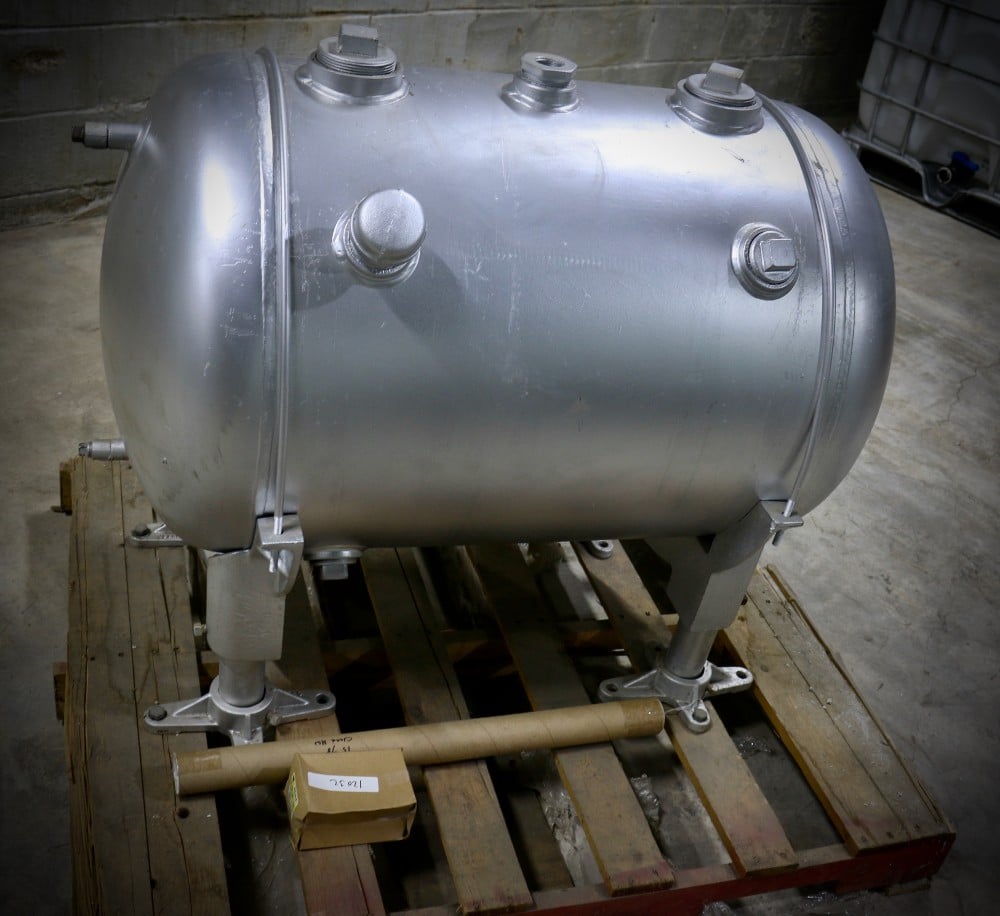

Industrial-grade 87-gallon Brunner condensate/feedwater receiver tank built by Brunner Engineering & Manufacturing, Inc. (Bedford, IN). Stamped ASME National Board #26143J with a MAWP rating of 150 PSI at 650°F (-20°F MDMT at 150 PSI). Constructed with a 24" diameter shell (0.236" shell / 0.117" head) and features versatile multi-port tappings including 3" and 2" top/back tappings, 3" and 3/4" bottom tappings, and a dedicated 3/4" temperature probe port. Complete with brand-new boxed Apollo 1/2" brass water gauge valves, Duran heavy-wall sight glass tube, and mounting legs. Unit is mounted on a wooden pallet and ready for freight pickup.
