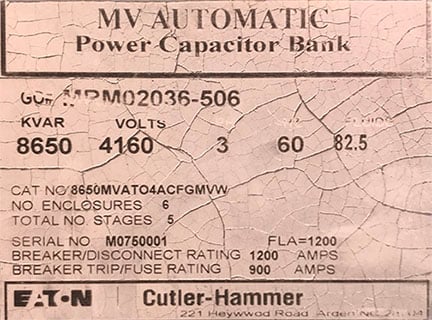

8650 KVAR EATON/CUTLER Cutler-Hammer, 4160 V, 10 STAGE, 21 - 350 KVAR SINGLE PHASE

B-13603
One (1) 8650 KVA, 10 stage, 4160 V, Eaton/Cutler Hammer Capacitor Bank, 1000A
Main Bus, NEMA 3R, MFG 3/07 consisting of:
Two (2) sections of 4325 KVA 5-Stage Bank Stage 1-5
1 X 1200A 8 KV Manually Operated Fused Disconnect Switch with (3) 900A Fuses
1 X Ground Switch
1 X 2 KVA CPT Fused 4160-120V
3 X 800/5A CT's
5 X 3 Sets 200A 5 KV Fuses 50 KAIC
5 X 200A Vacuum 7200 V Contactors
5 X Filter Reactors 4.16 KV 4.7H/180A 3 Phase
15 X 350KVAR 1 Phase Capacitors
5 Stages each with 865 KVAR Per Stage 4160 V, Single Phase, Delta Connected
with (6) 350-KVAR Cans 6640 V.
** Only One Power Factor Type PFC BLR-CH 5 Stage Controller for the 10 Steps**
Kirk Keys Between All Stages
Dimensions For Each 5 stages
90.33"H X 270"W X 48"D Total
Each Cabinet 45"W X 72"D
Total Weight 13,500 lbs.
Ships in 2 Sections - Each Split
