Long: 85.50
Wide: 12.00
Thick: 1.50
Stock # 2733
For Sale by Icon Industries, Inc
Surplus Record Dealer Since 1990
Tom,Pete,Bob
616-22...> Show Seller's Phone Number 616-229-2957 Let the seller know you found their listing on Surplus Record!
Description

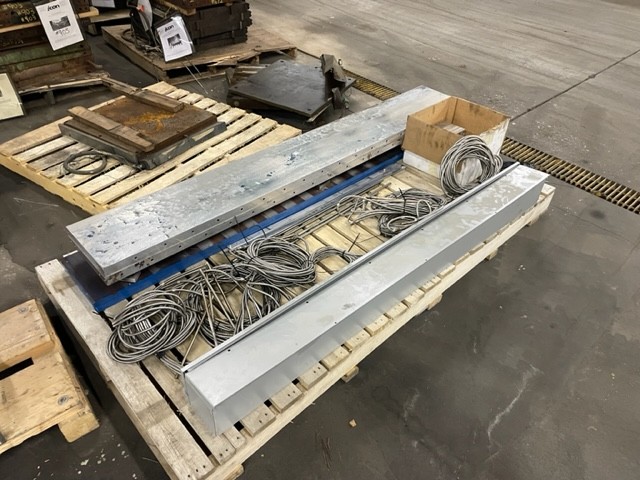

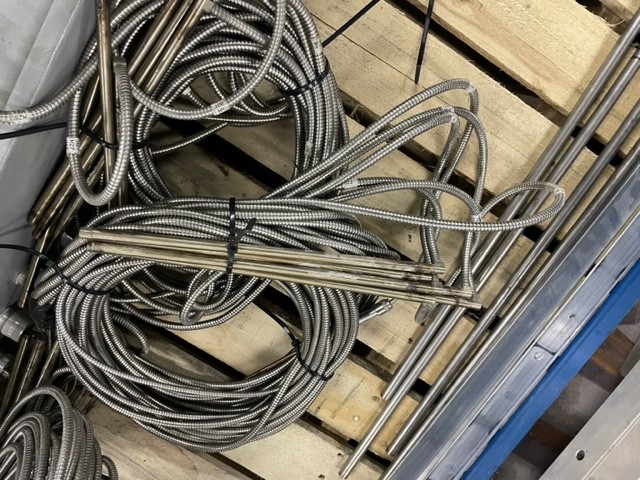

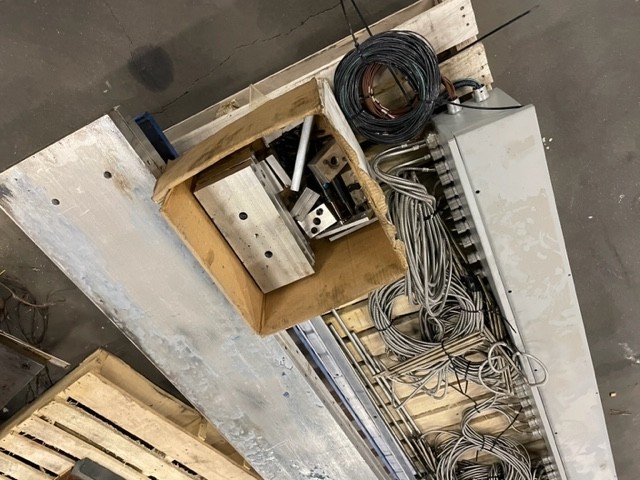

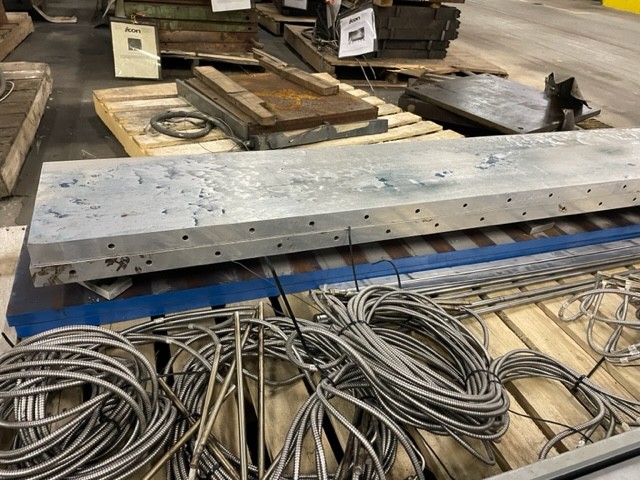

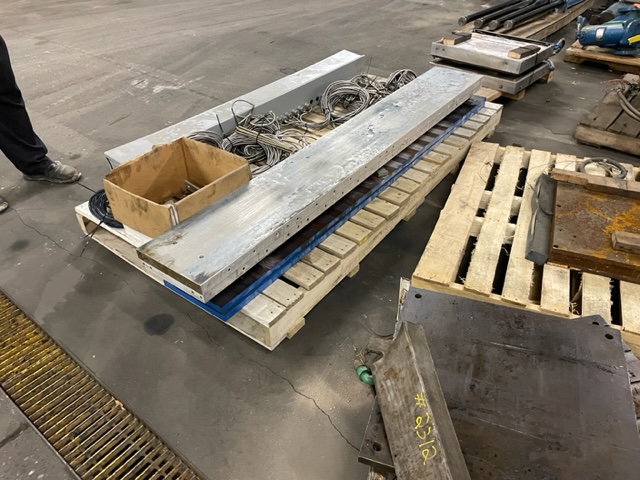

18 heaters per platen. Cartridge heaters: 0.375" diameter x 12" long; 700 watts; 240 volts. Originally set up with three zones of 4200 watts each. Rated to approx. 450 F. Originally wired for 480 volt. 1" thick steel mounting plates included. Junction box included. Platens weigh approx. 200 pounds each. Mounting plates weigh approx. 300 pounds each. 2 in stock. Item #2733.
Get Your Price from Icon Industries, Inc!
