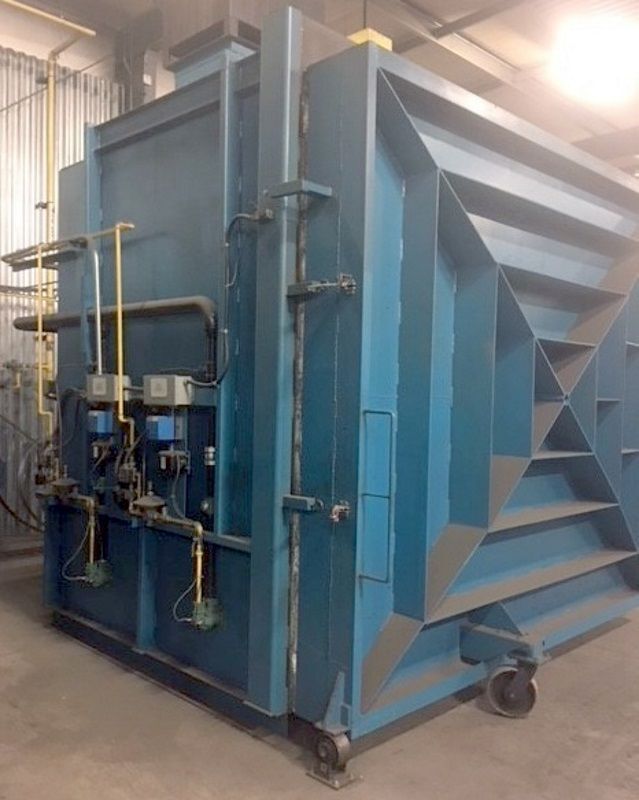

84" width x 60" H x 72" D Can-Eng, batch tempering furnace, 1400°F, 480 V., 3-phase

Manufacturer: Can-Eng
Type: Gas-Fired Batch Tempering Furnace
Heated: Natural gas @ 5 PSIG
Serial No.: CSJRPMGT-2 (furnace built 2012)
Workable Dim’s: 96” wide x 90” deep x 60” high
Note: There is a stainless-steel tray on top of the piers. It measures 90” wide x 75.5” wide. Height above tray is 58”.
Overall Dim’s: 11’6” wide x 13’ deep x 11’6” high
Furnace Weight: 25,000 pounds
Maximum Load: 10,000 pounds
Power: 480 Volt, 3-Phase, 60 Hz

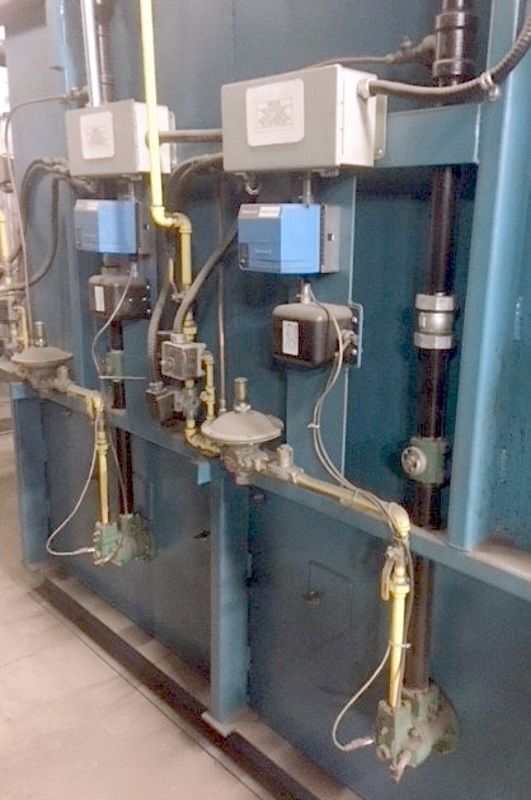

Maximum Temp: 1400°F (three (3) Eclipse burners)
Thermocouples: Two (2) Type K

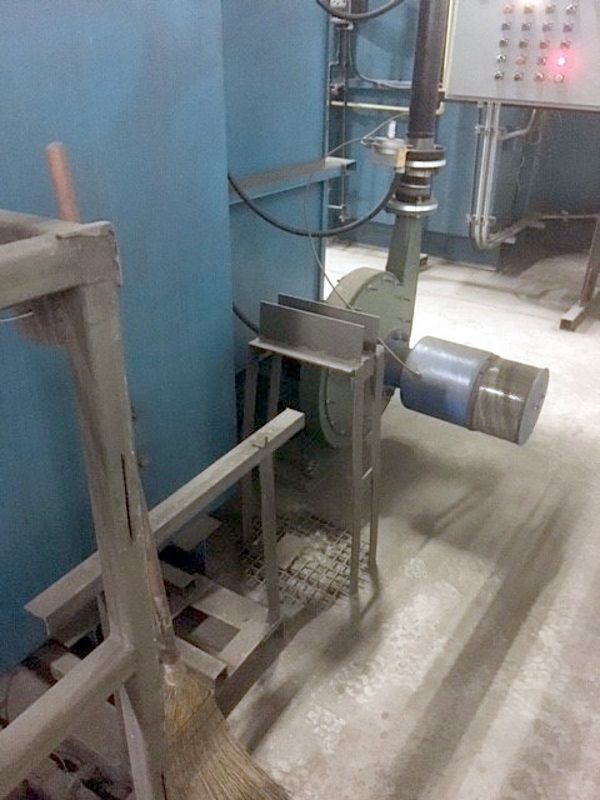

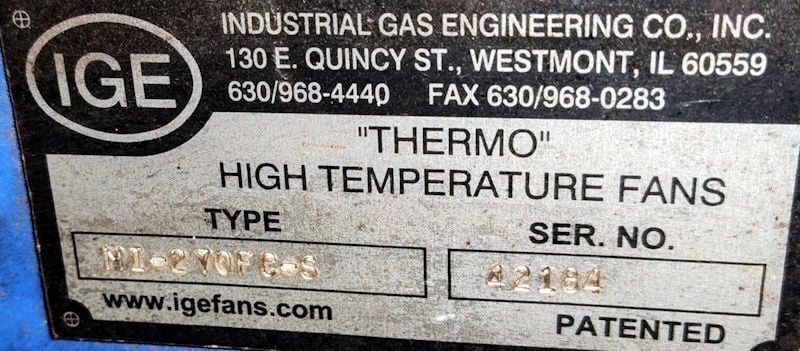

Fan: Industrial Gas Engineering Co.
Type: MI-27OFC-S - 15 HP
Serial Number: 42184

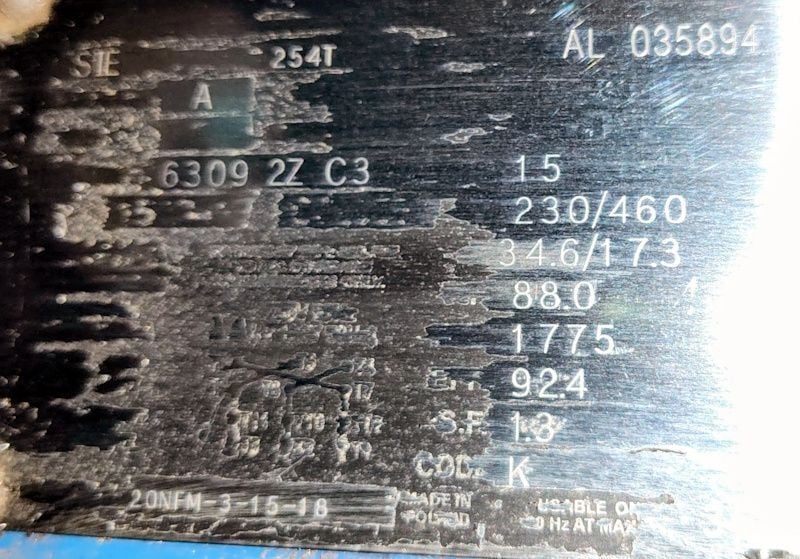

Note: Heavy duty fan assembly using 3 V-belts to transfer power from the 6" motor pulley to the 13" fan pulley. Motor is 1775 rpm. Centrifugal fan blade assembly is 30" diameter and 15 inches across.
General:

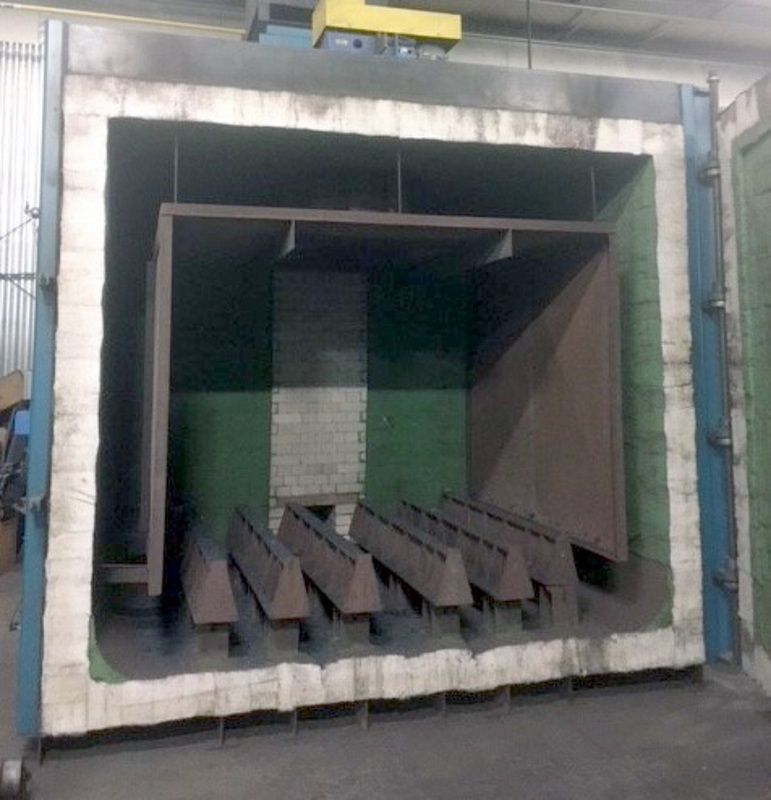

Ceramic fiber modules
IGE re-circulation fan with alloy baffle

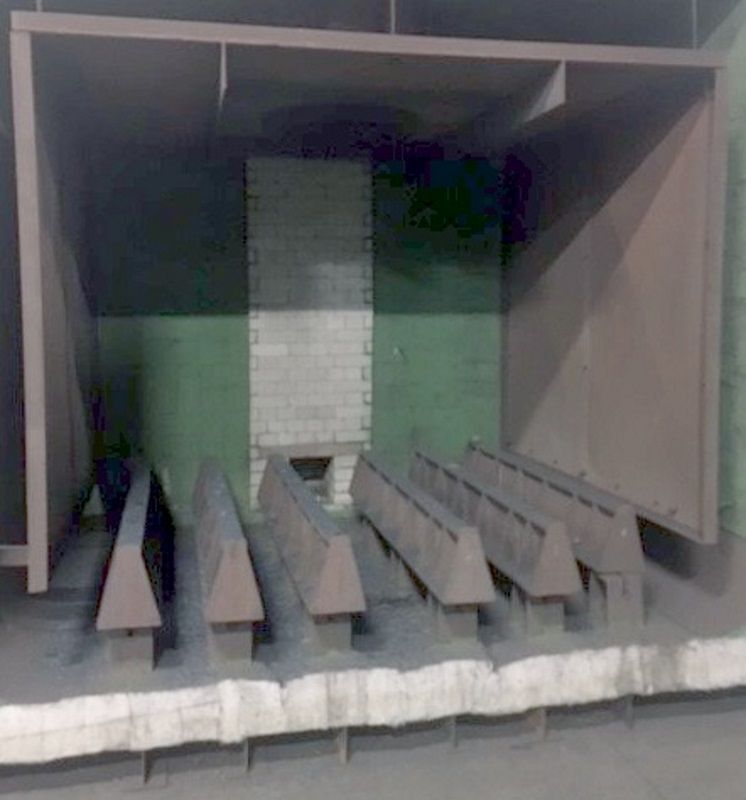

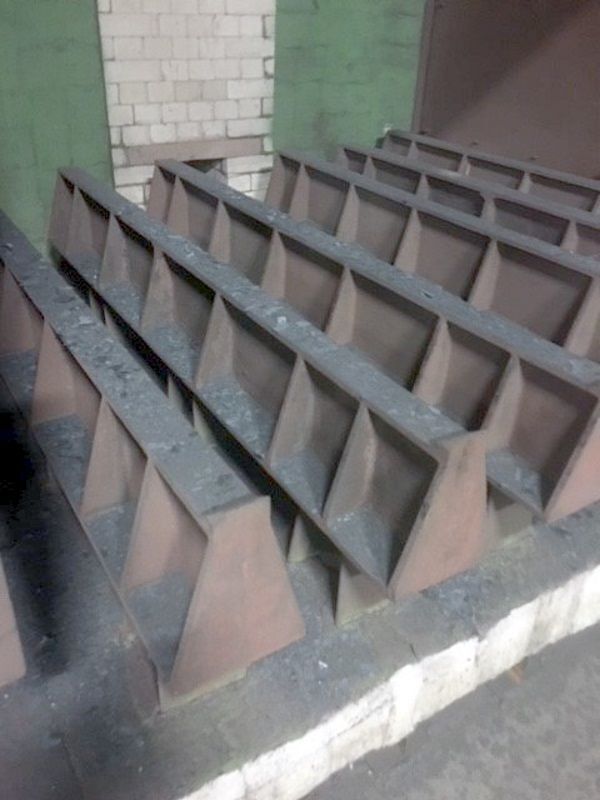

Six (6) alloy support beams on alloy hearth piers
Swing-open door with clamping mechanisms
Controls:

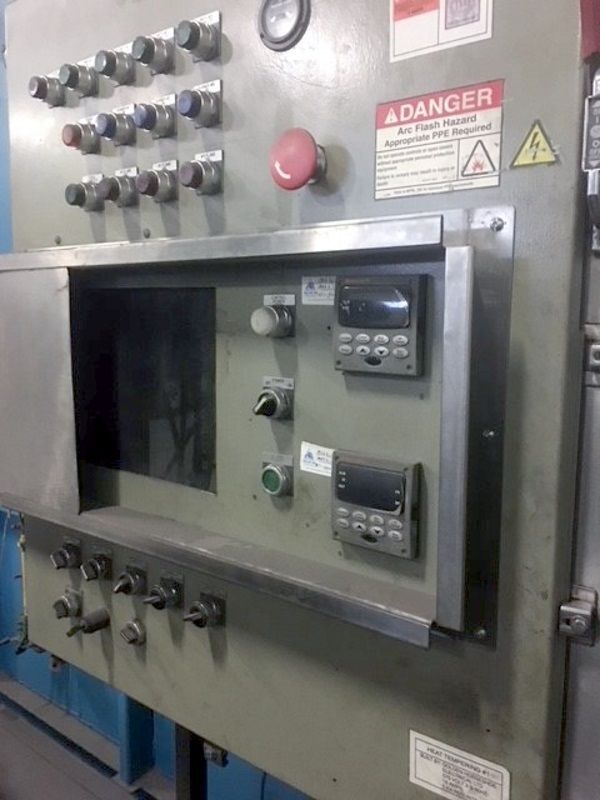

Furnace-mounted control panel
Digital Honeywell controllers
