8000 cfm ACT #3-24, cartridge dust collector, 25 HP, 100 sq.ft., 2026

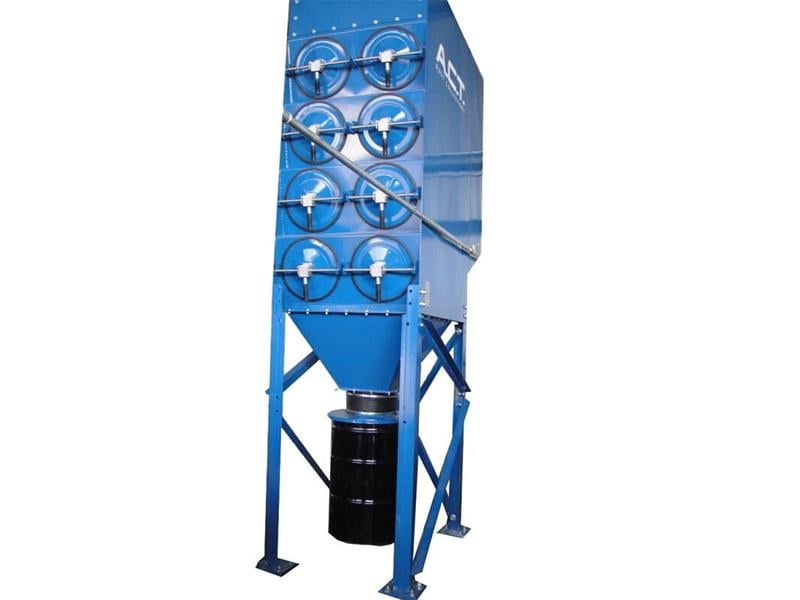

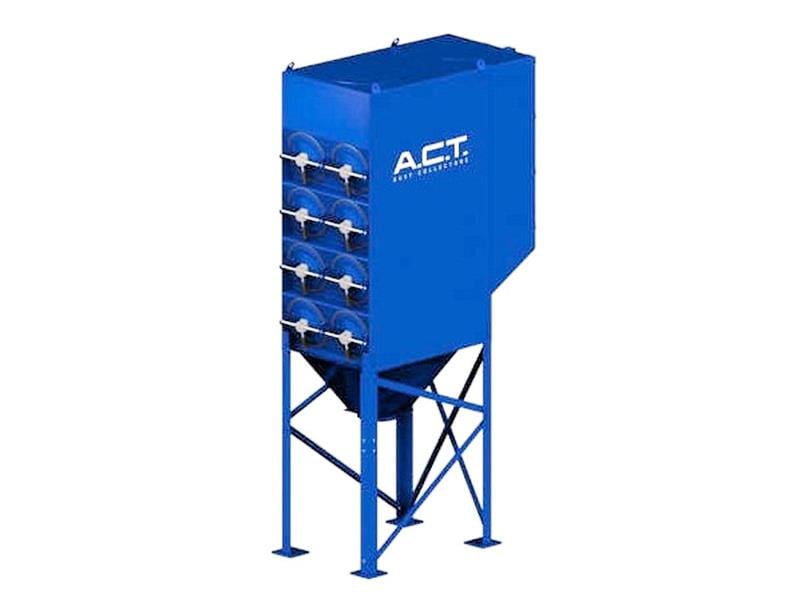

ACT 3-24 Cartridge Dust CollectorCartridge style downflow dust collector rated at 8,000 CFM. Heavy-duty with 7 and 10 gauge construction. Specifications: -- Blower, 25 HP rated at 8,000 CFM @ 12" -- (24) Poly-Elite, spun-bond polyester media with 100 Sq. Ft. of media per filter filter (total 2,400 Sq. Ft.) that are 99.9% efficient. -- Reverse pulse filter cleaning system. -- 25HP All-in-one starter/disconnect/timer board/digital pressure gauge 460V 3ph -- DK-XP – explosion rated drum kit with quick-lock easy-access filter doors. -- 18" inletEquipped with: -- TCBI 25 HP Blower with direct drive, top mount. -- Automatic reverse jet cleaning via compressed air, (1) pulse valve per (2) cartridges for a total of (12) pulse valves. Goyen solenoids and diaphragm. -- Heavy Duty steel legs position unit approximately 4' above the ground made with 7 and 10-gauge construction. Return Air Includes: -- Shut off landing spot in control panel for explosion isolation valve. -- Explosion Vent installed with hardware, 36" x 36" explosion relief panel. 8.63 Sq. Ft. vent area. Domed for durability. KST value required. -- Sprinkler coupler for collectors with 1 module. -- Solenoid heater kit with (2) heat trace kits for cold weather installation. -- 18" VF - Explosion Isolation Valve Assembly (dirty air to dust collector), Must be installed between 16' and 55' from the dust collector inlet. If an elbow exists, minimum distance is 24'. -- Custom - Explosion Isolation Valve, 20" VF - Explosion Isolation Valve Assembly (clean air return to building). Must be installed between 19' and 55' from the dust collector outlet. -- 10 year workmanship and materials warranty -- Made in the USAPhoto does not represent the actual model
