Description
THOMSON POWER SYSTEMS®️ AUTOMATIC TRANSFER SWITCH – NEW TS870 SERIES – SERVICE ENTRANCE RATED

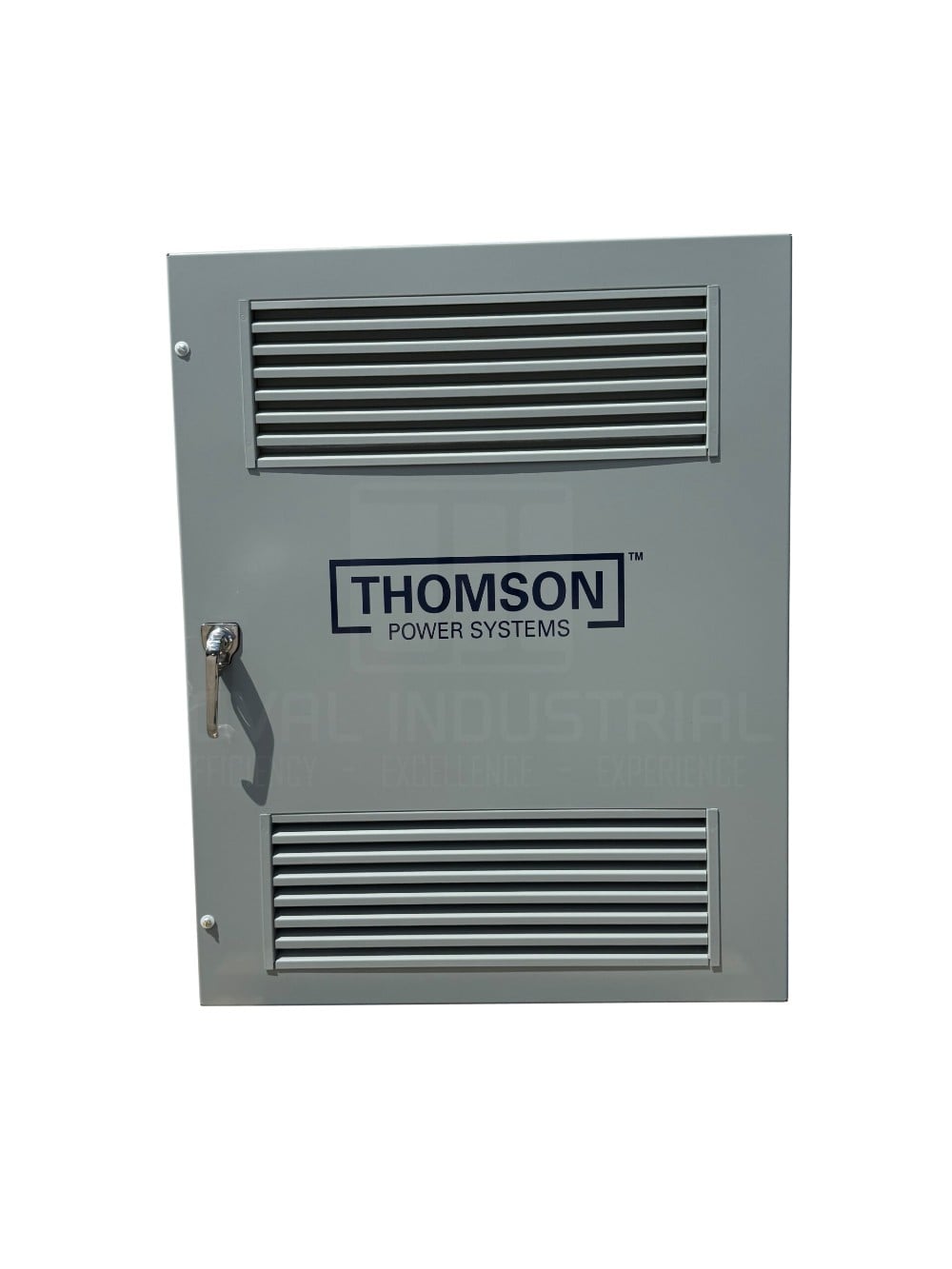

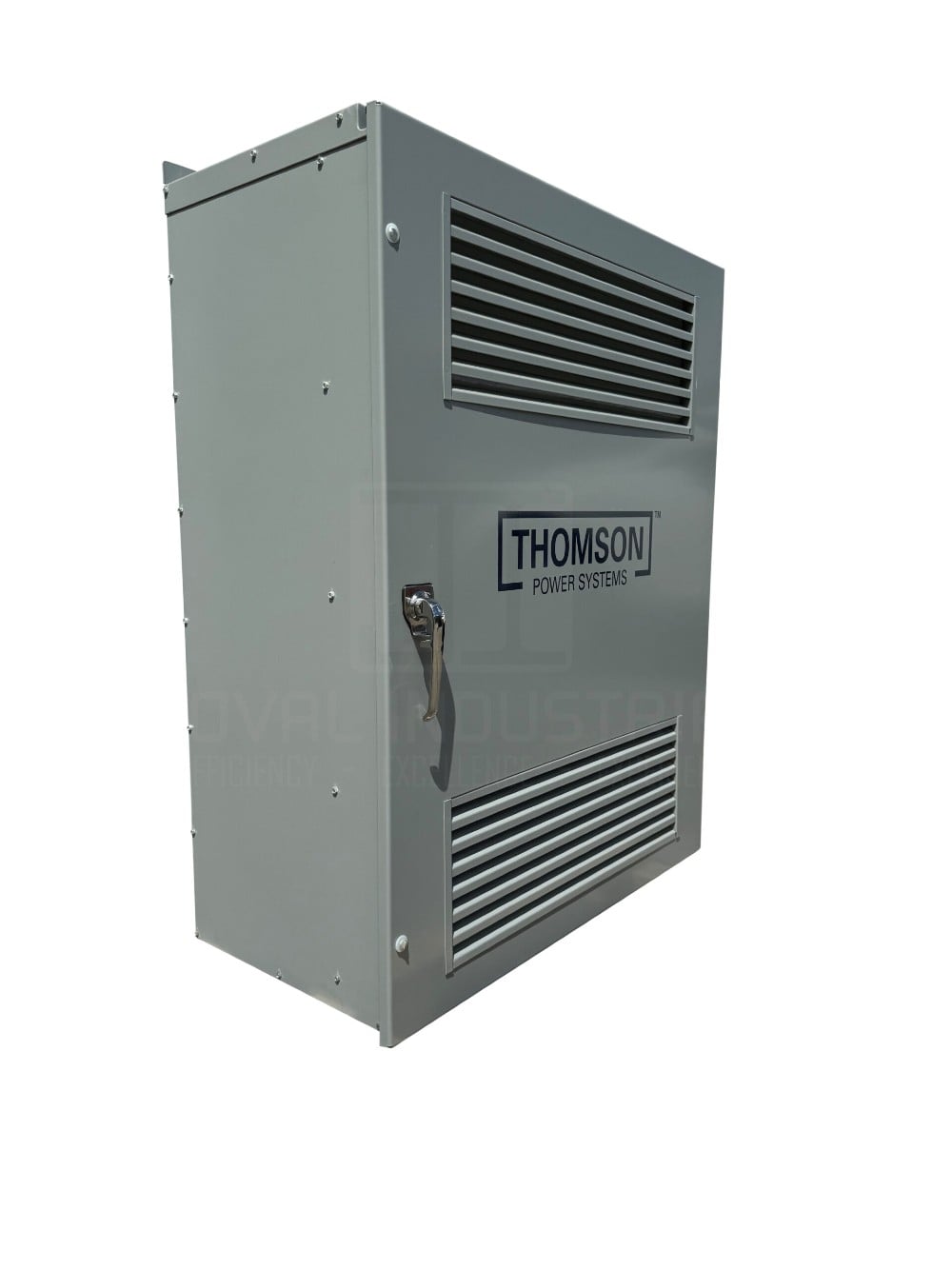

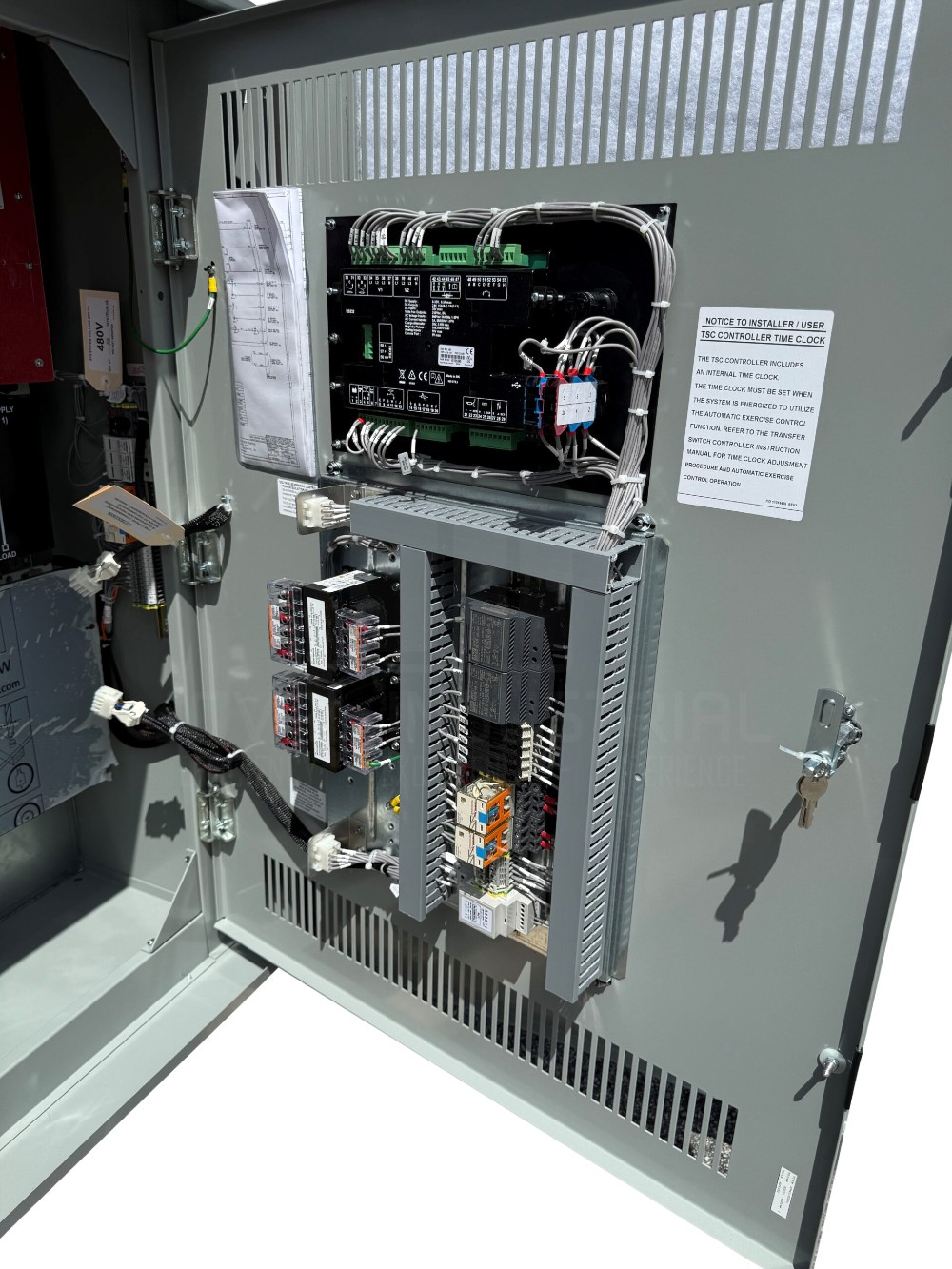

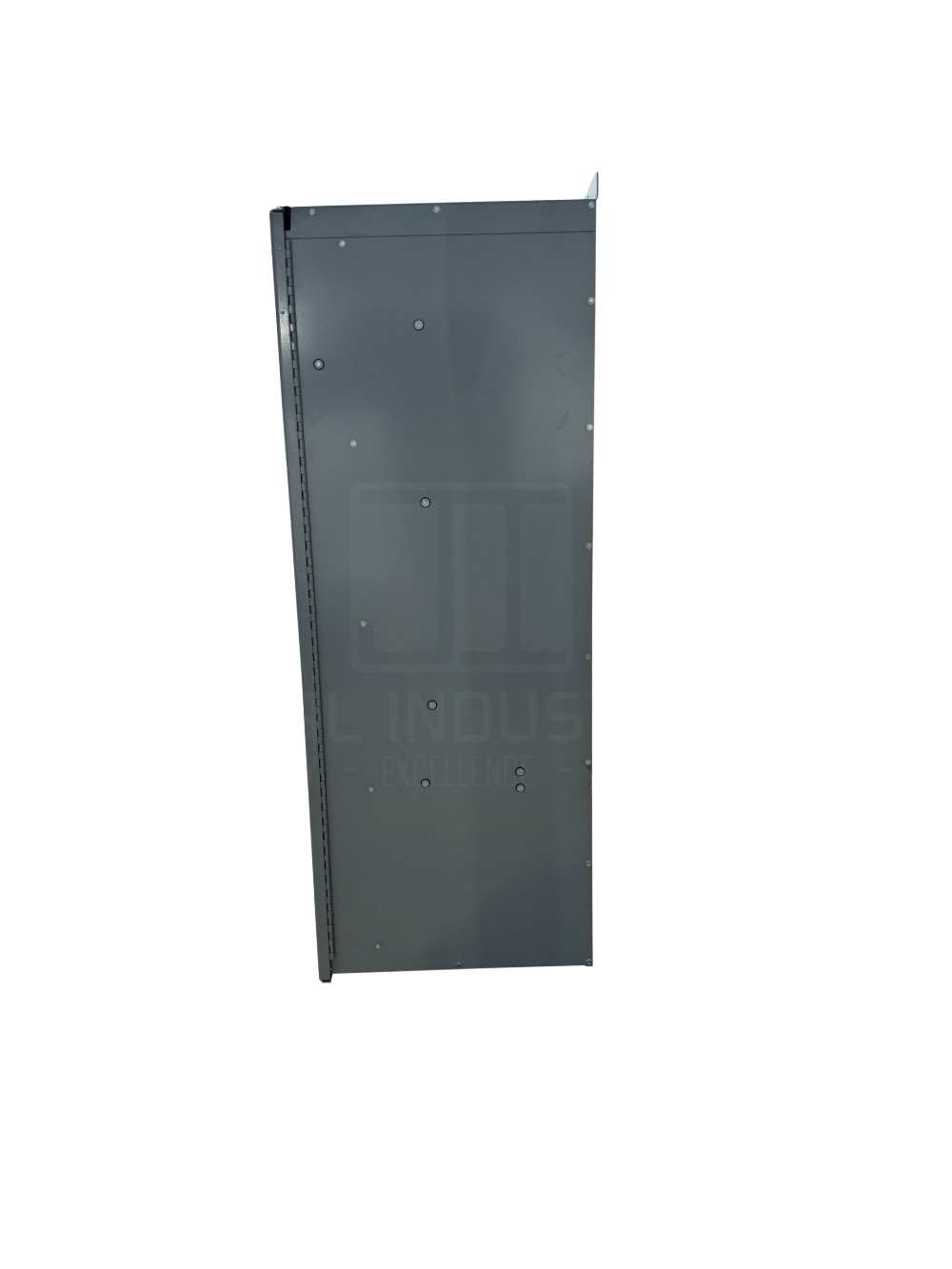

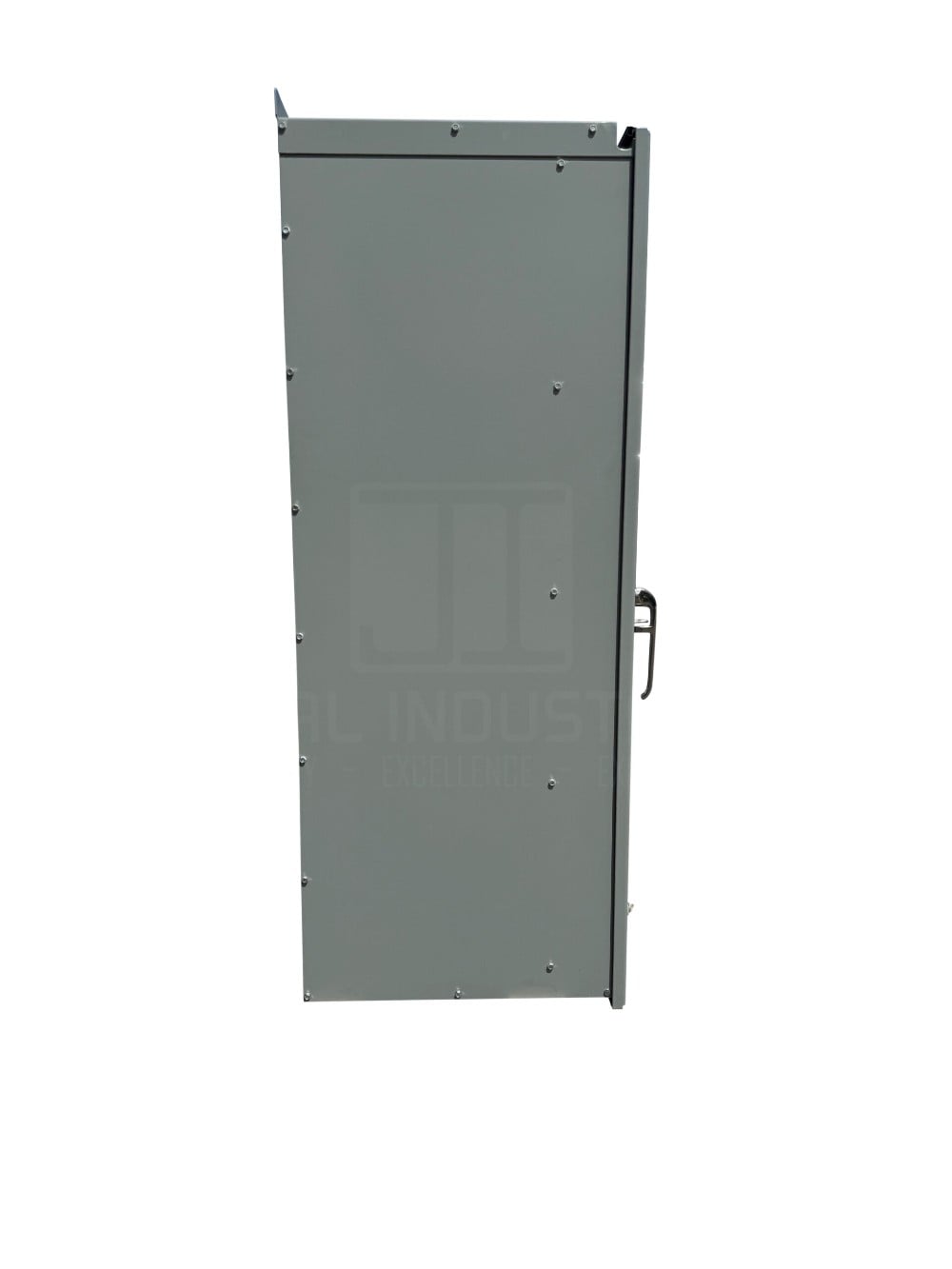

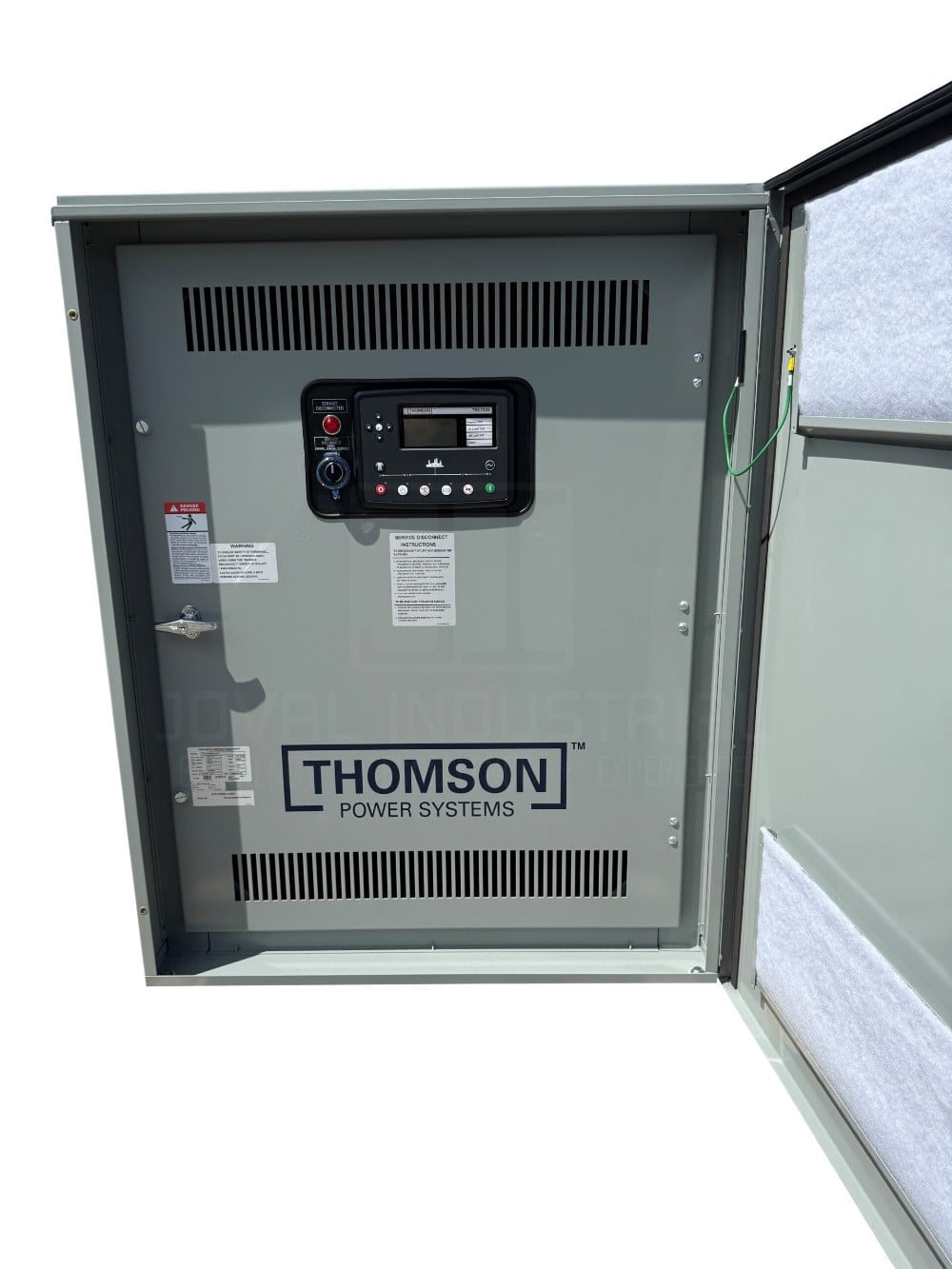

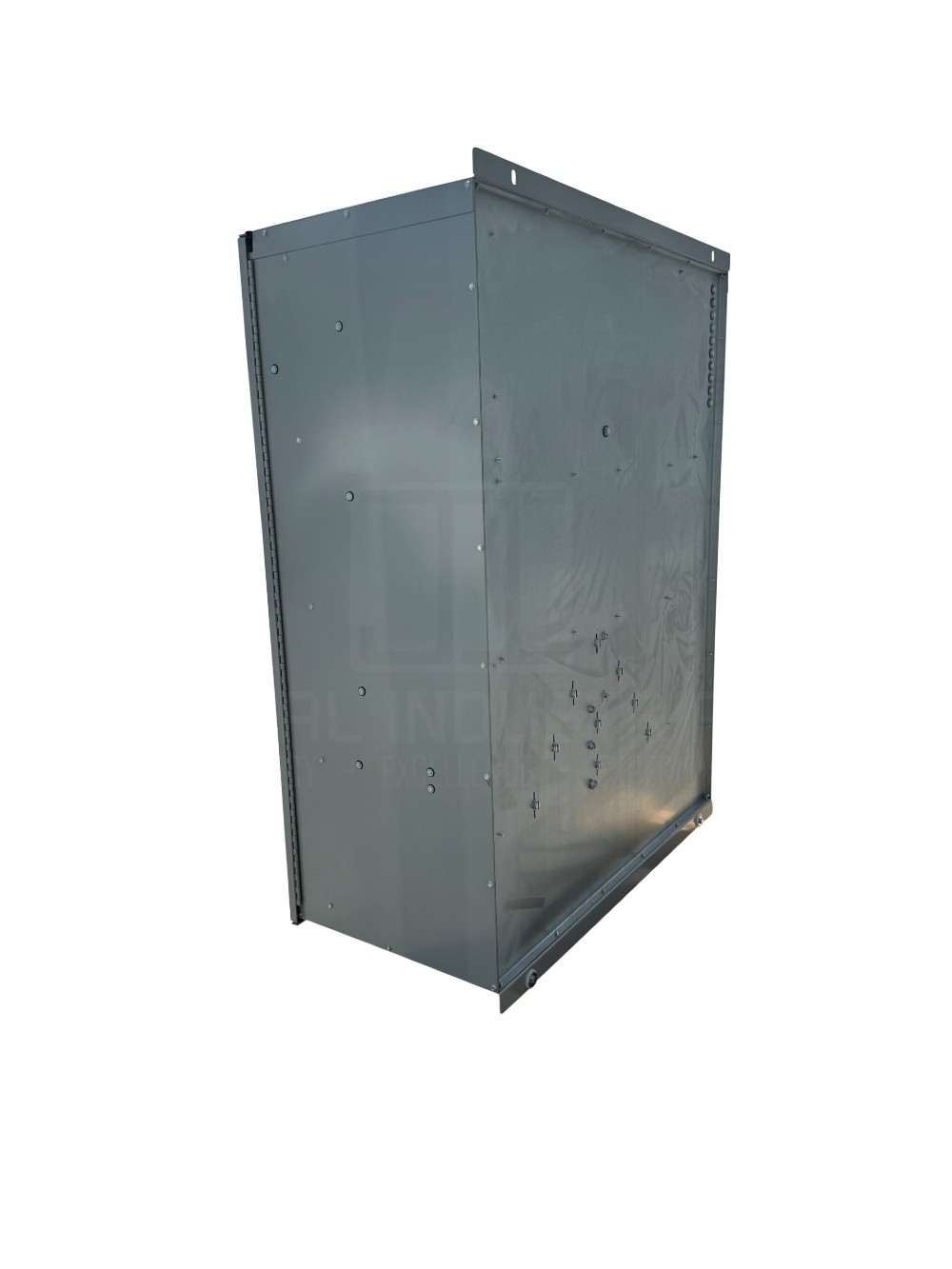

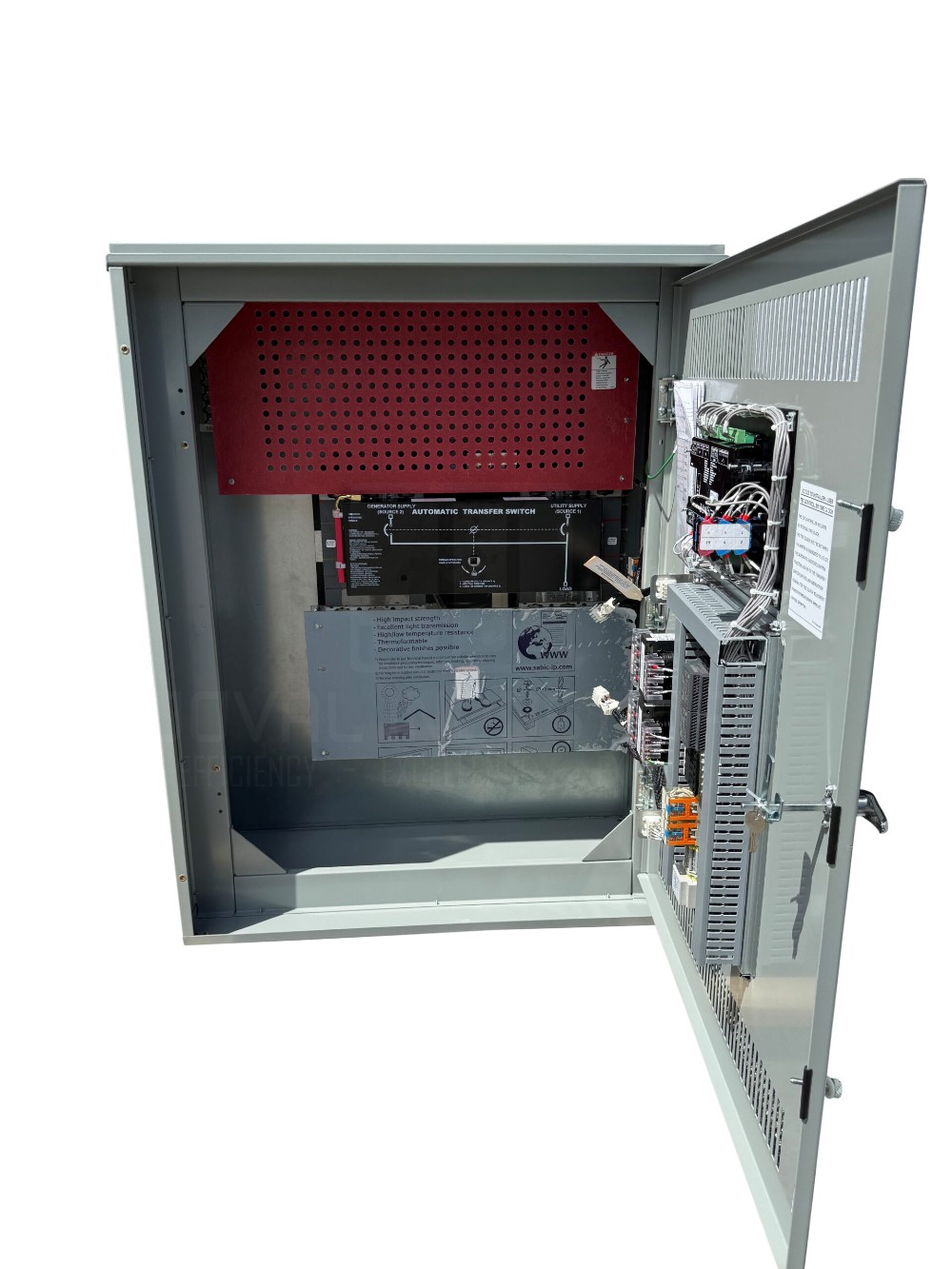

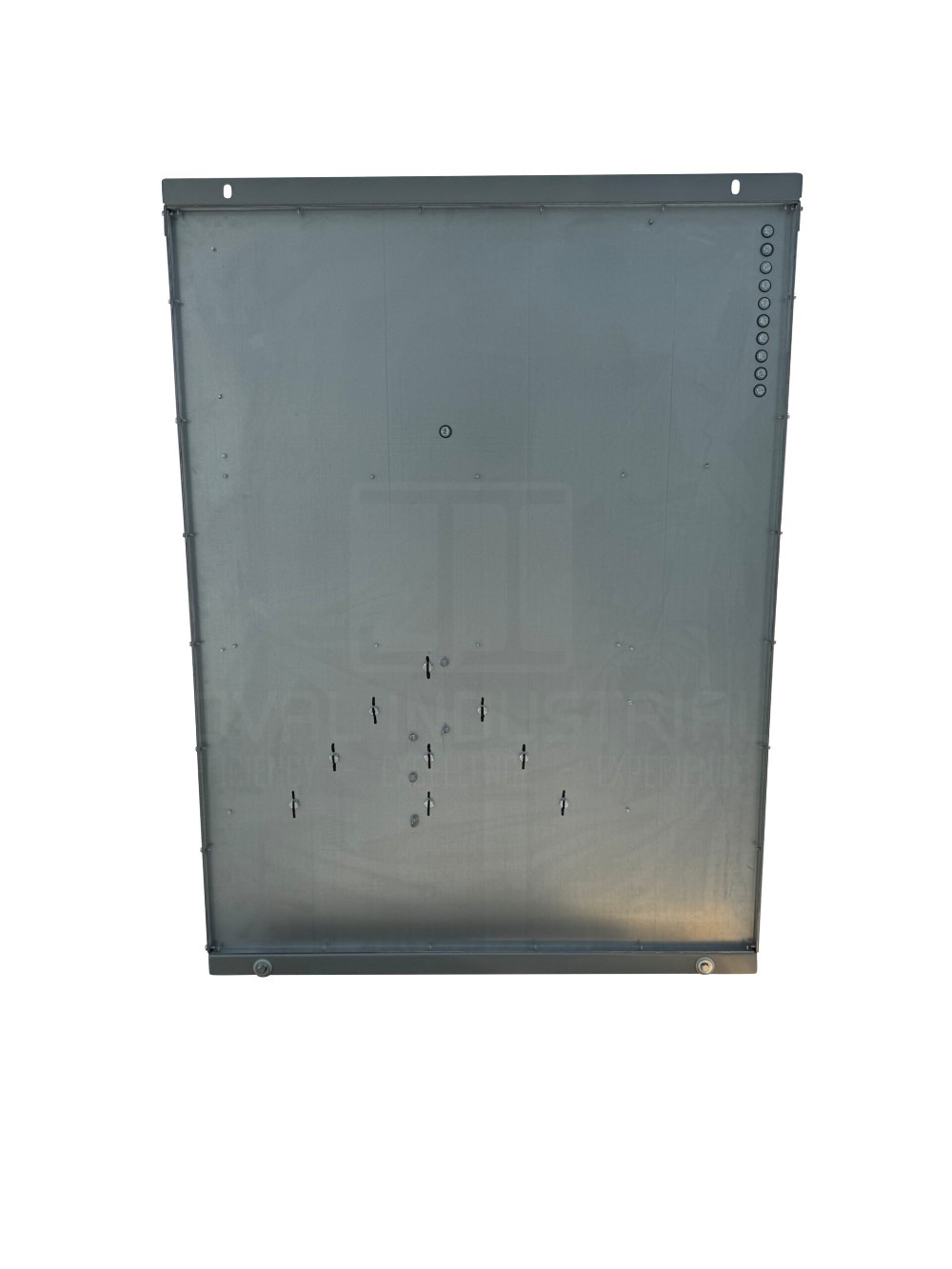

■ Amperage Rating: 800 Amps ■ Series: TS870 Automatic Transfer Switch ■ Application: Service Entrance Rated ATS ■ Poles: 2 or 3-Pole ■ Phase: 1 or 3 Phase ■ Voltage: Multi-Voltage, Field-Configurable for 208/240/480/600V Applications ■ Frequency: 50/60 Hz ■ Transition Type: Open Transition ■ Switching Type: Breaker-Style / Molded Case Switching ■ Utility Protection: Trip on Utility / Service Disconnect ■ Neutral: Solid Neutral ■ Controller: TSC 7320 Advanced Controller ■ Display: 2.3" Back-Lit LCD Operator Interface ■ Generator Start: 2-Wire Dry Contact ■ Generator Exerciser: Programmable On-Load or Off-Load Exerciser ■ Enclosure: NEMA 3R Outdoor Rated Steel Enclosure with Double-Door Secure Access ■ Safety Listing: UL 1008 / CSA C22.2 No. 178 Listed ■ Dimensions: 48.1 x 37.8 x 14.5 inches — Reference Only, See Drawing
KEY BENEFITS ✔️ Service Entrance Rated Design with Utility-Side Disconnect Protection ✔️ Breaker-Style Switching Design with Integrated Overcurrent Protection ✔️ Multi-Voltage Capability for 208 to 600V Applications ✔️ Advanced TSC 7320 Controller with 2.3" Back-Lit LCD Display ✔️ Field-Programmable Controller — No Computer Required ✔️ Programmable Generator Exerciser with Load or No-Load Test Options ✔️ 2-Wire Dry Contact for Generator Auto-Start Connection ✔️ Voltage and Frequency Monitoring for Utility and Generator Sources ✔️ Open Transition Transfer Operation ✔️ Outdoor Rated NEMA 3R Steel Enclosure for Weather-Resistant Installation ✔️ Double-Door Secure Enclosure for Improved Access and Protection ✔️ Front-Accessible Design for Easier Inspection and Service
IMPORTANT NOTES • Installation should be performed by qualified electrical personnel only. • Dimensions and weight are approximate and for reference only.
