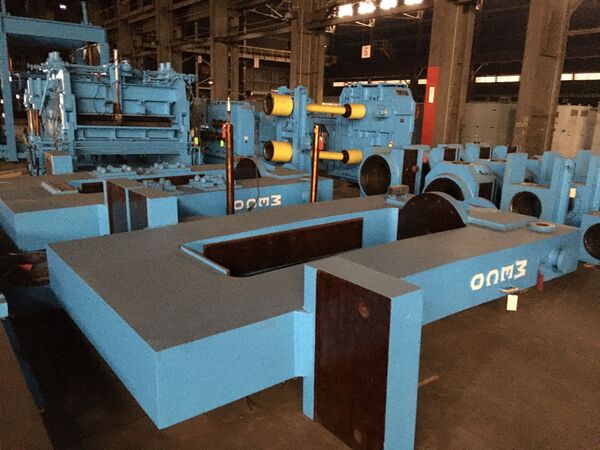

80" Meco, 2-Hi Temper Mill, 80000 lbs., 400 HP DC

Mechanical Specifications:
GENERAL SPECIFICATIONS:
MANUFACTURER: MECO
MATERIAL: MILD STEEL
NUMBER OF STANDS: 1

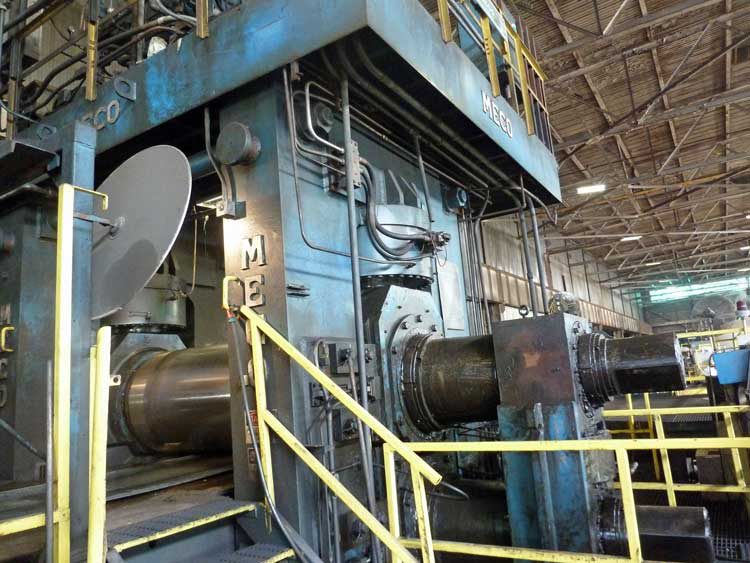

CONFIGURATION 2 HIGH, NON REVERSING
HOUSING POST SIZE: 28" X 18" (710 MM X 460 MM)
HOUSING CROSS SECTION: 504"2 (78 CM2)
STARTING COIL: 24" TO 72" WIDTH (610 MM TO 1830 MM)
0.060" TO 0.500" GAUGE (1.52 MM TO 12.7 MM)
80" MAX O.D. (2030 MM)
24" TO 30" I.D. (610 TO 760 MM)
80,000 LBS COIL WEIGHT
FINISHED COIL: 24" TO 72" WIDTH (610 MM TO 1830 MM)
0.060 TO 0.375" @ 72" WIDE GAUGE
0.060 TO 0.500" @ 48" WIDE GAUGE (610 MM TO 12.7 MM) 24" I.D.
LINE SPEED: 150 TO 300 FPM (0.76 TO 1.52 MPS)
DIRECTION OF TRAVEL: RIGHT TO LEFT (VIEWED FROM OPERATOR SIDE)

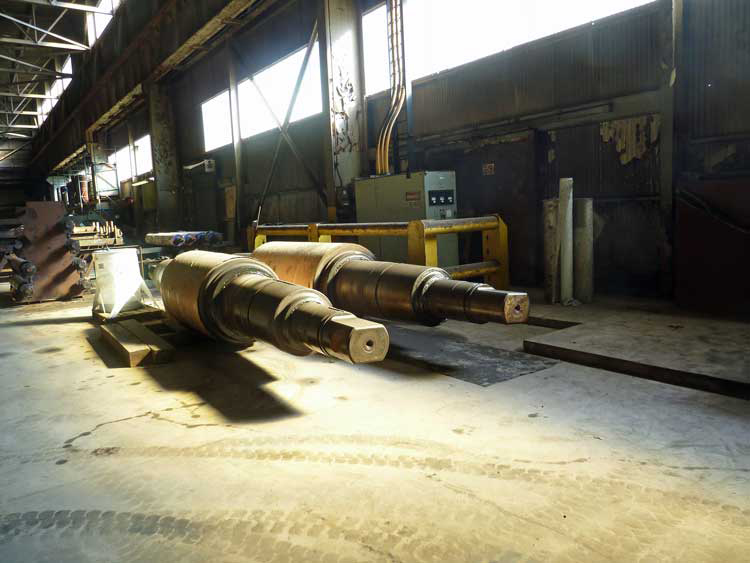

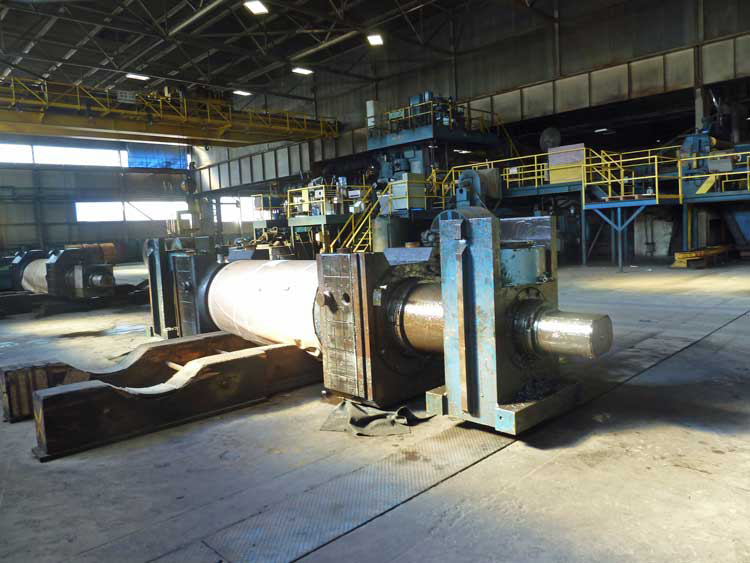

WORK ROLL FACE: 80" (2032 MM)
WORK ROLL DIAM: 38" (965 MM)
MOTOR STAND: 400 HP, ORIGINAL DESIGN, 300/1050 RPM,

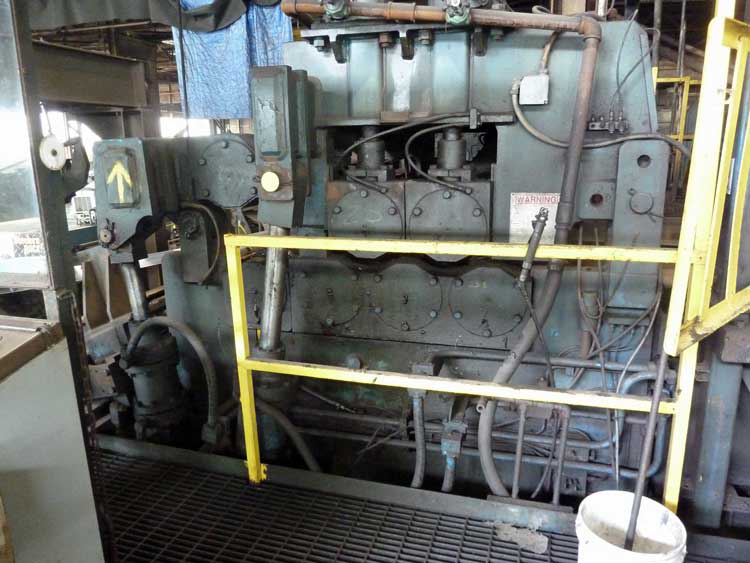

COMBINATION PINION: H&S SIZE 220 D.P.S.; 19.60:1RATIO, 820 RPM 1.58 SF
PINION CENTERS: 42" (1065 MM)
NUMBER SPINDLES: 2
BEARING TYPE: ROLLER
ROLL BENDING: OUTBOARD BEARING
PREVIOUS USE: PICKLING LINE TEMPER MILL
FEATURES:
HYDRAULIC ROLL FORCE CYLINDERS
ENTRY FEED ROLLS

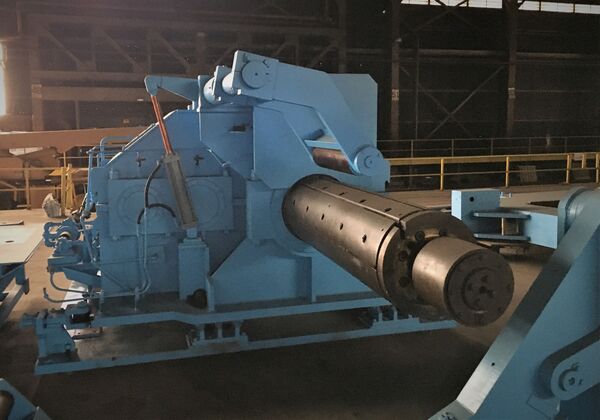

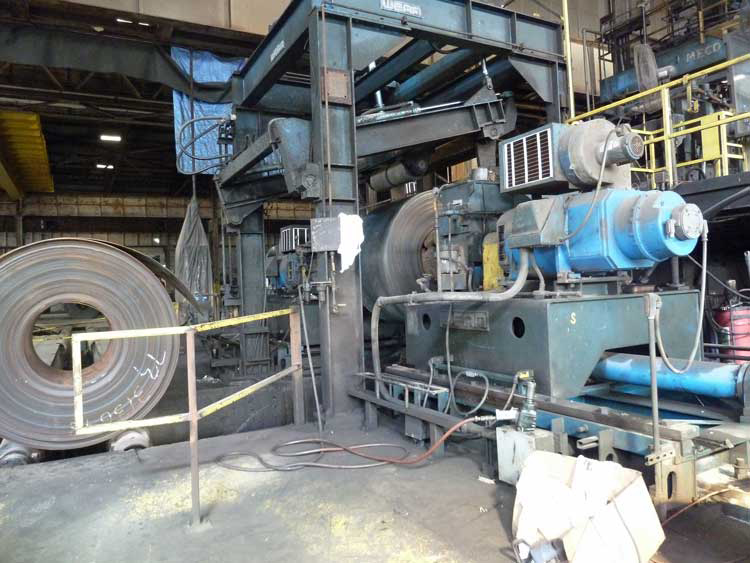

EXIT RECOILER WITH BELT WRAPPER
ENTRY PAYOFF REELs
