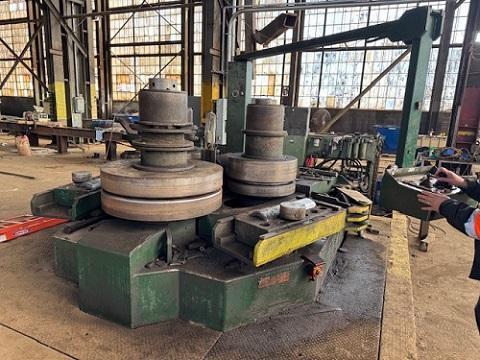

8" x 8" x 1" Roundo #R9S, hydraulic angle bending rolls, 29" roll diameter, 1982

8” X 8” X 1” Angle Roll with Hydraulic Motor w/ Built in Brake & Controls, Variable Speeds, Hydraulically Powered Adjustment of Lower Rolls, 6 - Directional Hydraulic Guide Rolls and Remote Operated Push Button Controls, w/ Emergency Stop Button.
GENERAL SPECIFICATIONS
Roll Diameter: 29”
Angle Leg Out: 8” X 8” X 1”
Min. Diameter: 125”
Angle Leg In: 8” X 8” X ¾”
Min. Diameter: 140”
Min. Angle Size: 3” X 3” X ¼”
Flat Iron on Flat: 3” X 15”
Flat Iron on Edge: 2-¼” X 8”
Min Diameter: 80”
T - Section Leg Out: WT8” X 50” / WT7” X 141.5”
T - Section Leg In: WT8” X 50” / WT7” X 116.5”
I - Beam & Channel: 18” WF
Square Bar: 6”
Round Bar: 6”
Pipe: 9”
Min Diameter: 120”
Floor Space: 110” X 165”
Approx. Weight: 50,000 Lbs
Motor: 75 HP / 220/440V
INCLUDES: Hydraulic Motor w/ Built in Brake & Controls, Variable Speeds, Hydraulically Powered Adjustment of Lower Rolls, 6 - Directional Hydraulic Guide Rolls and Remote Operated Push Button Controls, w/ Emergency Stop Button.
