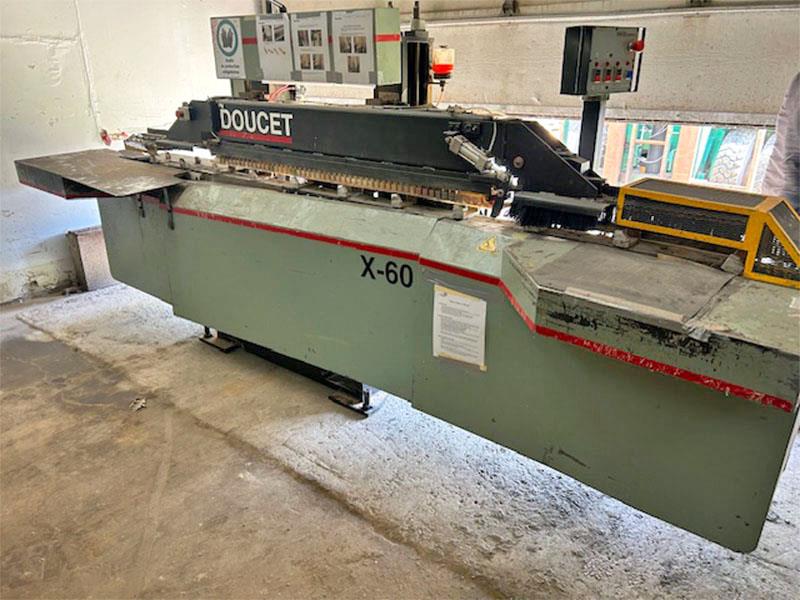

8" x 48" Doucet #X-60, Finger Jointing System, MP-32 Assembly Press, 3/4" to 3-1/2" thickness, 15 HP shaper motor, 10,000 lb. hydraulic press, PLC control, 600 Volt, 2005

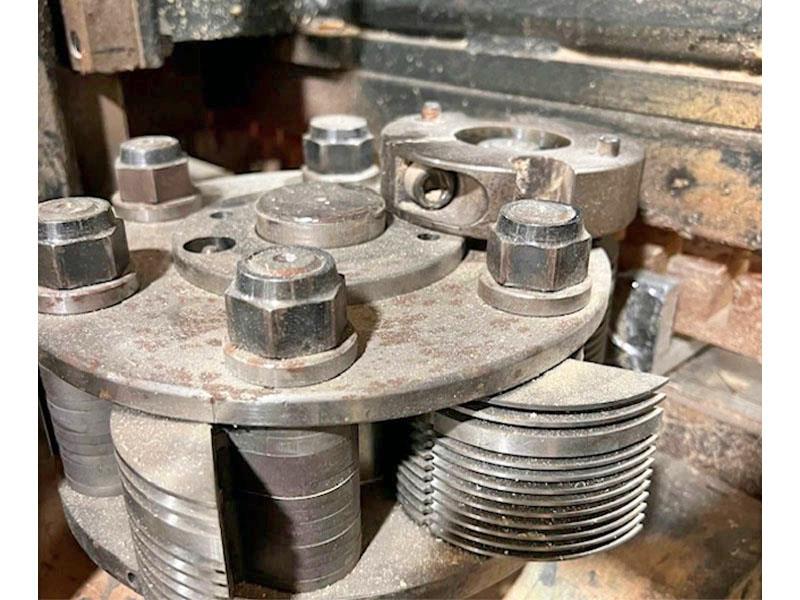

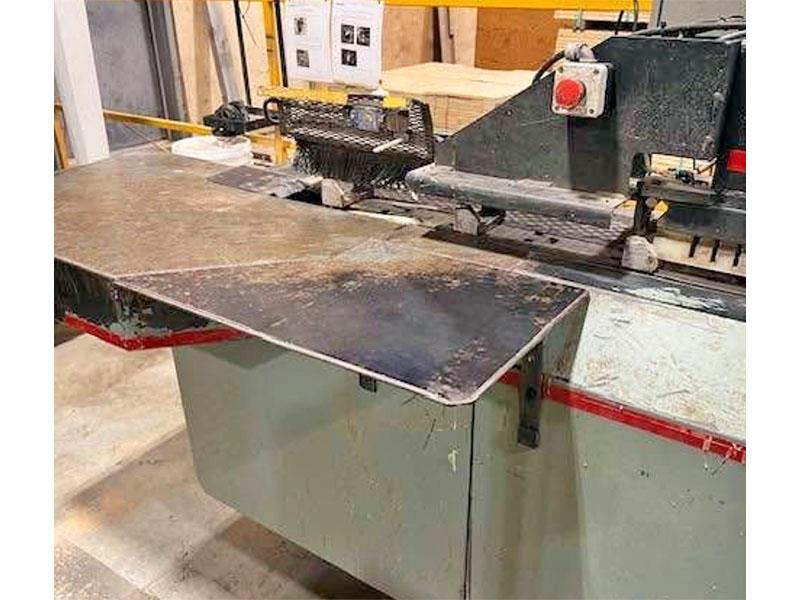

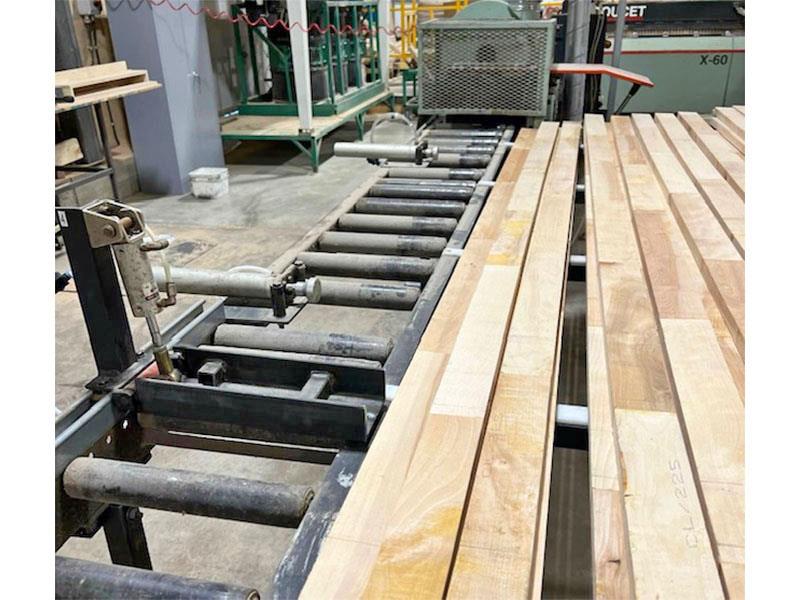

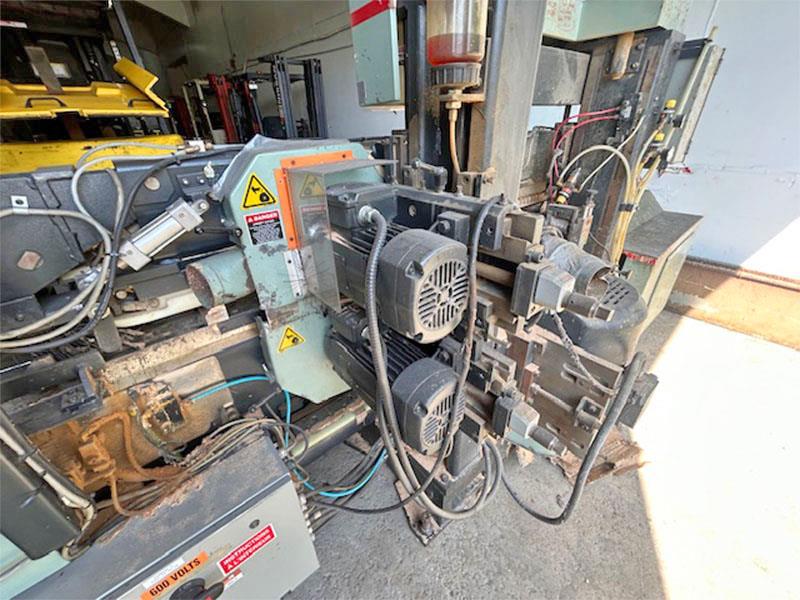

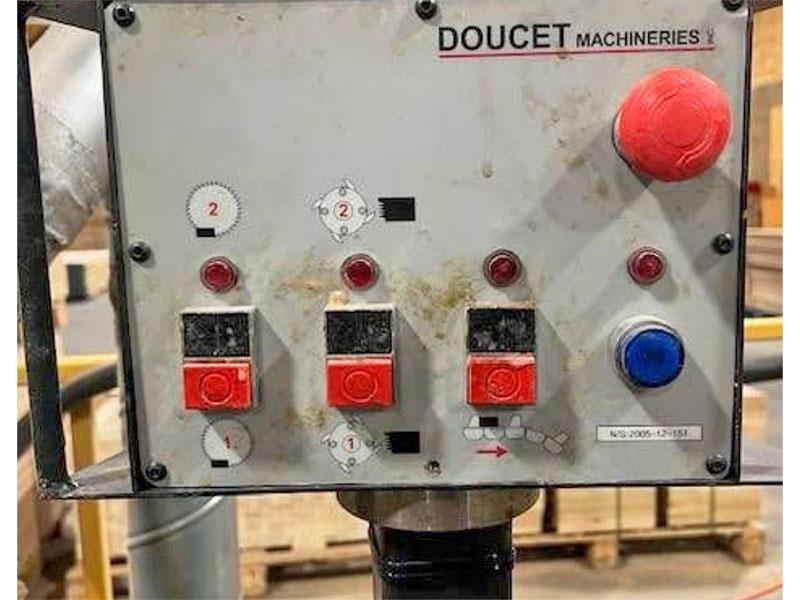

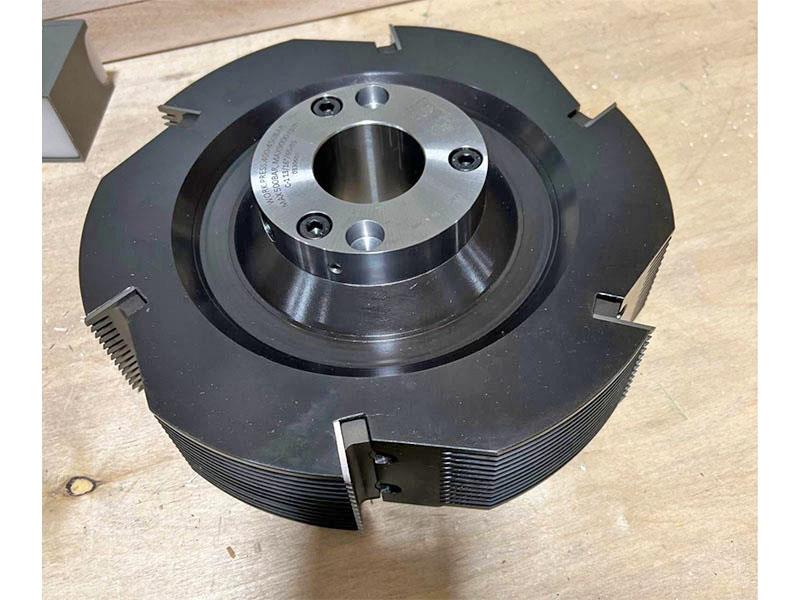

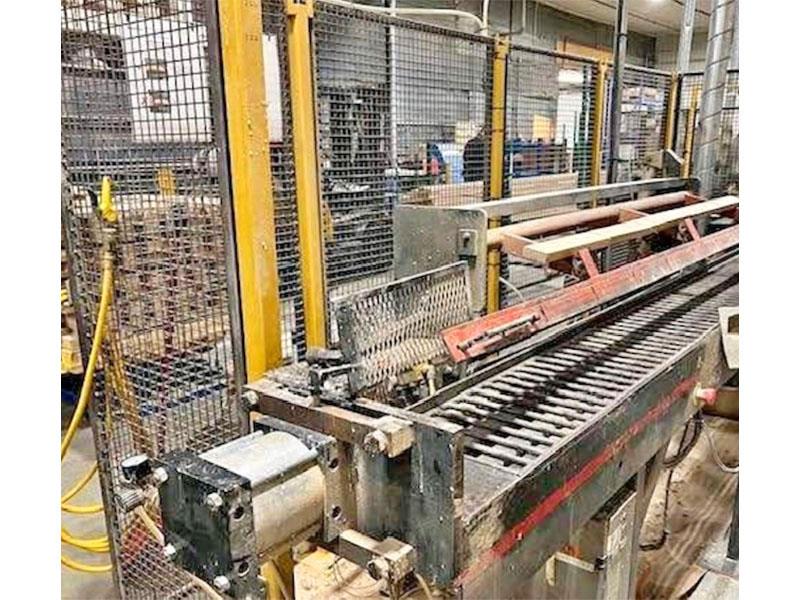

DOUCET - X 60: Finger Jointer Line for Medium Production"X 60 DG" Automatic feed Finger Jointer has Chain Feeding System: Driven on the bottom & right-and-left side; feeds board up to 6" max. width. Capacity -- 3/4" - 2" Max. thickness; 1-1/2" - 8" max. width with: Lugs on 11" centers; 5" min. - 48" max. material length. "X60" Right Hand Shaper Sections; equipped with: -- 5 HP Trim Saw; 3 HP scoring; 15 HP Shaper motor. -- PLC Controls on Shaper section. -- Dual feed chain with: Lugs on 11" centers; 10 - 75 FPM variable feed speed; 5 HP feed drive. -- Max. width: 8"; thickness from 3/4" to 3 1/2". -- PLC Controlled extrusion type Glue Applicator with: 12-Gal. tank; sound enclosure, & cabinet type base. - Transfer to the Assembly Press. Model "MP-32" Assembly Press -- 7' - 10' Max. in automatic mode & up to 20' in manual mode cutoff cap.; automatic cycling; 90 FPM powered infeed flat top chain with: Side alignment rolls to the preassembly tunnel. -- Pieces are fed through with: Bottom & side chain through the Cutoff Saw to a movable limit switch and cut to length; 5 HP upcutting Cutoff Saw for continuous assembly; 2" x 9" cap. with: 14" Blade; finished lengths are pushed out by the next piece onto material outfeed arms. -- PLC Controlled Press section; 10 HP Hydraulic unit; 10,000 Lbs max. pressure. -- Gluing system with pump.System Includes & Supplied with: -- Stainless friction plates on assembly table; board holddown on all (4) sides. -- Automatic ejection of finished board with table. -- 6-Bolt cutterheads for hardwood and softwood.Production Capacity: Approx. 8,000 linear ft./shift or more; based on 12" average infeed length.
