8" x 3/4" x 3/16" Eagle #CPS20, Hydraulic Angle Roll Bender, 3-Roll, Auto Repeat, 10 FPM, new

Description

Eagle CPS20 3/4″ Hydraulic Angle Roll Bender

Inventory # 7822

Model: CPS20

Description:

Powerful Eagle CPS Roll Benders are Hydraulic, Initial Pinch Universal Roll Bending Machines with all 3 rolls driven and primarily designed for one pass rolling. They are the choice for production settings and coiling operations. The CPS series roll bending machines offer features that are beyond comparison

Specifications:

Capacity:

Flat Bar, Hard Way: 1 1/4″, 8″ Min. Diameter

Flat Bar, Easy Way: 1 3/4″ x 3/8″, 10″ Min. Diameter

Solid Square: 1/2″, 5″ Min. Diameter

Angle, Leg-Out: 3/4″ x 3/16″, 8″ Min. Diameter

Angle, Leg-In: 3/4″ x 3/16″, 10″ Min. Diameter

Channel, Leg-Out: 1 1/4″, 8″ Min. Diameter

Channel, Leg-In: 1 1/4″, 10″ Min. Diameter

Solid Round: 1/2″, 4″ Min. Diameter

Round Pipe: 1/2″, 12″ Min. Diameter

Round Tube: 1 1/4″ x 1 1/16″, 16″ Min. Diameter

Square Tubing: 3/4″ x 1/16″, 12″ Min. Diameter

Driven Rolls: 3

Rolling Speed: 10 FPM

Bending Adjustment: Hydraulic

Working Plane: Vertical/Horizontal

Repeat Control: Auto Repeat

Standard Features:

Solid steel main frames

DP7 auto-repeat programmable control with 40-position memory

Large, high-brightness LED readout

Operate’s in both vertical and horizontal positions

All 3 shafts are driven and all tooling components are smooth surfaced, non marring

Standard universal tooling set has 15 components

Hardened steel shafts are journaled dual tapered roller bearings

Patented Z-block top journal increases rigidity for truer to plane rolling

Hardened/sintered guides and ways with adjustable gibbs

Dual foot pedal controls for forward/reverse rolling have steel protected voers

Anti-pinch mill scale covers protect internal components from mill scale and are an extra safety feature

Concealed internal hydraulic ram cannot be damaged by accident, nothing is exposed

Dual emergency stop buttons, 1 on machine and 1 on the console for enhanced operator safety

Flush mounted electrical panels are out of harms way in your shop environment

Easy access tool storage compartment in the machine base for convenience

Mobile control console with long trailing lead allows safe operator distance from the work-piece

Limited Lifetime Warranty

Mechanical Specifications:

Dimensions: 13″ x 24″ x 45″ H

Shipping Weight: approx. 400 lbs.

Contact us for special pricing and availability

FOB Factory

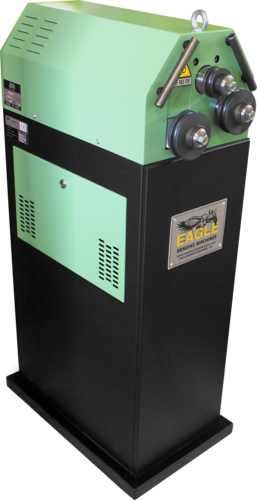

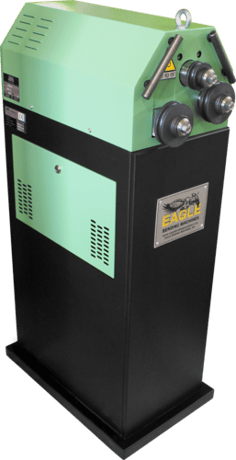

Please Note: Photo is of Model CP20 and Actual Model Purchased May Differ in Appearance
