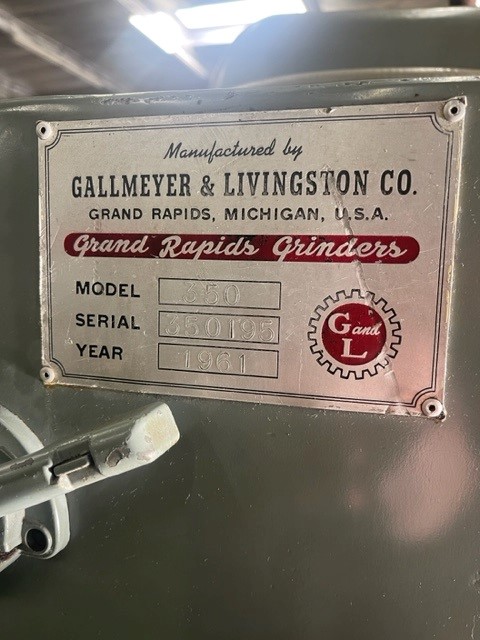

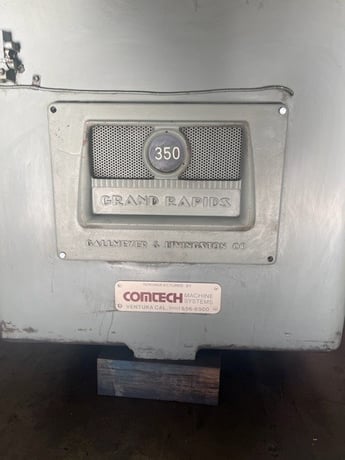

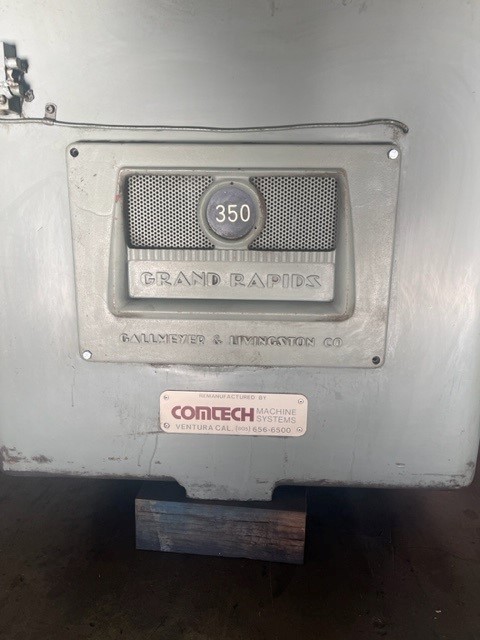

Manufacturer: Gallmeyer & Livingston
Model: 350
Width/Cross: 8.0
Length/Longit.: 24.0
Stock # 6989
Price: $4,950 USD
1 / 7
Click to zoom in
1 / 7
For Sale by Wheeler Machinery Sales
Surplus Record Dealer Since 1998
Location: Pomona, CA
Contact Dan Wheeler
Phone Number: 909...> Show Phone Number 909-348-5610
Let the seller know you found their listing on Surplus Record!
$4,950 USD
Description

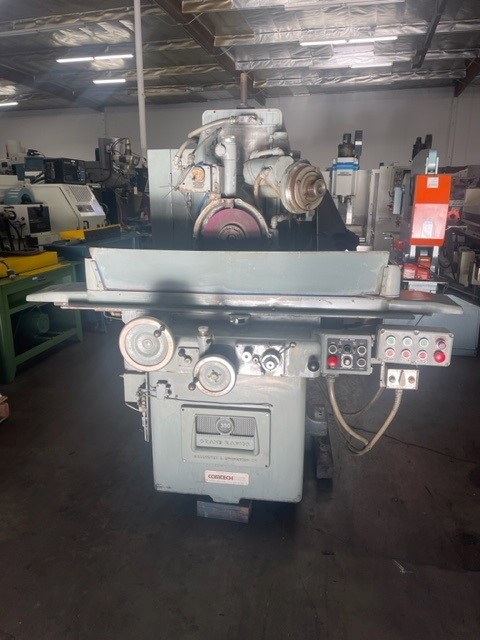

Gallmeyer & Livingston 350 Hydraulic Surface Grinder 8" x 24" #6989 #1
SPECIFICATIONS:
Capacity: 8" x 24"
Working Surface of Table: 8" x 25"
Longitudinal Table Speeds: 3 - 125 FPM
Hydraulic Table Travel, Longitudinal, Maximum 29-1/2"
Hydraulic Table travel, Transverse, Maximum 9-1/4"

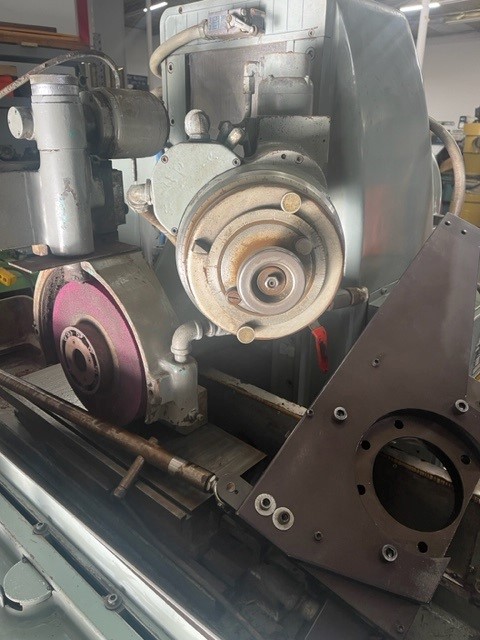

Standard Wheel Size: 12" x 1" x 3"
Max Distance From Wheel to Table Under 12" Wheel: 15"
Spindle Speed: 1,985 RPM
Spindle Motor: 3 HP
Hydraulic Motor: 1 1/2 HP
Dimensions: 84" x 64" x 84" High
Weight: 5,300 Lbs.
EQUIPPED WITH:

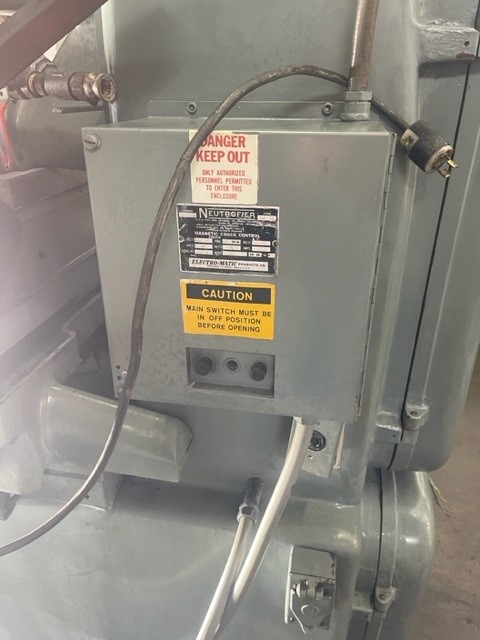

8" x 24" Electromagnetic Chuck
Bijur Auto Lube
Coolant
Table Trip Dogs
SPECIFICATIONS:
Capacity: 8" x 24"
Working Surface of Table: 8" x 25"
Longitudinal Table Speeds: 3 - 125 FPM
Hydraulic Table Travel, Longitudinal, Maximum 29-1/2"
Hydraulic Table travel, Transverse, Maximum 9-1/4"
Standard Wheel Size: 12" x 1" x 3"
Max Distance From Wheel to Table Under 12" Wheel: 15"
Spindle Speed: 1,985 RPM
Spindle Motor: 3 HP
Hydraulic Motor: 1 1/2 HP
Dimensions: 84" x 64" x 84" High
Weight: 5,300 Lbs.
EQUIPPED WITH:
8" x 24" Electromagnetic Chuck
Bijur Auto Lube
Coolant
Table Trip Dogs
Inquire Further with Wheeler Machinery Sales!
