Description

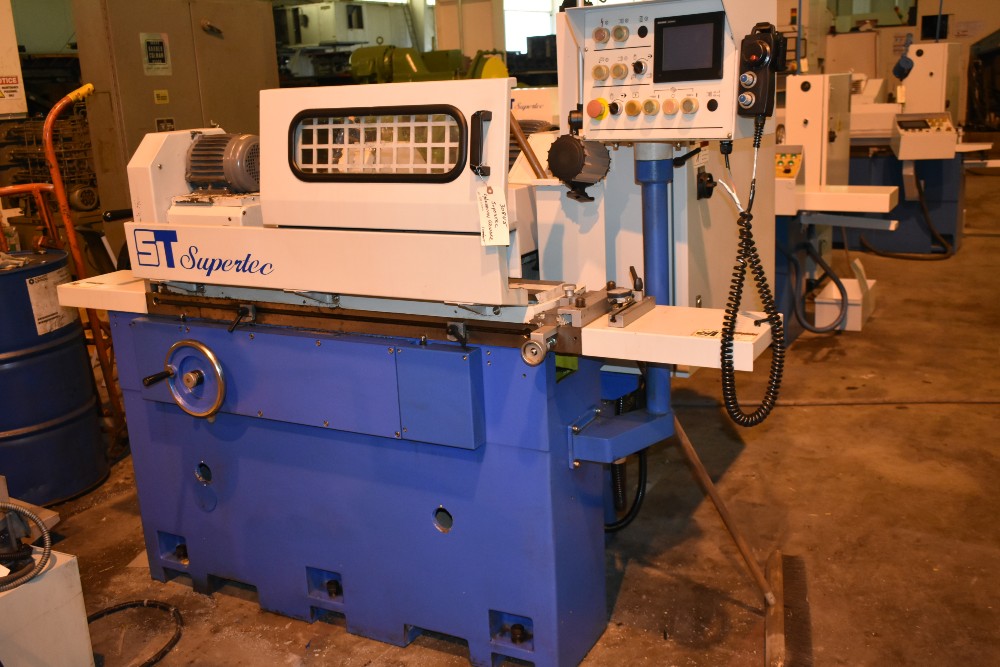

8 x 20 SUPERTEC G20P-50NCPRECISION CYLINDRICAL GRINDER - Mitsubishi GOT1000 PLC Control w/Hand Held Pendant - Wheel Dresser - Coolant System - 2015 8" X 20" SUPERTEC PRECISION PLUNGE TYPE CYLINDRICAL GRINDER New 2015, Serial No. GB15002, Model G20P-50NC EQUIPPED WITH: Mitsubishi GOT1000 PLC Control w/Hand Held Pendant Combination Live/Dead Spindle Vari-Speed Workhead Heavy-Ribbed Box-Type Meehanite Caste Base Automatic Lubrication System Table Mounted Swiveling Grinding Wheel Dresser Mitutoyo Gauging Coolant System (Tank & Pump) CATALOG SPECIFICATIONS: Swing Over Table, Maximum 8" Grinding Diameter, Maximum 8" Distance Between Centers, Maximum 20" Weight Capacity Between Centers 308 LBS Grinding Wheelhead X-Axis, Travel 6 Longitudinal Table Z-Axis,Travel 24 Grinding Wheel, Standard Diameter 14" Grinding Wheel, Width 1.5" Grinding Wheel, Hole Diameter 5" Grinding Wheel Speeds 1620 & 1960 RPM Workhead Spindle Speeds 198 to 570 RPM Wheelhead Rapid Feedrate, Maximum 236 IPM Longitudinal Rapid Feedrate, Maximum 316 IPM Table Swivel Angle Range +/- 7-DEGREES Workhead Swivel Angle, Range +/- 45-DEGREES Workhead & Tailstock Spindle Taper 3 MT Wheelhead Motor, Horsepower 5 HP Workhead Motor, Horsepower 1 HP Tailstock Quill Travel 1" Hydraulic Motor, Horsepower .5 HP Overall Dimensions, L x W 82 x 47 Weight, Approximately 4400 LBS F.O.B OUR WAREHOUSE
ECOTECH M1420A/H Universal Cylindrical Grinder, used but in good shape. Swing: 8.0, Centers: 20.0. Ideal for precision grinding tasks, offering versatility and quality craftsmanship for your workshop needs., Max. Grinding Diameter: 8", Max. Internal Grinding Diameter: 3.94", Max. Grinding Length: 20", Min. Grinding ...more
Used SHARP OD820A | Universal Cylindrical Grinders, OVERVIEW, TYPE: Universal Cylindrical Grinders, MANUFACTURER: SHARP, MODEL: OD820A, STOCK #: 200400, STATUS: For Sale, SERIAL #: G10015, COUNTRY: United States, 1 - Used Sharp OD-820A Cylindrical Grinder, Serial Number: G10015, Power: 240V/3 Phase, Used, but in ...more
8 X 20 SUPERTEC G20P-50NC PRECISION CYLINDRICAL GRINDER - Mitsubishi PLC Control w/Hand Held Pendant - Coolant System 2007, 8" X 20" SUPERTEC PRECISION PLUNGE TYPE CYLINDRICAL GRINDER, New 2007, Serial No. GB07005, Model G20P-50NC, Mitsubishi PLC Control w/Hand Held Pendant, Combination Live/Dead Spindle ...more
