Manufacturer: Mitsui
Model: MSG-250H2AH
Year: 1989
Width/Cross: 8.0
Length/Longit.: 18.0
Stock # 178761
1 / 6
Click to zoom in
1 / 6
For Sale by Machinery Values Inc
Surplus Record Dealer Since 1997
Location: Harrison, NJ
Contact Andrew Valitt
Phone Number: 973...> Show Phone Number 973-497-7600
Let the seller know you found their listing on Surplus Record!
Description

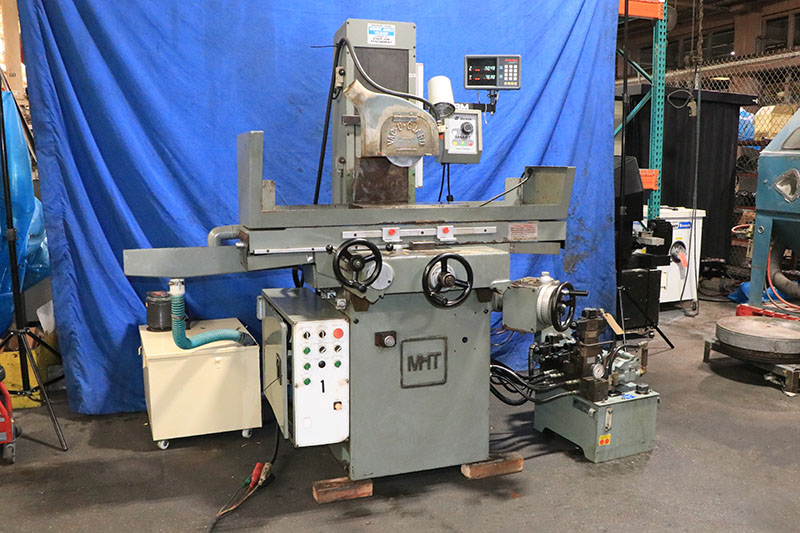

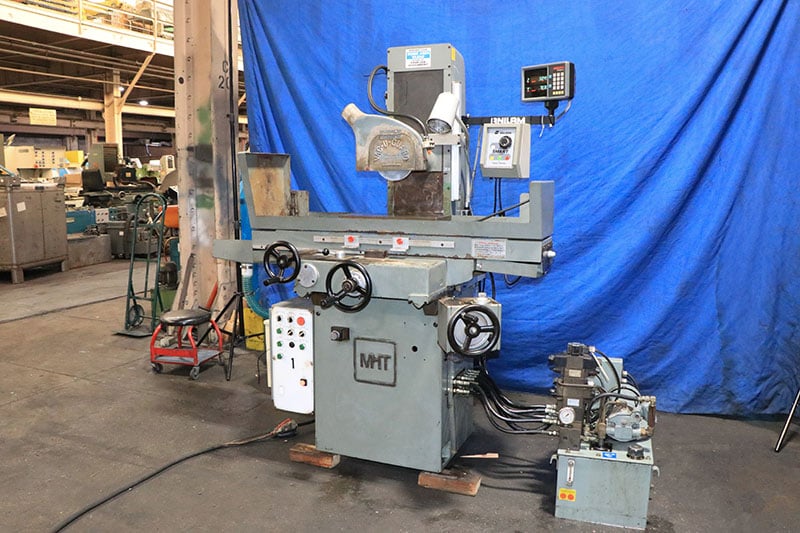

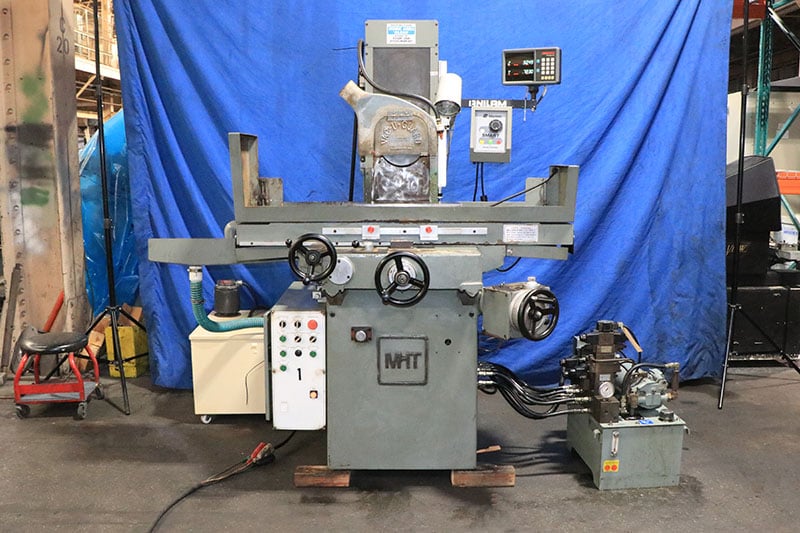

8" X 18" MITSUI…"SUPER-PRECISION - MADE IN JAPAN"
"HIGH COLUMN" HYDRAULIC SURFACE GRINDER
WITH AUTO INCREMENTAL DOWNFEED
MODEL: MSG250H-2AH… S/N: 89073420… NEW: 1989
WORKING SURFACE OF TABLE ............... 8" X 19"
MAXIMUM SURFACE GROUND ................. 9-1/2" x 20"
MAXIMUM DISTANCE BETWEEN TABLE
SURFACE AND SPINDLE CENTER ............. 22-1/2"
RANGE:
LONGITUDINAL ........................... 20"
CROSS (AUTOMATIC)....................... 9-1/2"
CROSS (MANUAL).......................... 10"
VERTICAL ............................... 16"
INF. VARIABLE LONGITUDINAL FEEDS ....... 5 - 68 FPM
AUTO CROSS FEED TO TABLE PER STROKE .... 0.02" - 0.05" IPM
AUTO VERT. FEED INCREMENTS, TEN STEPS .. 0.0001" - .001"
RAPID CROSS FEED RATE .................. 2 - 17 IPM
ELEVATING HANDWHEEL GRADUATIONS ........ 0.0001"
CROSS FEED HANDWHEEL GRADUATION ........ 0.001"
CROSS FEED VERNIER ..................... 0.0001"
APPROX. MACHINE WEIGHT .................″,490 LBS
MACHINE FEATURES:
AUTOMATIC INCREMENTAL DOWNFEED OF GRINDING WHEEL
HYDRAULIC LONGITUDINAL… POWER CROSS FEEDS
ROLLER BEARING TABLE
HARDENED… GROUND WAYS (REMOVEABLE) ON TABLE,
CARRIAGE/SADDLE… COLUMN
AUTOMATIC ONE SHOT LUBRICATION SYSTEM

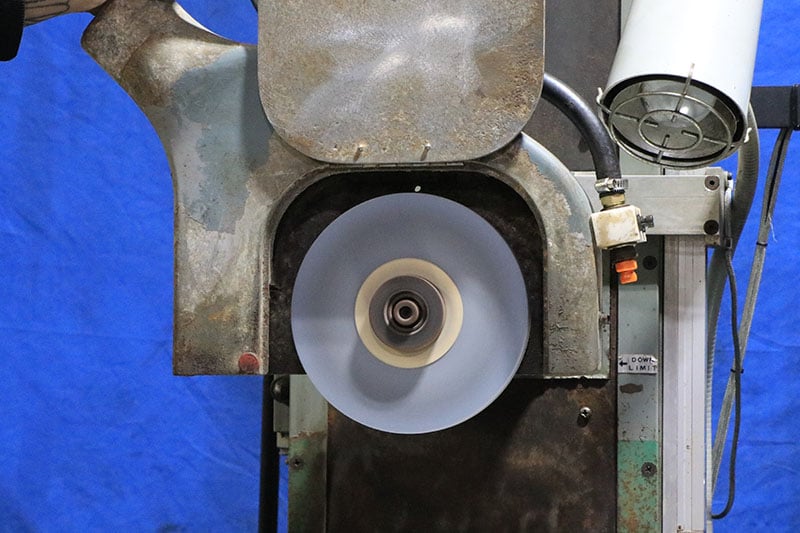

8" x 1/2" x 1- 1/4" GRINDING WHEEL
2 H.P./3/60/460 VOLT SUPER-PRECISION SPINDLE DRIVE
EQUIPPED WITH:

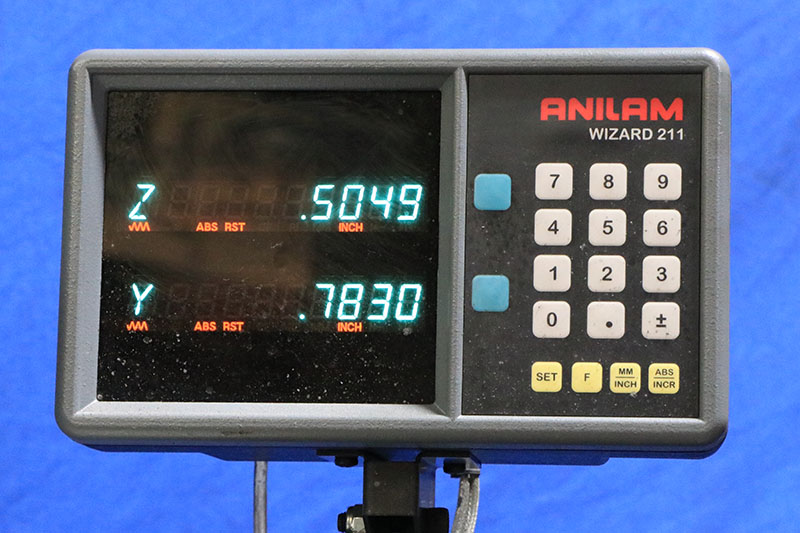

"ANILAM" 2-AXIS DIGITAL READOUT
8" x 18" O.S. WALKER FINE-DIVISION…"LBP" ELECTRO MAGNETIC CHUCK

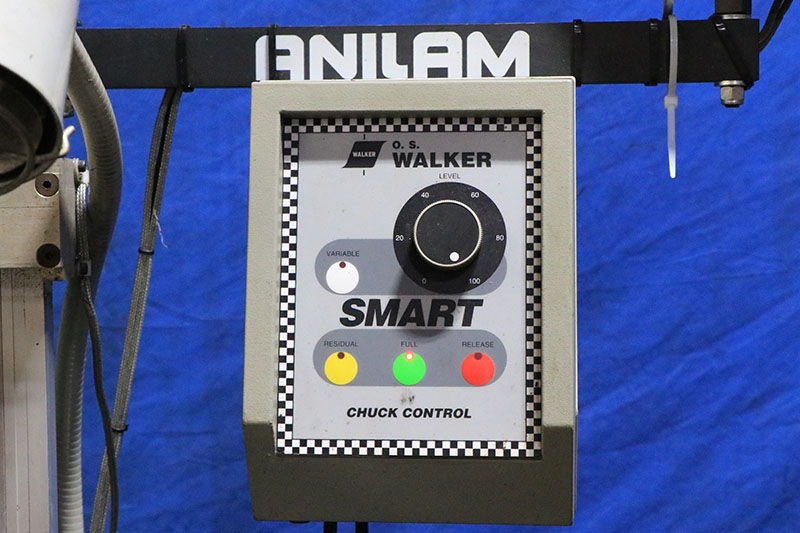

O.S. WALKER…"SMART" SERIES VARIABLE HOLD NEUTROFIER
POWER RAPID UP… DOWN POSITIONING OF THE GRINDING WHEEL,
BY A SWITCH ON THE CABINET.… OUR MACHINE HAS THIS
OPTION.
COOLANT SYSTEM WITH GUARDING, HOSES, TANK… PUMP
"VAC-U-GUARD" WHEEL COVER, WITH DUST INLET
WORK LIGHT
EXTERNAL HYDRAULIC SYSTEM, TANK, PUMP, VALVING, ETC.
MACHINE IS WIRED FOR″/60/230 VOLT ELECTRICS
LINK TO VIDEO: https://youtu.be/XAPzeIkC_Bk?si=kjVGK1zN6YPkrDLw
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** EXCELLENT CONDITION… APPEARANCE (ORIGINAL PAINT) **
