Description

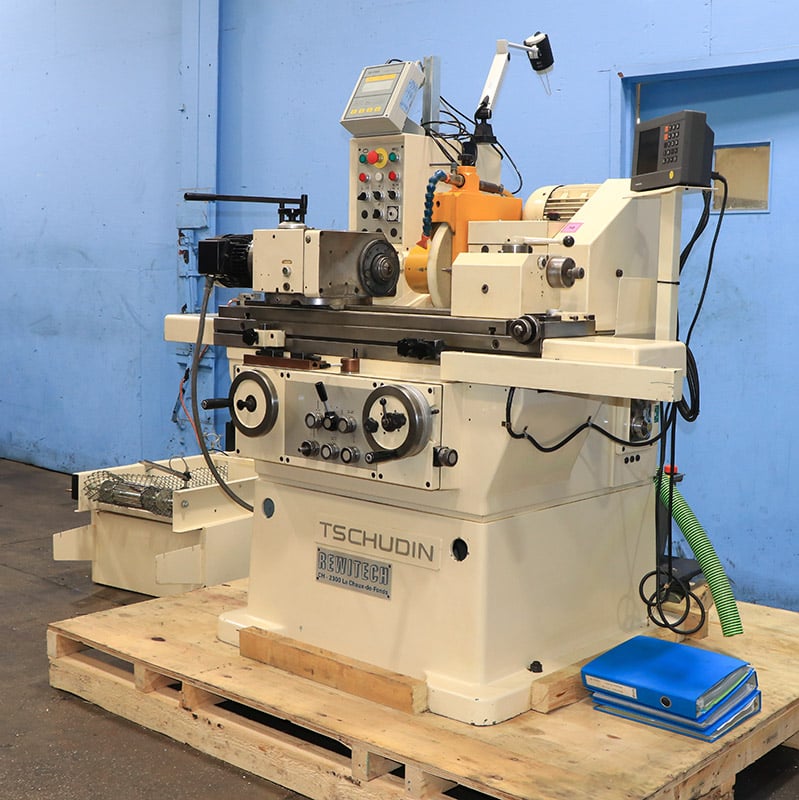

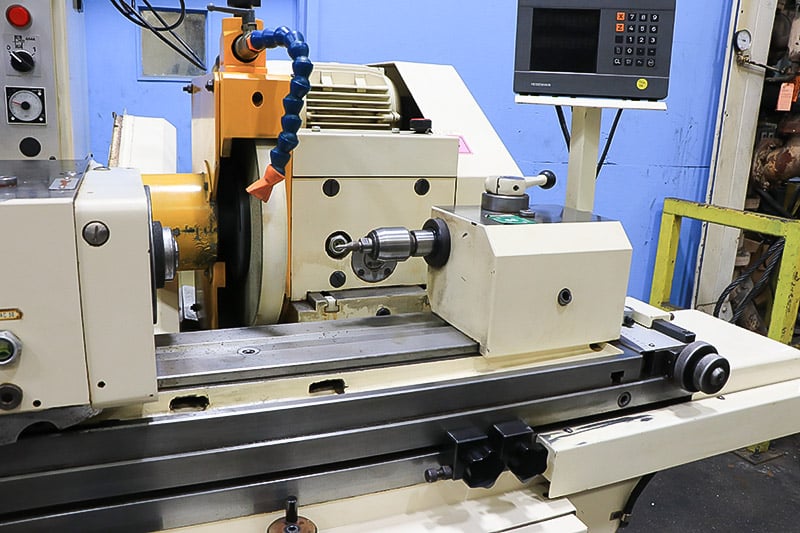

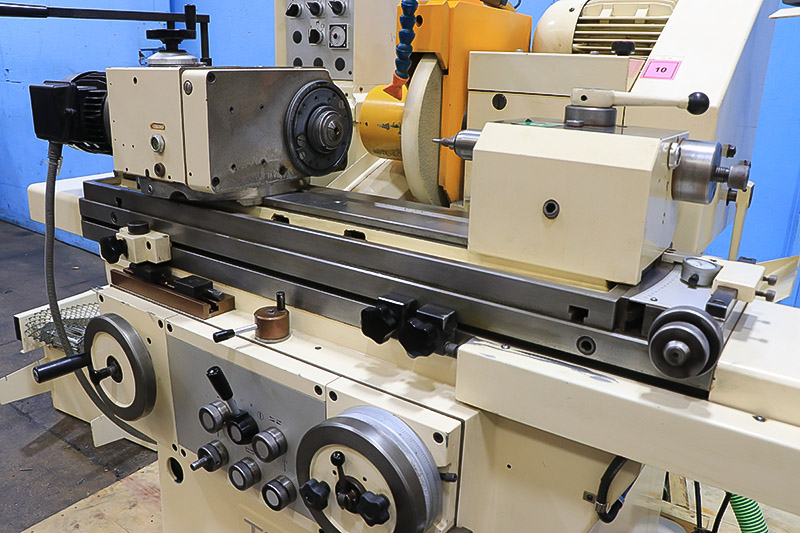

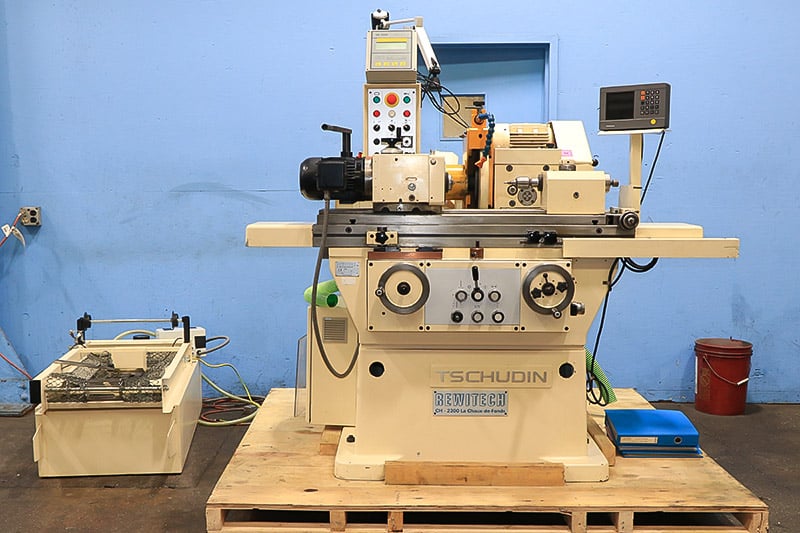

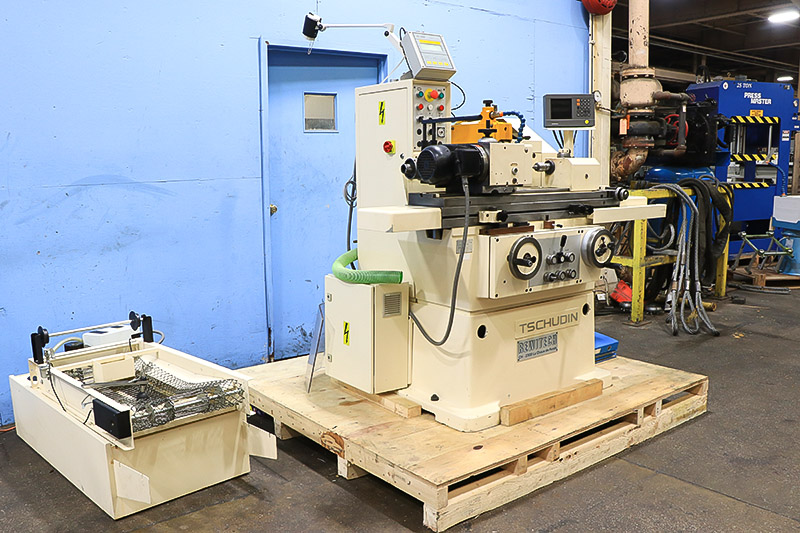

8" X 16" TSCHUDIN…"SWISS"
SUPER-PRECISION UNIVERSAL CYLINDRICAL GRINDER
** REBUILT… UPDATED BY…"REWITECH" IN SWITZERLAND, 05/2005 **
** ACQUISITION COST IN 2005 WAS 78,500 EUROS **…
www.rewitech.ch
MODEL: HTG-400 S/N: 75-77…
TABLE:…
NOMINAL SWING ............................ 8"…
DISTANCE BETWEEN CENTERS ................. 16"
TABLE SPEED .............................. 0 TO 195" IPM
TABLE DWELL .............................. 0 TO 6 SECONDS
SWIVELLING RANGE ......................... +/- 11 DEGREES
WHEELHEAD:…
WHEEL SIZE .......................... 14"DIA. X 2"W X 5"BORE
SWIVELLING RANGE ......................... +/- 5 DEGREES
MOTOR .................................... 4 HP
SPINDLE SPEEDS (3) .................. 1,640, 1,940… 2,300 RPM
WHEELHEAD INFEED;
RANGE OF PLUNGE FEED DIAMETER
REDUCTION PER MINUTE .................... 0.0005" - 0.200"
AUTOMTIC INFEED OF THE GRINDING
WHEEL PER TABLE REVERSAL, MINIMUM
INFEED INCREMENT… DIAMETER REDUCTION ..... 0.000050"
DIA. REDUCTION PER REV. OF
INFEED HANDWHEEL ........................ 0.080"
HANDWHEEL GRADUATION READS TO ............ 0.0001"
TRAVEL BY USING THE HANDWHEEL ............ 1.8"
RAPID APPROACH, AUTOMATICALLY ............ 1.5"
MOVEMENT OF WHEELHEAD SLIDE
BY HANDWHEEL ............................ 1.8"
TRAVEL OF THE WHEELHEAD SLIDE INFEED,
AUTOMATICALLY ........................... 0 TO .050" ON DIA.
INFEED SPEED, MAXIMUM .................... 1.2"/MIN.
SPARKOUT ................................. 2 TO″0 SECONDS
WORKHEAD:…
SPINDLE TAPER ............................ #5MT…
SWIVELLING RANGE .........................″60 DEGREES…
INFINITELY VARIABLE SPINDLE SPEED ........ 65 TO 500 RPM…
TAILSTOCK:…
TAPER OF CENTER BORE ..................... #3MT…
TRAVEL OF CENTER ......................... 0.8"
APPROXIMATE MACHINE DIMENSIONS ......... 60"L X 48"D X 58"H…
APPROXIMATE WEIGHT ......................... 4,400 LBS…
MACHINE FEATURES::…
TSCHUDIN HYDRODYNAMIC TYPE CYLINDRICAL BRONZE TO…
STEEL BEARING WHEELHEAD DESIGN…
SIMPLE ONE-KNOB CONTROL INITIATES ALL THE SETTINGS…
FOR TRAVERSE… PLUNGE GRINDING CYCLES…
HYDRAULIC OPERATION FEATURING:…
-POWER TABLE TRAVERSE…
-AUTOMATIC INFEED…
-DUAL RATE INFEED OPTION…
-PLUNGE INFEED…
-RAPID WHEELHEAD ADVANCE AND RETRACTION…
SPARKOUT TIMER…
TSCHUDIN…"STANDARD" WORKHEAD w/DUAL LIVE… DEAD SPINDLE…
EQUIPPED WITH:
ELECTRICAL CABINET ON MACHINE, NOT SEPARATE
HYDRAULIC RESEVOIR IN BASE, ISOLATED… SEPARATE,
UPDATED IN 2005
COOLANT SYSTEM WITH PAPER FILTRATION

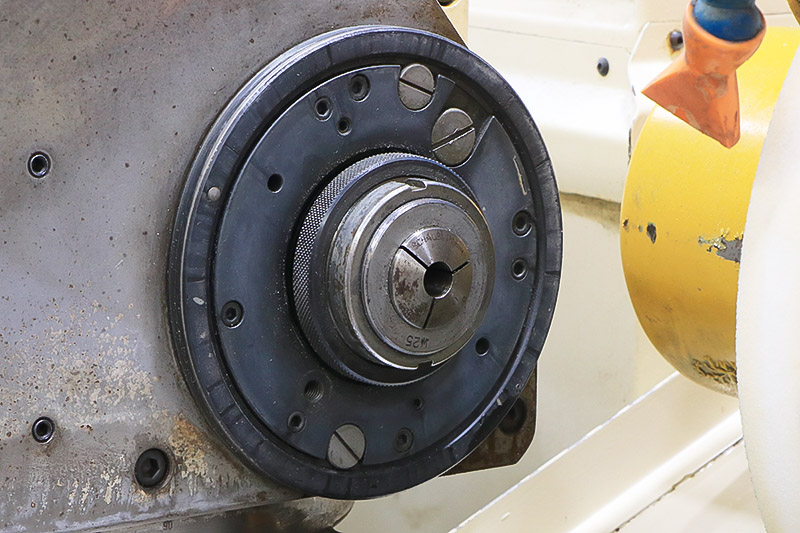

QUICK ACTING LEVER-TYPE COLLET CLOSER.… USES W25 COLLETS
THIS WORKHEAD HAS THE LARGER BORE, #5MT SPINDLE
SWING BACK DIAMOND WHEEL DRESSER
"ELASO" MODEL EB200, S/N: 100828, AUTO WHEEL BALANCING
SYSTEM, MADE IN SWITZERLAND…
HEIDENHAIN 2X DIGITAL READOUT, INCH… METRIC
HANDWHEELS ON MACHINE ARE METRIC
RAPID COARSE HANDLE FOR RAPID MANUAL ADJUSTMENT
OF THE WHEELHEAD SLIDE POSITION
THIS MACHINE CAN ACCEPT A SWING DOWN I.D.
GRINDING ATTACHMENT
GRINDING WHEEL PRESENTLY ON THE MACHINE
IS 14" DIA. x 1.25"W x 5" BORE
DIAL INDICATOR FOR TABLE TAPER ADJUSTMENT
TABLE STOP SET-UP ACCESSORY
ELECTRICAL SYSYTEM UPDATED IN 2005, BEAUTIFULLY EXECUTED.
3/50/220-380 VOLT ELECTRICS
TRANSFORMER FOR 500 VOLTS TO″/400 VOLTS, 50Hz-60Hz
* *… EXCEPTIONAL CONDITION… APPEARANCE - WOW!… * *
** REBUILT… UPDATED BY…"REWITECH" IN SWITZERLAND, 05/2005 **
** ACQUISITION COST (ANSCHAFFUNSKOSTEN) IN 2005 WAS 78,500 EUROS **
* * INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE * *
