Manufacturer: Bertsch
Model: 9
Year: 1971
Length': 8.00
CapacityInches or Gauges: .50000
Stock # Q12014
1 / 10
Click to zoom in
1 / 10
For Sale by Great American Eqpt Co
Surplus Record Dealer Since 1991
Location: Cincinnati, OH
Contact Sales Dept.
Phone Number: 513...> Show Phone Number 513-771-2111
Let the seller know you found their listing on Surplus Record!
Description

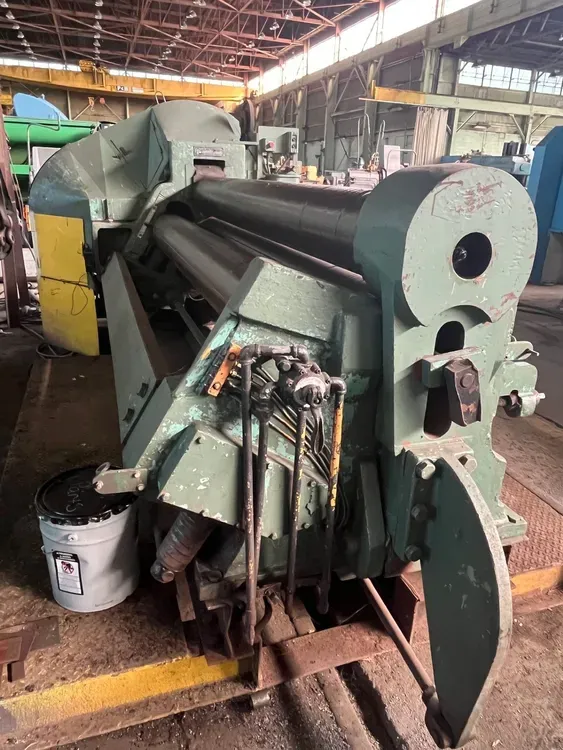

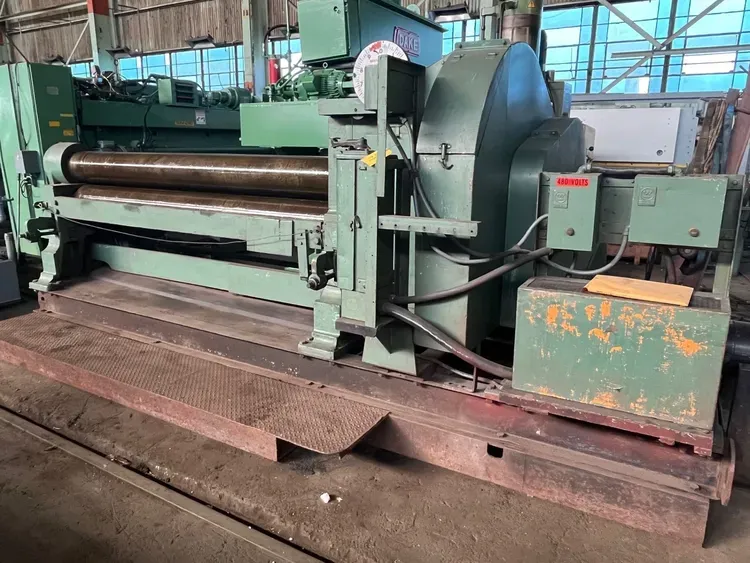

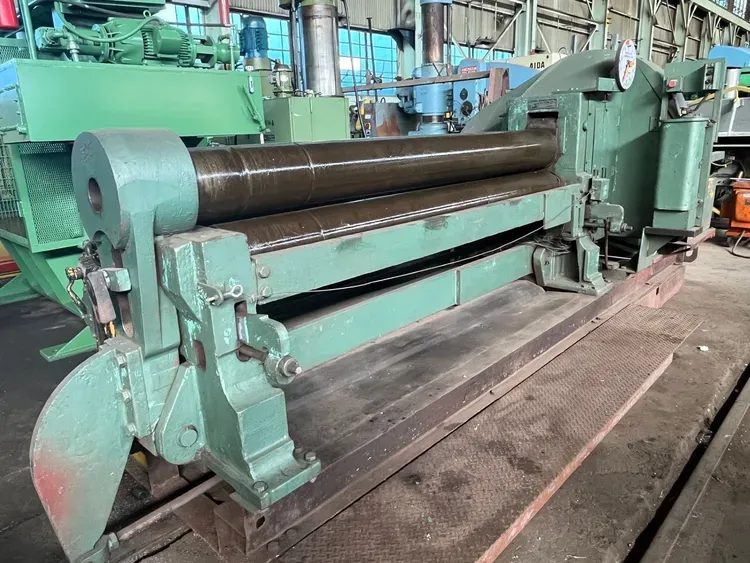

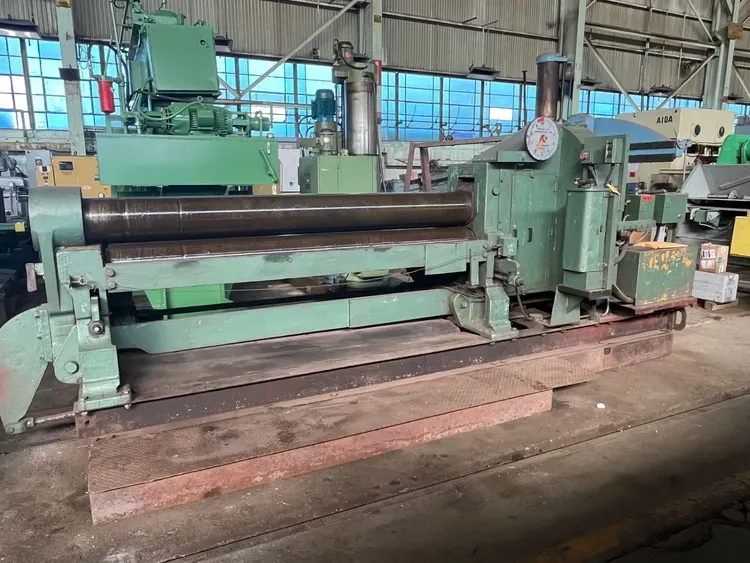

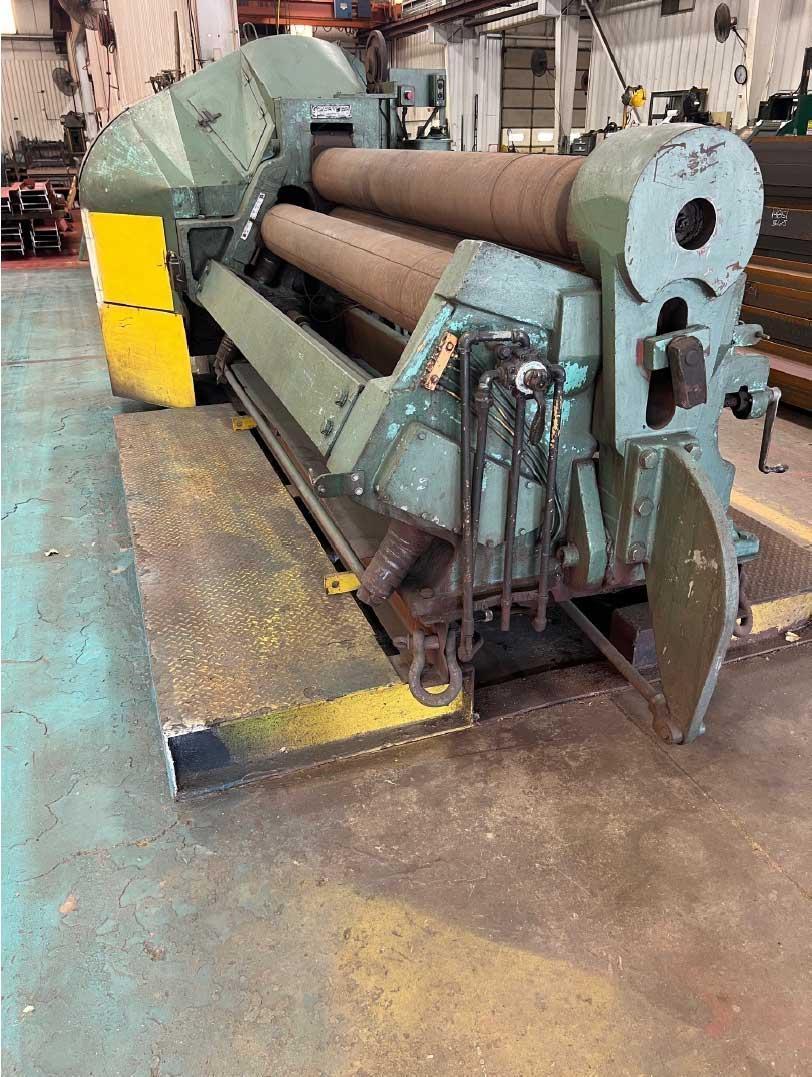

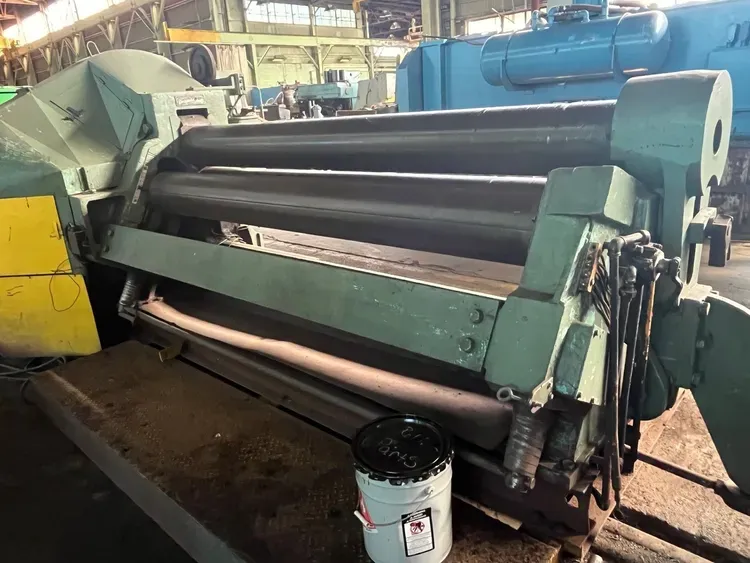

8' x 1/2" BERTSCH 3-ROLL INITIAL PINCH PLATE BENDING ROLL
Model #9, S/N M-9980, New 1971
Stock# Q12014
Model #9, S/N M-9980, New 1971
Stock# Q12014
EQUIPPED WITH:

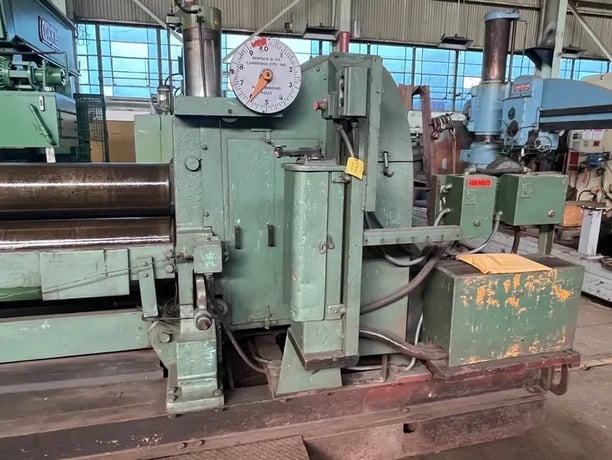

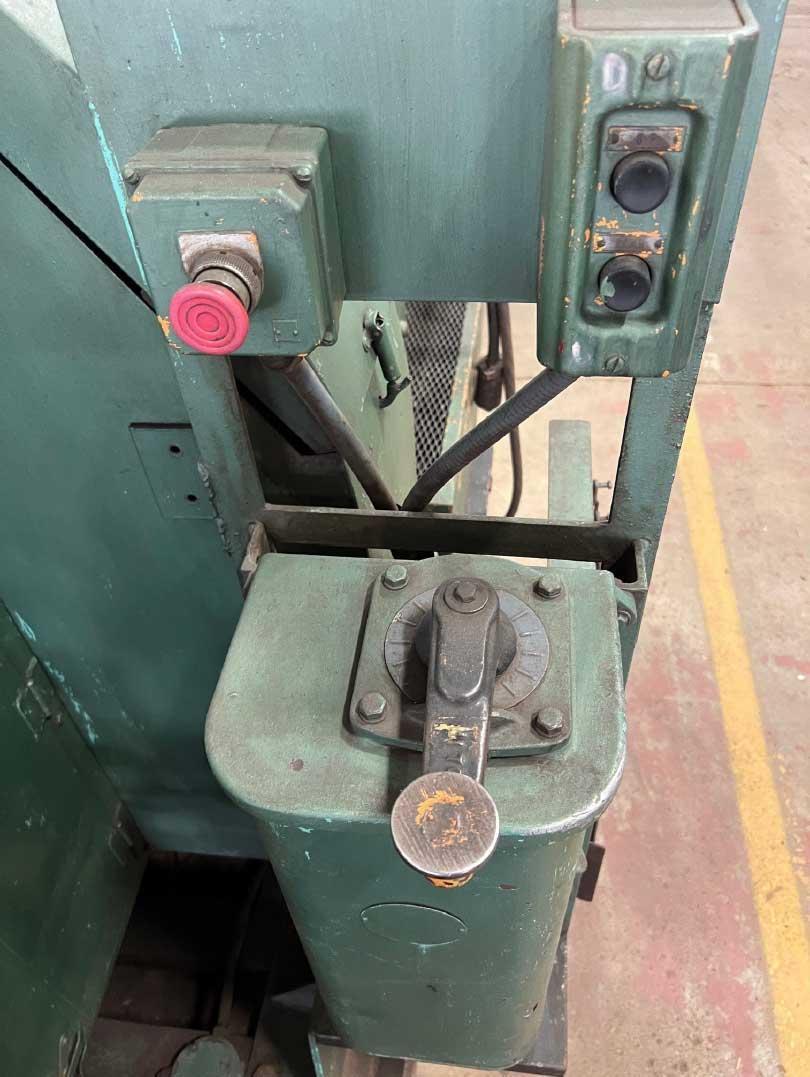

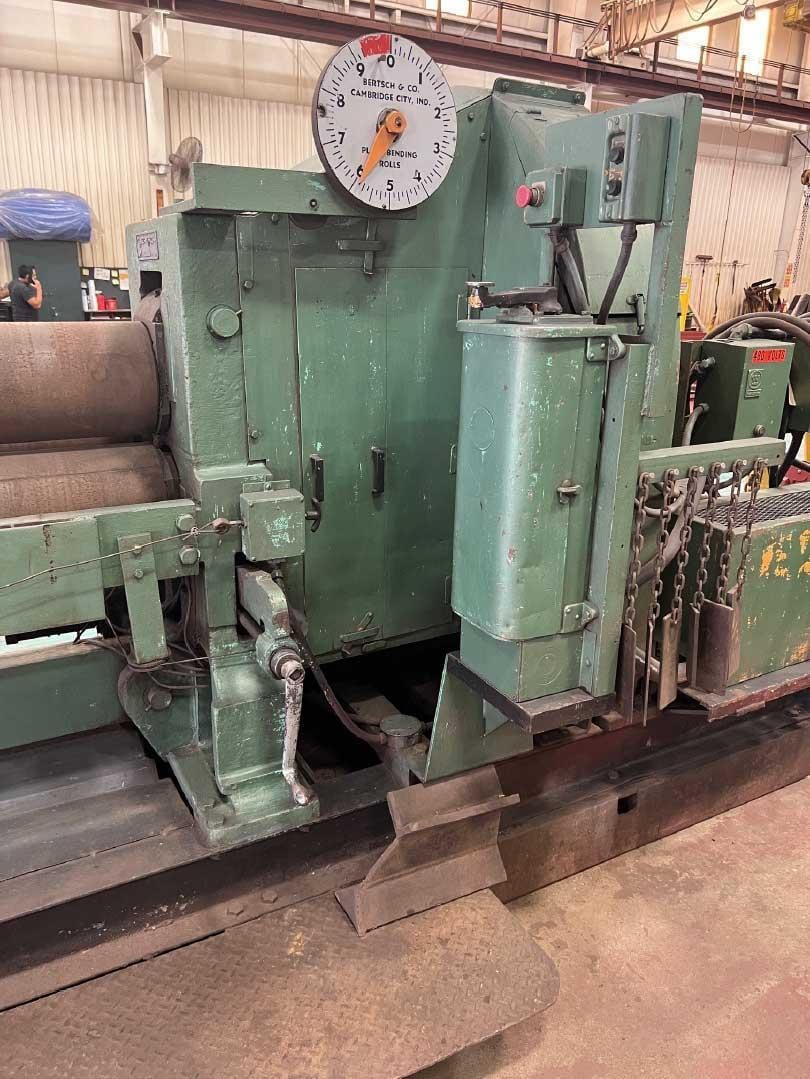

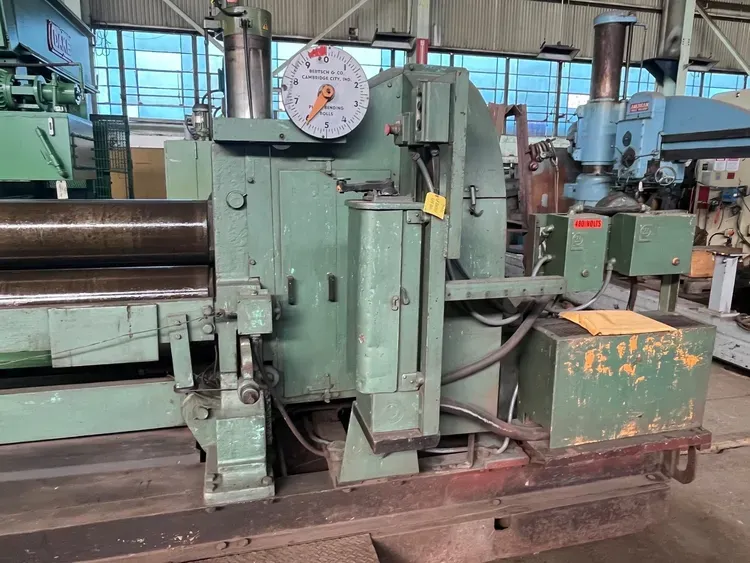

3-Roll Hydraulic Initial Pinch Design, Air Drop End, Power Bottom-Roll Adjustment, Dial Indicator for Bending Roll Position, Forward & Reverse Switch, Automatic Lubrication System, Beam Mounted (No Pit Required).
CATALOG SPECIFICATIONS:
| # Rolls | 3 |
| Hyd/Mech | hydraulic |
| (Init/Dbl Pinch or Pyramid) | single |
| Plate Bending Capacity, Boiler Duty (Mild Steel) | 1/2" x 8' |
| Plate Bending Capacity, Pipe Duty (Mild Steel) | 13/32" x 8' |

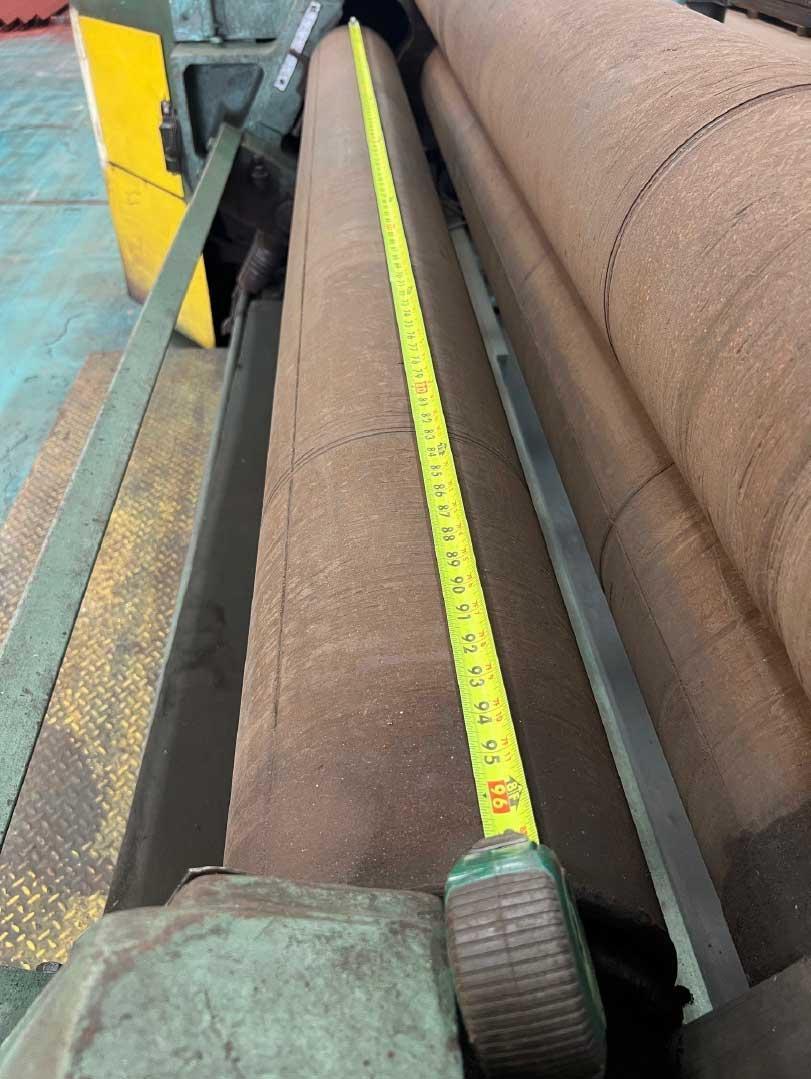

| Overall Length of Rolls | 99" |
| Min Rollable Diameter, Single Pass | 11.5" ID (.406" Thickness) |
| Top Roll Diameter | 10" |
| Bottom Roll Diameter | 10" |
| Rear Roll Diameter | 10" |
| Motor Power | 15 HP |
| Max Speed | 1150 RPM |
| Electrics | 230-460/3/60 |
| Approximate Machine Weight | 20,100 LBS |
CONDITION: This Machine Appears to be in Excellent Condition!
Get Your Price from Great American Eqpt Co!
