| Stock Number | AM17371 |
| Brand | Schwarze Wirtz Robitec |
| Capacity | 8.63 inches |
Specifications

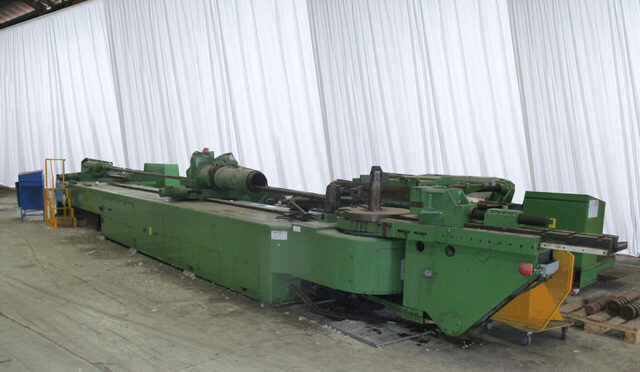

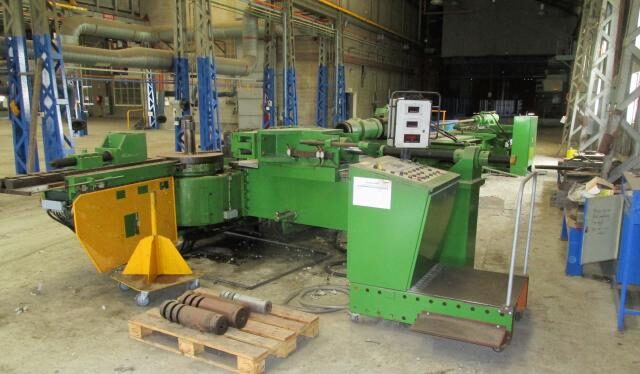

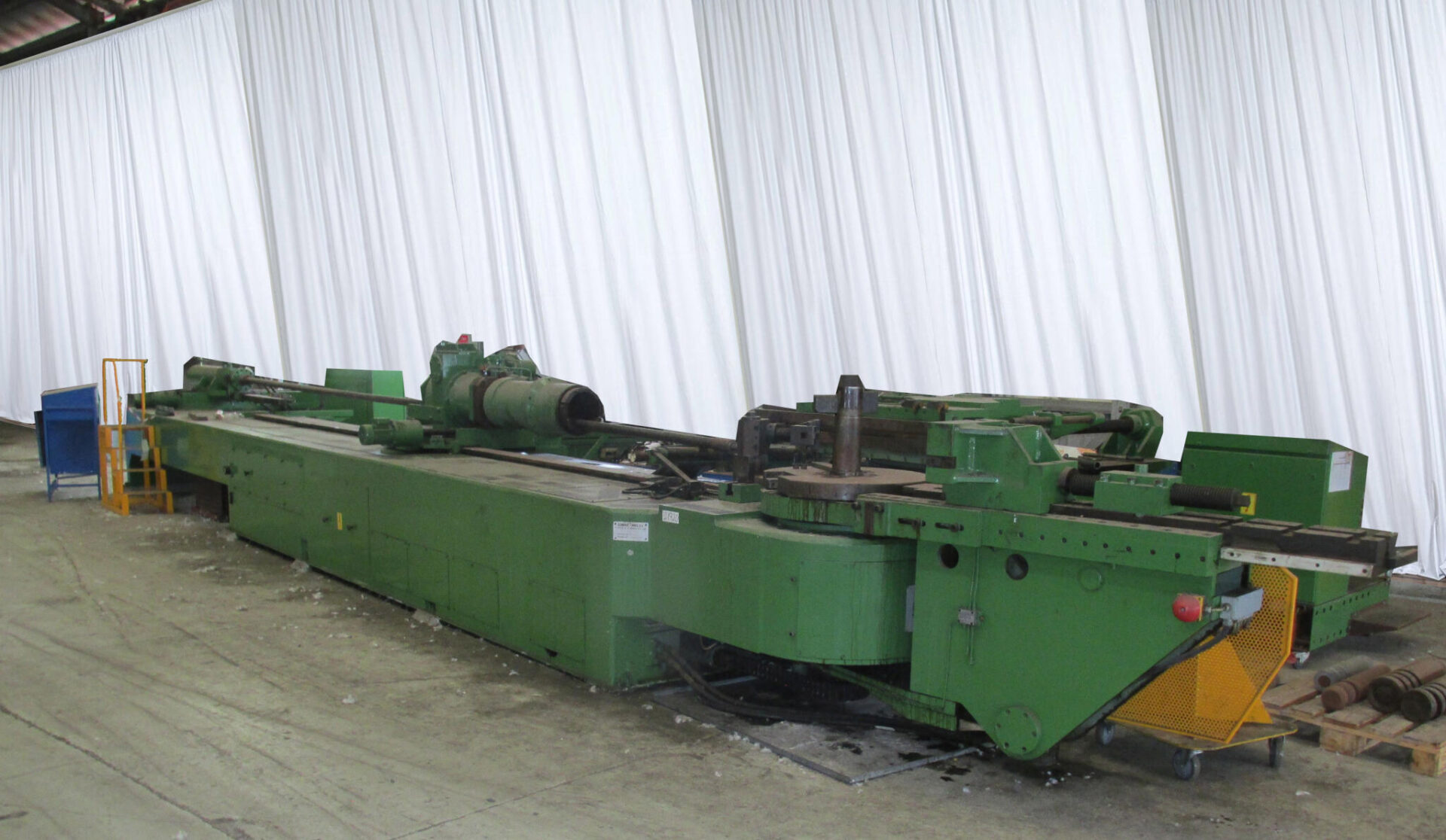

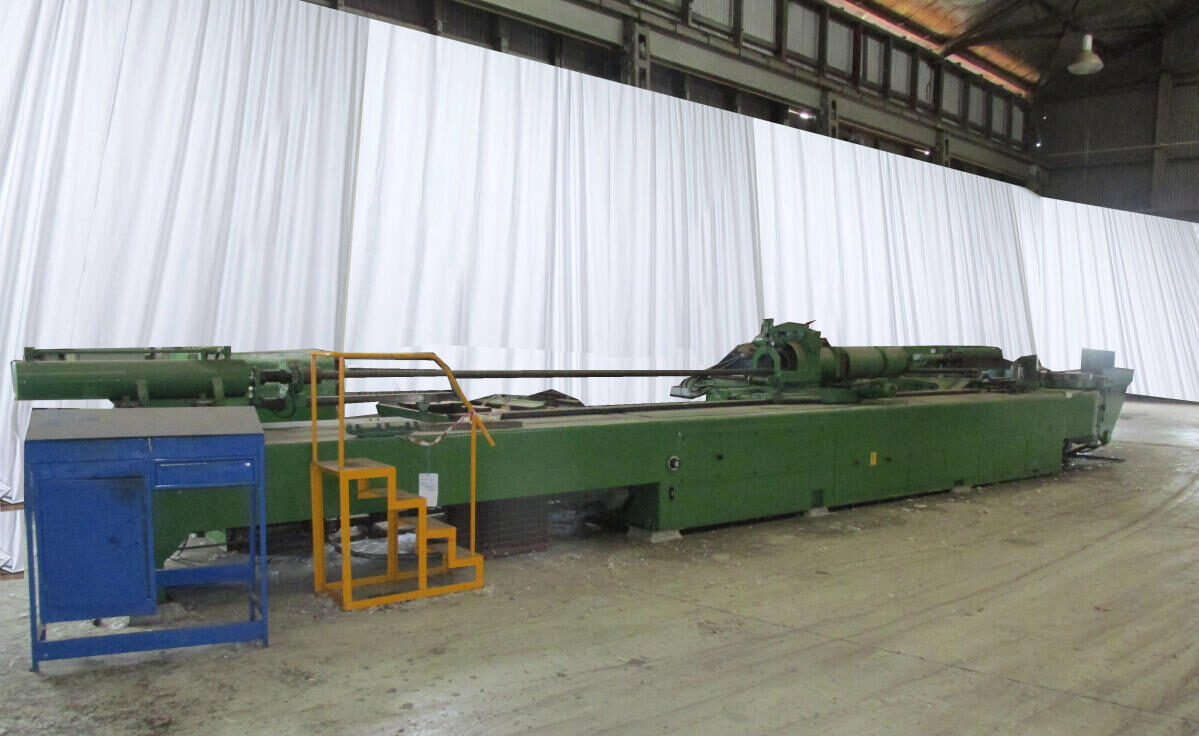

8-5/8″ Schwarze-Robitec #WE220 3-Axis CNC Tube Bender
- Maximum tube diameter: 8.625″ OD x 0.280″ wall (219.1mm x 7.1mm)
- Maximum tube length over mandrel: 236” or 6,000 mm (approx)
- Maximum centerline radius mandrel bending: 48″ (approx)
- Bending rotation: right-hand (clockwise)
- Operator control station – updated
- Heavy-duty carriage for pipe positioning between bends
- Hydraulic mandrel extractor
- Hydraulic B-axis shift
- Wiper die holder
- Hydraulic pressure die assist
- Hydraulic direct acting pressure die
- Hydraulic collet closer

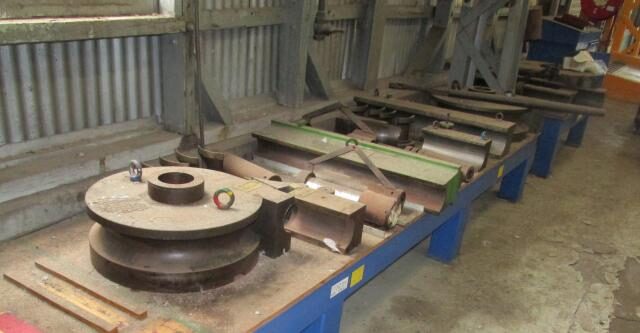

- Huge assortment of tooling for pipe ODs
