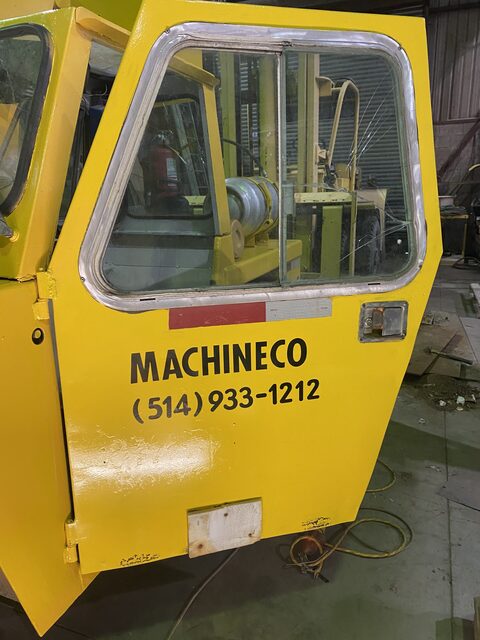

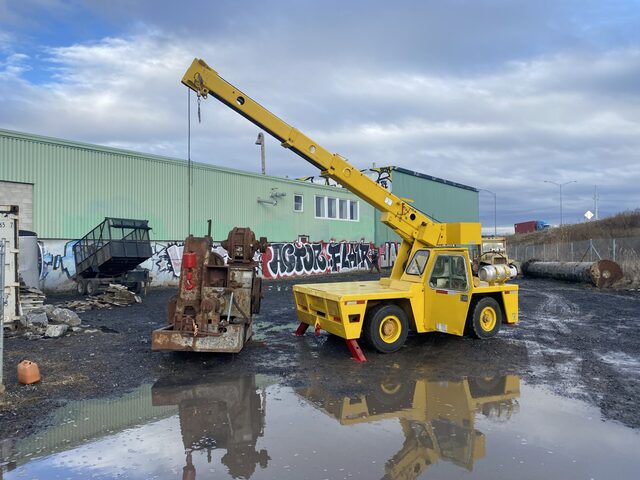

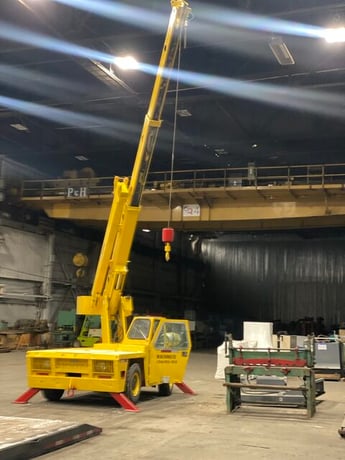

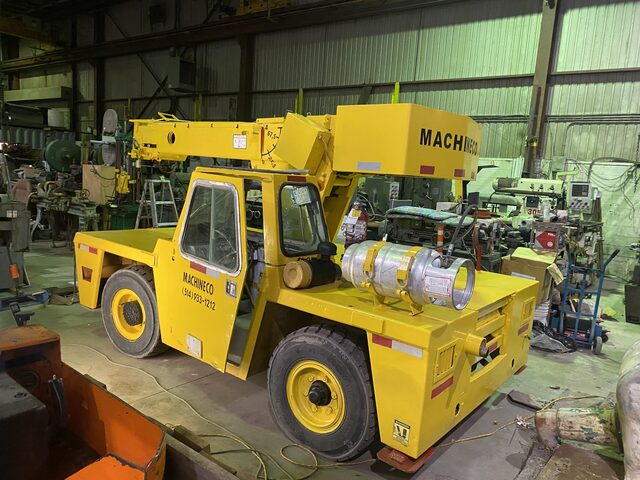

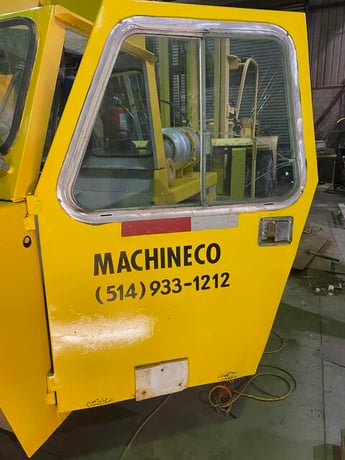

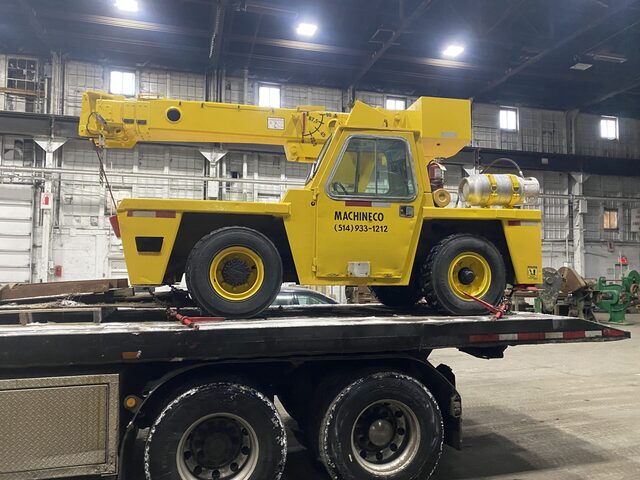

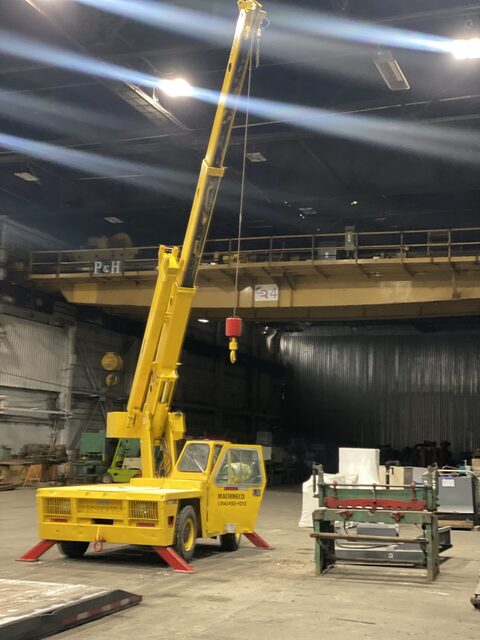

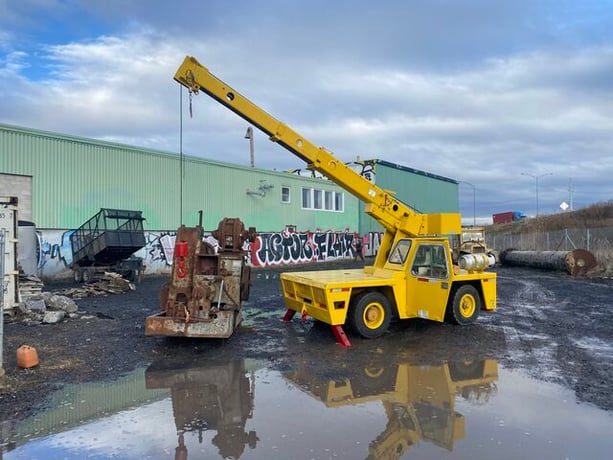

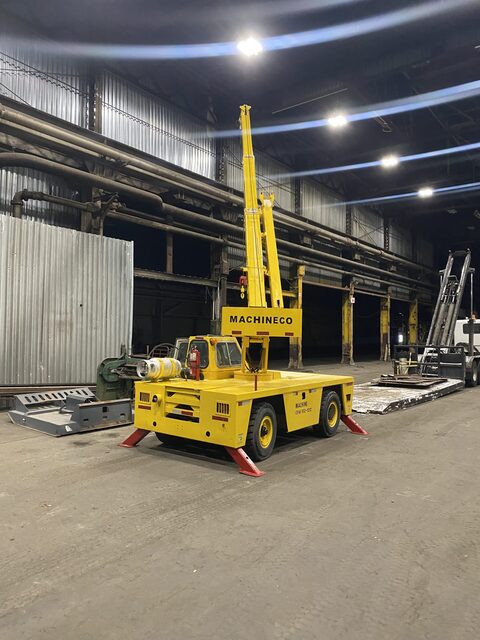

8.5 Ton, Broderson #IC-80D, carry deck mobile crane, 17000 lb. capacity, triple telescopic boom, 360° rotation, propane

FOR RENT, Inquire. 514-867-3131)

Crane, Broderson IC-20 (2½ Tons).
Manufacturer . . . . . . . . . Broderson Mfg. Kansas, USA
Model . . . . . . . . . . . . . . . IC20-1J

Lift Capacity . . . . . . . . . . 2.5 ton w/ Crosby 1 Sheave Hook Block

Boom length . . . . . . . . . . Main Boom 4 ft minimum. 15 ft maximum
Year . . . . . . . . . . . . . 2016
Hours . . . . . . . . . . . . 917 (June, 2026)
Serial Number . . . . . . . . 6782620
US EPA Label . . . . . . . . Tier 4
Engine . . . . . . . . . . . Kubota 4 Cylinder Diesel Engine

=============== FOR RENT, Inquire. 514-867-3131) =================

Crane, Broderson IC-20 (2½ Tons).
Manufacturer . . . . . . . . . Broderson Mfg. Kansas, USA
Model . . . . . . . . . . . . . . . IC20-1J

Lift Capacity . . . . . . . . . . 2.5 ton w/ Crosby 1 Sheave Hook Block

Boom length . . . . . . . . . . Main Boom 4 ft minimum. 15 ft maximum
Year . . . . . . . . . . . . . 2016
Hours . . . . . . . . . . . . 917 (June, 2026)
Serial Number . . . . . . . . 6782620
US EPA Label . . . . . . . . Tier 4

Engine . . . . . . . . . . . Kubota 4 Cylinder Diesel Engine

Description:

The Broderson IC-20 is an ultra-compact industrial carry deck crane. With a 5,000-lb capacity

and narrow footprint, it is designed to maneuver through tight spaces, clear low overhead obstacles,

and perform precision “pick and carry” operations where larger cranes cannot fit.”

Key Features

• Lifting Capacity: Up to 5,000 lbs (2,270 kg) on outriggers and up to 2,500 lbs (1,130 kg) for pick-and-carry tasks.
• Ultra-Compact Size: Measures just 4 feet wide and as low as 5 feet 6 inches tall (without the operator guard),
  allowing it to drive indoors and into confined plant facilities.
• Maneuverability: Features front-wheel drive and standard rear-wheel steer to achieve an extremely tight turning radius. [1, 2]
• Boom Specifications: Includes a 3-section, full-power boom (6 to 15 feet) with a 90-degree rotation.
  When paired with an optional 7-foot jib, it can reach a maximum tip height of 27 feet 9 inches.
• Versatile Deck Load Capacity: Features a self-loading carry deck designed to transport materials. [1, 2]
• Engine Options: Available in EPA Tier-4 Final configurations with either dual-fuel (gasoline/LPG) or diesel options.
• Safety Systems: Includes a Rated Capacity Limiter, an Anti-Two-Block system with an electric
  solenoid dump valve, and an independently controlled 3-position outrigger system.

Main Benefits

• Exceptional Access: The low profile and narrow footprint allow the IC-20 to navigate
  narrow aisles, through standard doorways, and under low-hanging pipes.
• Minimizes Operator Fatigue: Direct mechanical-to-hydraulic controls deliver smooth,
  precise operation, resulting in high control and less operator exhaustion over long shifts.
• Reduced Manual Labor: Serves as both a crane and a transport vehicle, enabling crews to lift,
  load materials onto the deck, and transport them safely across the facility.
• Versatility: The boom can swing 90 degrees and features an optional jib attachment,
  giving operators the flexibility to make lifts over obstacles.
• Robust Reliability: Built with durable, rugged construction intended for
  harsh industrial and manufacturing environments

=========================================================================
