Description
Description:

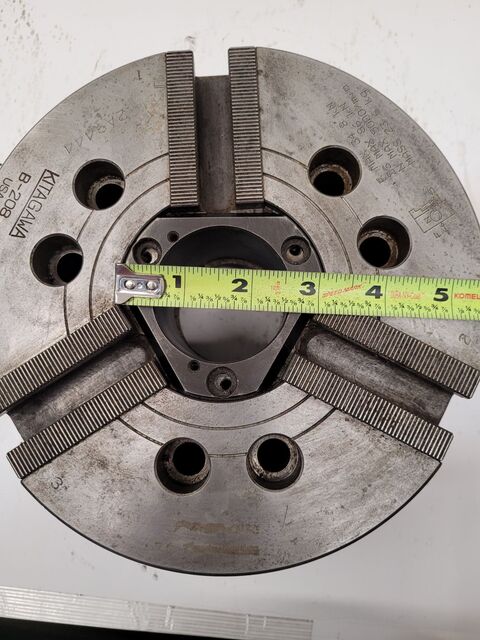

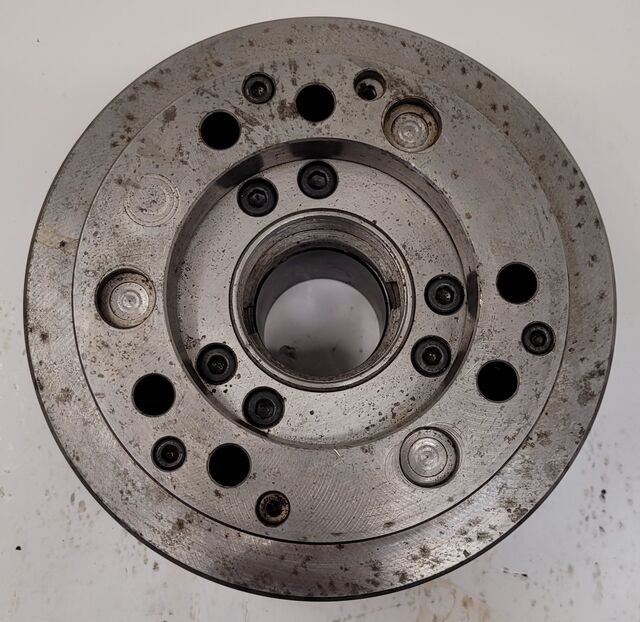

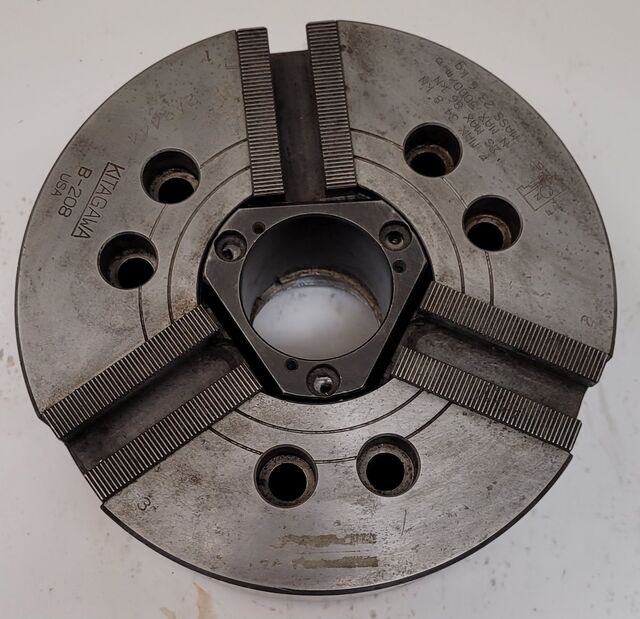

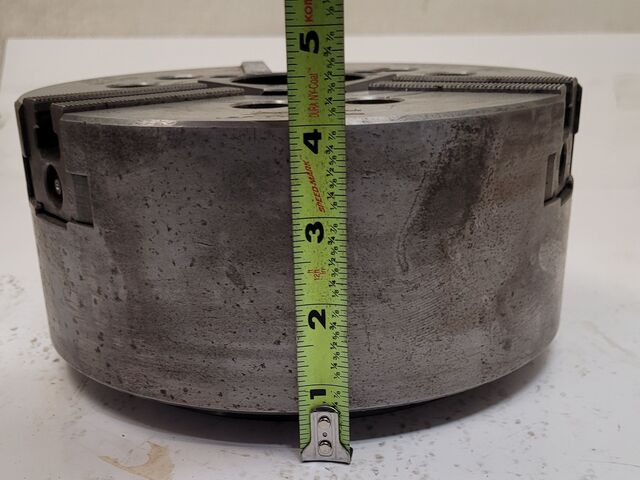

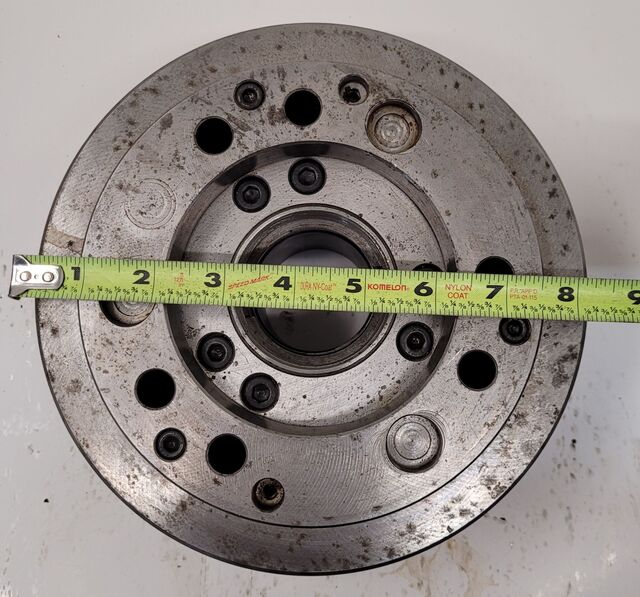

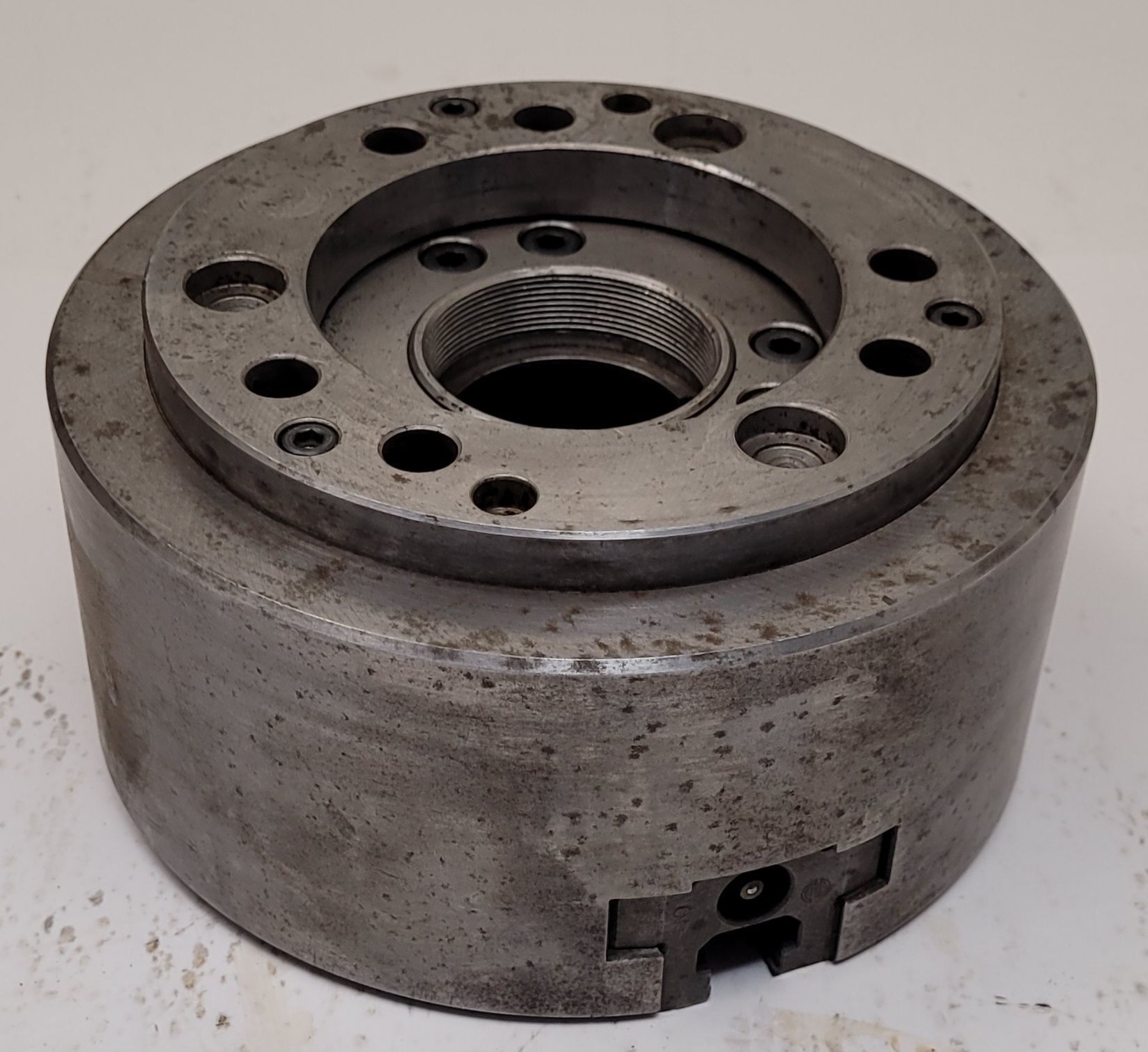

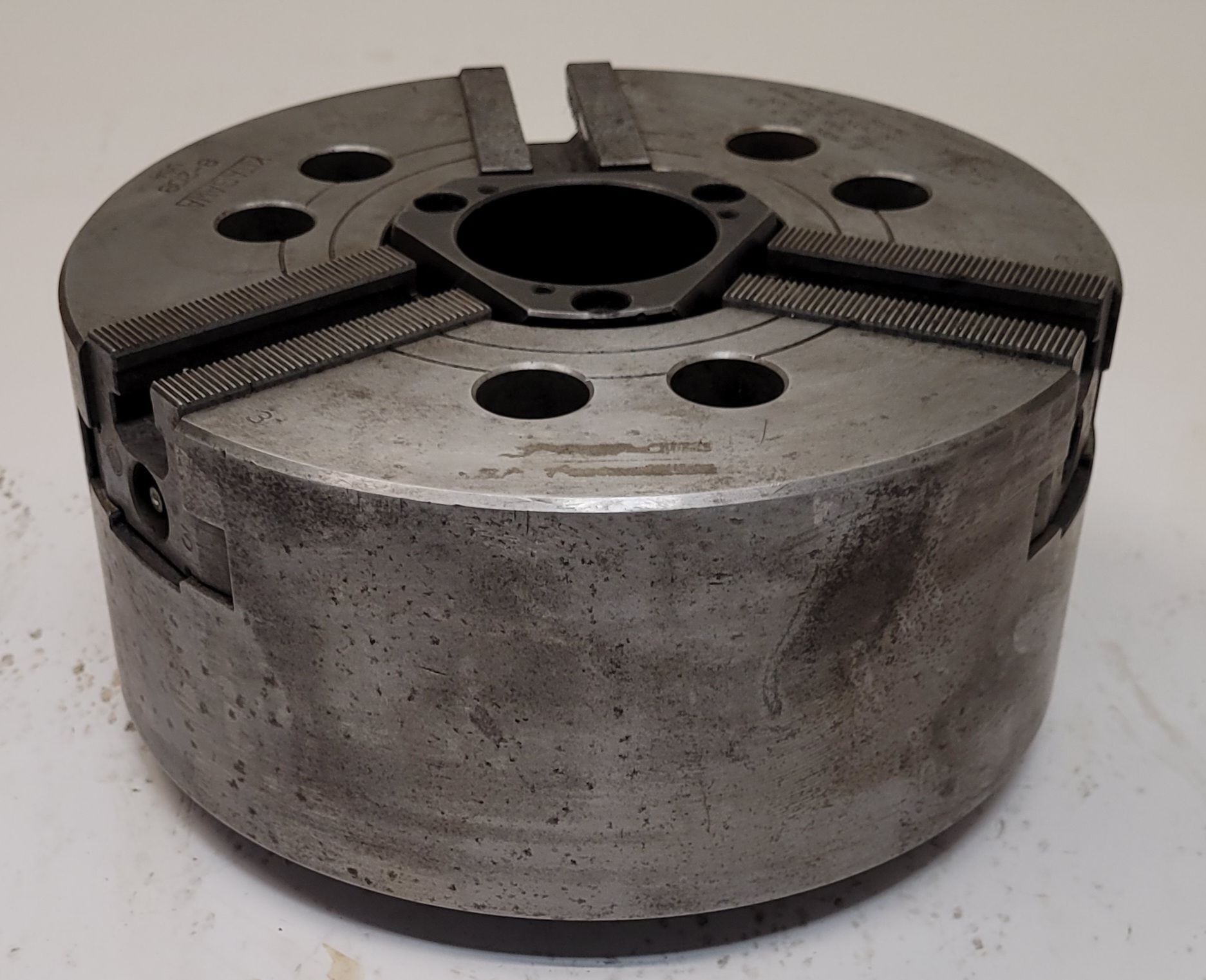

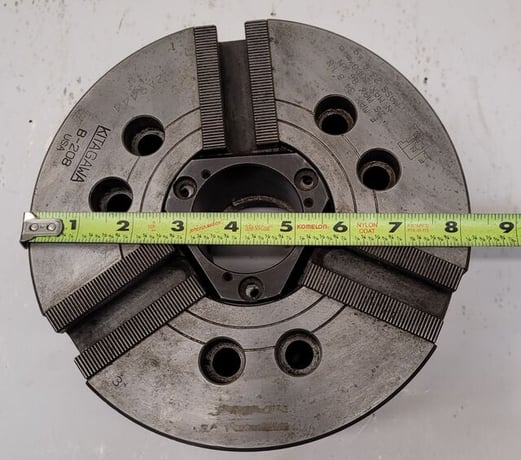

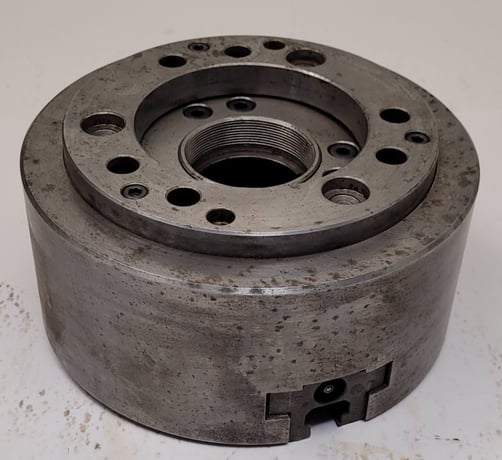

Kitagawa B-208 3 Jaw 8.25" Open Centre Power Chuck. Used lathe chuck with max speed 5000rpm, weighing 22.3kg. Gripping force 86kN, draw bar pull 34.8kN. Ideal for precision tasks with 210mm max gripping range and 52mm through-hole.
Spec Sheet:
Kitagawa B-208 - 3 Jaw - 8.25" Open Centre Power Chuck
USED

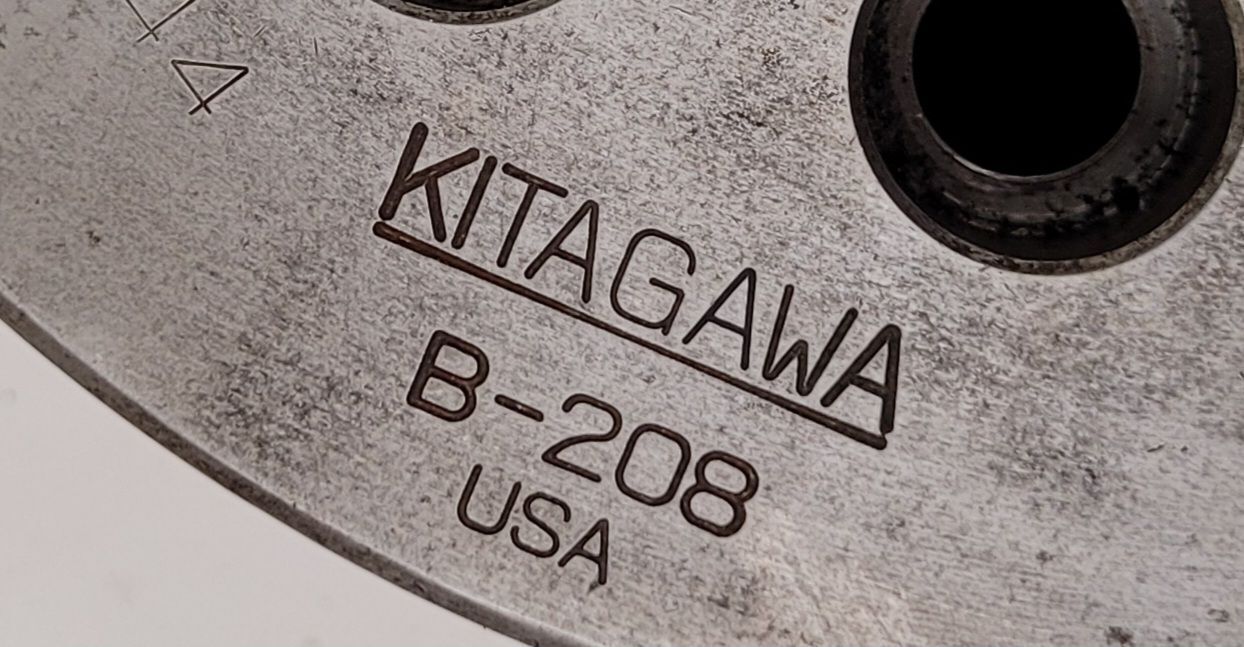

Brand: Kitagawa
Part Number: B-208
3 Jaws
Type: Lathe Chuck

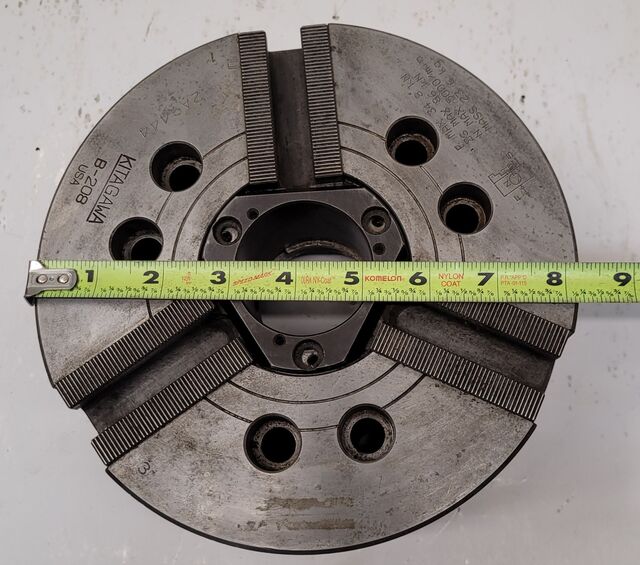

Overall Diameter: 8.25in
Through-hole (mm): 52
Gripping range (mm): 210 max, 13 min
Jaw Stroke (diameter mm): 7.4
Plunger Stroke (mm): 16

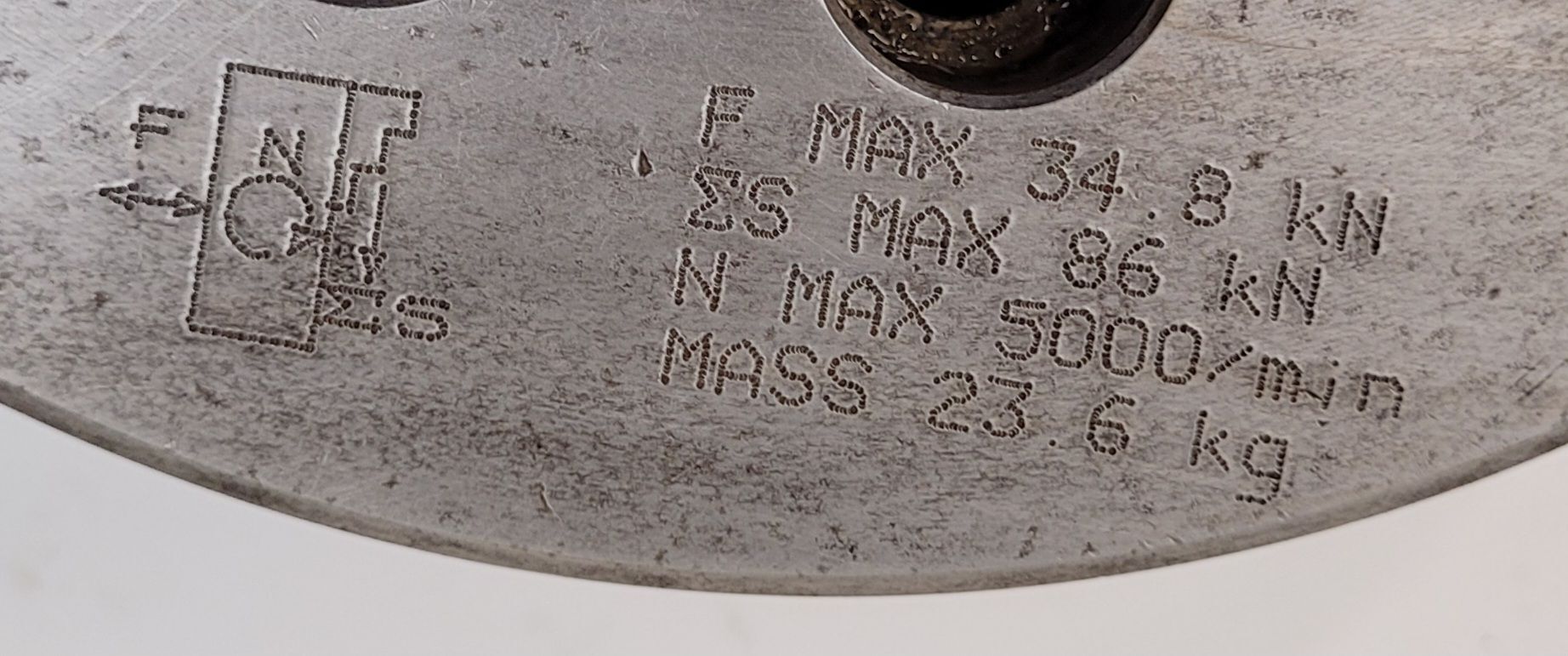

Max. Draw Bar Pull Force: 34.8kN, 3549 kgf
Max. Gripping Force: 86 kN, 8769 kgf
Max Speed: 5000rpm
Weight (with soft jaws) 22.3kg
Moment of inertia: 0.170 kg.m2
Matching cylinder: S1552
Max pressure: 2.65 MPa, 27 cm2
Matching hard top jaw: HB08A1
Matching soft top jaw: SB08B1
Kitagawa B-208 3 Jaw 8.25" Open Centre Power Chuck. Used lathe chuck with max speed 5000rpm, weighing 22.3kg. Gripping force 86kN, draw bar pull 34.8kN. Ideal for precision tasks with 210mm max gripping range and 52mm through-hole.
Spec Sheet:
Kitagawa B-208 - 3 Jaw - 8.25" Open Centre Power Chuck
USED
Brand: Kitagawa
Part Number: B-208
3 Jaws
Type: Lathe Chuck
Overall Diameter: 8.25in
Through-hole (mm): 52
Gripping range (mm): 210 max, 13 min
Jaw Stroke (diameter mm): 7.4
Plunger Stroke (mm): 16
Max. Draw Bar Pull Force: 34.8kN, 3549 kgf
Max. Gripping Force: 86 kN, 8769 kgf
Max Speed: 5000rpm
Weight (with soft jaws) 22.3kg
Moment of inertia: 0.170 kg.m2
Matching cylinder: S1552
Max pressure: 2.65 MPa, 27 cm2
Matching hard top jaw: HB08A1
Matching soft top jaw: SB08B1
Inquire Further with Machinery Central!
