8' - 19" Carlton, Radial Drill, Lever Shift, 20" Spindle Travel, 4" Spindle diameter, #6 MT

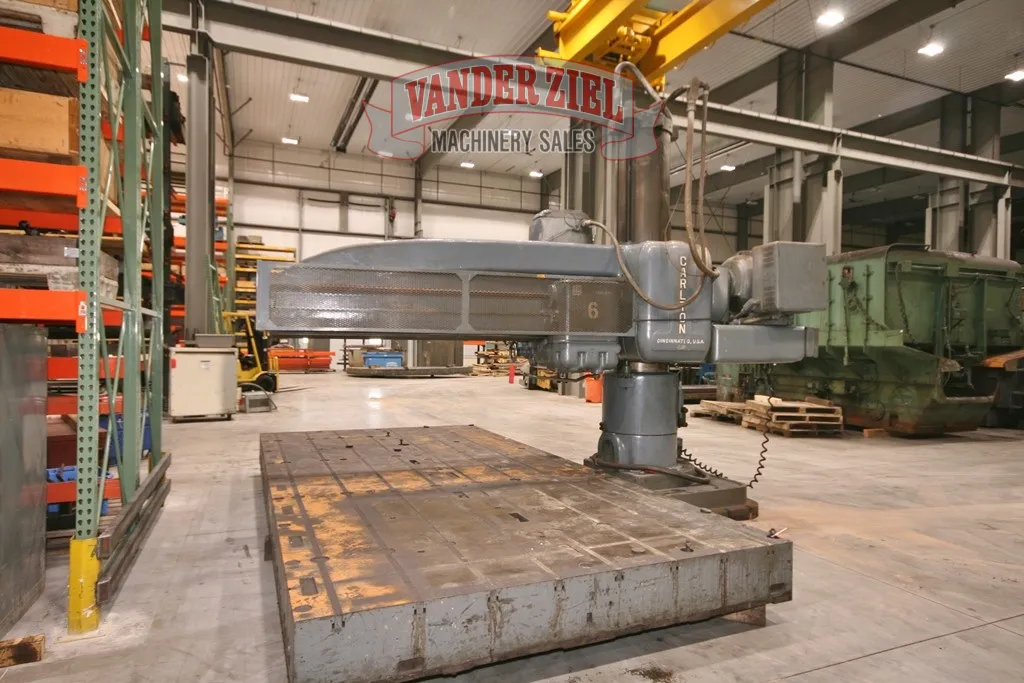

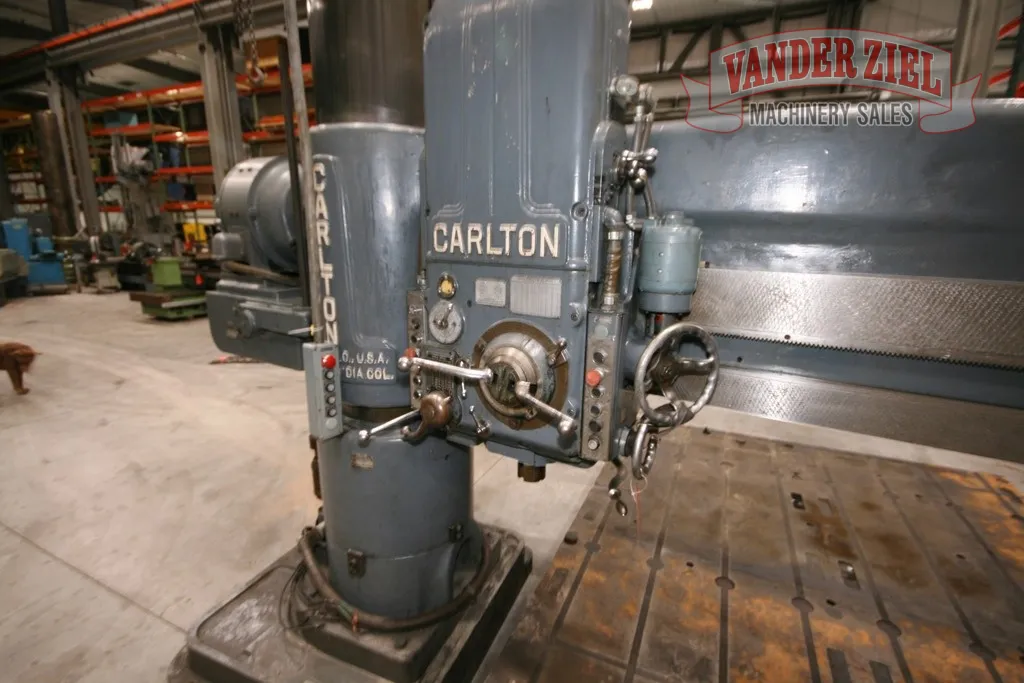

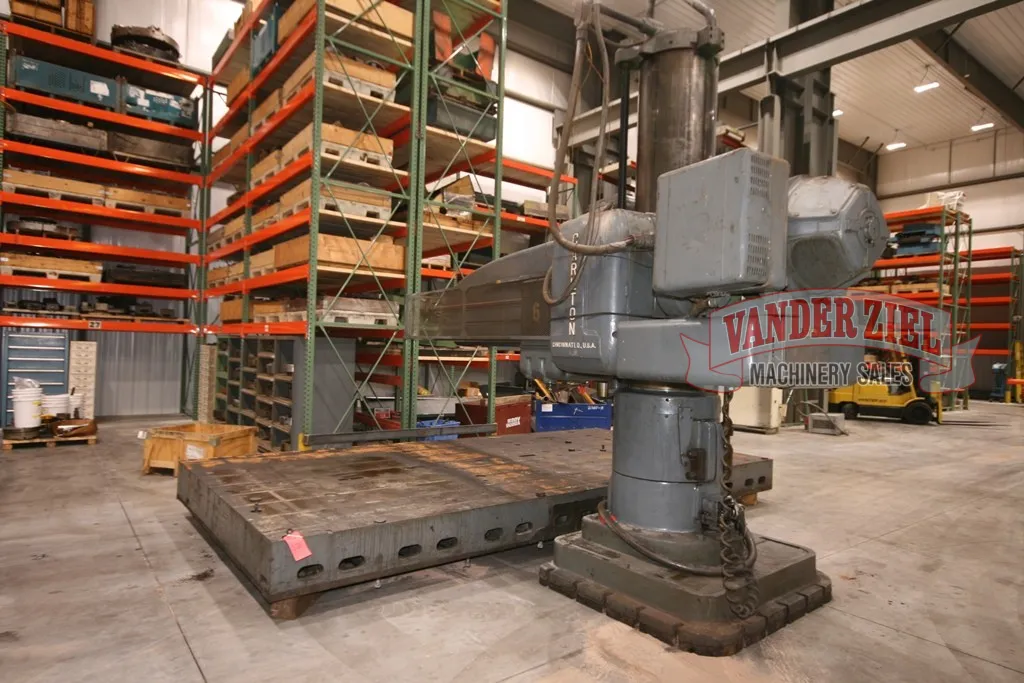

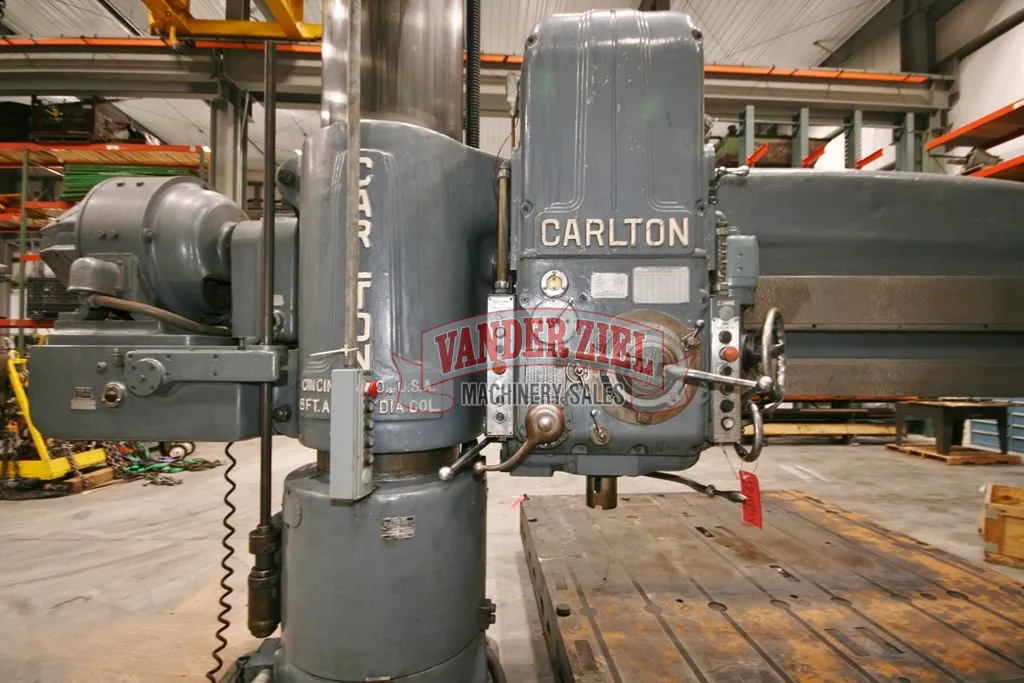

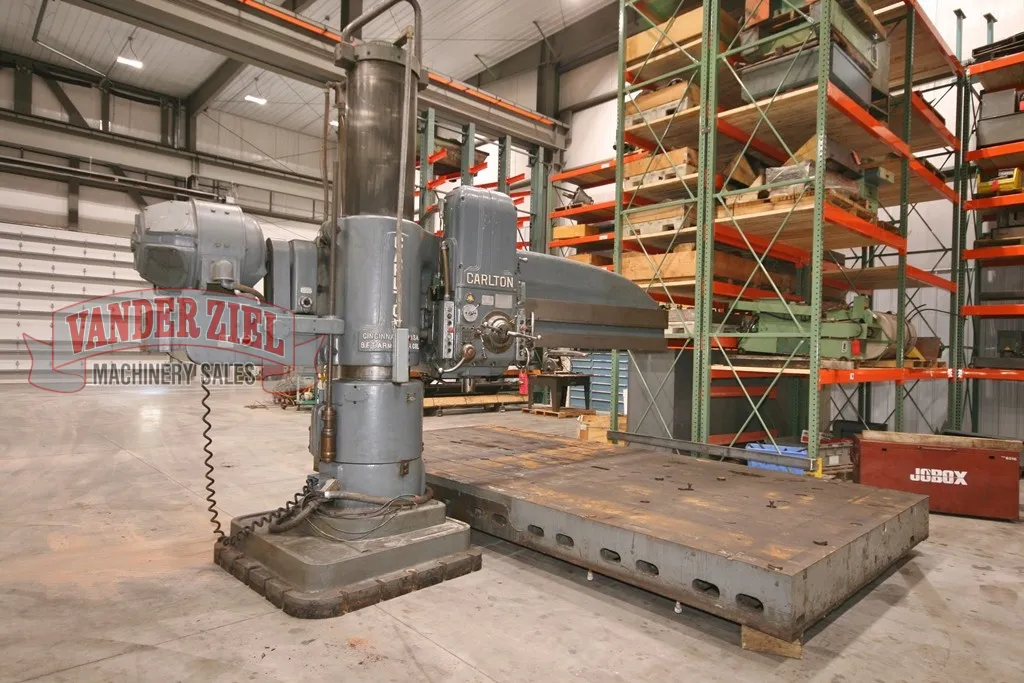

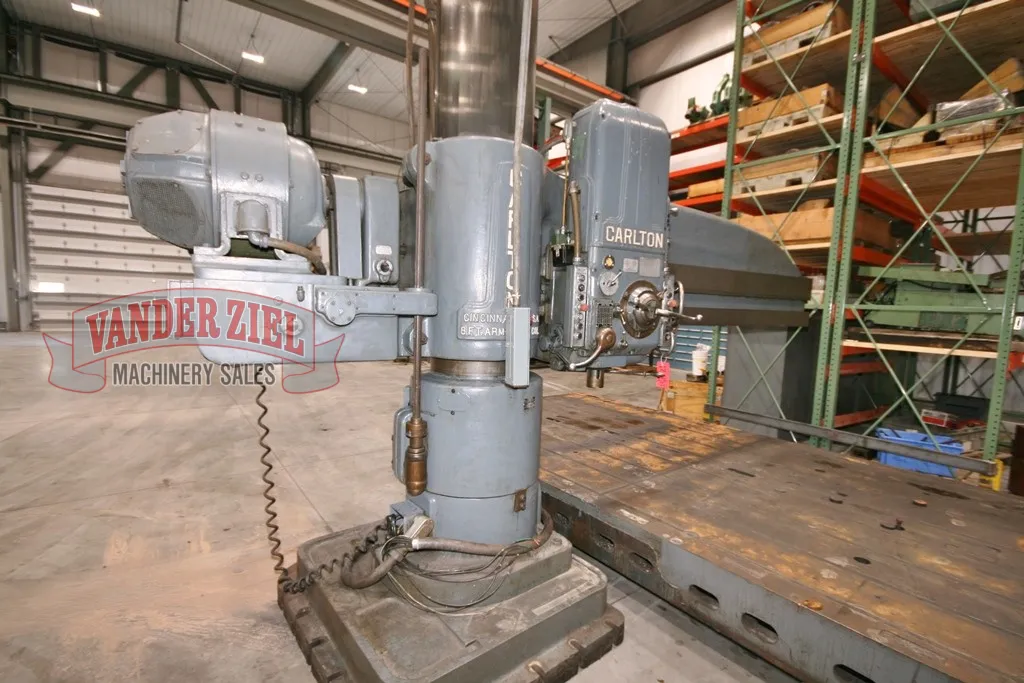

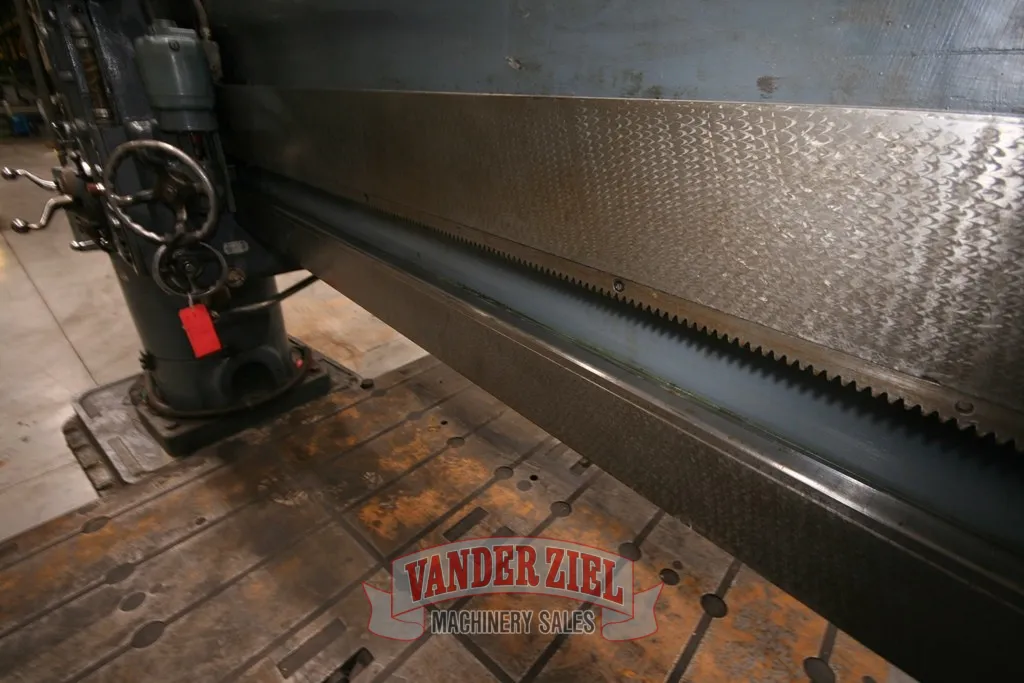

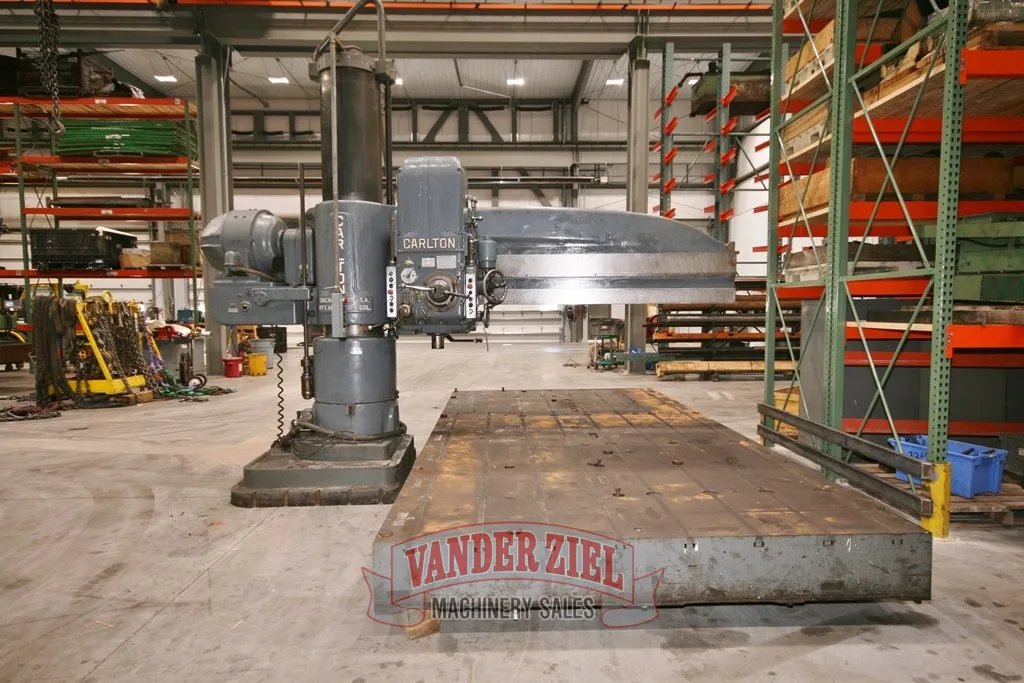

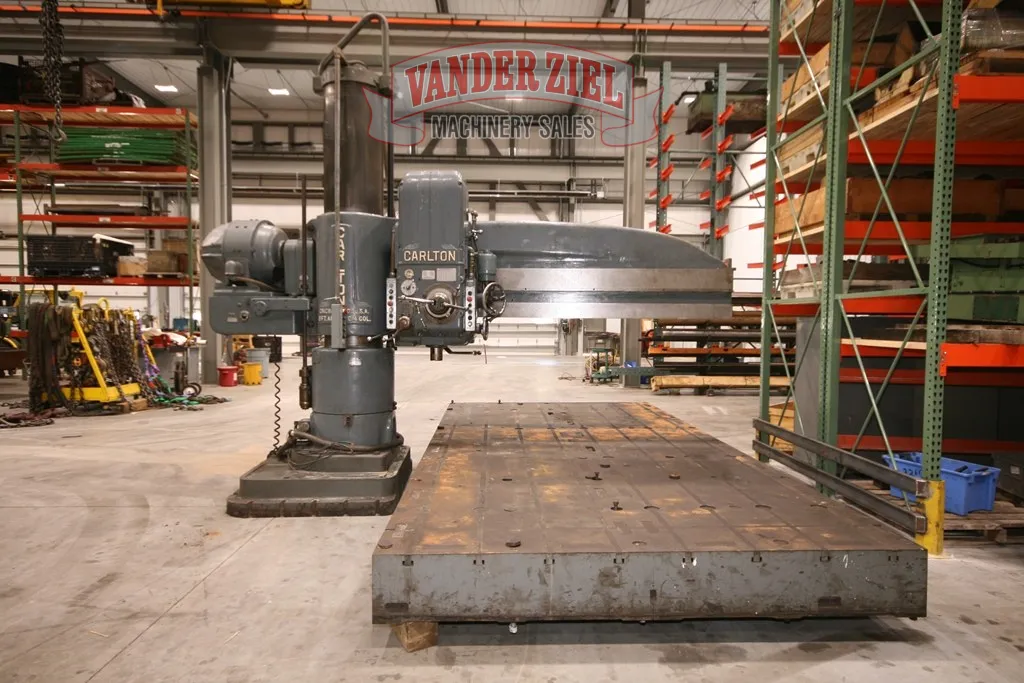

Carlton 8' x 19" Radial Drill, Lever Shift

Serial # 4A-3086
Asset # 12145

Specifications:
Column Diameter 19"
Arm Length 8'
Face of Column to Center of Spindle 13 1/4 - 8'
Spindle Radius 27" - 8' 1 3/4"
Spindle to Base 14 1/2" - 6'6"
Vertical Travel of Spindle in Head 20"
Bearing of Head on Arm 23 1/4"
Bearing of Arm on Column 38"
Height over Head 12'2"
Height over Column Capacity 11' 9"
Spindle Diameter 4"
Morse Taper in Spindle #6
Traverse of Arm on Column 3' 7 1/2"
Traverse of Head on Arm 6' 10 3/4"
Drills to Center of Circle 16'
Swing of Arm 10'6"
Feeds (18) .004 - .125
Tap Thread Leads 8, 11.5, 4, 18
Spindle Speeds (36) 10-1000 RPM

Drill is equipped with lever shift controls flange mount with floor plate.

Preliminary Specifications - Subject to Verification
