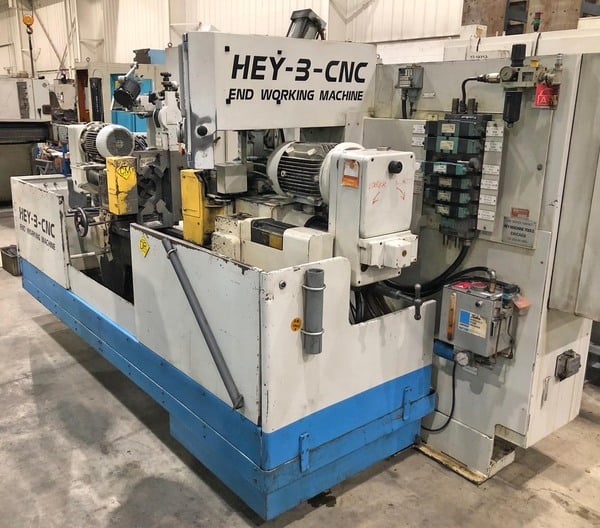

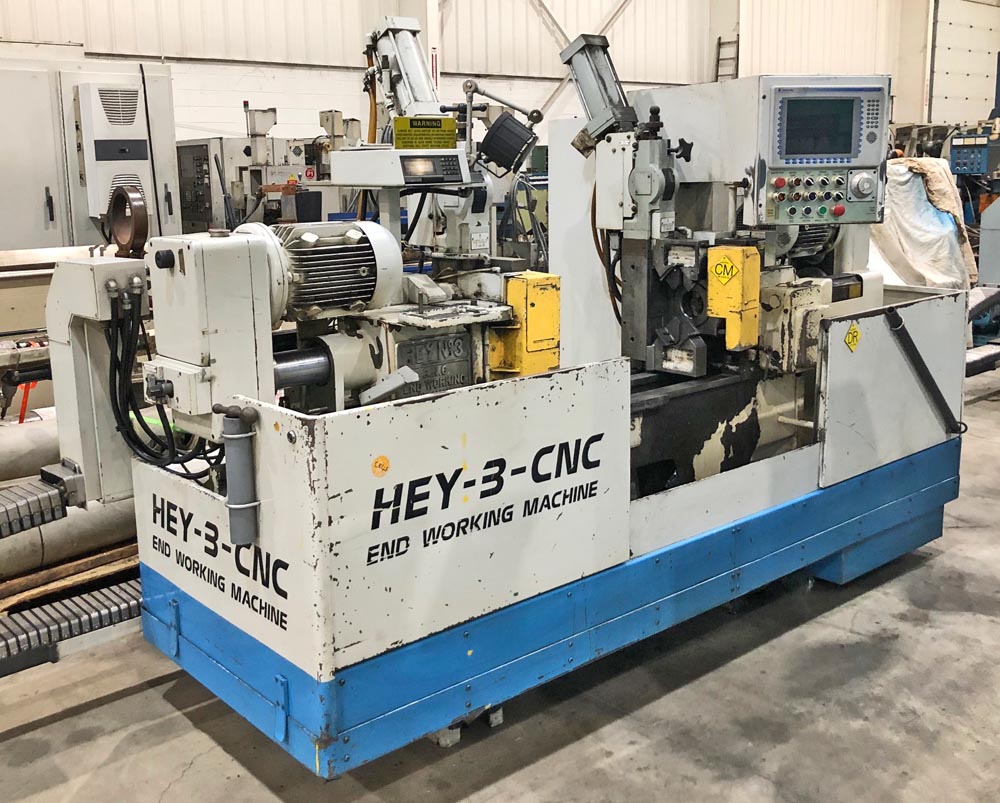

8-1/2" x 51" Hey #3, CNC automatic facing & centering machine, 6.3" cutter diameter, 2004

STOCK NO. ET-5530

(1) USED 8 ½” X 51” HEY #3 CNC AUTOMATIC FACING AND CENTERING MACHINE

Serial No. 2824-1012

New: 2004

Maximum work length: 51”
Maximum diameter held in vises: 8 ½”
Maximum cutter diameter: 6.3” (160 mm)
Spindle speed range: 150 – 1000 R.P.M.
Feed stroke of heads:
Left Hand: Total – 3”, Feed – 2”
Right Hand: Total – 4”, Feed – 3 ½”
Feed box ratio: 165:1
Feed rates-infinitely variable: 0 to .018”/rev.
Equipped with:
Chip Conveyor
Automatic retracting end stop
15 HP AC spindle motors
Self centering air vises – variable pressure
Automatic/manual mode selection
Way covers
(2) Cutter Body Heads
Heidenhain DRO on LH head
AC feed servo motor
Coolant System
Trabon automatic lube system
Worklight
Electrical controls:
Allen Bradley VersaView CE 1250H HMI Display
AB Model Kinetix 6000 Motion Controller & Servo Drives
AB Logix5555 programmable controller
(2) AB PowerFlex 700 VFD AC Spindle Drives
Electrics: 440 Volt, 3 Phase

Location: Wixom, MI
