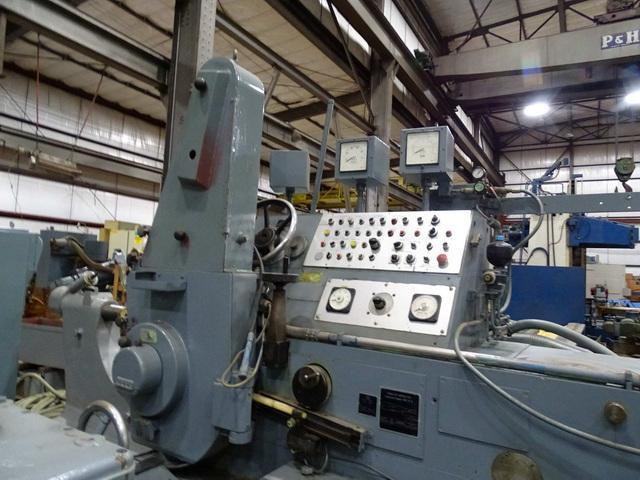

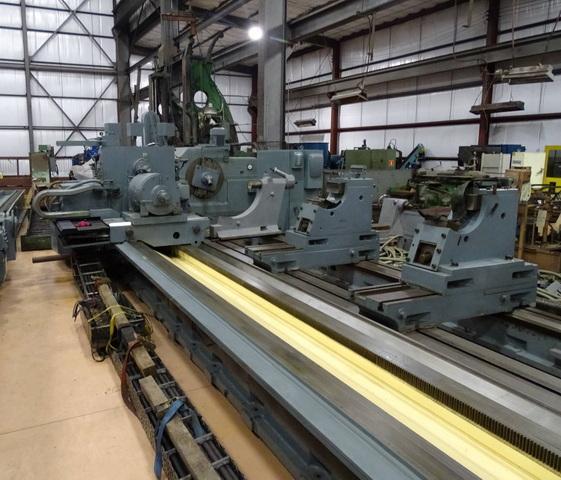

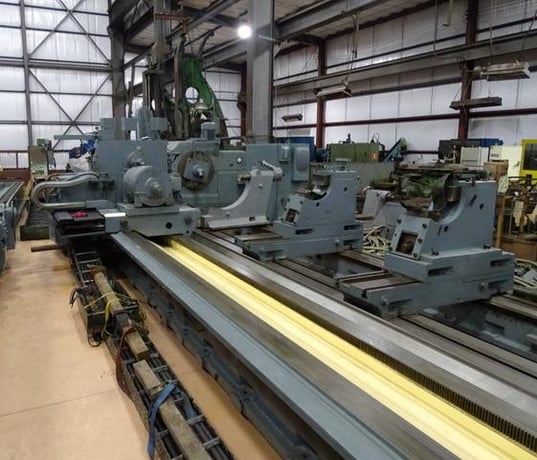

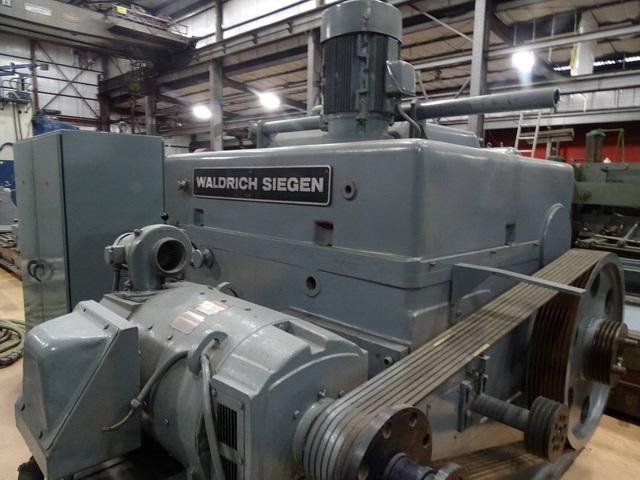

78" x 472" Waldrich #WST-IV-H80X12000, roll grinder w/ cambering & crowning, 32" x 4" x 12" wheel, 300 RPM, 4" belt grind attachment, steadyrests, 1981

Specifications
Manufacturer Waldrich Seigen
Model WST IV H80 x 12000
Year 1981 / Installed 1982
-Maximum Grinding Diameter 78.00 in 1981.20 mm
-Distance Between Centers 472.40 in 12000.00 mm
-Maximum Workpiece Weight 176000.00 lbs 80000.00 kg
-Wheel Width Maximum 4.00 in 100.00 mm
-Wheel OD Diameter 32.00 in 812.80 mm
-Wheel ID 12.00 in 305.00 mm
-Wheelhead Angle 90 Degrees To Workpiece Axis
-Wheel Spindle Power 27 - 59/59 HP 20 - 44/44 kW
-Wheel Spindle Speed 450 - 1800 RPM Infinitely Variable
-Wheel Dresser Bed Mounted Roll
-Wheelhead Cross Travel 25.60 in 650.00 mm
-Wheelhead Longitudinal Travel 488.40 inch, 12405 mm
-Wheelhead Speed 157.5 inches/min, 4000 mm/min
-Workhead Power 1.9 - 59/59 HP 1.4 - 44/44 kW
-Workhead Speed .5 - 300 RPM
-Sludge Conveyor None
-Coolant Yes
-Filtration System Combination 2 Cartridge And Fabric Filter
-Ways Cast Iron Full Hydrostatic
-Way Covers Metal Telescopic
-Power Existing
Additional Waldrich Siegen 4 in (100 mm) width roll belt grinding attachment, roll cambering / crowning, range of table setting for camber / convex: .0005 - .292 mm, range of table setting for camber / convex / and concave .0004 - .1024 mm, range of table setting for camber based on radius: .0039 - .1496, 2 - 2 jaw steady rests: diameter range 7.88 - 20 in (200 - 510 mm), cross adjustment of steady rests: 23.6 in (600 mm)
-Machine Length 732.00 in 18600.00 mm
-Machine Width 219.00 in 5570.00 mm
-Machine Height 91.00 in 2320.00 mm
-Weight 134000.00 lbs 60800.00 kg
