7,572 sq.ft. Alfa Laval #MX25-BFG, Plate & Frame Heat Exchanger, 150 psi @ 300°F, 2006

Overview
This used Alfa Laval MX25-BFG Plate & Frame Heat Exchanger offers an impressive 7,572 square feet of heat transfer surface area, making it ideal for large-scale industrial thermal management applications. Certified by Alfa Laval in Richmond, VA, and manufactured in 2006, this unit provides efficient heat transfer capabilities for demanding industrial processes with a maximum working pressure of 150 PSI at 300°F.
Design and Performance
- Model: MX25-BFG
- Heat Transfer Area: 7,572.00 sq ft
- Frame Dimensions: 1474MM w/ 481 x 0.50MM plates
- Maximum Working Pressure: 150 PSI at 300°F
- Minimum Design Metal Temperature: -20°F at 150 PSI
- Year Built: 2006
- Serial Number: 30110-67351
- Order Number: 643161

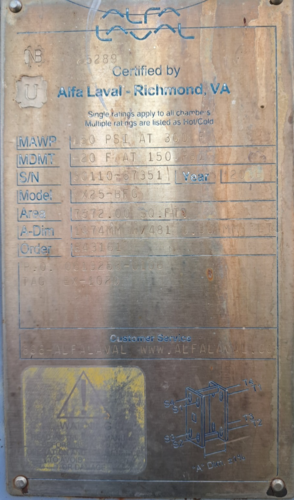

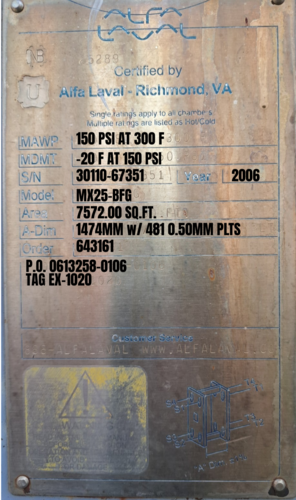

- Certification: Alfa Laval - Richmond, VA
Key Specifications
- Condition: Used - Industrial Grade
- Manufacturer: Alfa Laval
- Model: MX25-BFG
- Serial Number: 30110-67351
- Type: Plate & Frame Heat Exchanger
- Total Surface Area: 7,572 sq ft
- Number of Plates: 481 plates
- Plate Thickness: 0.50MM
- Frame Width: 1474MM (approximately 58 inches)
- ASME/NB Certified: Yes (NB stamp visible)
- Single/Multiple Ratings: Listed as Hot/Cold capable
Ideal Applications
- Large Industrial Process Cooling/Heating
- Chemical Processing Plants
- Petroleum Refineries
- Power Generation Facilities
- District Heating/Cooling Systems
- Large HVAC Systems
- Food & Beverage Processing
- Pharmaceutical Manufacturing
- Pulp & Paper Mills
- Marine Applications
- Waste Heat Recovery Systems
- Industrial Refrigeration
Benefits
- Massive 7,572 sq ft heat transfer area for high-capacity applications
- Plate & frame design allows for easy maintenance and cleaning
- Expandable capacity by adding or removing plates
- High efficiency heat transfer with minimal footprint
- 150 PSI pressure rating suitable for most industrial applications
- Wide temperature range from -20°F to 300°F
- ASME certified construction for safety and reliability
- Proven Alfa Laval quality and engineering
- Gaskets can be replaced without special tools
- Counter-current flow for maximum thermal efficiency
Additional Information
- Purchase Order: 0613258-0106

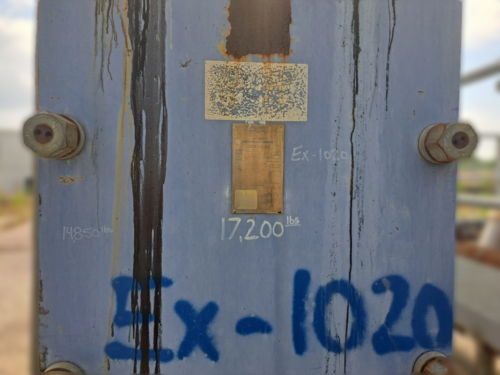

- Tag Number: EX-1020
- Certification Body: Alfa Laval - Richmond, VA
- ASME Certification: NB stamped
- Frame Material: Industrial grade construction
- Plate Material: Typically stainless steel (verify specific material)
- Temperature Range: -20°F to 300°F operating range
- Pressure Rating: 150 PSI maximum working pressure
- Maintenance: Plates can be removed for cleaning or replacement
- Flexibility: Capacity can be modified by changing plate configuration
Location: Galena Park, TX
