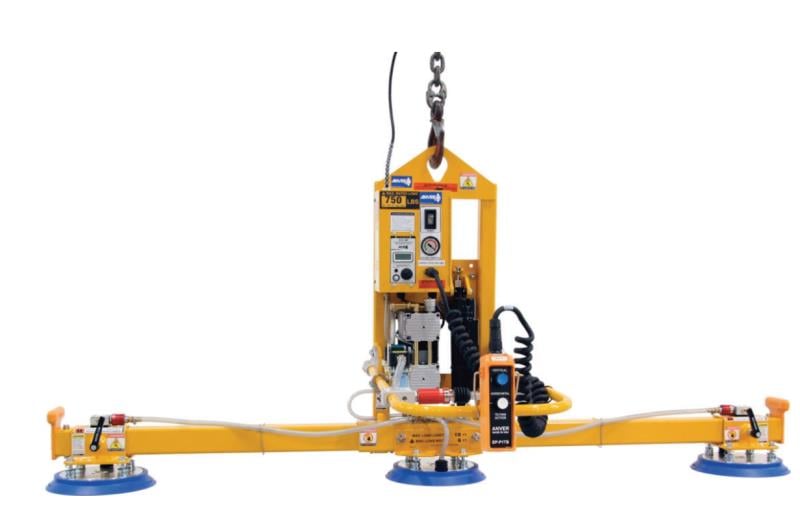

750 lb. Anver #AT-75M3-110, Vacuum Lift w/Powered Tilt, (3) 12.6" diameter Suction Pads, 115" L Beam, 10.5 scfm, 90-120 psi, New, 2026

$7,245 USD

Request Formal Quote

ANVER AT 75M3-110 Vacuum Lifter w/ Powered TiltAnver Vacuum Tilters and Upenders are loaded with safety features and have come to set the standard for safe tilting of loads. Each version has been revised over the years to perform better and last longer.The pads, vacuum generators, frame, controls, hardware, filters, safety features and handlebars etc. are all new and improved. Every aspect of the lifters has been redesigned and the latest represent the best Tilters available. Features: -- APF-07UP vacuum generator with vacuum and pressure gauges. -- 3/8 NPT air inlet with locking slide valve. -- VLS System, 9V battery powered vacuum leakage sensor and warning system. -- Pre-set pressure regulator to allow lifter to be operated on lines with higher supply pressure. -- Single-stage Venturi with check valve to halt loss of vacuum from generator in case of air supply failure. -- Heavy duty air cylinder to provide 90 degree tilt. -- Flow control valves to control tilt speed. -- Handle mounted lever valve for tilt controls. -- Attach/release slide valve with safety lockSpecifications: -- (3) Round suction pads 12.6" diameter (Pad #VP122). -- Beam length 112". Min. pad spacing 38", max. 115". -- Max. load capacity 750 Lbs. w/ VLS -- Tilt speed: Variable, with 100% duty cycle, will not overheat. -- Power required: 90-120 psi; clean, dry compressed air, 10.5 SCFM (297.3 l/min). -- Energy Air Saver, the vacuum controlled valve shuts off the flow of compressed air to the pump when the pre-set level is reached, and consequently the consumption of compressed air is minimized.Includes: -- PS-150-3X3, Parking Stand, Assy. with Mtg. Hardware for 3" Sq. Beams, Pair
