For Sale by Machinery Exchange International
Description
Description

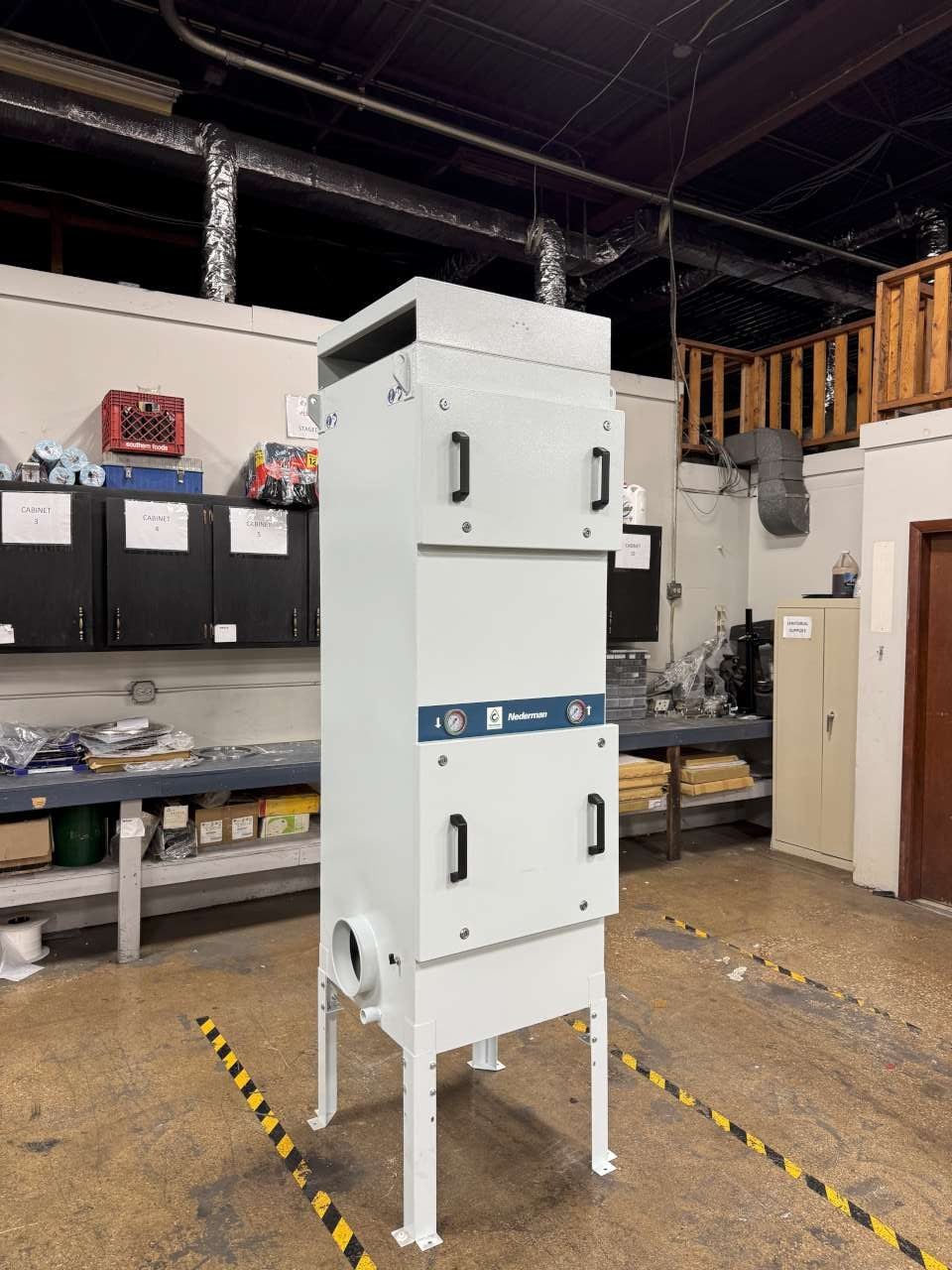

The Nederman OMF (Oil Mist Filter) is designed to handle large amounts of oil mist during continuous operation. They are engineered for high efficiency filtration coupled with lower maintenance costs.
Nederman OMF 1000-2 has as standard 2 filter-stages where the first stage consists of filter cassettes with Nederman’s FibreDrain technology. Nederman have a wide range of different types of filters to suit many different kind of applications. The second stage consists of a HEPA filter in filter class H13 with an efficiency of 99,95% for MPPS according to EN1822. All tower built Nederman OMF units are prepared for use of pre filter. OMF 1000-2 have an in-built radial fan.
- Two (2) filter stages. An optional pre-filter is available.
- Gauges for reading of pressure drop over each filter stage
- Extension legs
- Two (2) 200mm inlet locations, one blanked using clamp ring connection.
- Push button start/stop with integral overload protection.
Demo Unit, never used in production, but may have scratches/small exterior damage present
| Certifications | CE |
| Standard | 2009/125/EC |
| Volume (for shipping) (ft³) | 76.28 |
| Noise level (dB(A)) | 69 dB(A) @ 5′ from service side |
| Protection class | IP55 |
| Filter efficiency (%) | 99,95 |
| Installation | Indoor |
| Material | Sheet metal, painted inside and outside. |
| Filter cleaning method | Self-Draining |
| Working pressure (in. wg) | 10.0″ (External) |
| Capacity (max airflow cfm) | 589 |
| Operating Temperature | 104 F, internal fan. |
| Power Voltage (V) | 460 |
| Frequency (Hz) | 60 |
| No of phases | 3 |
| Number of filter elements | 2 |
| Amperage (A) | 4.2 |
| Colour | NCS-S 1005 B20G |
| Weight (lbs) | 441 |
| Power (Hp) | 1.5 HP (1.1 Kw) |
| Note | Plus one (1) optional filter element. |
