Description

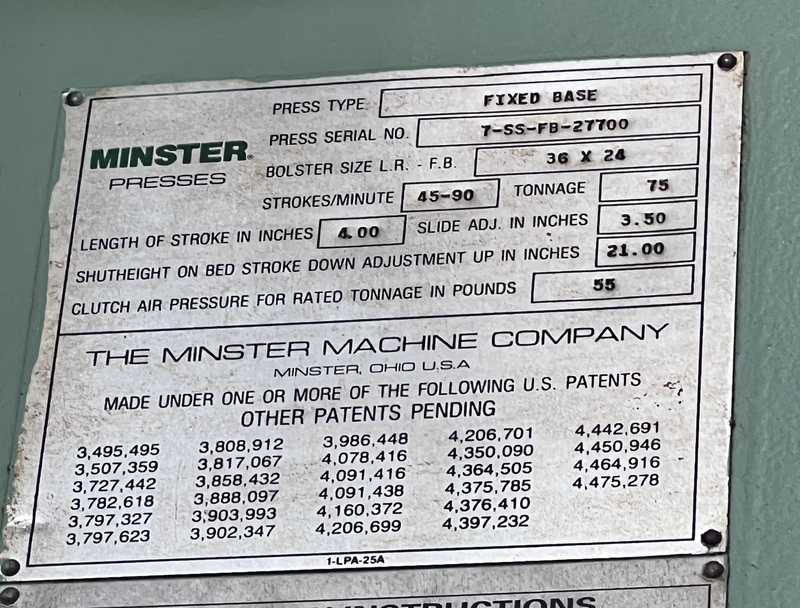

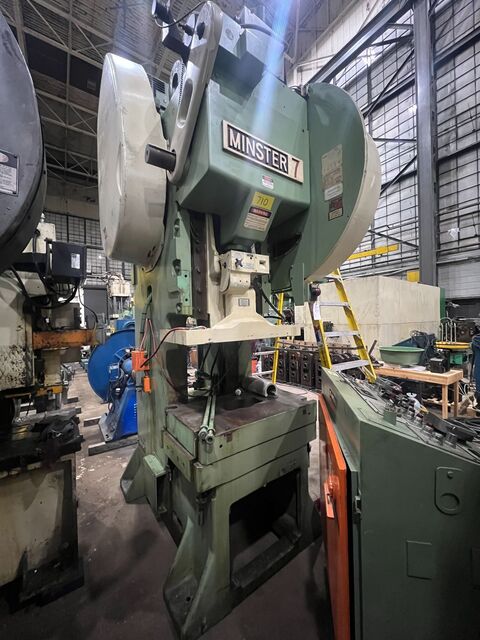

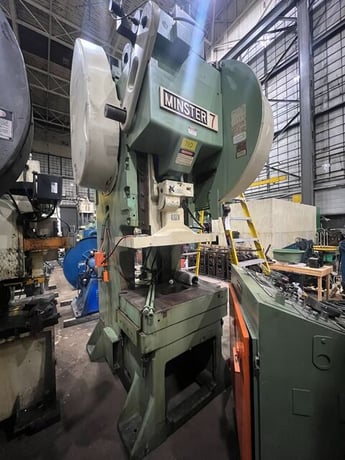

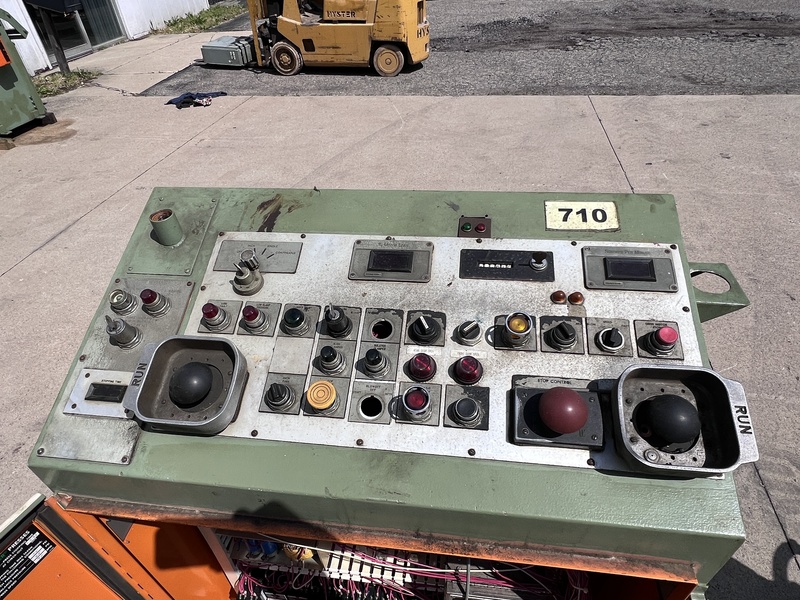

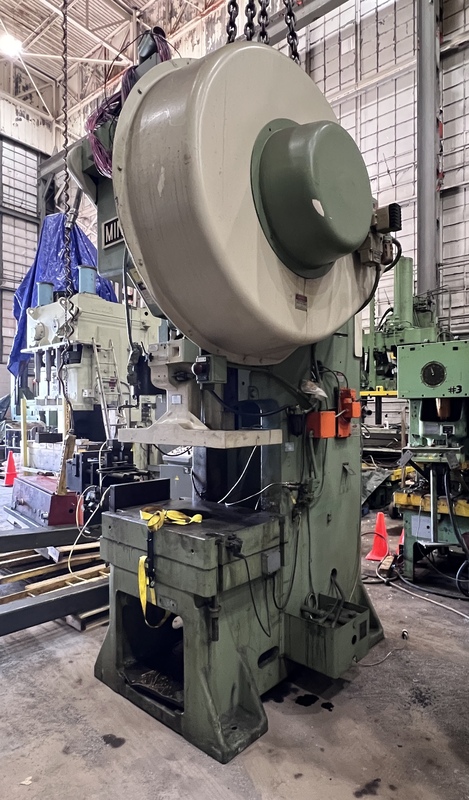

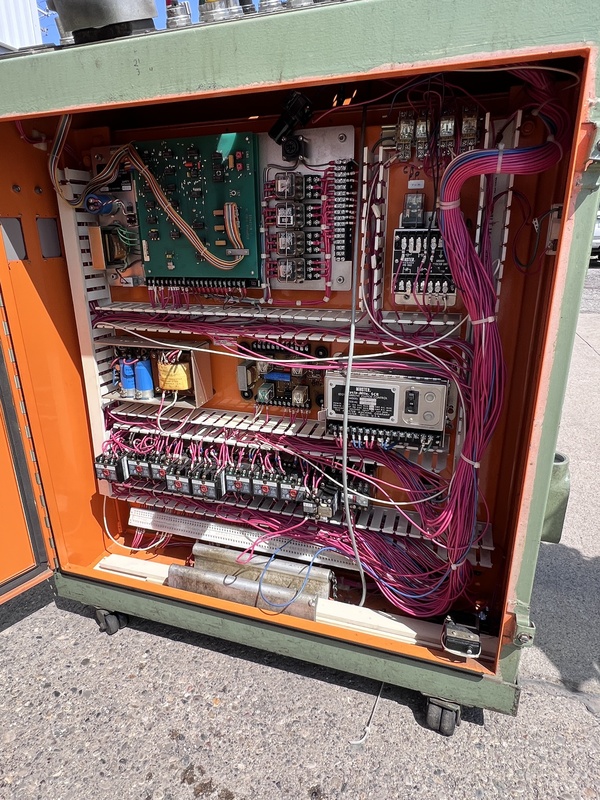

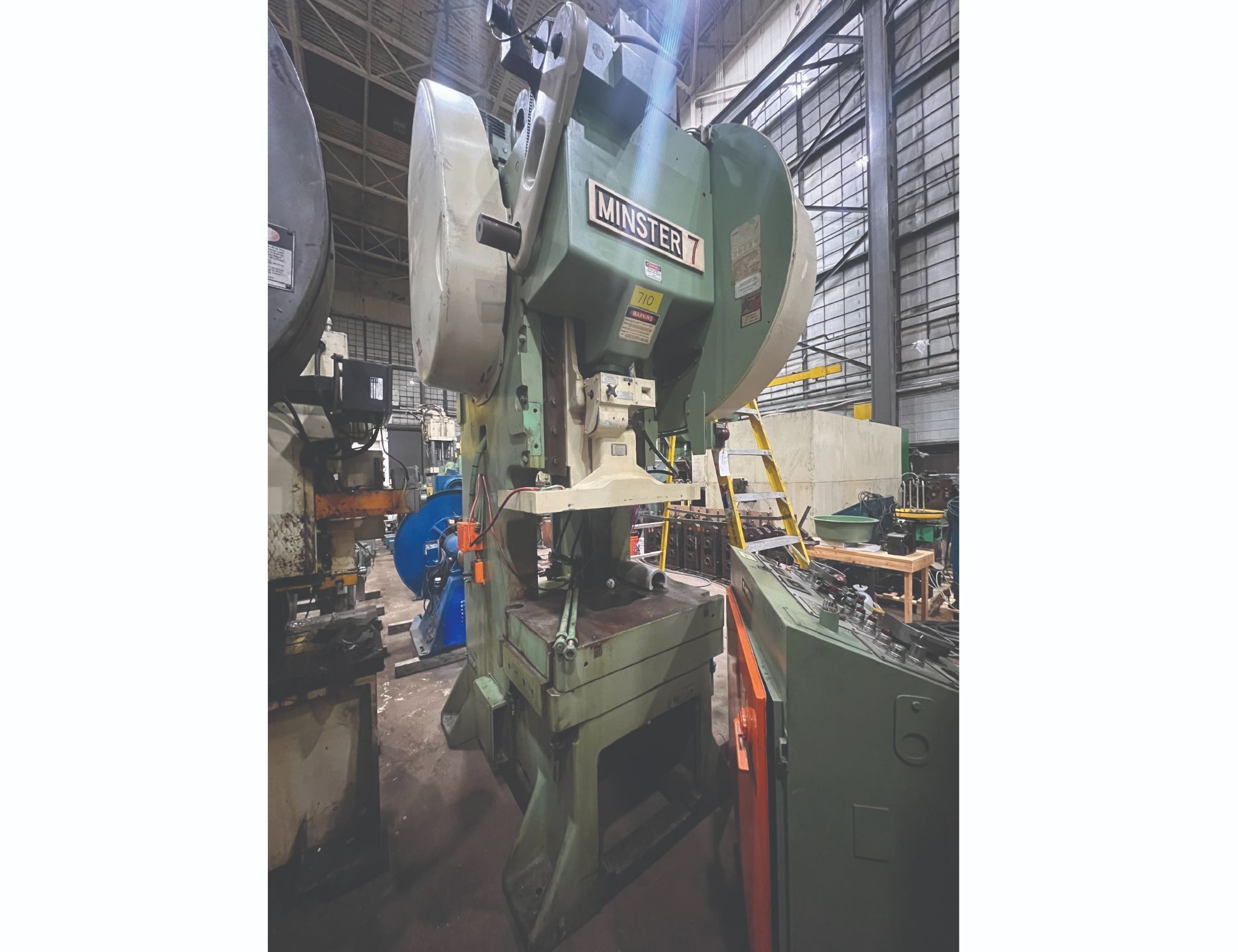

Used 75 Ton Minster Model OBS-7 Gap Frame Press from 1991, featuring a 75T capacity, 36"x24" bed, 4" stroke, and air clutch. Runs at 45-90 SPM. Includes a 5 bolster plate and free-standing control console. Perfect for industrial needs. Tonnage: 75 Stroke: 4" Adjustment:3.50" Shut Height: 21" Bed Size: 36"LR x 24"FB SPM: 45 - 90 Tonnage: 75 Stroke: 4" Adjustment:3.50" Shut Height: 21" Bed Size: 36"LR x 24"FB SPM: 45 - 90
Inquire Further with Universal Press & Machinery (UPM)!
THIS AIDA NC1-80(1) SINGLE-CRANK GAP-FRAME PRESS OFFERS A NOMINAL TONNAGE CAPACITY OF 80 TONS (88 SHORT TONS). IT S A STROKE LENGTH OF 3.93 INCHES AND A SLIDE ADJUSTMENT OF 3.14 INCHES. THE PRESS IS POWERED BY A 10 HORSEPOWER MOTOR AND OPERATES AT A VARIABLE SPEED RANGE OF 55 TO 110 STROKES PER MINUTE (SPM). THE ...more
Tonnage 80, Stroke 3.94 inches, Shut Height 18 inches, Adjustment 3.2 inches, Bed Size 39.3" LR x 23.6" FB, Ram Area 21.65" LR x 17.7" FB, SPM 60-120 VSPM, Standard, 80-ton Komatsu OBS Press, Model 80 H-VS-3, 80 ton Capacity (metric), 3.94" Stroke, 13.8" Die Height over Bolster, 3.15" Motorized Adjustment, 39.3" LR x ...more

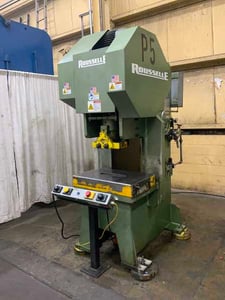

SERIAL. P33281, MODEL. G1-70-4, YEAR NEW. 1998, CAPACITY. 70 TON, STROKE OF SLIDE. 4", AREA OF BED. 32" X 20", AREA OF RAM., BOLSTER PLATE. 36" X 26"X 2-3/4", SHUT HEIGHT (SDAU). 16-1/2", SLIDE ADJUSTMENT. 4", STROKES PER MINUTE. 35 TO 70, VARIABLE SPPED CONTOL. SVX 900, OPENING IN BACK. 18", DEPTH OF THROAT. 11" ...more
BLISS 70 TON GAP PRESS, STOCK# 13877J, MODEL #: C-70, SERIAL #: H71759, NEW 1998, 4" STROKE, 3" RAM ADJUSTMENT, 15-1/4" SHUT HEIGHT, 71-140 SPM, 34" x21"" BED, 21" X 16" RAM, 19 1/2" OPENING THROUGH BACK, 10 HP MOTOR, 12,000 LBS, 63" LR X 62" FB X 126" T, AIR CLUTCH, AIR BRAKE, AIR COUNTERBALANCES, PALM BUTTONS, HYD ...more
