Description

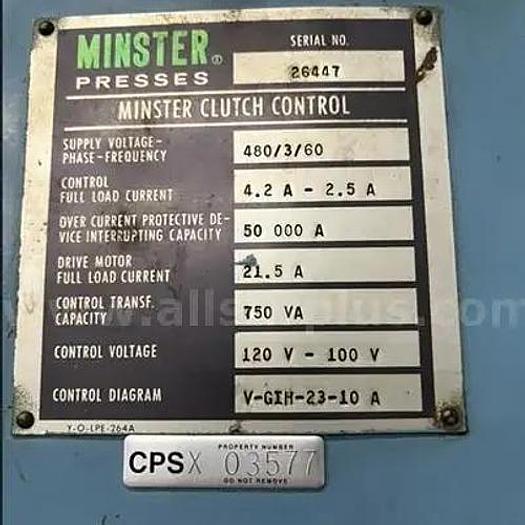

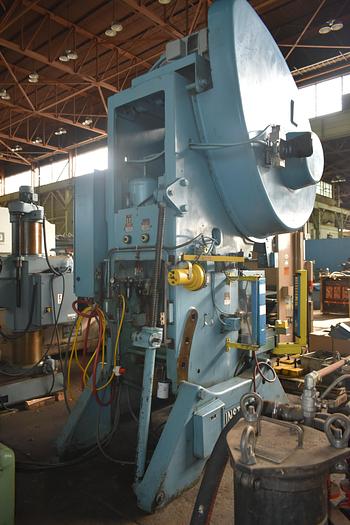

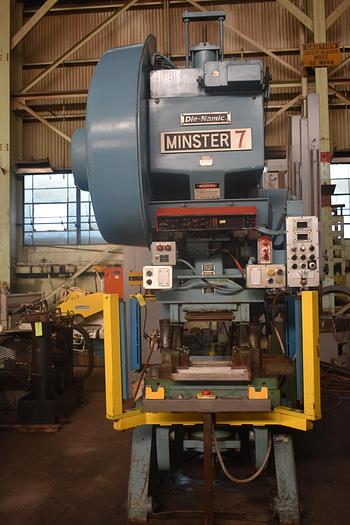

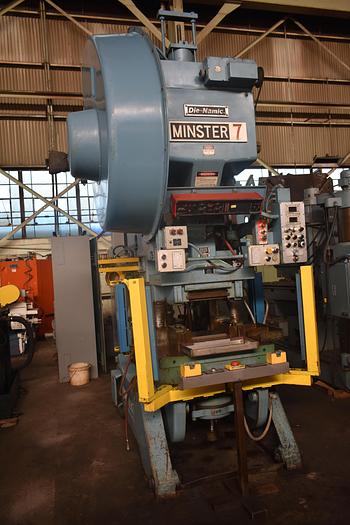

75 Ton MINSTER "DIE-NAMIC" OBI PRESS - #30598 Serial No. 7D-SS-26447, Model 7, Series DIE-NAMIC
EQUIPPED WITH: Air Clutch & Brake Flywheel Design 15 HP Eaton "Dynamatic" Variable Speed Drive Die-Namic Die Changing System 7.7 Ton Die Cushion (100 PSI) Air Counterbalance - Air Blowoff Recirculating Lubrication System
CATALOG SPECIFICATIONS: Tonnage Capacity 75 TON Stroke Length 4" Shut Height to Bed, (SDAU) 21" Shut Height to Bolster, (SDAU) 18" Power Slide Adjustment 3.5" Bed Area, L-R x F-B 36" x 24" Bolster Area, L-R x F-B 36" x 24" Ram Area, L-R x F-B 24" x 16" Stokes Per Minute, Variable 90 to 180 SPM Variable Drive Motor, HP/RPM 15 HP/50 -1750 RPM Electrical System 230-460/3/10 Weight, Approximately 19000 LBS
6" STROKE, 4" RAM ADJUSTMENT, 19" SHUTHEIGHT, 40 SPM, 36" X 24" BED, CUSHION, T SLOTS IN RAM AND BOLSTER, PALM BUTTONS, AIR CLUTCH, AIR BRAKE, AIR COUNTERBALANCE.
Pre Owned Minster Model 7 OBI Press, Serial Number 7-5492, Capacity 75 TONS, Stroke 4”, Adjustment 3.25”, Open Height 21”, Closed Height (SDAU) 17”, Ram Area 24 W X 14.5’ FB, Bed Area 36” W X 24” FB, Opening Through Back 18” X 12”, Speed 100 SPM, Main Motor ...more
