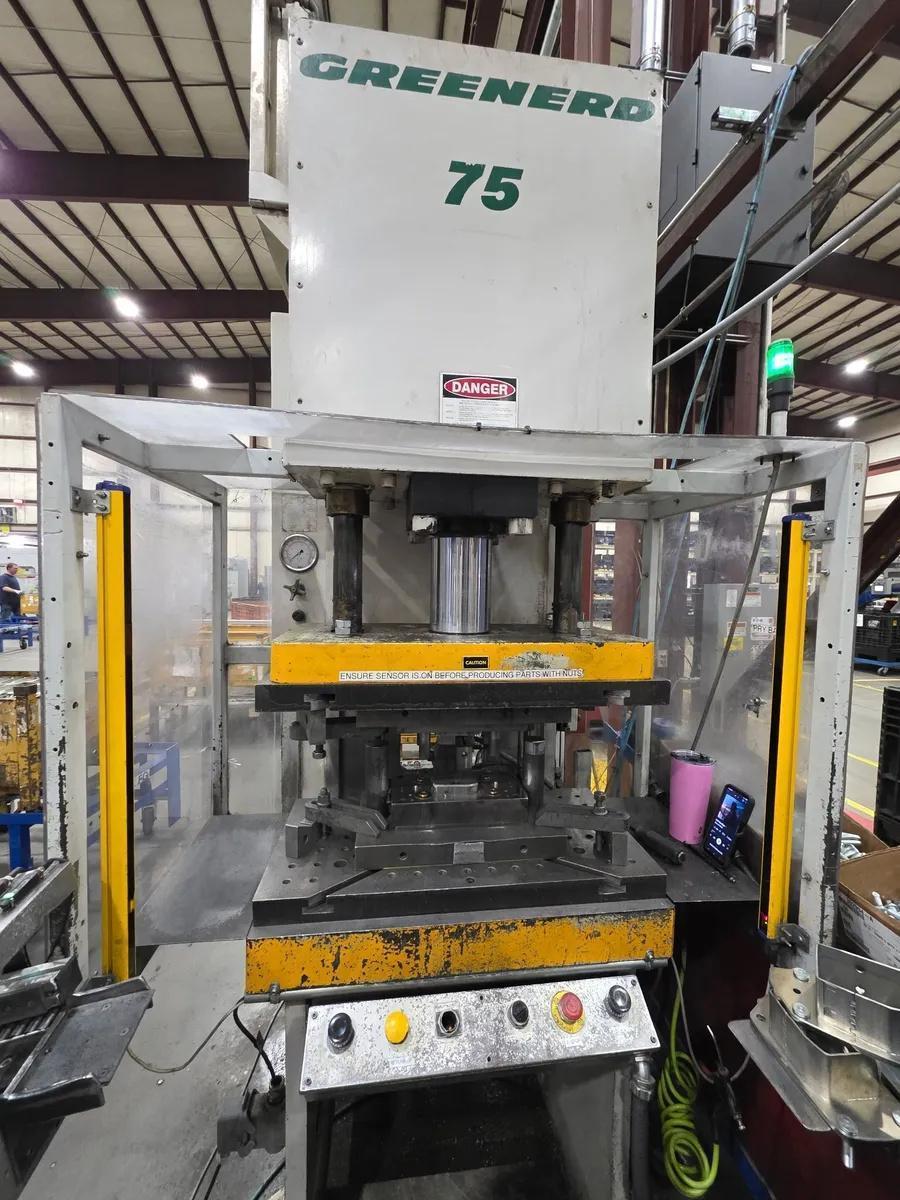

Manufacturer: Greenerd
Model: HCA-75-18R
Year: 2004
Ton: 75.0
Stroke: 18.0
Daylight: 24.0
Stock # Z26017
1 / 6
Click to zoom in
1 / 6
For Sale by D & D Industries Inc
Surplus Record Dealer Since 2005
Location: Monclova, OH
Contact Dave Zerbey
Phone Number: 419...> Show Phone Number 419-866-6894
Let the seller know you found their listing on Surplus Record!
Description
Equipped With

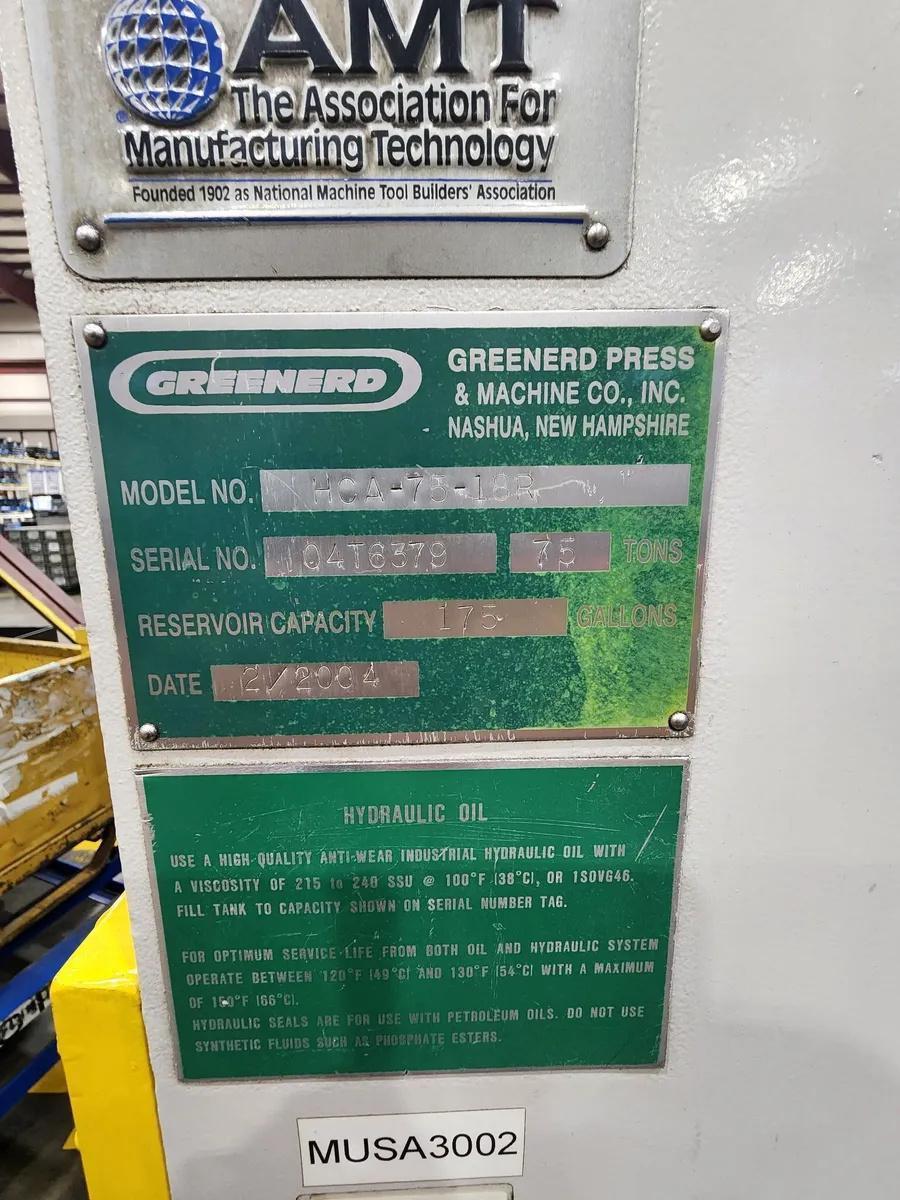

S/N# 04T6379
MDL# HCA-75-18R
DATE OF MANUFACTURE: 2004
Tonnage: 75
RAM Speeds in IPM (Inches Per Minute)
Rapid Advance 175
Pressing 82
Return 156
Voltage: 460 volts A.C. 3 PHASE
Motor: 30 hp
Daylight: 24 "
Throat: 12 "
Stroke: 1" - 18 "
Floor to table 36"
Bed Size 32" x 18"
Bolster Size 31.5" x 15.75" X 2" T
Ram Plate 31.5" x 15.5 x 2"T"
Cylinder Bore 8"
Ram Diameter 5-1/2""
OAD 60" FB x 32" LR x 114"T
Approx Weight 12,000 lbs
2 Post Guided
Reservoir Capacity : 175 U.S. gallons
Get Your Price from D & D Industries Inc!
