Description

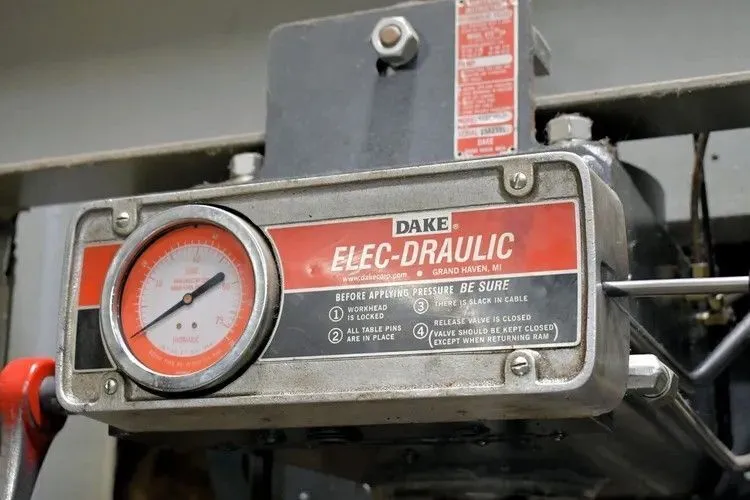

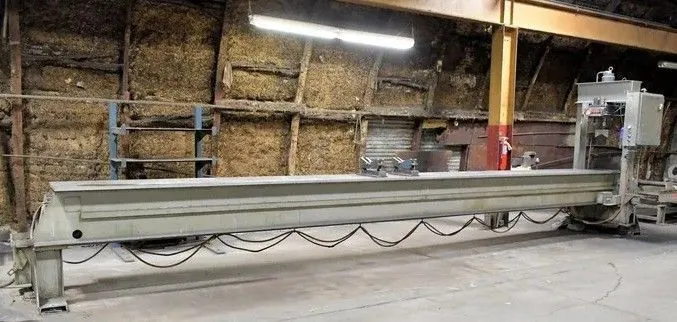

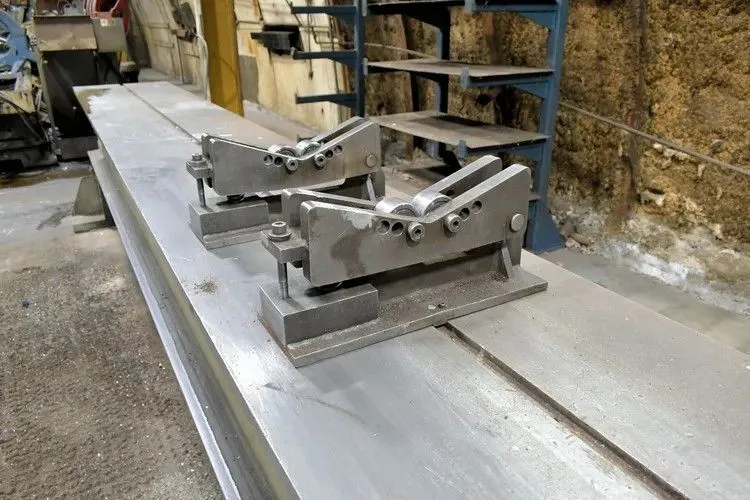

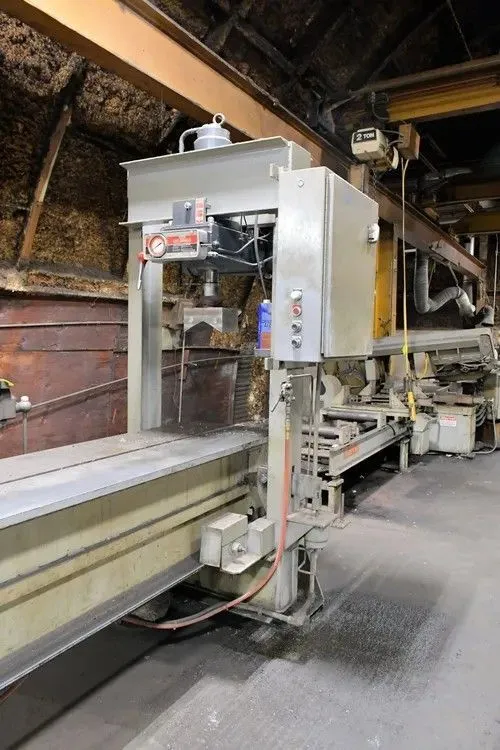

THIS 75 TON DAKE ELEC-DRAULIC H-FRAME TRAVELING-COLUMN HYDRAULIC STRAIGHTENING PRESS, MODEL 905076-2, FEATURES A TONNAGE CAPACITY OF 75 TON AND A STROKE LENGTH OF 10". THE MACHINE IS POWERED BY A 2 HP/1745 RPM MOTOR, UTILIZING A 230-460/3/60 ELECTRICAL SYSTEM. IT IS EQUIPPED WITH A POWER COLUMN TRAVERSE, A 2 HP ELEC-DRAULIC WORKHEAD, VARIABLE RAM SPEED, AND THREE ADJUSTABLE WORK SUPORTS. RAM SPEEDS ARE SPECIFIED AT 5 IPM FOR PRESSING AND 28 IPM FOR ADVANCING. CATALOG SPECIFICATIONS DETAIL A 30" DISTANCE BETWEEN HOUSINGS, AND A WORKTABLE MEASURING 312" (26') IN LENGTH BY 24" IN WIDTH. THE OVERALL MACHINE DIMENSIONS ARE 29' IN LENGTH BY 55" IN WIDTH, WITH AN OVERALL HEIGHT OF 102".
SERIAL. T4485, MODEL. S-75-84-12-4-1-SP, CAPACITY. 75 TON, AREA OF BED. 84" X 12", STROKE. 12", DEPTH OF THROAT. 10", OPEN HEIGHT. 20", CLOSED HEIGHT. 8", RAM SPEED DOWN. 29 IPM, RAM SPEED RETURN. 58 IPM, FLOOT TO TOP OF BED. 36", DIAMETER CYLINDER ROD. 6-3/4", SINGLE HAND LEVER. YES, MOTOR HORSEPOWER. 10.
PRELIMINARY, 60 TON 4 POST HYDRAULIC STRAIGHTENING PRESS, 60 TON CAPACITY, 23" STROKE (APPROX), 24" DAYLIGHT (APPROX), 42" LR X 18" FB TABLE, 117" PNEUMATIC RUN OUT TABLE, MOTOR & HYDRAULIC UNIT, AVAILABLE FOR INSPECTION & IMMEDIATE DELIVERY!, NOTE:, Tonnage Stated was estimated by plant, Subject To ...more
New - 1980, Serial No. 25238, Capacity.110 Tons (100 Tons Metric), Stroke - Maximum.8", Straightening Stroke - Adjustable & Controllable.7/8", Daylight.38" Over Bed, Depth of Throat.13-3/4", Main Bed Area.29" L-R x 19-3/4" F-B, Straightening Bed Area.55" L-R x 10-1/2" F-B, Distance Bed to Floor.20", Speeds:, - ...more
