For Sale by Icon Industries, Inc
Surplus Record Dealer Since 1990
Location: Grand Rapids, MI
Contact Tom,Pete,Bob
Phone Number: 616...> Show Phone Number 616-229-2957
Let the seller know you found their listing on Surplus Record!
Description

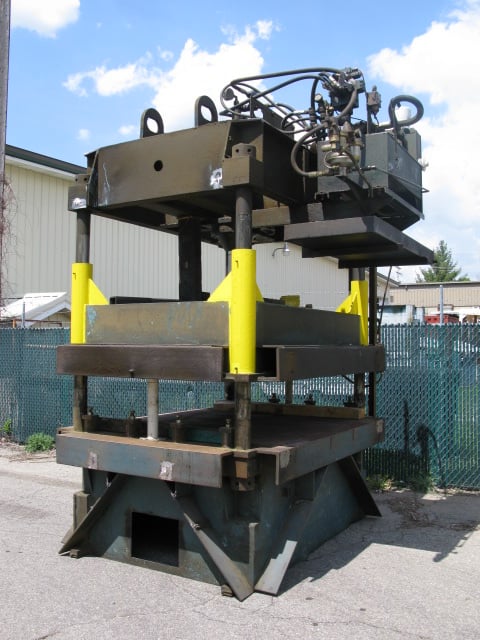

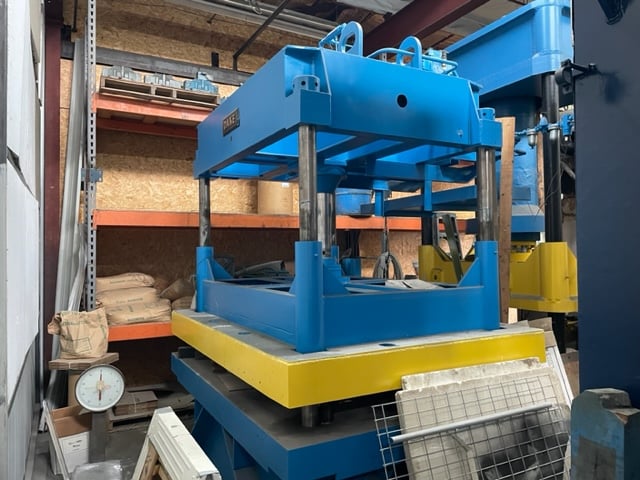

MODEL 27-344. OVERALL BED SIZE L TO R IS 92"; F TO B BETWEEN THE POSTS IS 50". NOMINAL BED IS APPROX 80" X 74". CLAMP CYLINDER IS A 6" BORE WITH A 4.75" DIAMETER ROD AND 18" MAX STROKE WITH 1.5" PORTS; RATED TO APPROX 5300 PSI. DAYLIGHT IS APPROX 26". OPERATOR HEIGHT IS APPROX 36". GUIDED ON 4.25" DIAMETER POSTS WITH 32" BUSHINGS. TOP MOUNTED HYDRAULIC SYSTEM: 10 HP MOTOR (230/460 VOLTS; 1800 RPM; 26/13 AMPS); PUMP IS RATED AT 16 GPM (HYD AND AIR CONTROL BRAND; MODEL P16115603; SERIAL #6969; M 2/N 82393; RATED TO 1000 PSI); AIR OVER OIL PUMP FOR HIGH PRESSURE CLAMPING RATED TO 5305 PSI; 25 GALLON TANK; ETC…. APPROX PRESS SPEEDS: 130 IPM FAST CLOSE; 4 IPM PRESSING; 350 IPM FAST OPEN. RELAY CONTROL SYSTEM: START; E-STOP; HAND/OFF/AUTO; IN/OUT; ADJUSTABLE LIMIT SWITCHES; ETC…. OVERALL DIMENSIONS APPROX 105" X 73" (92" INCLUDING OVERHANG) X 148" TALL. APPROX 35,000 POUNDS. SOME PRINTS. R2 ITEM #2249.
Get Your Price from Icon Industries, Inc!
