For Sale by Met-Pro Machinery Inc
Surplus Record Dealer Since 2001
Location: Detroit, MI
Contact Jeff Lengel
Phone Number: 248...> Show Phone Number 248-693-1400
Let the seller know you found their listing on Surplus Record!
Description

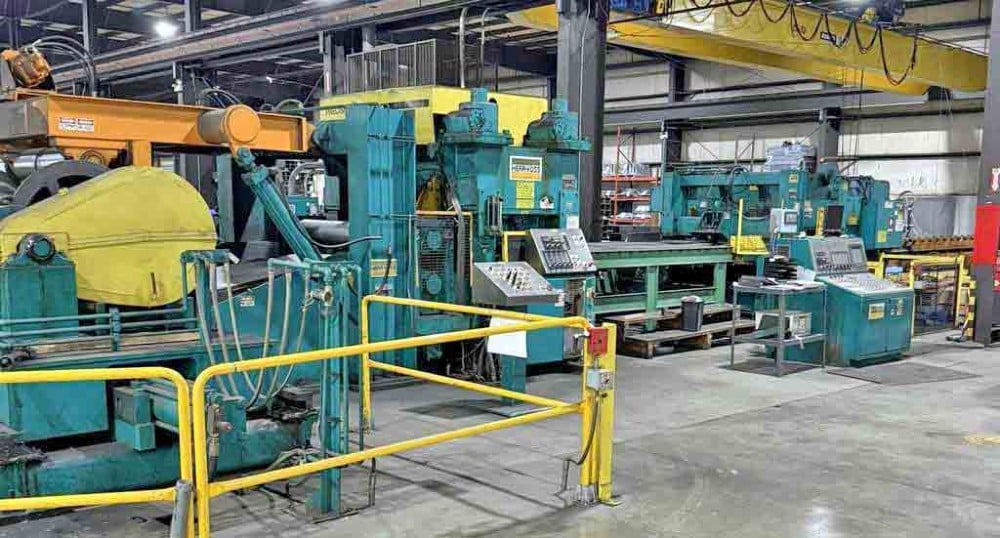

74" x 0.375" x 60,000# Herr Voss Cut To Length Line
-36" to 74" Wide -60,000 lbs.
Coil Weight -0.075" to 0.375" Thick (at 80,000 PSI Yield)
-20" to 34" Coil I.D. Range
-84" Max. Coil O.D.
-50 FPM Jog Speed-20 to 175 FPM Line Speed
-Left to Right Line Direction Consisting of the following:
-Entry Coil Ramp: 3 Coil Storage Hyd. Lever Type Holding Mechanism

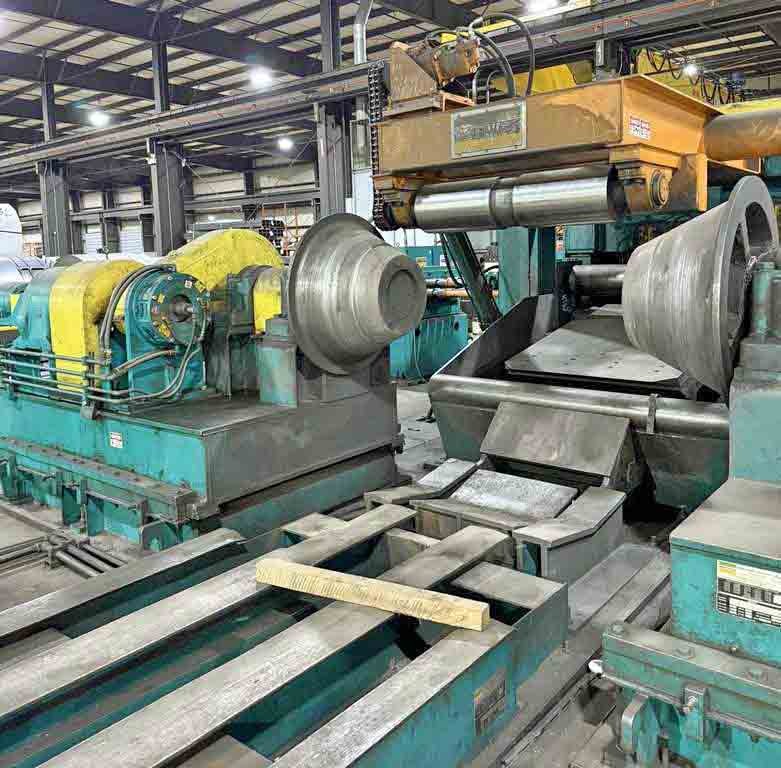

-Cone Type Uncoiler: Motorized Feedup AC Motor and Air Clutch on one head Wichita Water Cooled Brake on each head Sliding Base on each head Coil Lift with 12" Bore Hydraulic Cylinder
-Threading Unit: Motorized Overarm Holddown Roll Steel Roll powered by AC Motor Hydraulic Actuated Peeler Table
-Entry Side Guides: Powered Width Adjustment

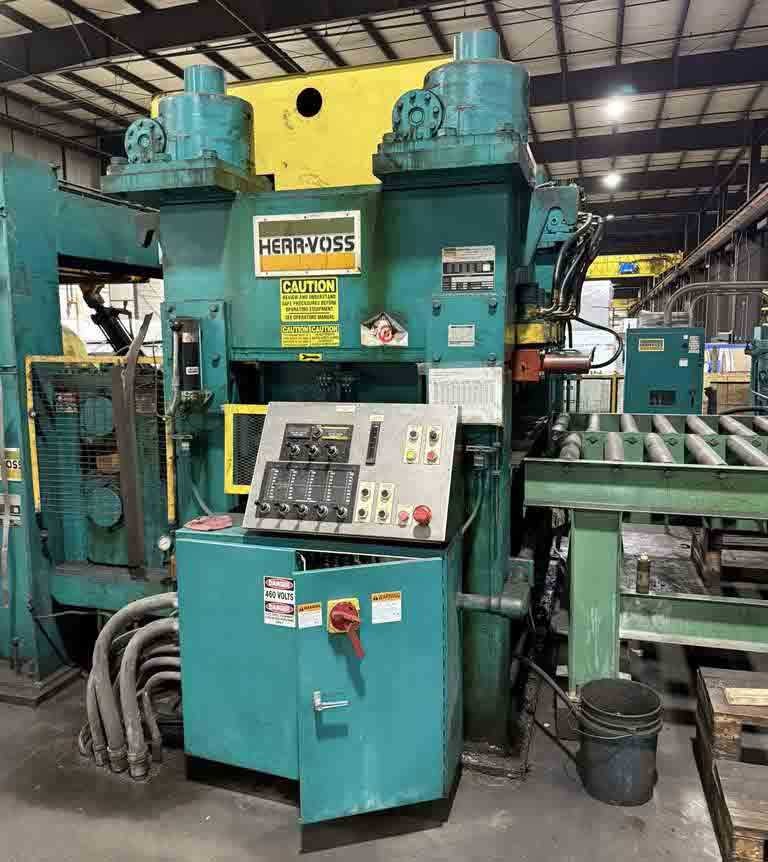

-Precision Leveler: 4 High Keystone Model VKL 88/4.50-11/5 4 HI, LH Gauge Range: 0.096" - 0.375" 11 Work Rolls 4.50" Dia. x 88" Face Rolls 5 Flights of Motorized Backups 200 HP Reliance DC Motor, 850/1700 RPM, 500 V
-Squaring Guides: Powered Width Adjustment (Will open to 80" Wide)
-Powered Tailout Pinch Rolls: Hydraulic Cylinder Open & Close
-Measuring Unit: Entry Encoder Roll
-Herr Voss Mechanical Shear: Blade Gap Adjustment Control Straight Blade Rake Material Holddowns AC Motor

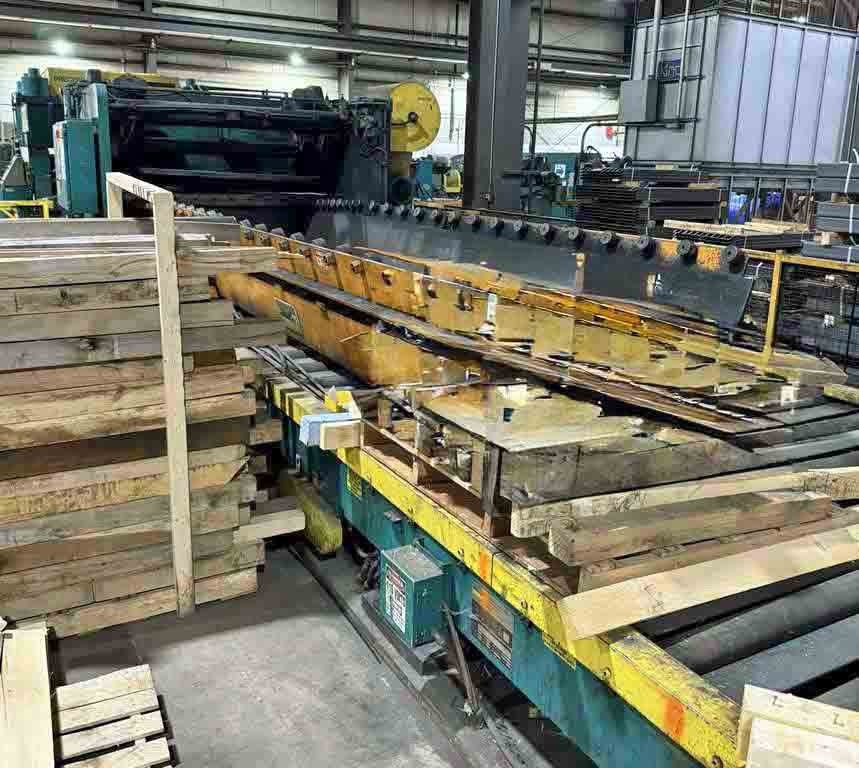

-Drop Type Stacker: Side Guide Retainers with Powered Side Tap 40,000# Capacity Min. Sheet Length: 24" Max. Stacked Sheet: 24'
-Runout Conveyor: 40' Long
-Main Operators Control Panel:
-Main Hydraulic Power Unit:
-Includes Complete Mechanical and Electrical Drawings and Operators Manual.
-36" to 74" Wide -60,000 lbs.
Coil Weight -0.075" to 0.375" Thick (at 80,000 PSI Yield)
-20" to 34" Coil I.D. Range
-84" Max. Coil O.D.
-50 FPM Jog Speed-20 to 175 FPM Line Speed
-Left to Right Line Direction Consisting of the following:
-Entry Coil Ramp: 3 Coil Storage Hyd. Lever Type Holding Mechanism
-Cone Type Uncoiler: Motorized Feedup AC Motor and Air Clutch on one head Wichita Water Cooled Brake on each head Sliding Base on each head Coil Lift with 12" Bore Hydraulic Cylinder
-Threading Unit: Motorized Overarm Holddown Roll Steel Roll powered by AC Motor Hydraulic Actuated Peeler Table
-Entry Side Guides: Powered Width Adjustment
-Precision Leveler: 4 High Keystone Model VKL 88/4.50-11/5 4 HI, LH Gauge Range: 0.096" - 0.375" 11 Work Rolls 4.50" Dia. x 88" Face Rolls 5 Flights of Motorized Backups 200 HP Reliance DC Motor, 850/1700 RPM, 500 V
-Squaring Guides: Powered Width Adjustment (Will open to 80" Wide)
-Powered Tailout Pinch Rolls: Hydraulic Cylinder Open & Close
-Measuring Unit: Entry Encoder Roll
-Herr Voss Mechanical Shear: Blade Gap Adjustment Control Straight Blade Rake Material Holddowns AC Motor
-Drop Type Stacker: Side Guide Retainers with Powered Side Tap 40,000# Capacity Min. Sheet Length: 24" Max. Stacked Sheet: 24'
-Runout Conveyor: 40' Long
-Main Operators Control Panel:
-Main Hydraulic Power Unit:
-Includes Complete Mechanical and Electrical Drawings and Operators Manual.
Get Your Price from Met-Pro Machinery Inc!
