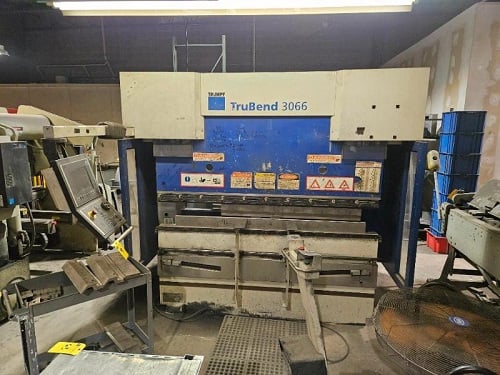

73 Ton, Trumpf #Trubend-3066, hydraulic press brake, 6.8' OA, 69" between housing, 7.87" stroke, 2006

73 TON X 80" TRUMPF #TRUBEND 3066 HYDRAULIC PRESS BRAKE

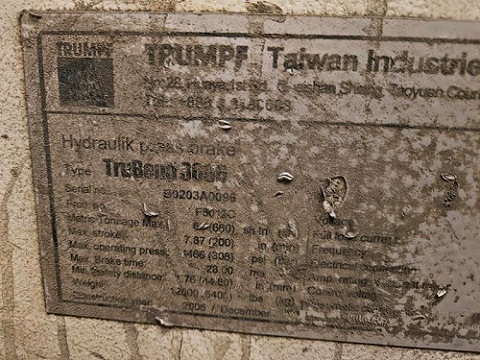

MODEL TRUBEND 3066 S/N B0203A0096 NEW 2006
TONNAGE ......................... 73
BED LENGTH .. ................... 80"
DISTANCE BETWEEN HOUSINGS ....... 69"
LENGTH BETWEEN THE HOUSINGS ..... 93"
STROKE .......................... 7.87"
OPEN HEIGHT ..................... 14"
CLOSED HEIGHT ................... 5.9"
Y-AXIS RAPID DOWNWARD MOVEMENT .. 200 MM / SEC.
Y-AXIS OPERATIONAL SPEED MAX .... 15 MM /SEC.
PRESS SPEEDS: RAPID ADVANCE ..... 472 IPM
BENDING ........... 35 IPM
RETURN ............ 472 IPM
MAIN MOTOR HP ................... 10
MAX OPERATING PRESSURE ......... 4,466 PSI
MOTOR SPECS ..................... 3 PH / 460 V
APPROX. WEIGHT: 12,500 LBS.
APRROX DIMENSIONS: 102" X 69" X 92" H
EQUIPPED WITH:
- PALM BUTTONS MOUNTED ON PEDISTAL STATION WITH FOOT PEDAL

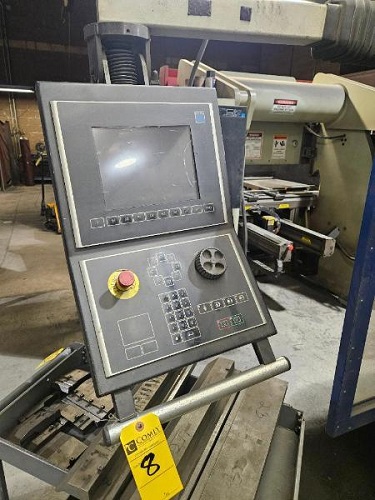

- TRUMPF CNC MULTI-AXIS BACK GAUGE (X, R, Z1, Z2)

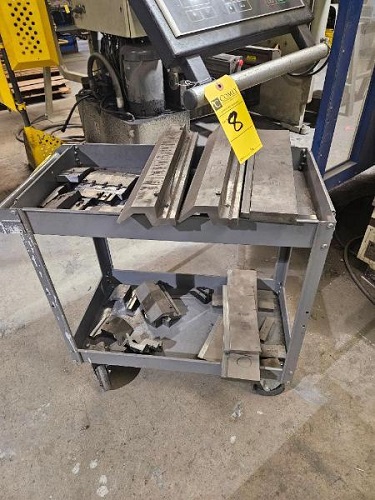

- MISC. TOOLING
