For Sale by Revelation Machinery
Description
Model: PH660S420B
Year: 1900
Machine Location: Upon Request
Equipment Overview

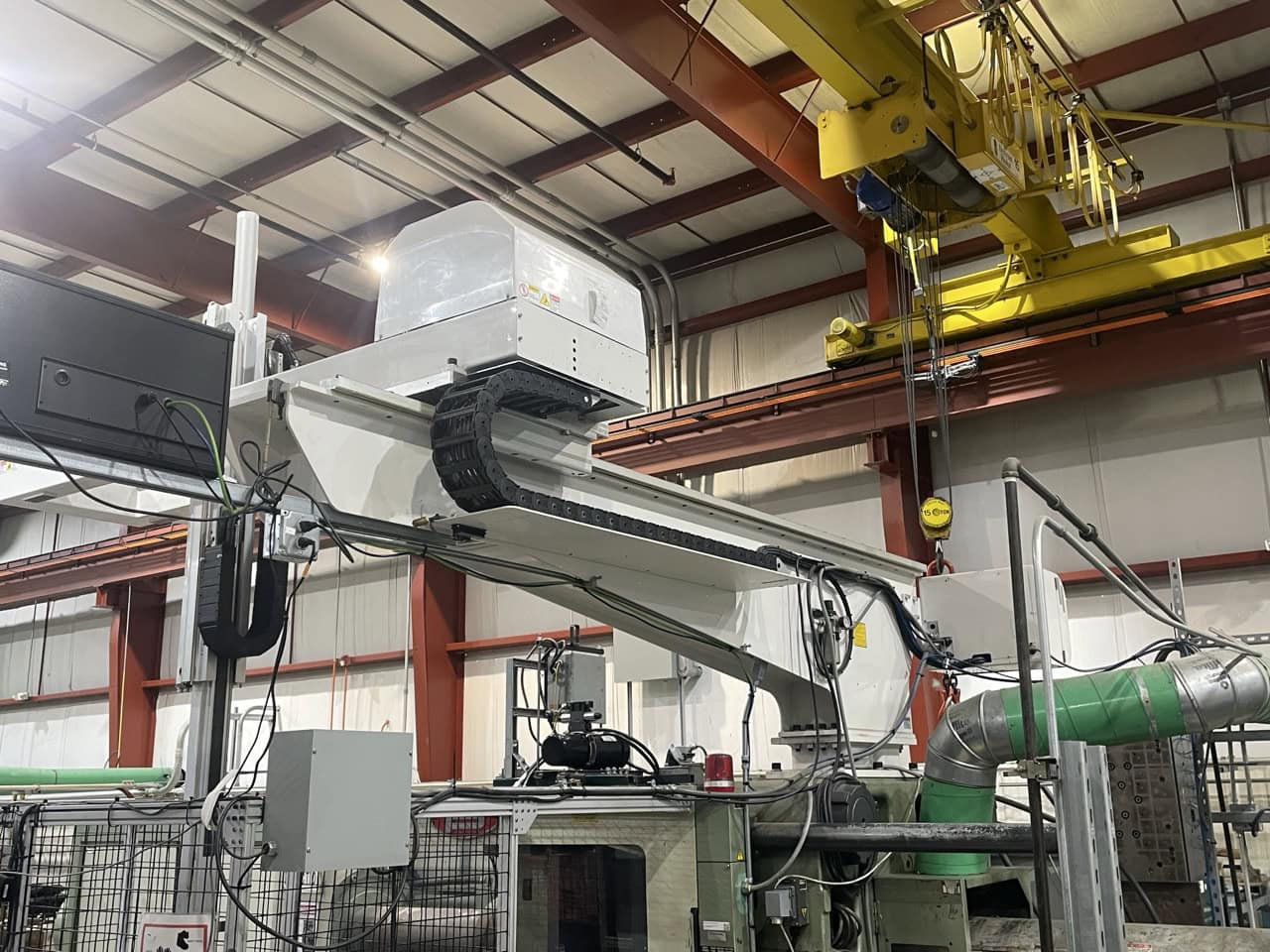

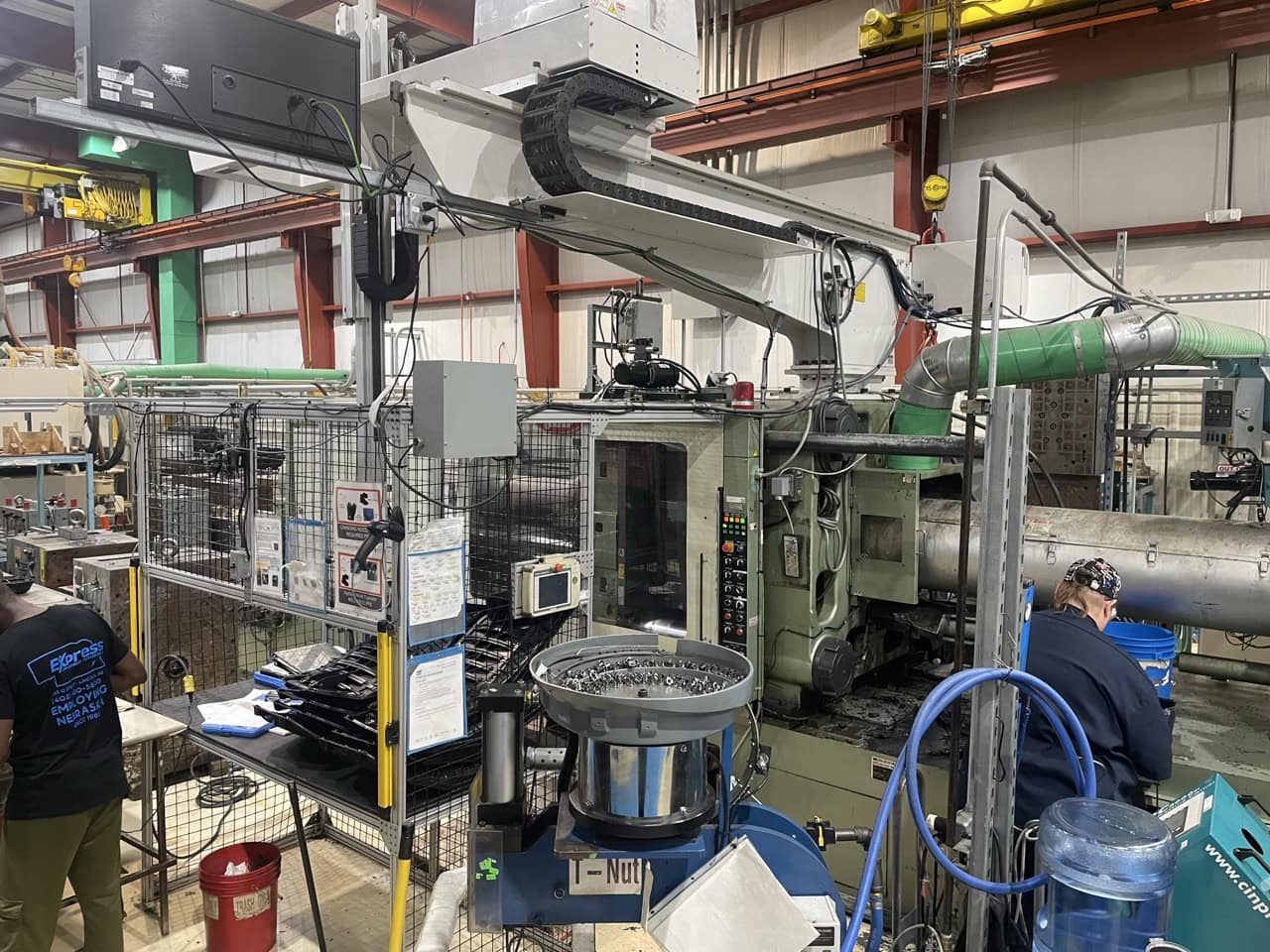

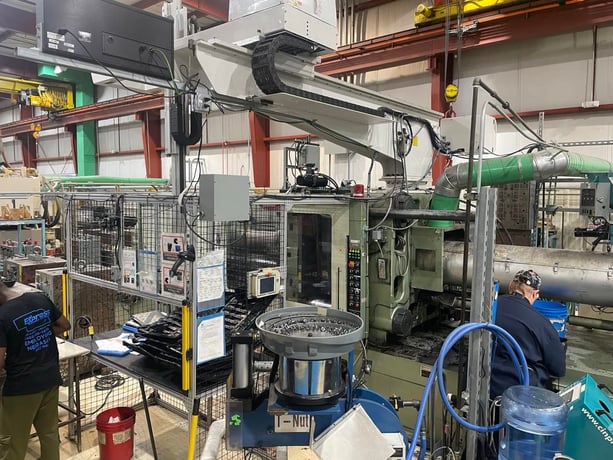

A 720‑ton Nissei PH660S420B hydraulic injection molding press outfitted with a Yushin YCII‑800 traverse robot, vibratory feeder, guarding, QC station, and magnetic clamping system. The system is production‑ready and designed for high throughput thermoplastic part manufacturing, with integrated automation reducing buyer’s setup cost.
Key Features & Specifications
– Clamp Force: 720 US tons
– Shot Capacity: ~131 oz (per comparable listing)
– Platen Dimensions: 55.1″ × 55.1″
– Tie Bar Spacing: 37.8″ × 37.8″
– Clamp Stroke / Daylight: 35.4″ stroke; 17.7″ – 71.3″ daylight
– Heater Power: 53.5kW
– Motor / General Power: 55kW
– Electrical: 230 / 460 V, 3‑phase, 60 Hz

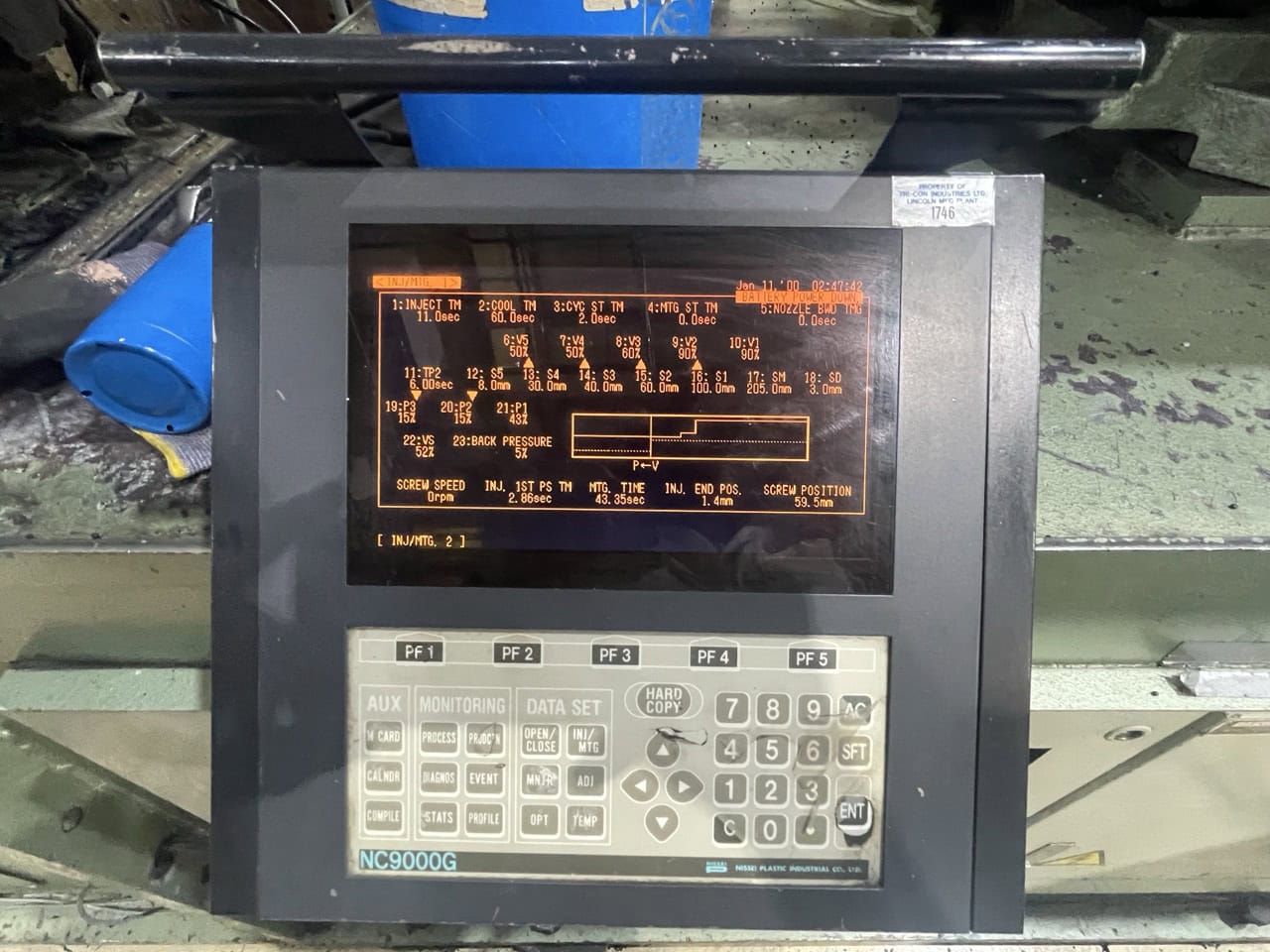

– Controller: NC9000G

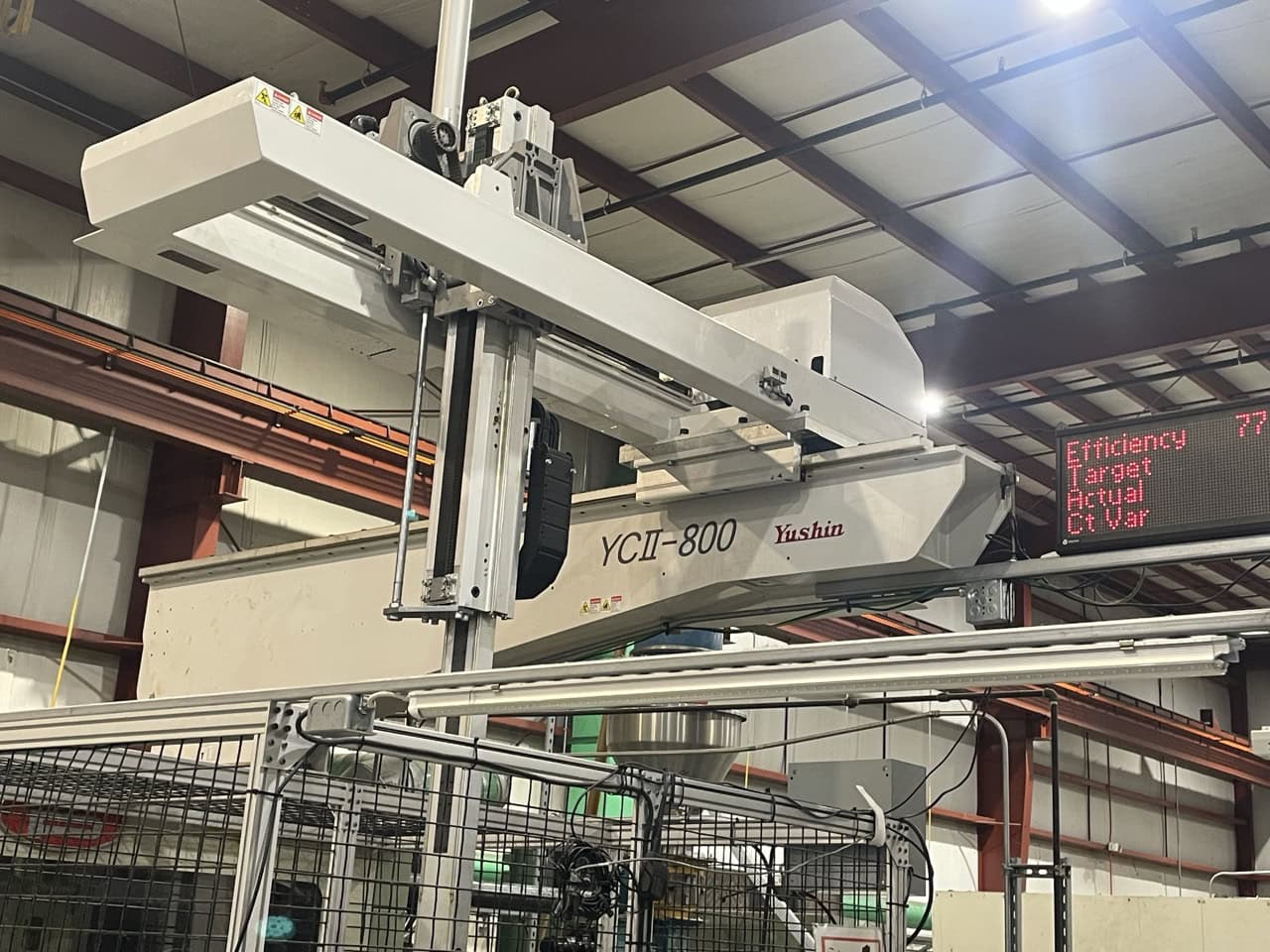

– Automation: Yushin YCII‑800 traverse robot, integrated guarding, vibratory feeder, QC station
– Accessories: Magnetic mold clamping, robotic interface I/O
– Parts Support: OEM and aftermarket support for screws / barrels
