For Sale by Met-Pro Machinery Inc
Surplus Record Dealer Since 2001
Location: Detroit, MI
Contact Jeff Lengel
Phone Number: 248...> Show Phone Number 248-693-1400
Let the seller know you found their listing on Surplus Record!
Description
72" wide material
60,000Lbs capacity
20" ID
72" OD
Left to Right Mode of Operation
Coil Car: L&M Equip. S/N-12415-1
50,000 LBS max. Capacity
44" Deck
72" OD
20" from bottom of "V" to Floor

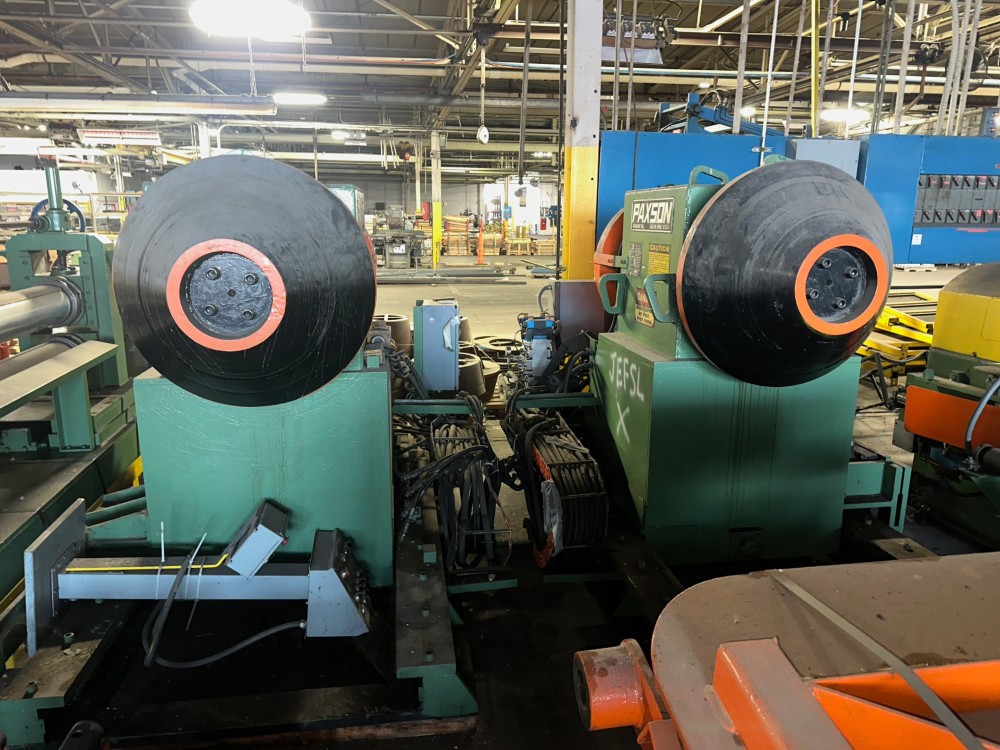

Paxson Cone Uncoiler
Slide Bases
57" from Floor to CenterLine of Cones
Whichita Brakes, one on each Mandrel
Hydraulic Feed up Motor, one on each Mandrel

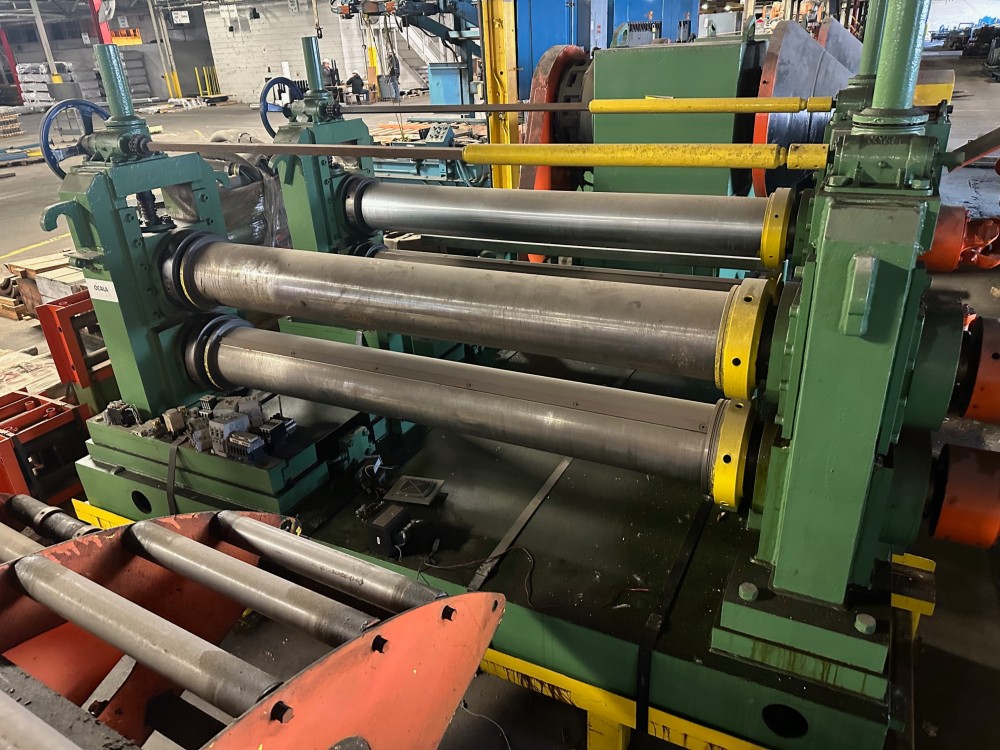

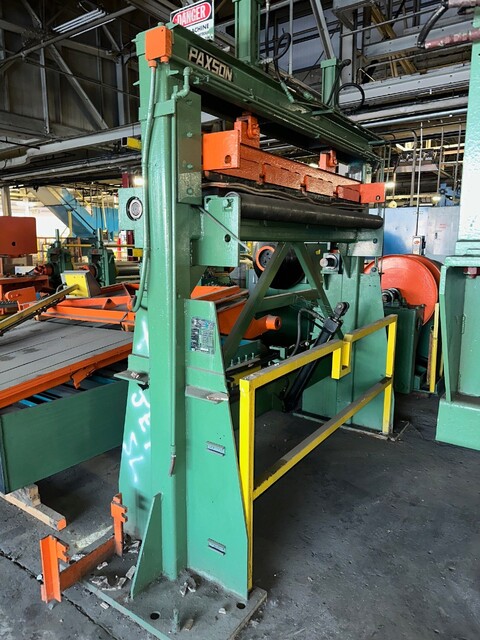

Entry Unit
Peeler Table
Pinch Rolls
Crop Shear
Single Rake
76" Blade face
73" Pass Height
Paxson Slitter Base & Heads
Entry Pinch Rolls
Side Guides
2 Interchangable Slitter Heads
Drop in Design
9" Dia. Arbors x 74.5" Face
75HP, 650/2100RPM, 500V.,129Amp Motor
Falk Gear Reducer(yr 12/2004): 6.155:1 Ratio, 75HP, 650/105RPM In/Out

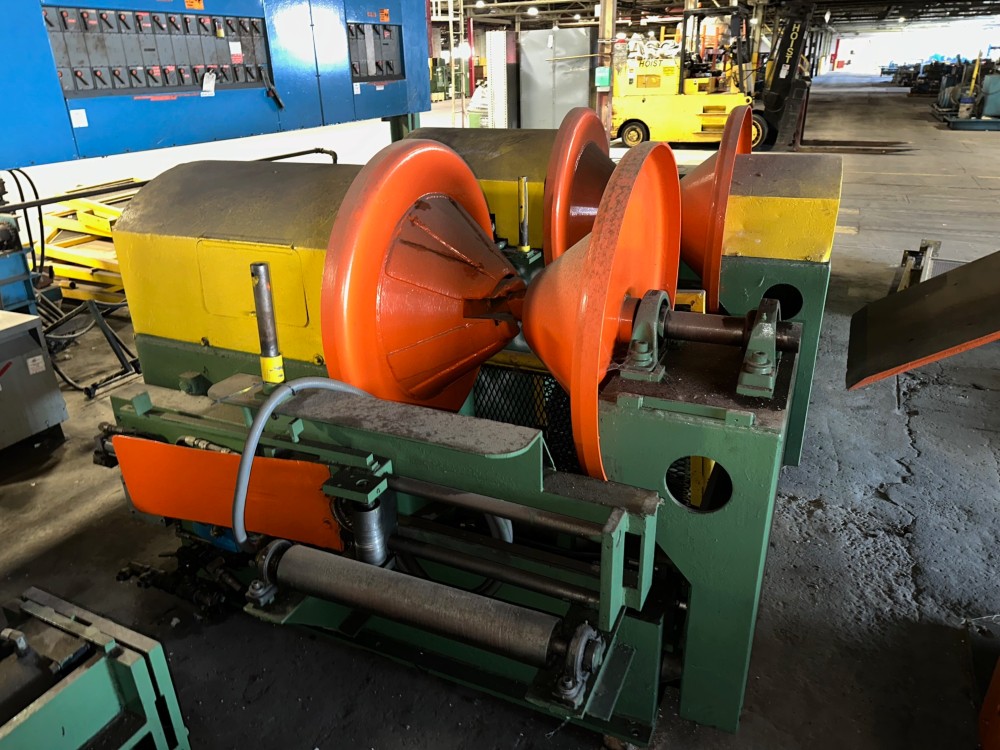

Two- Paxson Oscilating Scrap Winders
22.5" x 36" Dia. Spools
Pit Cross Over Table
Drag Board Tension Stand
76" wide Drag Boards
76" Pass Height

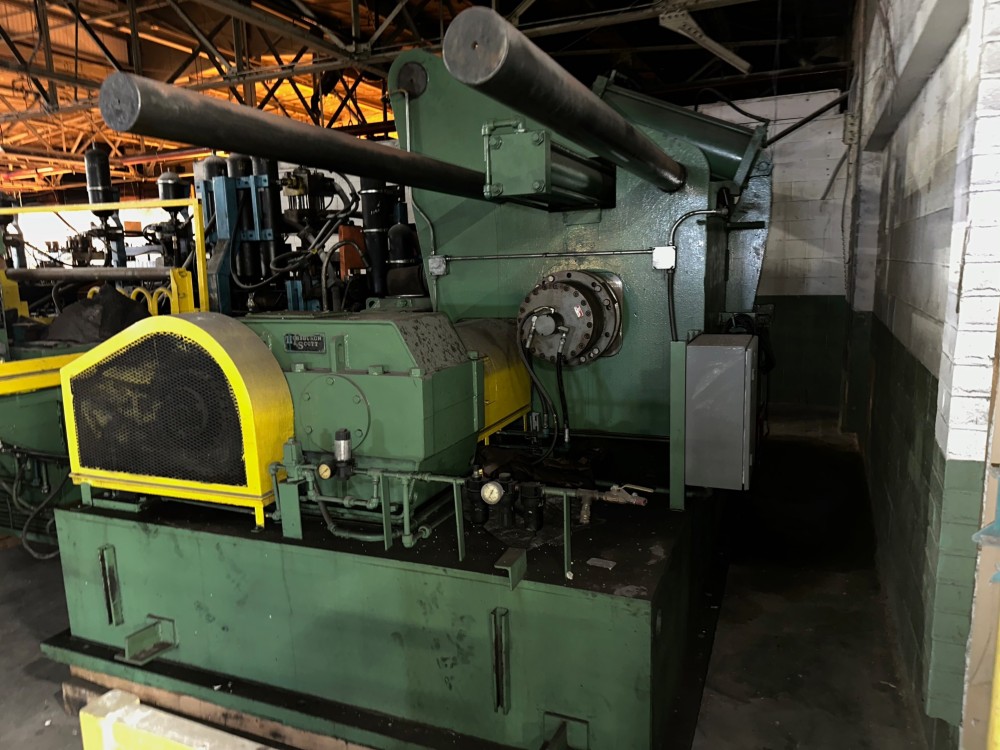

Paxson Recoiler
S/N: 11603:6:1522 12/77
78" Face Drum
20" ID
55" from Floor to Centerline of Drum
Hydraulic Grip & Expansion of Drum
Over Arm Seperator
100HP, 500V., 650/1950RPM, 162Amp DC Motor
Horsburgh & Scott(S/N: I-8757) 2 Speed Reducer
2.0:1 & 1.0:1, 650 Input RPM

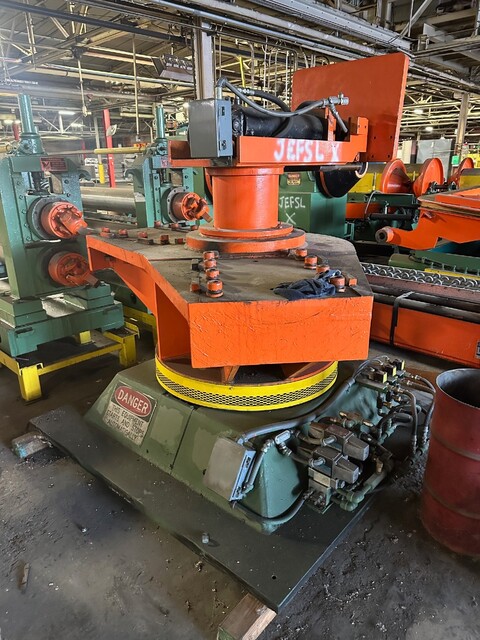

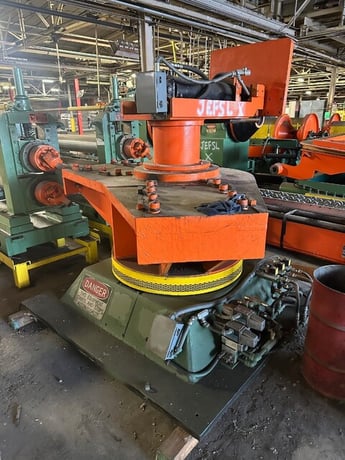

Exit Coil Car
2 Arm Turnstile with Pusher
79.5" Usable arm lengeth with wear bars
120.5" Radius
56.5" From floor to top of arm
5" wide x 14" deep channel for C-Hook use
Double set Hydraulic Power Units
Two-50 HP, 1770RPM, 230/460V, 125/62.5Amp, 3Ph, 60Hz Motor with Pumps &
Two Tanks
3 Door Enclosure for Drives & Controls
1 drive present, one drive missing, PLC missing
Drive: Allen Bradley 1395
I/Os & relays present
No operators console known of at this time
Left to Right mode of Operation
60,000Lbs capacity
20" ID
72" OD
Left to Right Mode of Operation
Coil Car: L&M Equip. S/N-12415-1
50,000 LBS max. Capacity
44" Deck
72" OD
20" from bottom of "V" to Floor
Paxson Cone Uncoiler
Slide Bases
57" from Floor to CenterLine of Cones
Whichita Brakes, one on each Mandrel
Hydraulic Feed up Motor, one on each Mandrel
Entry Unit
Peeler Table
Pinch Rolls
Crop Shear
Single Rake
76" Blade face
73" Pass Height

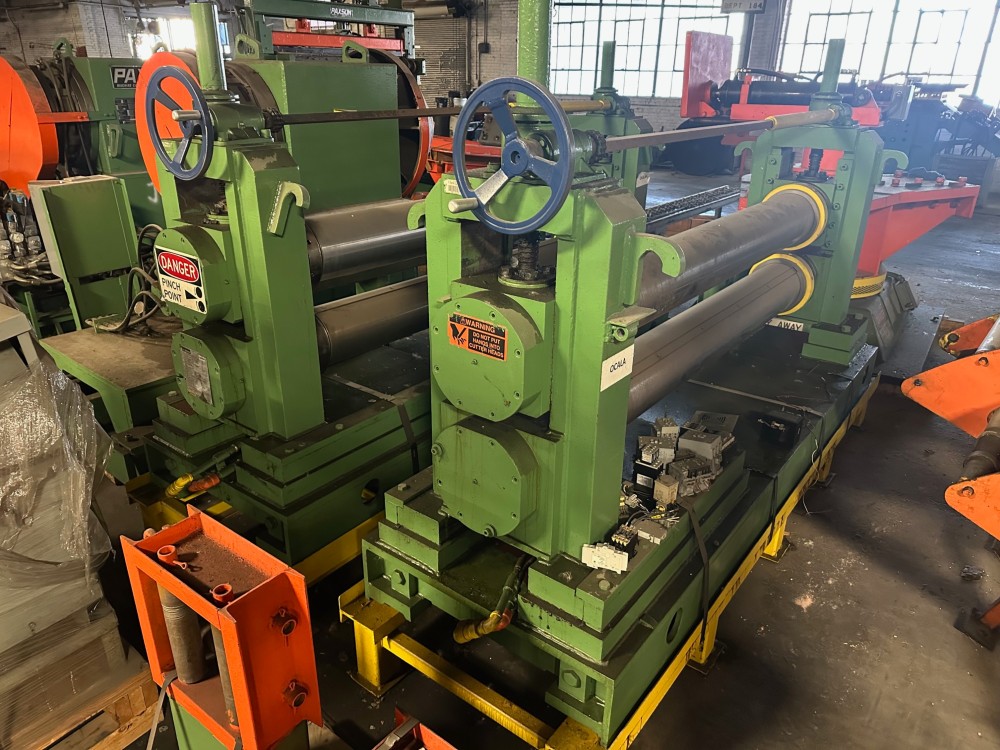

Paxson Slitter Base & Heads
Entry Pinch Rolls
Side Guides
2 Interchangable Slitter Heads
Drop in Design
9" Dia. Arbors x 74.5" Face
75HP, 650/2100RPM, 500V.,129Amp Motor
Falk Gear Reducer(yr 12/2004): 6.155:1 Ratio, 75HP, 650/105RPM In/Out
Two- Paxson Oscilating Scrap Winders
22.5" x 36" Dia. Spools
Pit Cross Over Table
Drag Board Tension Stand
76" wide Drag Boards
76" Pass Height
Paxson Recoiler
S/N: 11603:6:1522 12/77
78" Face Drum
20" ID
55" from Floor to Centerline of Drum
Hydraulic Grip & Expansion of Drum
Over Arm Seperator
100HP, 500V., 650/1950RPM, 162Amp DC Motor
Horsburgh & Scott(S/N: I-8757) 2 Speed Reducer
2.0:1 & 1.0:1, 650 Input RPM
Exit Coil Car
2 Arm Turnstile with Pusher
79.5" Usable arm lengeth with wear bars
120.5" Radius
56.5" From floor to top of arm
5" wide x 14" deep channel for C-Hook use
Double set Hydraulic Power Units
Two-50 HP, 1770RPM, 230/460V, 125/62.5Amp, 3Ph, 60Hz Motor with Pumps &
Two Tanks
3 Door Enclosure for Drives & Controls
1 drive present, one drive missing, PLC missing
Drive: Allen Bradley 1395
I/Os & relays present
No operators console known of at this time
Left to Right mode of Operation
