For Sale by Galaxie Corporation
Surplus Record Dealer Since 1992
Location: Wayne, MI
Contact Sales Dept.
Phone Number: 734...> Show Phone Number 734-727-0600
Let the seller know you found their listing on Surplus Record!
Description
Equipped With
Thickness Capacity: .057" - .250"
Coil Weight Capacity: 80,000#
Coil ID: 20" - 30"
Coil OD: 84"
Coil Width Range: 24" - 72"
Sheet Length Range: 24" - 300"
Rating: 75,000 PSI
Line Speed: 300 FPM @ 3/16"
400 FPM @ .250"
Rating: 75,000 PSI
Line Speed: 300 FPM @ 3/16"
400 FPM @ .250"
Complete Line with the Following
Entry V Roll Powered Coil Feed Conveyor
Bradbury L-Type Coil Car, Floor Standing / Self Contained Hydraulics
Bradbury Double Cone Uncoiler
Sliding Base
Dual Powered Cones
Dual Water Cooled Brakes with Cooler
North American Edge Control
Free Standing Powered Hold Down Roll
Coil Stop
Peeler Table
Edge Guides
4 Roll Coil Breaker with Hydraulic Breaker Roll
Hydraulic Crop Shear with Scrap Cart
2 Sets of Edge Guides
Dual Powered Edge Trimmers
Butech Dual Rotary Scrap Choppers
Exit Goose Neck Scrap Conveyor

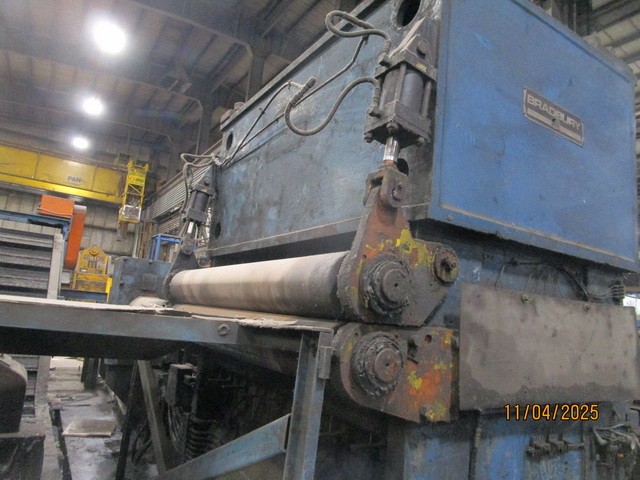

17 Roll Bradbury Backed Up Leveler
3.5' Diameter Work Rolls
7 Flights of Top & Bottom Back-Ups
Hydraulic Adjustable Back Up Rolls
10" Diameter Entry Pinch Rolls
400 HP DC Drive
400 HP DC Drive
Spare Rolls for Leveler
Looping Pit Cascade Rolls
Looping Cross Over Table
Sonatrol Loop Control
Exit Edge Guides
Back-Up Servo Roll Feed with AC Motor
Upgraded Nova High Speed Shear
Entry Pinch Rolls
Flywheel
Air Clutch & Brake
Drop Type Stacker
Motorized Lift Tables
Motorized End Stop
Side Squaring
Stacker Auto Cycle
40' Powered Run-Out Conveyor
2 Central Hydraulic Units
Operator Push Button Stations
CTC Parker Automation
Allen Bradley Digital Readouts
AMS Controller Touch Screen
Allen Bradley Panel View
Parker Digital Drives
Complete Line
Get Your Price from Galaxie Corporation!
