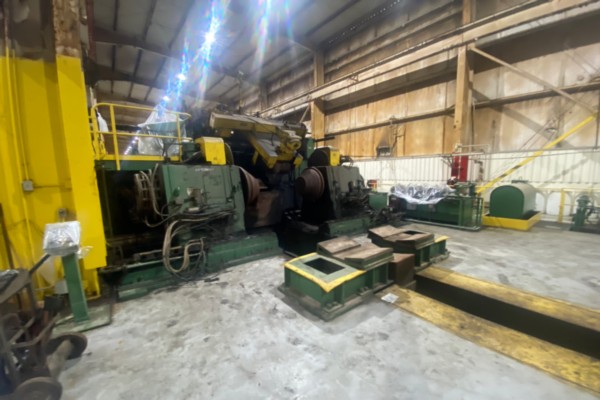

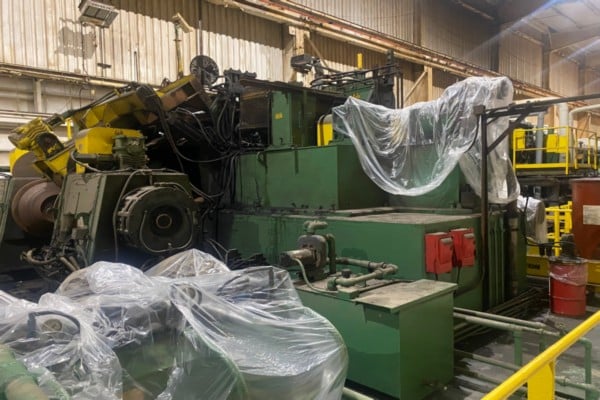

72" x 1/2" Pro-Eco, heavy gauge slitting line components, 69000 lb., R to L

Specifications Note: These slitting line components are inline components from
a pickling line. Certain additional components will need to be added to
complete this line and modify the components to operate as stand alone
slitting line.
MANUFACTURER: PRO-ECO
YEAR - 1989
LINE DIRECTION - RIGHT to LEFT
MATERIALS - CARBON, STAINLESS & ALUMINUM ALLOYS
THICKNESS - .500" MAX., .060" MIN.
COIL WIDTH - 72" MAX., 18" MIN. (ENTRY & EXIT)
MAX. COIL WEIGHT - 69,000# ENTRY, 69,000# EXIT (24" DRUM) 50,000# EXIT (20"
DRUM)
MAX. COIL OD - 80" (ENTRY), 76" (EXIT)
COIL ID - 19" to 33" ENTRY (LIMITED BY COIL WIDTH), 20" or 24" EXIT
SLITTER ARBOR DIAMETER - 10.000"
SLITTER KNIFE DIAMETER - 16.000" MAX., 13.000" MIN.
NUMBER of SLITTER HEADS - TWO (2)
SLITTER HEAD EXCHANGE STYLE - CRANE LIFT-OFF
LINE SPEED - 150 FPM MAX. LOW, 300 FPM MAX. HIGH
UNCOILER DRIVE - HYDRAULIC FEED-UP DRIVES w/ WATER-COOLED BRAKES
FLATTENER DRIVE - 150 HP GEARED IN AT 300 FPM
SCRAP CHOPPER DRIVE - 100 HP GEARED IN AT 300 FPM
RECOILER DRIVE - 200 HP GEARED IN AT 150 or 300 FPM
SLITTING LINE COMPONENTS:
SIDE SHIFTING COIL TRANSFER CAR w/ THREE (3) STORAGE POSITIONS
SADDLE ADAPTERS TO HANDLE NARROW COILS
COIL STORAGE SADDLES w/ SINGLE STAGING POSITION
PIT TYPE COIL LOADING CAR

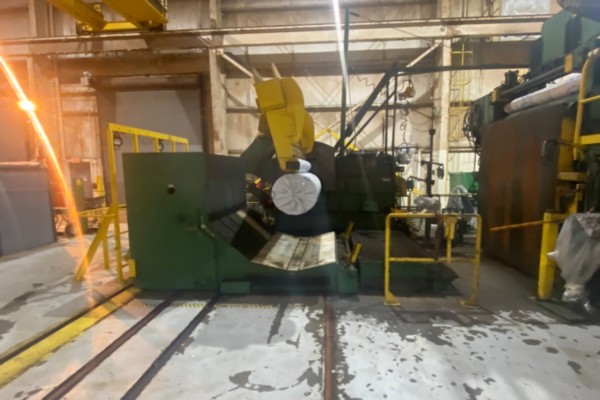

DUAL CONE UNCOILER w/ FEEDUP DRIVES & WATER-COOLED BRAKES
POWERED HOLD DOWN ROLL
PIVOTING AND TELESCOPING PEELER BLADE

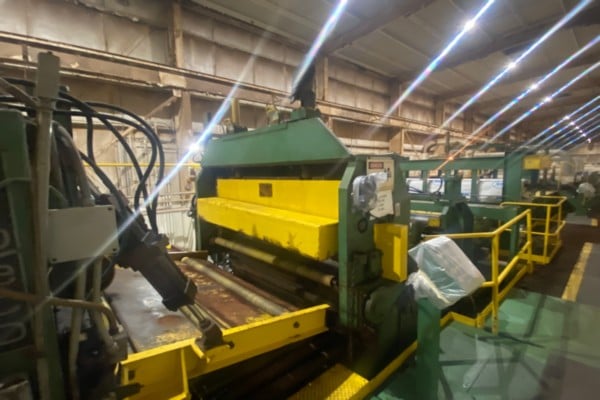

FIVE (5) ROLL FLATTENER w/ ENTRY PINCH ROLLS & 150 HP, DC DRIVE
"ISOTOPE" STRIP THICKNESS GAUGE w/ CARRY-OVER TABLES (SOURCE NOTE INCLUDED)
ROLLER TYPE SIDE GUIDES #1
STRIP CARRY-OVER TABLE w/ CONVEYOR ROLLS
ENTRY CROP SHEAR w/ "AUTO GAP" CLEARANCE CONTROL
STRIP CARRY-OVER TABLE w/ PIVOTING SCRAP DIVERTER
CROPPED SCRAP RUNOUT CONVEYOR #1
SLITTER PINCH ROLLS
ROLLER TYPE SIDE GUIDES #2
IN-LINE SLITTER BASE w/ HYDRAULIC HEAD LOCKING CLAMPS
TWO (2) CRANE LIFT-OFF SLITTER HEADS w/ 10.000" DIAMETER ARBORS
TWO (2) OFF-LINE SLITTER HEAD STORAGE STANDS
ONE (1) LOT OF SLITTER TOOLING (KNIVES, SPACERS & RUBBERS) w/ CABINETS
"BUTECH" MODEL SC501 DUAL ARBOR ROTARY SCRAP CHOPPERS & 100 HP, DC DRIVE
HEAVY DUTY HINGED STEEL BELT SCRAP CONVEYOR
TELESCOPING SCRAP CHOPPER CARRY-OVER TABLE
PIVOTING PIT THREADING TABLE
PAD TENSION STAND W/ENTRY STRIP SEPARATOR SPINDLE
ONE (1) LOT OD UNDERARM SEPARATOR TOOLING W/CABINETS
EXIT CROP SHEAR PINCH ROLLS
EXIT CROP SHEAR w/ "AUTO GAP" CLEARANCE CONTROL
STRIP CARRY-OVER TABLE w/ PIVOTING SCRAP DIVERTER
CROPPED SCRAP RUNOUT CONVEYOR #2
EXIT PINCH / PASS LINE ROLL
PIVOTING RECOILER THREADING TABLE

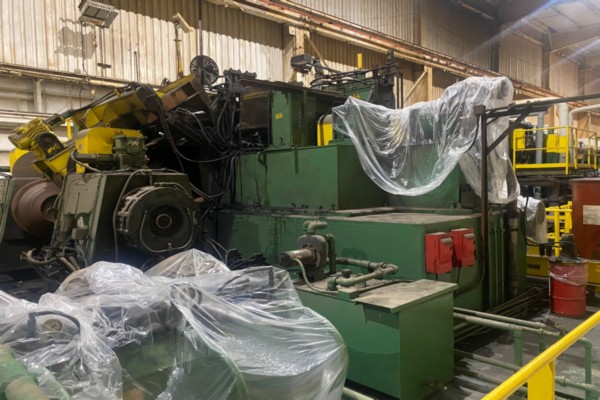

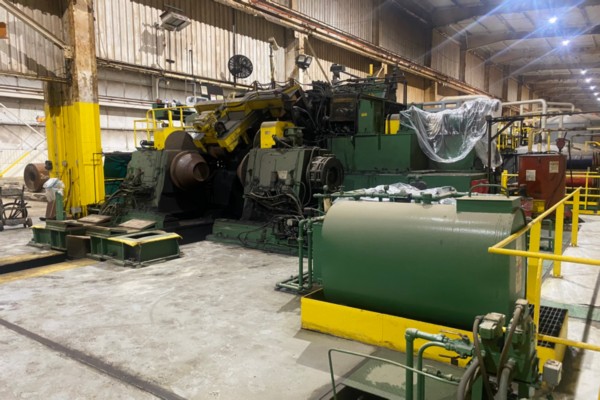

CANTILEVERED MANDREL RECOILER w/ 20" & 24" INTERCHANGEABLE QUILL TYPE DRUMS,
200 HP, DC DRIVE, TWO (2) SPEED GEARBOX, COIL PUSHER & PIVOTING OVERARM
SEPARATOR
ONE (1) LOT OF OVERARM SEPARATOR TOOLING (SPACERS & DISCS) w/ CABINETS
FLOOR LEVEL COIL UNLOADING CAR w/ MANUAL STANCHIONS
FOUR (4) ARM EXIT STORAGE TURNSTILE
OPERATOR CONTROL STATIONS
AC CONTROLS & CABINETS (2007 ALLEN-BRADLEY CONTROL LOGIX PLC UPGRADE)
VARIABLE SPEED DRIVE CONTROLS & CABINETS (2007 ROCKWELL FLEXPAC 3000 UPGRADE)
CLOSED LOOP HYDRAULIC SYSTEM (2 LINE UNITS & 2 SHEAR UNITS)
CLOSED LOOP WATER COOLING SYSTEM (2 LINE UNITS)
MISCELLANEOUS SPARE PARTS
MISCELLANEOUS DRAWINGS & MANUALS
