Description

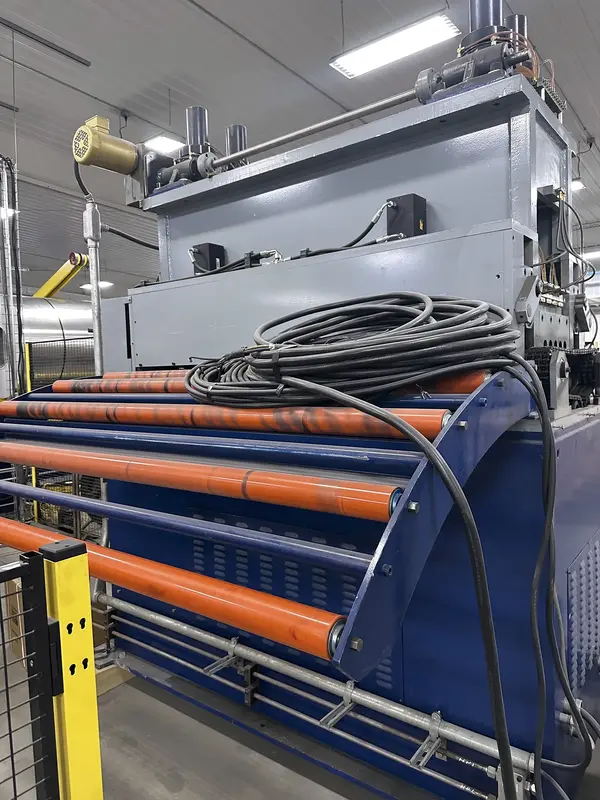

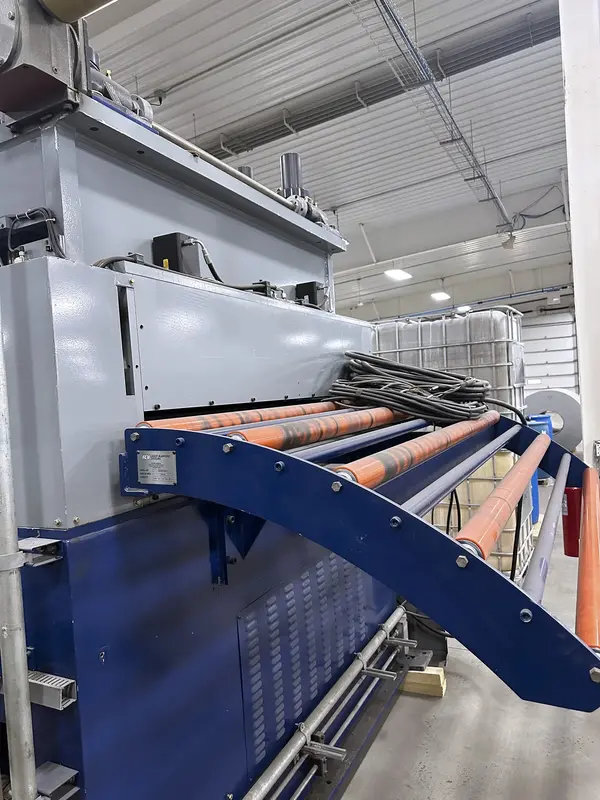

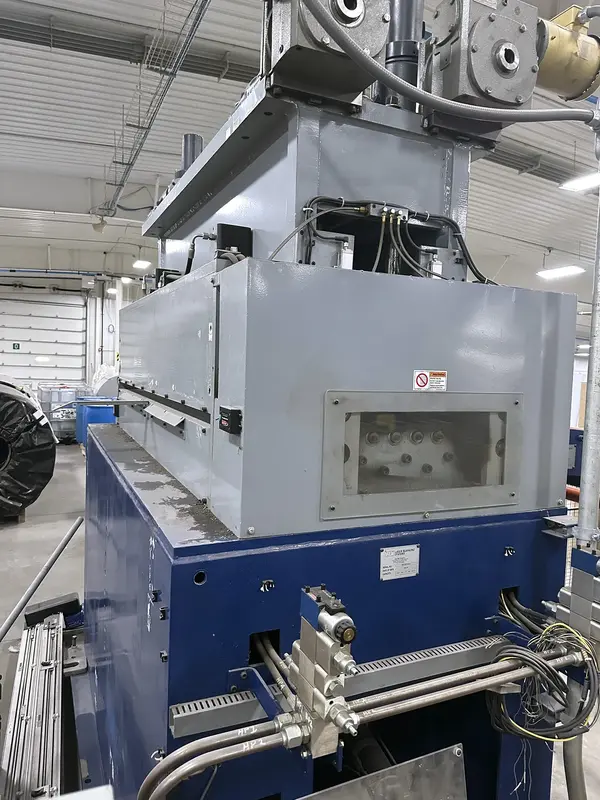

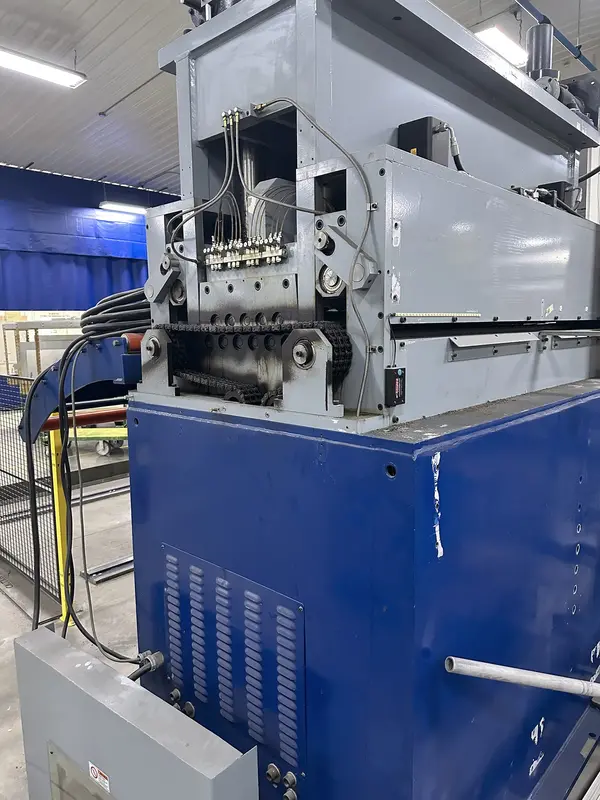

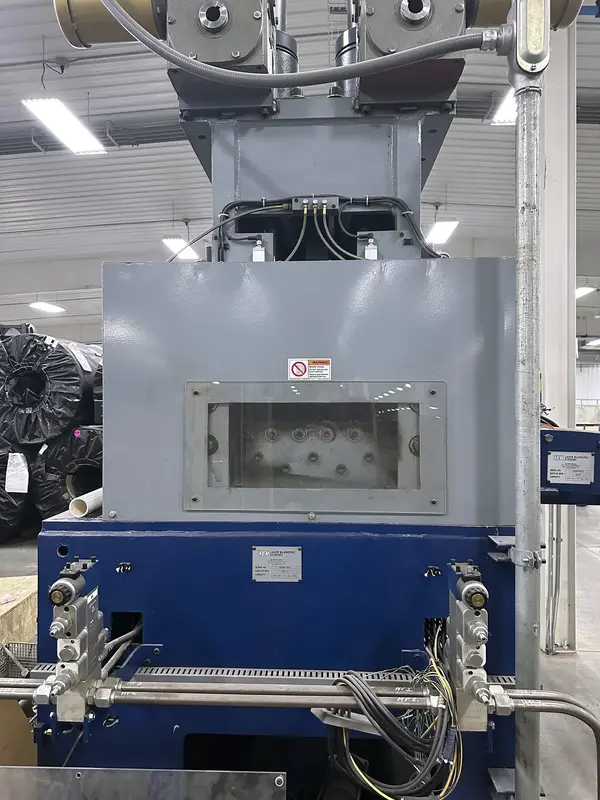

Capacity: .078 thick x 72" wide Roll Diameter: Straightener- 2.2 inches (56 mm) with polyurethane covering (80-85 durometer) Feed In/Out: 3.78 inches (96 mm) with hard chrome surface Roll Quantity: Feed Rolls - 4 (1 roll set entry and 1 exit) Straighteners: 11 (5 over 6 configuration with backup rolls) Roll Adjustments: Top Rolls adjustable via motorized adjustment with hinged roll opening mechanism for easy cleaning Roll Drive: Rolls driven by an AC motor and gear reducer transmitting power to each roll via chain and sprocket Roll Type: 52100 steel hardened Roll Backups: Top and Bottom Side Guides: Automatic, centerline justified Lubrication: Automatic lubrication Pneumatic: Pneumatic valves mounted to machine base and factory wired to a machine mounted junction box Hydraulic: Hydraulic valves mounted to machine base and factory wired to a machine mounted junction box
Inquire Further with Machinery Marketing International!
MODEL #: SFDC-6-72, SERIAL #: 28191, 72" MAXIMUM COIL WIDTH, 7 ROLL STRAIGHTENER,.020" -.060" THICKNESS CAPACITY, ENTRY AND EXIT PINCH ROLLS, 4" DIAMETER STRAIGHTENING ROLLS, COIL BREAKER ROLLS WITH AIR LIFT, COIL GUIDE ROLLERS, 100" LR x 80" FB x 76" TALL, 12,000 LBS ESTIMATED WEIGHT.
