For Sale by D & H Machinery Inc
Surplus Record Dealer Since 1963
Location: Toledo, OH
Contact Sales
Phone Number: 419...> Show Phone Number 419-841-3586
Let the seller know you found their listing on Surplus Record!
Description

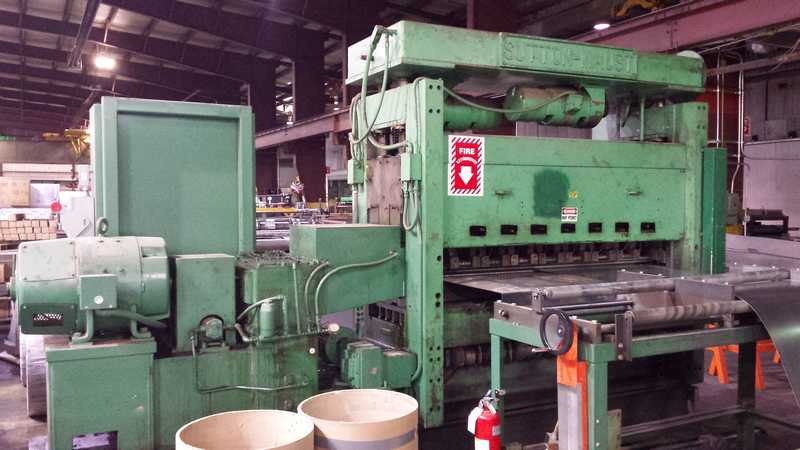

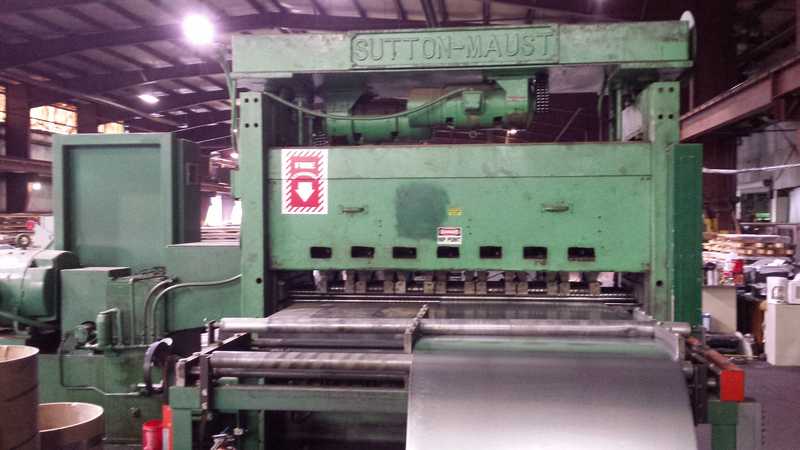

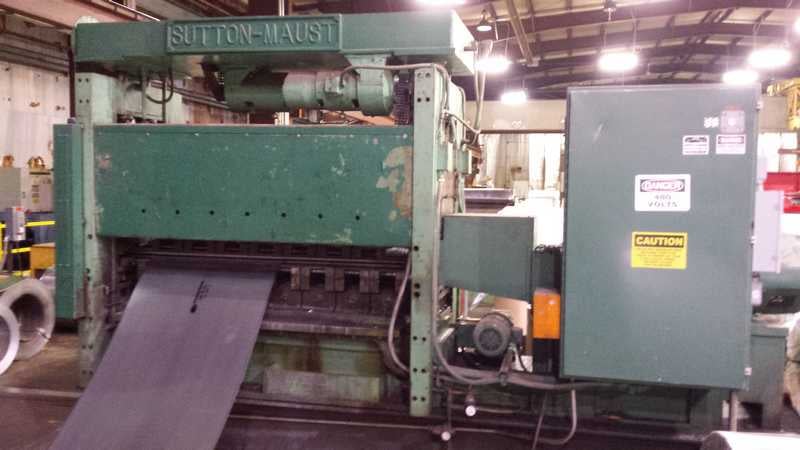

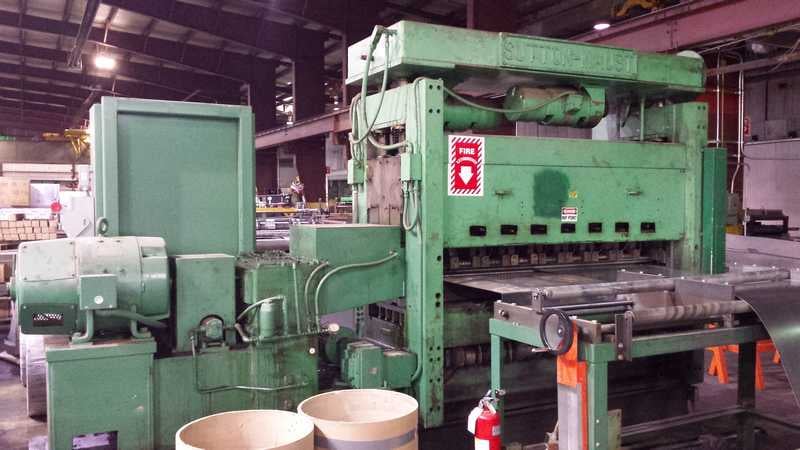

USED/REBUILT SUTTON MAUST PRECISION LEVELER
6 HIGH DESIGN
-CAPACITY: 72" x 0.010" TO 0.064"
-17 WORK ROLLS
1.125" DIA. x 82" FACE
-ROLL CENTERS: 1.4687"
-(36) INTERMEDIATE ROLLS
-7 FLIGHTS OF BACK-UPS TOP
-8 FLIGHTS OF BACK-UPS BOTTOM
-ALL BACK-UPS MOTORIZED WITH
VISUAL INDICATORS ON FRONT OF MACHINE.
-3 HP BACK-UP MOTOR, TOP FLIGHT
-3 HP BACK-UP MOTOR, BOTTOM FLIGHT
-5 HP SCREW DOWN MOTOR
-15 HP D.C. MAIN DRIVE MOTOR
650/1300 RPM.
-APPROX. WEIGHT: 29,000 LBS.
-COMPLETE WITH DETAIL DRAWINGS
-LEVELLER WAS COMPLETELY REBUILT, BOTH MECHANICALLY
AND ELECTRICALLY IN 1999.
-MISC. SPARE PARTS
-INSTALLED AND UNDER POWER.
6 HIGH DESIGN
-CAPACITY: 72" x 0.010" TO 0.064"
-17 WORK ROLLS
1.125" DIA. x 82" FACE
-ROLL CENTERS: 1.4687"
-(36) INTERMEDIATE ROLLS
-7 FLIGHTS OF BACK-UPS TOP
-8 FLIGHTS OF BACK-UPS BOTTOM
-ALL BACK-UPS MOTORIZED WITH
VISUAL INDICATORS ON FRONT OF MACHINE.
-3 HP BACK-UP MOTOR, TOP FLIGHT
-3 HP BACK-UP MOTOR, BOTTOM FLIGHT
-5 HP SCREW DOWN MOTOR
-15 HP D.C. MAIN DRIVE MOTOR
650/1300 RPM.
-APPROX. WEIGHT: 29,000 LBS.
-COMPLETE WITH DETAIL DRAWINGS
-LEVELLER WAS COMPLETELY REBUILT, BOTH MECHANICALLY
AND ELECTRICALLY IN 1999.
-MISC. SPARE PARTS
-INSTALLED AND UNDER POWER.
