Description

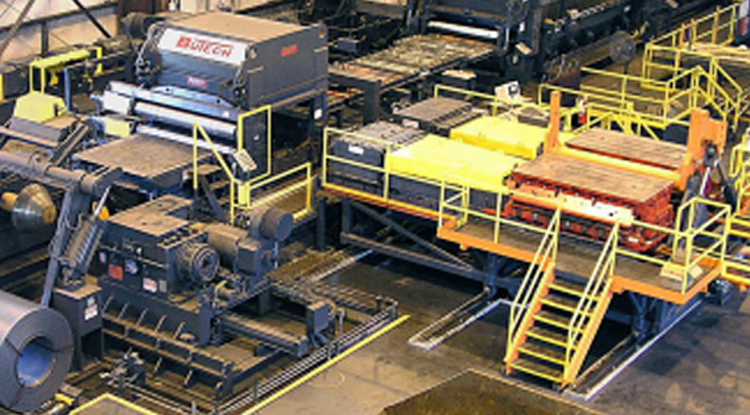

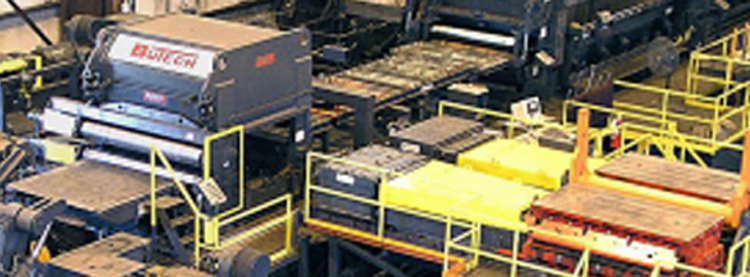

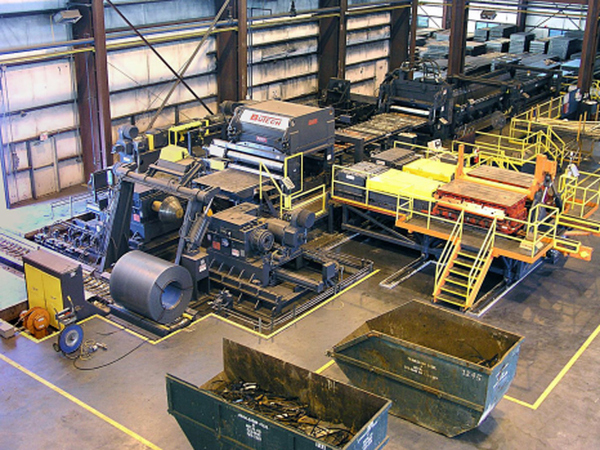

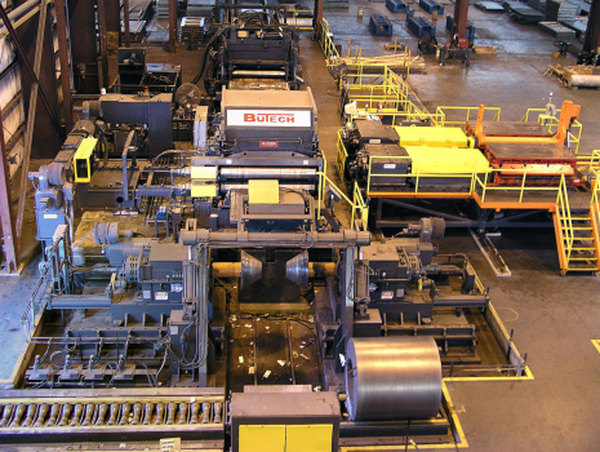

(2) 250 HP DC Motors Butech Precision Roller Leveler with Quick Change Roll Nest Cassettes and Floor Mounted Injector System (11) Roll Heavy Gage Cassette Specifications:
Pinch Roll Size: 10" (254 mm) dia. x 80" (2030 mm) face
Work Roll Quantity: 11, 5 up, 6 down
Work Roll Size: 5.500" (140 mm) dia. x 80" (2030 mm) face
Back Up Flights: 7 top and bottom
Strip Thickness Range: .125"-.500" (17) Roll Light Gauge Cassette Specifications: Work Roll Quantity: 17, 8 up, 9 down Work Roll Size: 2.750" (70 mm) dia. x 80" (2030 mm) face Back Up Flights: 7 top and bottom Strip Thickness Range: 0.200" max., .060" min.
HR, HRHS, HRPO 85,000 PSI max. .500 " maximum, .060" minimum 72" max., 24" min. 0 to 326 or 400 FPM max. as determined with customer Overwind To match existing line Left to Right Centerline 10" (254 mm) dia. x 80" (2030 mm) face 11, 5 up, 6 down 5.500" (140 mm) dia. x 80" (2030 mm) face 7 top and bottom .500" maximum, .125" minimum
Pinch Roll Size: 10" (254 mm) dia. x 80" (2030 mm) face
Work Roll Quantity: 11, 5 up, 6 down
Work Roll Size: 5.500" (140 mm) dia. x 80" (2030 mm) face
Back Up Flights: 7 top and bottom
Strip Thickness Range: .125"-.500" (17) Roll Light Gauge Cassette Specifications: Work Roll Quantity: 17, 8 up, 9 down Work Roll Size: 2.750" (70 mm) dia. x 80" (2030 mm) face Back Up Flights: 7 top and bottom Strip Thickness Range: 0.200" max., .060" min.
