Description

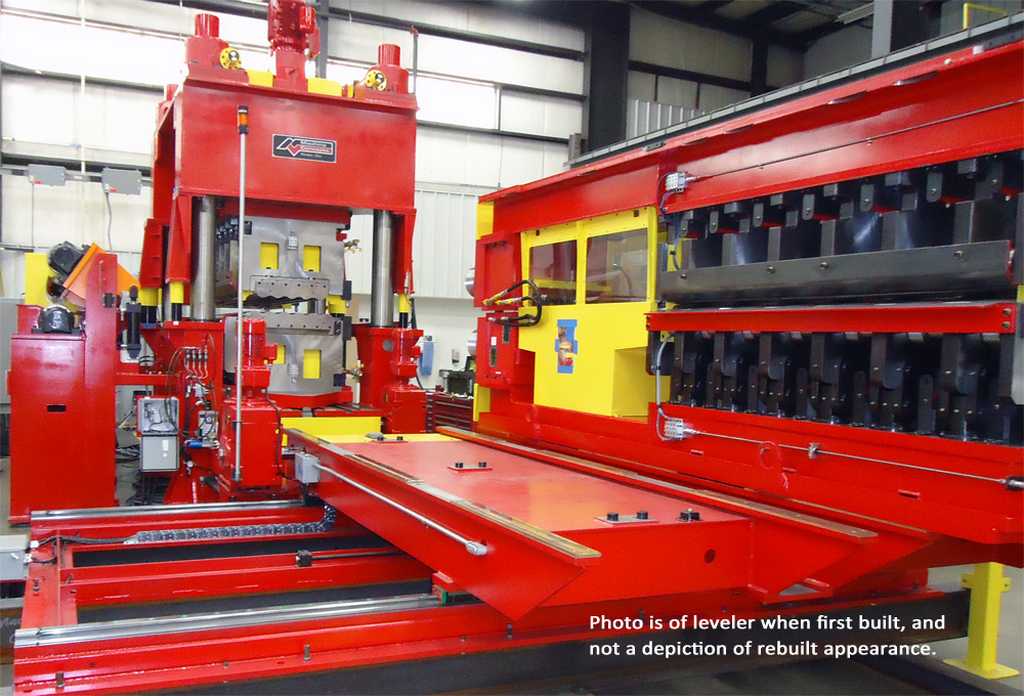

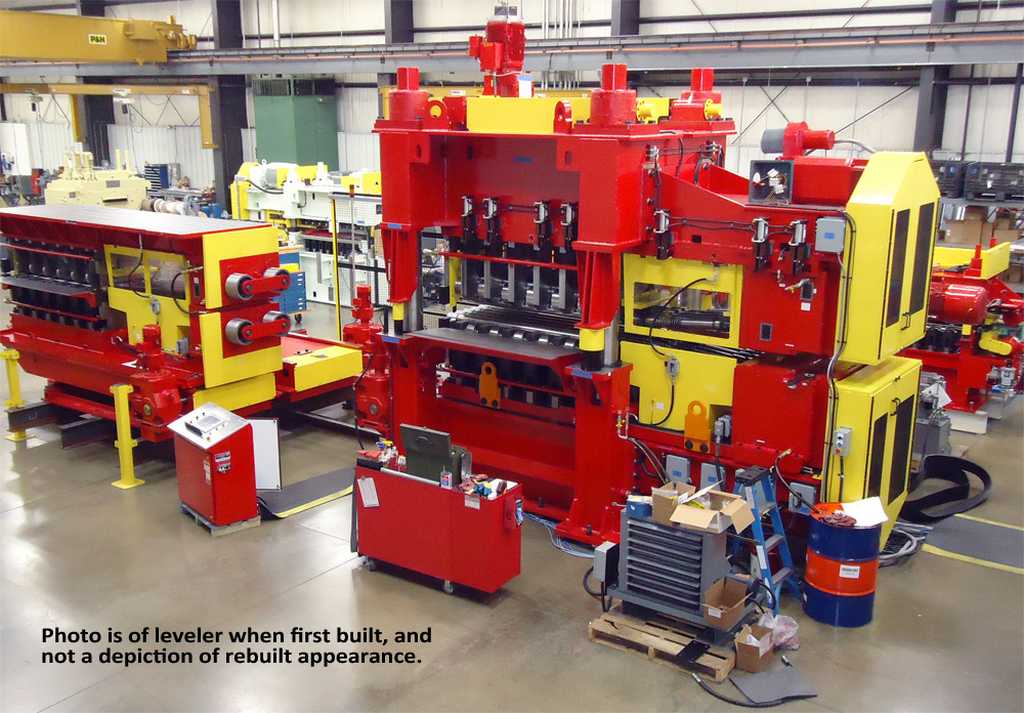

72" x 0.500" Machine Concepts Precision Leveler
Completely Rebuilt and Recertified.
-Material: Hot Rolled Steel
-Width: upto 72"
-Gauge Range: 0.060" - 0.500"
-Maximum Yield: 75,000 PSI
-Line Speed: 0.090" at 300 FPM
Leveler Specifications:
-Configuration: Drawer Cassette Style with all Rolls Driven
-Separating Load Capacity: 1,200,000 lbs.
-Number of Backup Flights: 6
-Cassette Roll Out: Operator Side
-Process Orientation: Always on Center Line
-Direction of Process: Left to Right
-Power Requirement: 460 Volt 3 Phase
Large Roll Cassette Specifications:
-Work Roll Diameter: 5" on 7" Centers
-Number of Work Rolls: 11
-Roll Finish: Hardened, Ground & Polished 52100 Steel
-Roll Configuration: 4 High (no Intermediate Rolls)
-Line Speed: 100 - 150 FPM (Speed depends on gauge)
-Capacity: Up to 0.500" at 75,000 PSI
-Small Roll Cassette Specifications:
-Work Roll Diameter: 3" on 4" Centers
-Number of Work Rolls: 15
-Work Roll Face: Strip Width Plus 6" (approx.)
-Roll Finish: Hardened, Ground & Polished 52100 Steel
-Roll Configuration: 4 HI (No Intermediate Rolls)
-Line Speed: 200 - 350 FPM (speed depends on gauge)
-Capacity: Up to 0.250" at 80,000 PSI
-Drive System Specifications:
-Drive Type: Split Drive with Roll Cleaning
-Main Drive Power: 600 HP
-Pinch Roll Drive Power: 75 HP
-Removed and in Storage
