Description

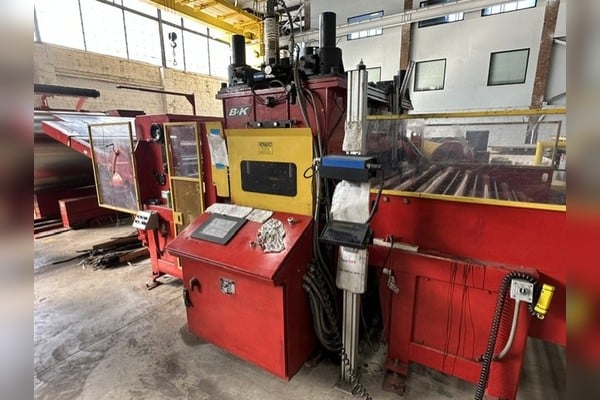

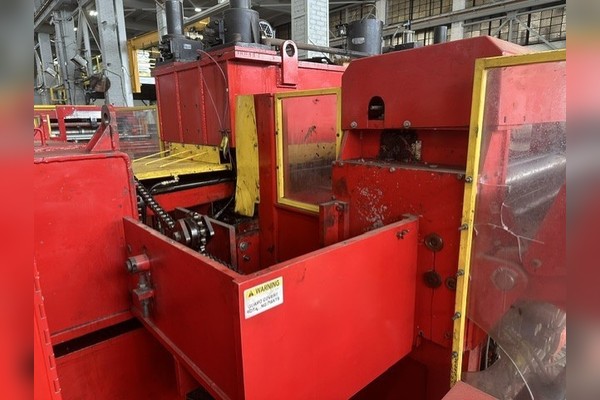

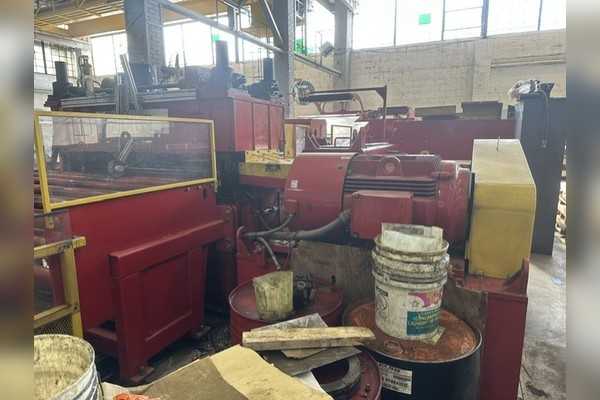

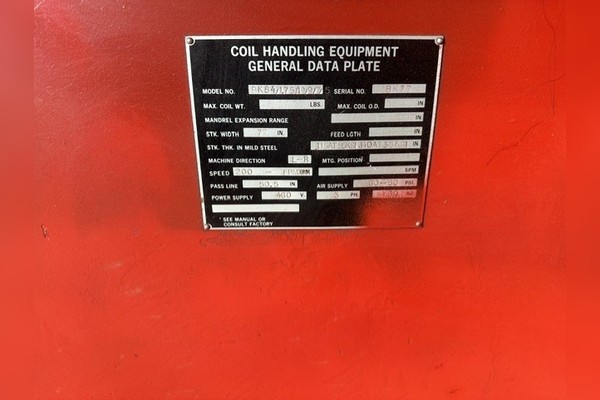

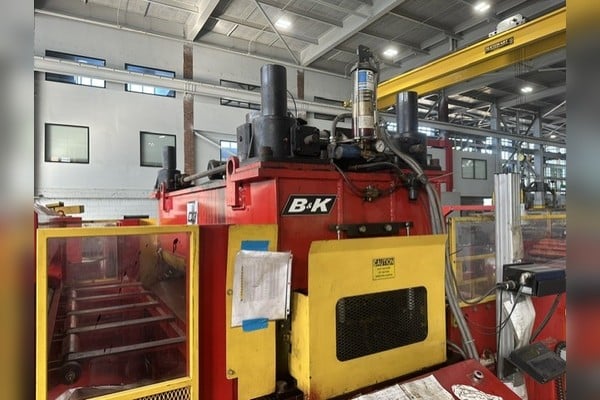

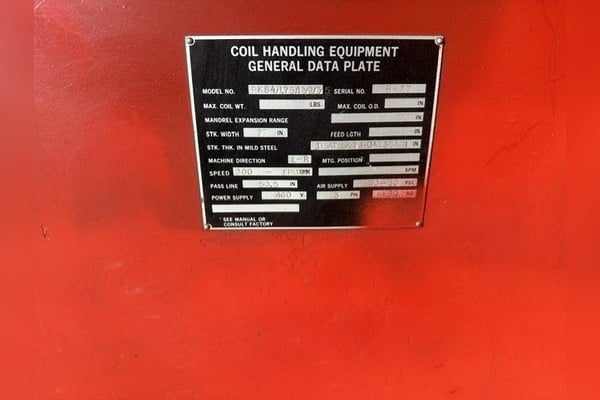

SPECIFICATIONS:
Manufacturer: B&K
Model Number: BK77
Serial Number: BK84/1.75/19/9/7/5
Year Built: 2008
Line Direction: Left to Right
Pass Line Height: 50.50"
Line Speed: 200 FPM max.

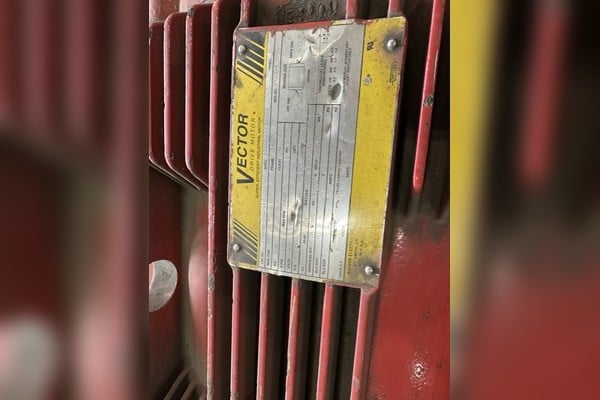

Drive: 150 HP, 1785/2400 RPM
Coil Width: 72" max.
Strip Thickness: .115" max. at 55 KSI, .140" max. at 35 KSI

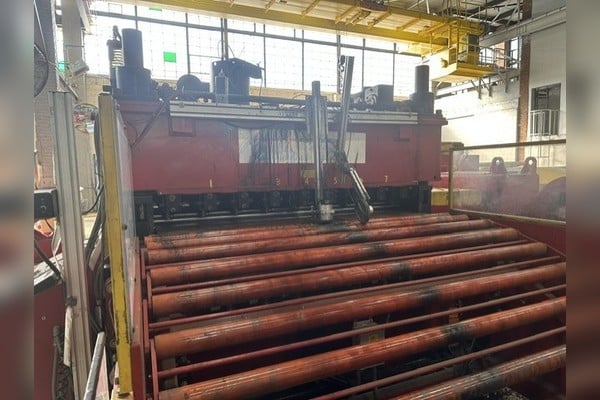

Work Rolls: 1.75" Dia., 19 Roll, 5 High Configuration
Back Up Flights: 9 Flights Total, 7 Flights Adjustable
==============================================================================
Manufacturer: B&K
Model Number: BK77
Serial Number: BK84/1.75/19/9/7/5
Year Built: 2008
Line Direction: Left to Right
Pass Line Height: 50.50"
Line Speed: 200 FPM max.
Drive: 150 HP, 1785/2400 RPM
Coil Width: 72" max.
Strip Thickness: .115" max. at 55 KSI, .140" max. at 35 KSI
Work Rolls: 1.75" Dia., 19 Roll, 5 High Configuration
Back Up Flights: 9 Flights Total, 7 Flights Adjustable
==============================================================================
