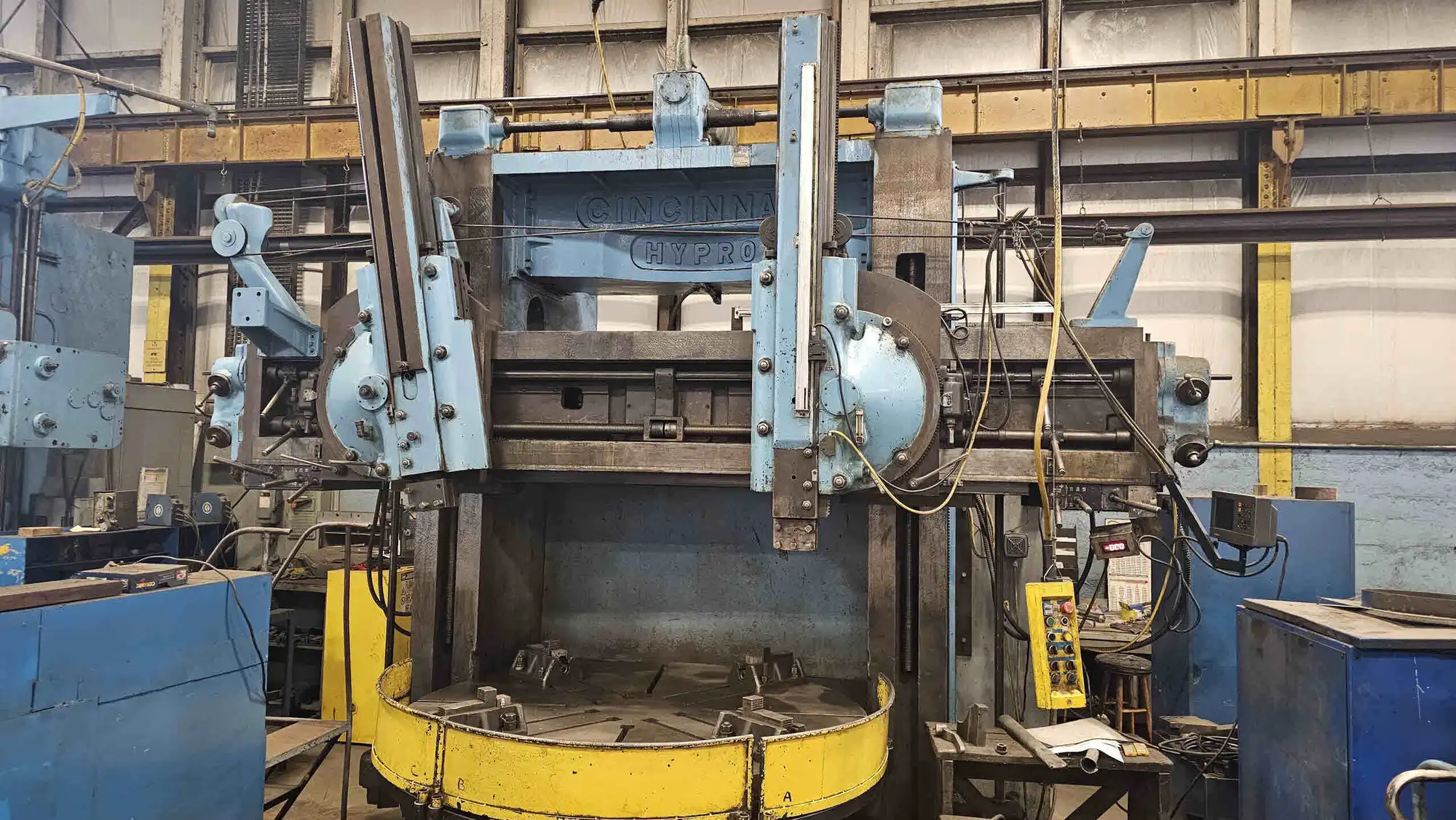

72" Cincinnati #Hypro, 79" sw, 72.5" 4-jaw chuck, 63" under rail, Heidenhain 2-Axis digital read out, pendant Control, variable speed, power rail elevation

SPECIFICATIONS:
MODEL......................................................... HYDRO
CHUCK DIAMETER................................................ 72.5"
MAXIMUM SWING................................................. 79"
HEIGHT UNDER RAIL............................................. 63"
VERTICAL TRAVEL OF RAM HEADS.................................. 50"
HORIZONTAL TRAVEL OF RAM HEADS................................ 50"
MAX. HEIGHT UNDER RAM HEADS................................... 60.5"
MIN. CENTER DISTANCE BETWEEN HEADS............................ 20.62"
SPINDLE SPEEDS (VARIABLE)..................................... 1-135 RPM
FEEDS RATE (12)............................................... 0.010"-0.800"

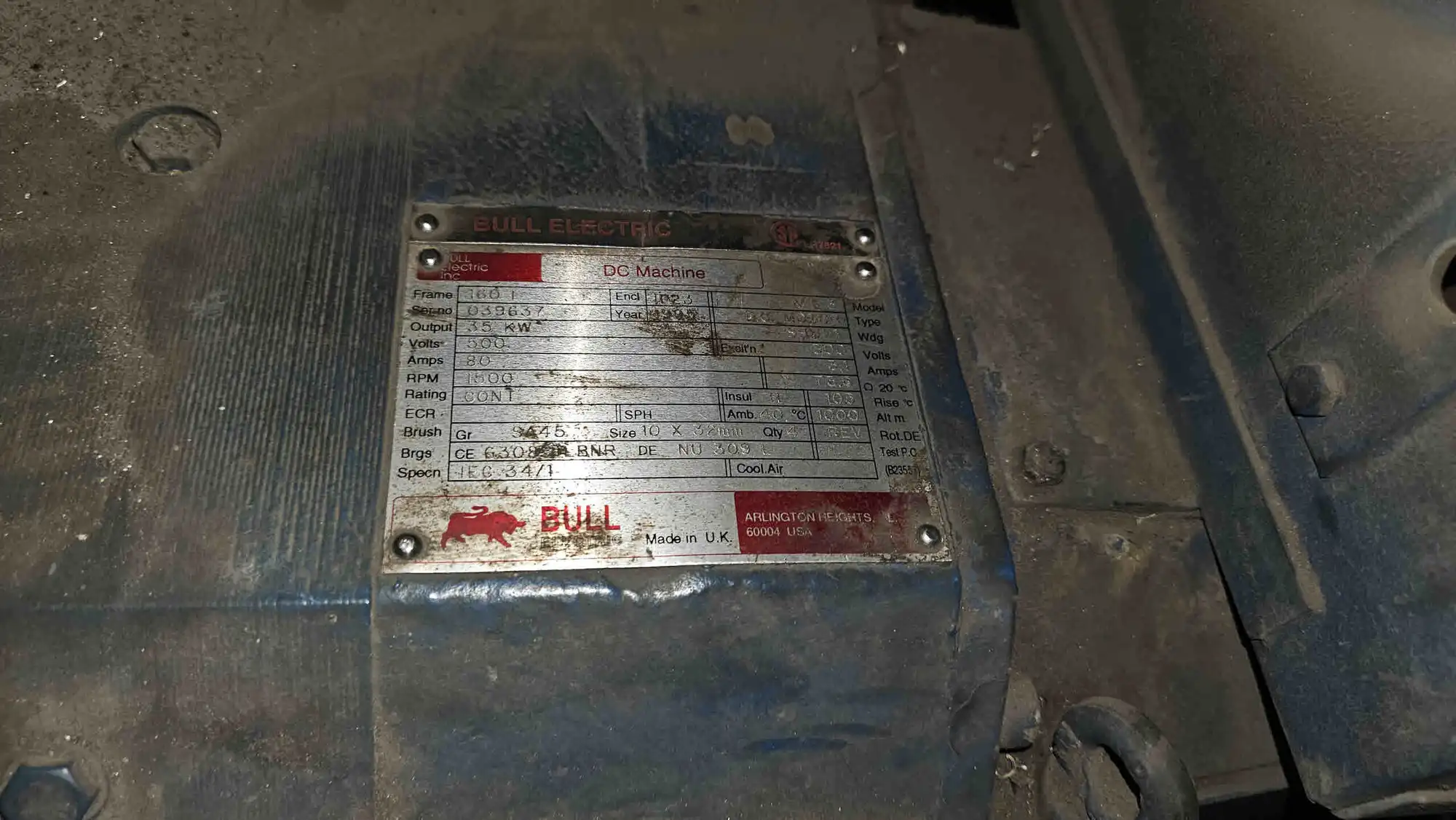

MAIN MOTOR (DC)............................................... 35 KW
ELECTRICS..................................................... 575V/3PH/60HZ
MADE IN....................................................... USA
APPROXIMATE WEIGHT............................................ 65,000 LBS
APPROXIMATE OVERALL DIMENSIONS................................ 180"L X 147"W X 146"H

EQUIPPED WITH:
2 AXIS HEIDENHAIN DIGITAL READOUT
2 SWIVELING RAM TYPE HEADS UP TO 60 DEGREES

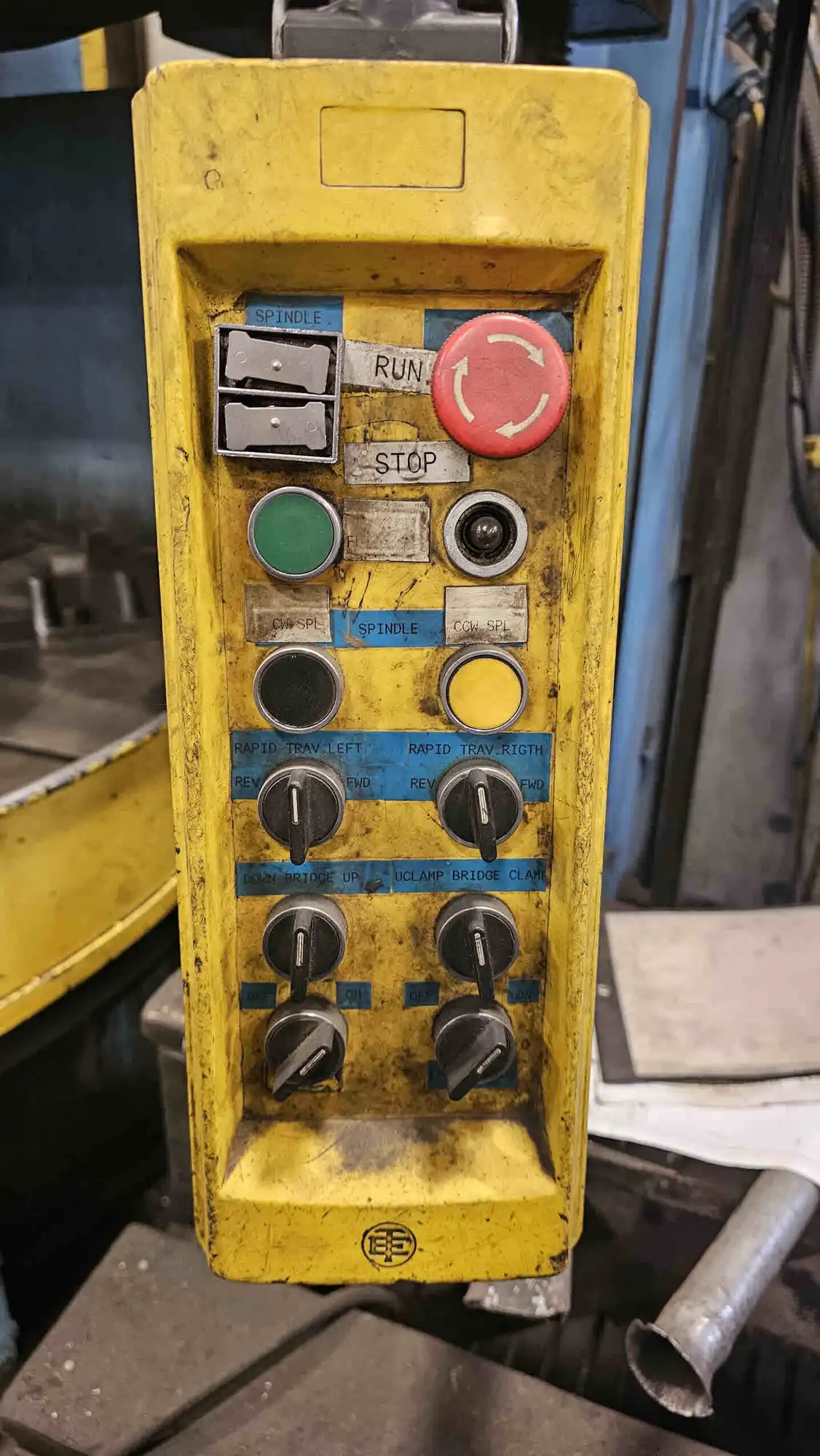

PENDANT CONTROL
FOUR JAW CHUCK
POWER RAIL ELEVATION
VARIABLE SPEED
FLOOR STANDING
