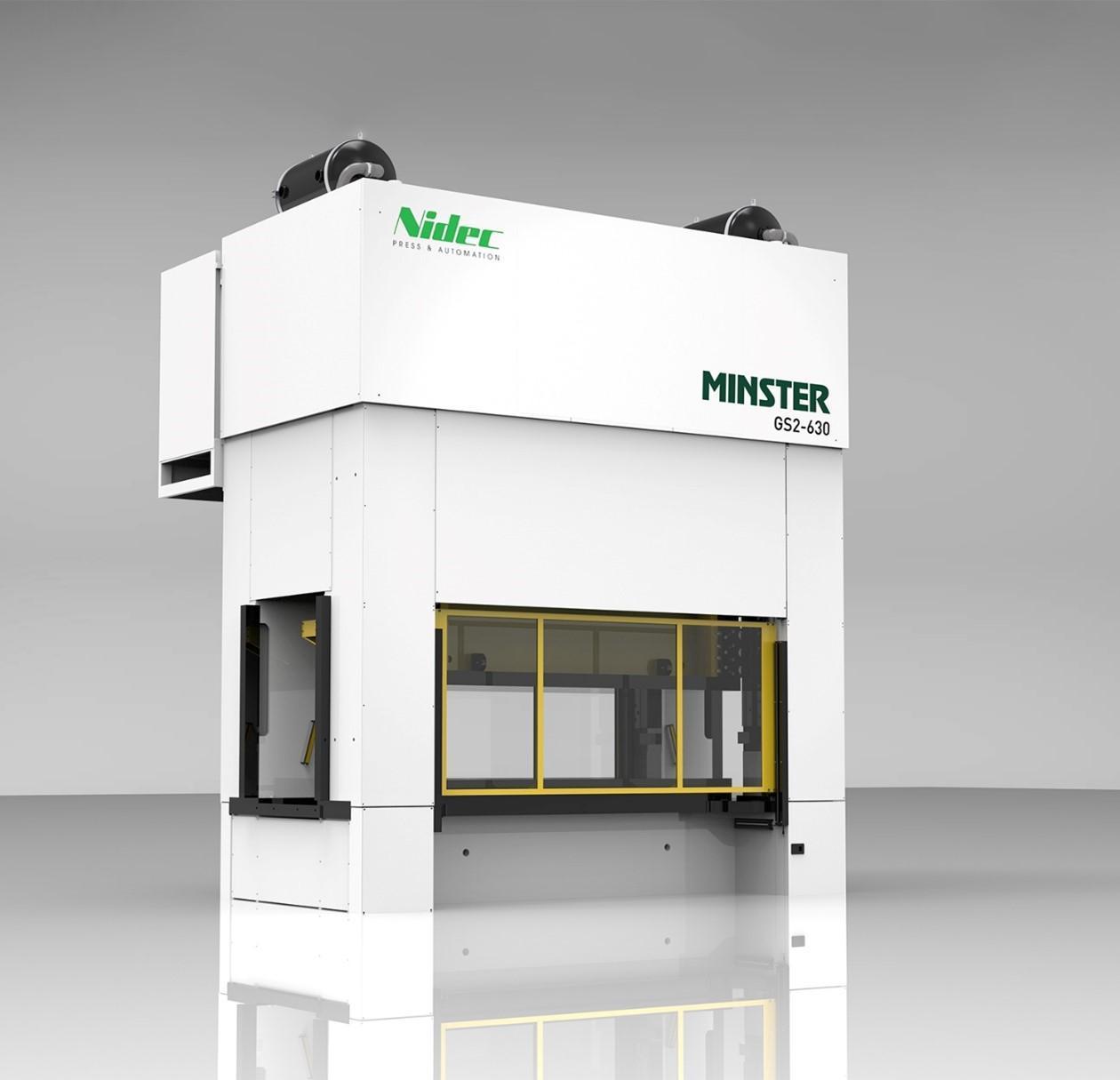

710 Ton, Minster #GS2-630-425x150, straight side double crank 2-pt servo press, 15.7" stroke, 33.5" Shut Height, 93 SPM, 59" x167" bed, 59" passline, 2024, new

SPM 93

Tonnage 710 tons

Stroke 15.7 inches

Shut Height 33.5 inches

Vari Speed (Yes/No) yes

Bed W 59 inches

Bed L 167 inches

Crank (Single/Double) double

SPECIFICATIONS

Press Specifications

Model Number........................................................ GS2-630-425x150

Force × Distance off Bottom.................................. 6300 kN x 6 mm (710 tons x 0.236 in.)

Energy..................................................................... 110 kJ (486 in-tons) @ 40 spm

Connection Points................................................... 2

Lube Unit Location................................................. Standalone Floor Level, RHR

Approximate Press Weight..................................... 145,000 kg (320,000lbs.)

Scale and Display Units.......................................... Inch/Metric

Shop Air Pressure, Minimum.................................. 5.9 bar (590 kPa) (85 psi)

Press Slide Specifications

Stroke Length.......................................................... 400 mm (15.7 in.)

Max. Speed - Continuous (reduced rating)............. 45 spm

Max. Speed in pendulum 150 mm *....................... 78 spm

Max. Speed in pendulum 125 mm *....................... 82 spm

Max. Speed in pendulum 100 mm *....................... 88 spm

Max. Speed in pendulum 80 mm *......................... 93 spm

* Rate depends on stroke profile and press mechanical properties

Area of Slide, R-L × F-B........................................ 4250 x 1500 mm (167 x 59 in.)

Slide Face Machining.............................................. Standard

Overload Travel....................................................... 25 mm (0.98 in.)

Overload Recovery Time........................................ 120 seconds

Maximum Upper Die Weight................................. 7,000 Kg (15,430 lbs.)

Press Bolster Specifications

Bolster Plate Material.............................................. Steel

Bolster Plate Thickness........................................... 190 mm (7.5 in.)

Area of Bolster, R-L × F-B..................................... 4250 x 1500 mm (167 x 59 in.)

Opening in Bolster, R-L × F-B............................... None

Bolster Plate Machining.......................................... Standard (Engineering Don’t Release)

Press Frame Specifications

Upright Passline Opening, F-B............................... 1500 mm (59 in.)

Area of Bed, R-L × F-B.......................................... 4250 x 1500 mm (167 x 59 in.)

Opening in Bed, R-L (F-B ribs) × F-B................... 3700 (5) x 650 mm (145.7 x 25.6 in.)

Bed/Slide Deflection at 67% of Die Area............... 0.125 mm/m (0.0015 in/ft)

Shutheight, Maximum (SDAU).............................. 850 mm (33.5 in) Bolster to Slide

Shutheight Adjustment........................................... 400 mm (15.7 in.)

Accuracy of Slide Adjustment................................ 0.1 mm
