For Sale by Nidec Press & Automation
Description
SPM 93
Tonnage 710 tons
Stroke 15.7 inches
Shut Height 33.5 inches
Vari Speed (Yes/No) yes
Bed W 59 inches
Bed L 167 inches
Crank (Single/Double) double
Equipped With
SPECIFICATIONS
Press Specifications

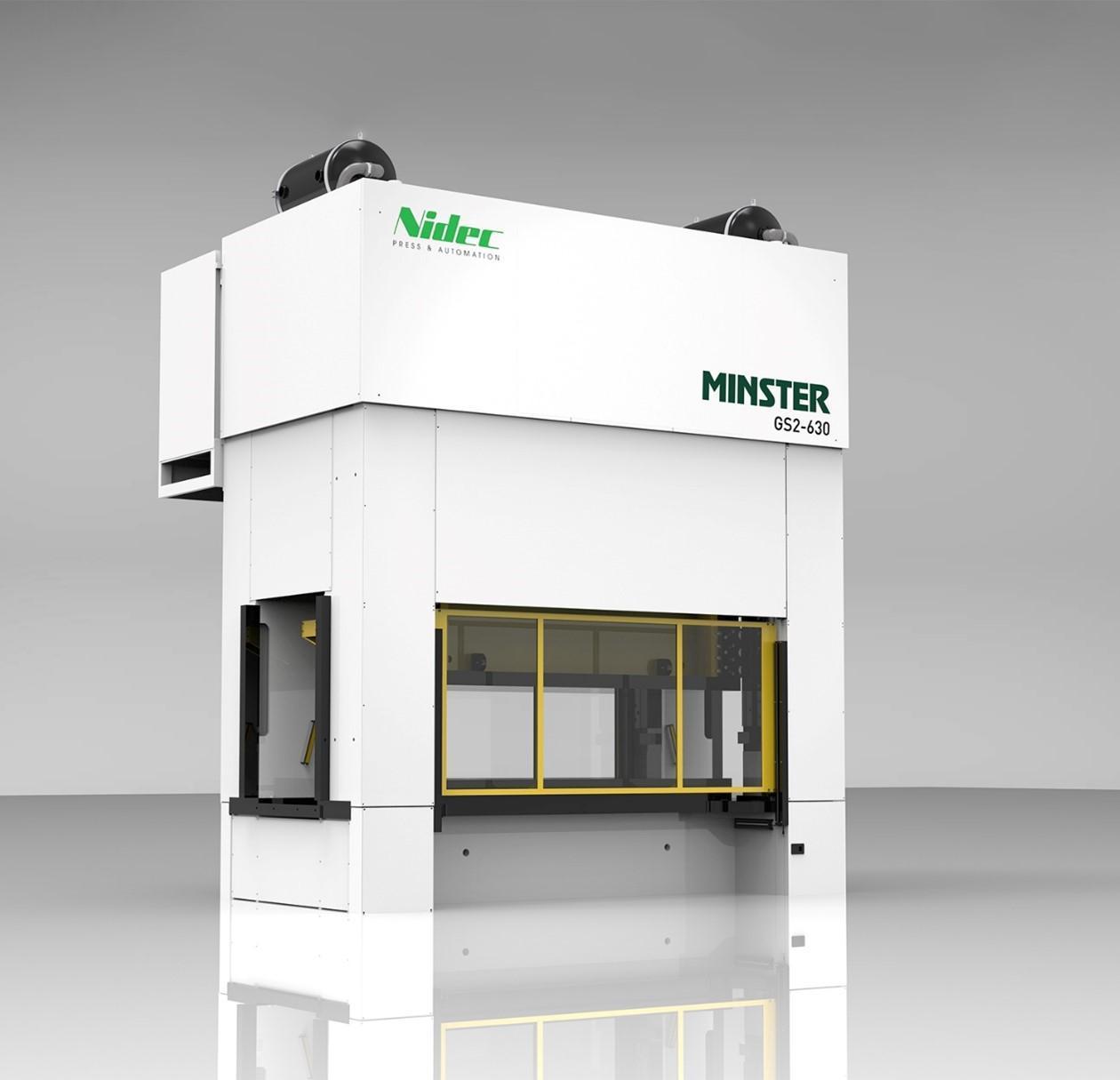

Model Number........................................................ GS2-630-425x150
Force × Distance off Bottom.................................. 6300 kN x 6 mm (710 tons x 0.236 in.)
Energy..................................................................... 110 kJ (486 in-tons) @ 40 spm
Connection Points................................................... 2
Lube Unit Location................................................. Standalone Floor Level, RHR
Approximate Press Weight..................................... 145,000 kg (320,000lbs.)
Scale and Display Units.......................................... Inch/Metric
Shop Air Pressure, Minimum.................................. 5.9 bar (590 kPa) (85 psi)
Press Slide Specifications
Stroke Length.......................................................... 400 mm (15.7 in.)
Max. Speed - Continuous (reduced rating)............. 45 spm
Max. Speed in pendulum 150 mm *....................... 78 spm
Max. Speed in pendulum 125 mm *....................... 82 spm
Max. Speed in pendulum 100 mm *....................... 88 spm
Max. Speed in pendulum 80 mm *......................... 93 spm
* Rate depends on stroke profile and press mechanical properties
Area of Slide, R-L × F-B........................................ 4250 x 1500 mm (167 x 59 in.)
Slide Face Machining.............................................. Standard
Overload Travel....................................................... 25 mm (0.98 in.)
Overload Recovery Time........................................ 120 seconds
Maximum Upper Die Weight................................. 7,000 Kg (15,430 lbs.)
Press Bolster Specifications
Bolster Plate Material.............................................. Steel
Bolster Plate Thickness........................................... 190 mm (7.5 in.)
Area of Bolster, R-L × F-B..................................... 4250 x 1500 mm (167 x 59 in.)
Opening in Bolster, R-L × F-B............................... None
Bolster Plate Machining.......................................... Standard (Engineering Don’t Release)
Press Frame Specifications
Upright Passline Opening, F-B............................... 1500 mm (59 in.)
Area of Bed, R-L × F-B.......................................... 4250 x 1500 mm (167 x 59 in.)
Opening in Bed, R-L (F-B ribs) × F-B................... 3700 (5) x 650 mm (145.7 x 25.6 in.)
Bed/Slide Deflection at 67% of Die Area............... 0.125 mm/m (0.0015 in/ft)
Shutheight, Maximum (SDAU).............................. 850 mm (33.5 in) Bolster to Slide
Shutheight Adjustment........................................... 400 mm (15.7 in.)
Accuracy of Slide Adjustment................................ 0.1 mm
