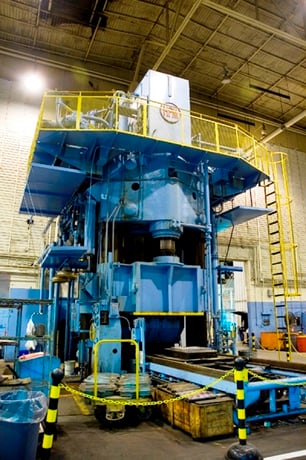

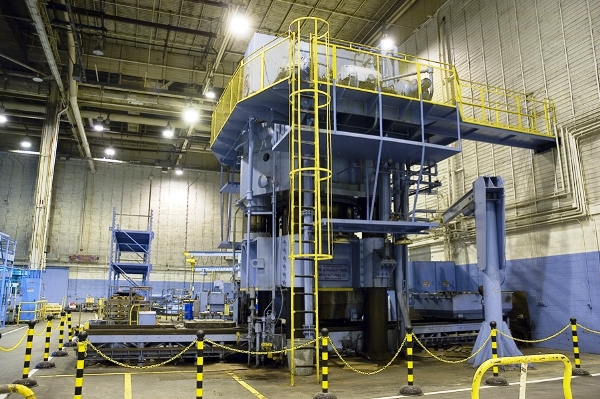

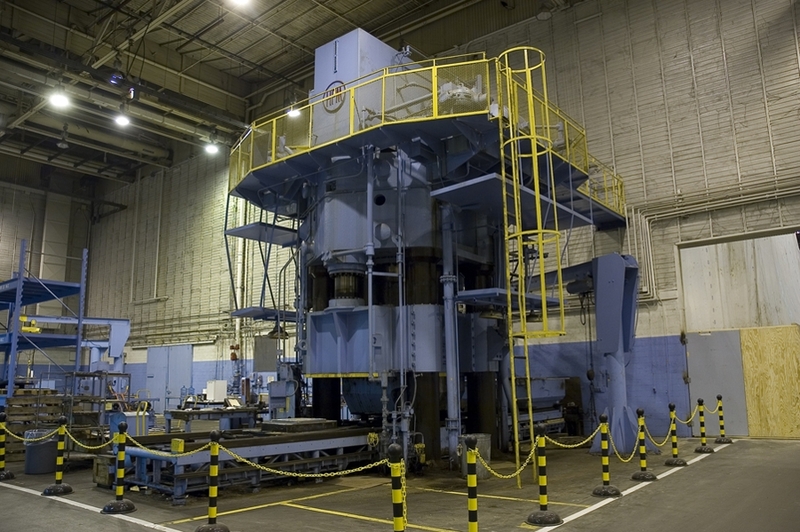

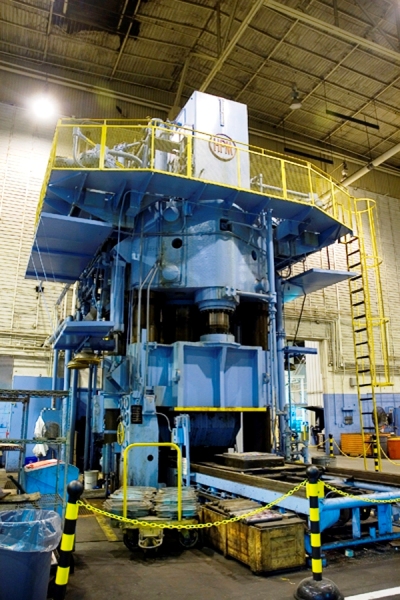

7000 Ton, HPM, hydraulic, 36" stroke, 53" daylight, 144" x 72" bed, 6300 ton cushion, 1953, #2560CE

SPECIFICATIONS:
Capacity of Ram at 2,740 PSI............7000 Tons
Stroke of Ram...........................36”
Ram Cylinder Diameter...................74”
Shut Height (Over Bolster)..............24”
Daylight (Over Bolster).................53”
Area of Bolster Plate
R to L.............................144”
F to B.............................72”
Thickness..........................30”
Area of Bed and Ram
R to L.............................144”
F to B.............................72”
Distance Between Posts
R to L.............................56”
F to B.............................72 ½”
Total Die Lifting and Stripping Capacity @ 1500 PSI.....65 Tons
Floor to Top of Bolster.................36”
Speeds
Fast Advance.......................238 IPM
Pressing...........................17.5 IPM
Return.............................238 IPM
Cushion Pressure Infinitely Variable........630-6300 Tons
Cushion Ejection Capacity @ 750 PSI.........29 Tons
Cushion Stroke..............................14”
Oil Reservoir (Approx)......................2250 Gal
Motor-Main (2)..............................200 HP
Voltage.....................................4160 Volts
Approx Weight...............................1,200,000 lbs
Approx Overall Dimensions
R to L.................................534”
F to B.................................204”
Above Floor............................325”
EQUIPPED WITH:
(2) Moving bolster with R to L movement and F to B movement when out of press
10 T-Slots running R to L 30” deep right hand and left hand side of ram
Bolster furnished with 247 pressure pin holes for cushion
Press furnished with oilgear pumps and equipment
Press complete with gauges and electrical controls
CONDITION: Very Good to Excellent. Was Remanufactured in 1980. Last used as a rubber pad forming press in an aerospace plant. Well maintained press.
LOCATION: USA
