7000 lb. ALM #MHL2P, welding positioner, 3-Axis skyhook, 2021

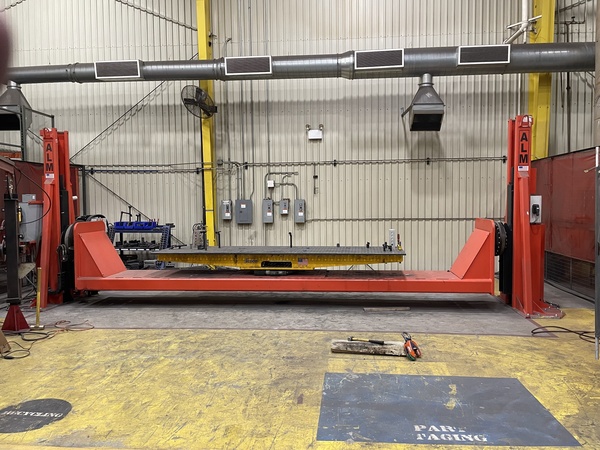

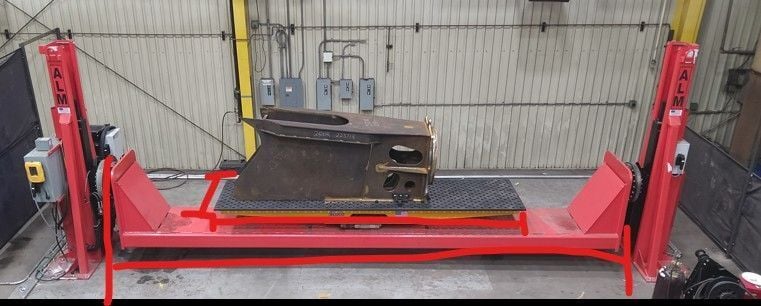

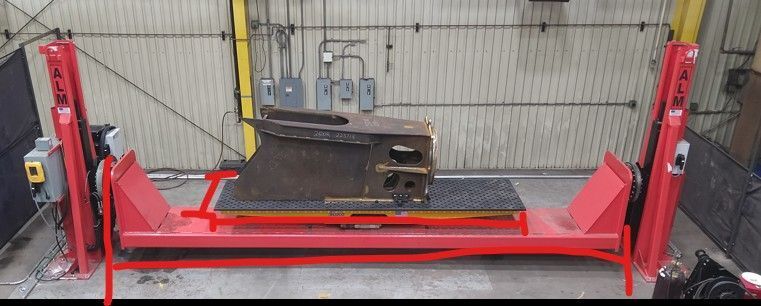

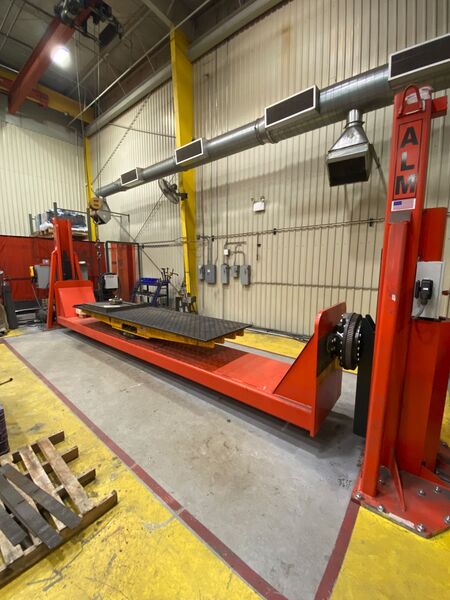

ALM MHL2P Welding Positioner, Featuring a 7,000 lb capacity with 3-axis Skyhook, hydraulically controlled elevation and rotation, HMI touch-screen, and wireless pendant.
7K Elevating Skyhook - PNP Control System
PLUG N PLAY (PNP) POSITIONER OVERVIEW
ALM Re-Deployable Positioners - one positioner for multiple solutions ranging from high mix / low
volume material handling, positional programmability up to complex automation for welding and
assembly.
7K Elevating Skyhook with PNP Automation Ready Controls Platform
PNP Controls Platform features modular design that allows easy integration with automated
equipment
Control panel architecture isolates high voltage from low voltage into separate compartments for
improved safety
HMI Screen provides detailed operating information, warnings, error messaging and diagnostic
troubleshooting
Motion is operator controlled via Wireless Pendant or HMI Touch-Screen
Touch-controls on HMI for motion, operating limits, and one touch leveling
Capability to provide solutions such as programmable one-touch positioning, automated tools and
robotics.
7,000LB Capacity Skyhook Positioner-Robot Ready*
*Non-programmable positioner for manual welding applications. The operator initiates positioner
motion via wireless pendant. This positioner is upgradeable for robotic applications via ethernet IP
from the robot controller or System Master Control PLC.
7,000 LBS 3 Axis Skyhook
Allows for 40" Part / Fixture Spin Radius

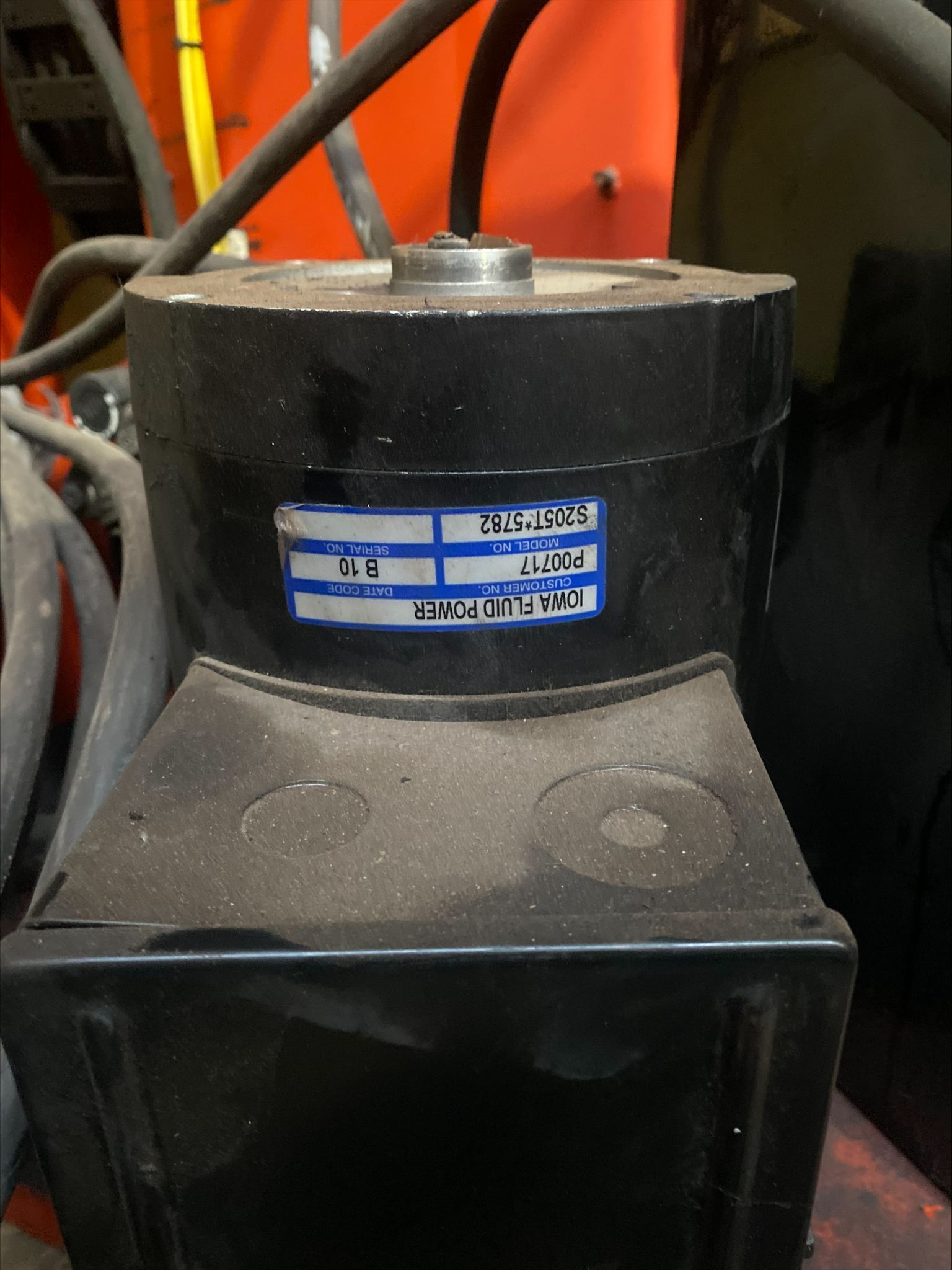

Hydraulically Controlled Elevation and Rotation
Axis 1- Lift- 68.5" of Upward Travel in 35 seconds
Gravity Down System
Axis 2- Tilt- 360 Rotation
17" Rotator with 133,600 in/lbs. of Torque
Variable Speed- 0.3 - 2.3 RPM
Includes Standard 4 Port Rotary Union on Rotator #1
Axis 3- Rotate-360 Rotation
17" Rotator with 133,600 in/lbs. of Torque
Variable Speed- 0.3 - 2.3 RPM
Electronic Operated Safety Pawl
48" x 55" Base Plate
480 Volt 3 Phase 40 Amp
Includes ALM Split Voltage Manual Control Platform:
The Operator initiates positioner motion via pendant for manual welding
Split High Voltage / Low Voltage Design
HMI Screen Panelview Performance 10"
ALM Patented Motion Control Software and Control Module
Wireless Pendant
I/O and Diagnostic Displays
Safety Ready
The capacity of this positioner is increased to 7,000 lbs. due the shortening the hook length to 40". This
allows for the reduction of the overhanging moment and increase in capacity
