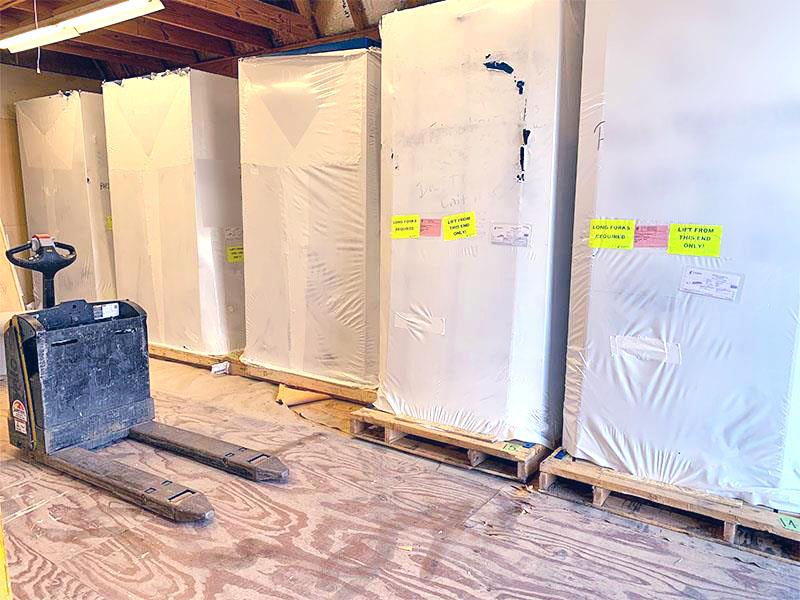

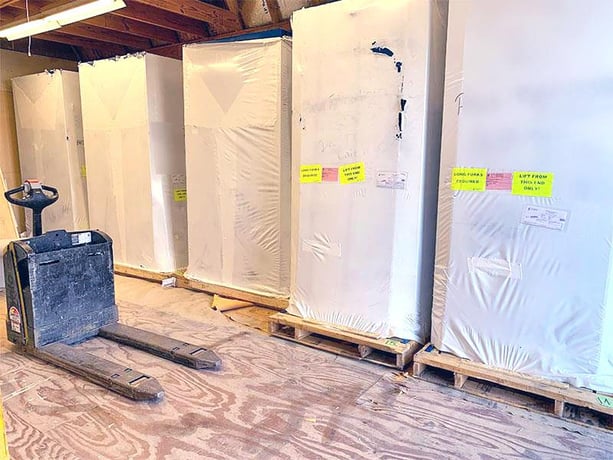

7000 cfm Donaldson / Torit #DWST6-5, cartridge dust collector, 10 HP motor, 2022

Estimated monthly payment valid upon approved credit.

Request Formal Quote

DONALDSON / TORIT DWST6-5 Cartridge Dust CollectorDownflo® WorkStations (DWST) fit anywhere on the plant floor and apply NO restrictions to worker movements or visibility. The full line of WorkStations are designed specifically for those in-plant areas where dirty and/or noisy operations are out in the open—grinding, sanding, chipping, batch mixing or welding. The DWST delivers exceptional performance in metalworking, woodworking, and process applications where high filtration efficiency and ledge less construction is often a requirement. Specifications: -- (5) Module System, each with 10 HP motor, 7,000 CFM. -- (4) Ultra-Web cartridges. -- Pulse-cleaning manifolds and ventures, (2) dust drawers. -- (1) Acoustical panel per module. Louvers mounted on lower section of unit.Includes: -- (1) IEC control panel includes 460-volt motor starters, circuit protection for each motor, transformer, programmable logic controller. -- Magnehelic gauge mounted in a panel door, start/stop buttons, and a through-the-door disconnect switch. -- Pulse cleaning can be continuous or after-shift. -- All components are IEC rated. The enclosure is rated Type 12. -- 1"; Compressed Air Regulator with Filter Separator and Gauge, Black Iron Fittings, and Black Iron Piping Required for Cleaning System. -- Provides a 1"; Common Connection Point for Design Shutters to Tie into with Existing Compressed Air System.
